Does this mobo support 9th generation Intel CPU's? I see that it says it was built to support the 8th gen

Yes, Intel changes their sockets every 2 generations. The LGA1151 socket supports both 8th and 9th gen intel processors.

Does this motherboard have a built-in soundcard? Might seem kinda dumb but i just wanted to know.

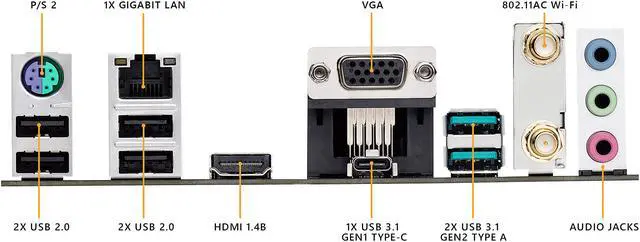

The picture that zooms in on the rear I/O connectors shows the three audio connectors.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to wish list(Found on 2 wish lists)

Get Educated

Make informed decisions with expert advice. Learn More

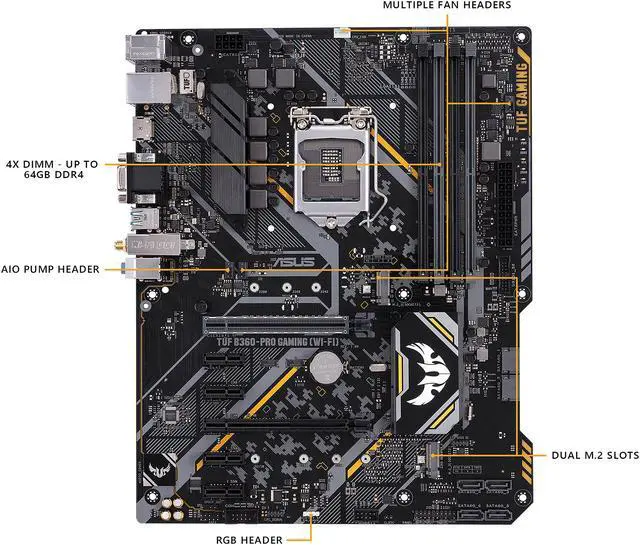

Main image of ASUS TUF B360-Pro Gaming (Wi-Fi) LGA1151 (300 Series) DDR4 HDMI VGA M.2 ATX Motherboard with 802.11 ac Wi-Fi

Alt view image 2 of 6 - ASUS TUF B360-Pro Gaming (Wi-Fi) LGA1151 (300 Series) DDR4 HDMI VGA M.2 ATX Motherboard with 802.11 ac Wi-Fi

Alt view image 3 of 6 - ASUS TUF B360-Pro Gaming (Wi-Fi) LGA1151 (300 Series) DDR4 HDMI VGA M.2 ATX Motherboard with 802.11 ac Wi-Fi

Alt view image 4 of 6 - ASUS TUF B360-Pro Gaming (Wi-Fi) LGA1151 (300 Series) DDR4 HDMI VGA M.2 ATX Motherboard with 802.11 ac Wi-Fi

Alt view image 5 of 6 - ASUS TUF B360-Pro Gaming (Wi-Fi) LGA1151 (300 Series) DDR4 HDMI VGA M.2 ATX Motherboard with 802.11 ac Wi-Fi

Alt view image 6 of 6 - ASUS TUF B360-Pro Gaming (Wi-Fi) LGA1151 (300 Series) DDR4 HDMI VGA M.2 ATX Motherboard with 802.11 ac Wi-Fi

Customer images

Shop All ASUS Products

ASUS TUF B360-Pro Gaming (Wi-Fi) LGA1151 (300 Series) DDR4 HDMI VGA M.2 ATX Motherboard with 802.11 ac Wi-Fi

(77)(5) Write a Review

Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with Dual M.2, Gigabit LAN and on-board Wi-Fi, USB 3.1 Gen2, and Intel Optane Memory compatibility

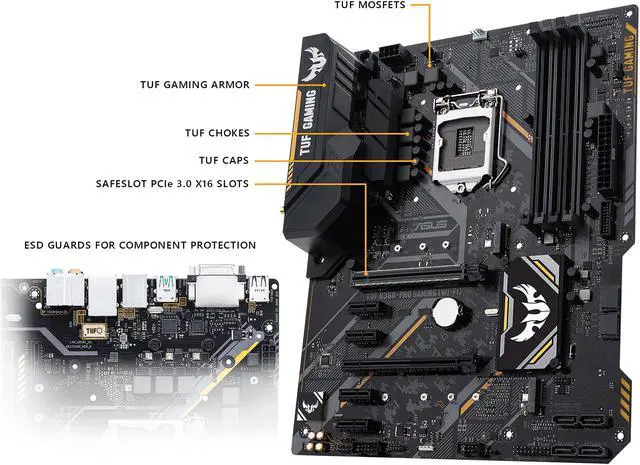

Military-grade TUF components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize system durability
Fan Xpert 4 Core provides advanced fan and liquid cooling controls for dynamic system cooling and management
Aura Sync RGB lighting with additional 4-pin RGB header features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products
Guaranteed reliability built on military-grade engineering

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (77)

See all Q & A

TUF B360-PRO GM(WI-FI)LGA1151 MAX64G ATX

Model
Brand	ASUS
Series	TUF
Model	B360-PRO GAMING (WI-FI)

Supported CPU
CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Intel Socket 1151 for 8th Generation Core / Pentium / Celeron Processors * Not backward compatible with older generation of LGA 1151 CPUs ** Refer to www.asus.com for Intel CPU support list
Supported CPU Technologies	Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Chipsets
Chipset	Intel B360

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024MB (for iGPU exclusively) Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2666/ 2400/ 2133 * DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors. ** Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCIe 3.0/2.0 x16 (x16 mode) 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
PCI Express x1	4 x PCIe 3.0/2.0 x1 slots

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s port(s), gray
M.2	1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x2 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode) The M.2_1 socket shares SATA_2 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
Intel Optane Ready	Yes

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

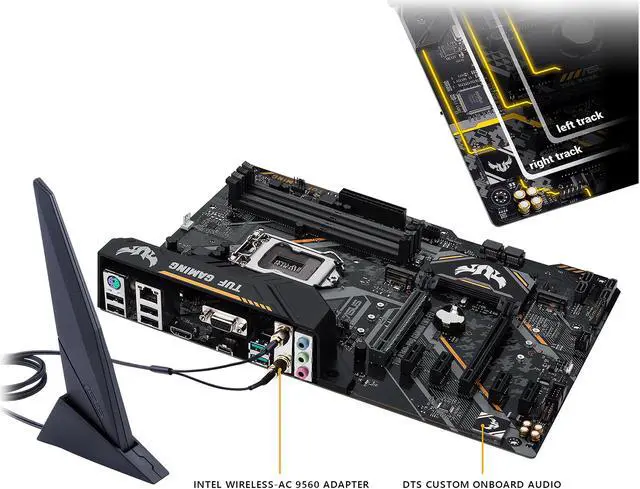

Wireless LAN	Wi-Fi 802.11 a/b/g/n/ac* Supports dual band frequency 2.4/5 GHz Supports MU-MIMO * Intel Wireless-AC 9560 supports HT20/HT40/HT80/HT160 channel bandwidth.
Bluetooth	Bluetooth V5.0

Rear Panel Ports
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 1 x 5Gb/s port(s) USB Type-C 2 x USB 3.1 Gen 2 (teal blue) Type-A 4 x USB 2.0 3 x Audio jack(s) 2 x Wi-Fi antenna port(s)
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x D-sub port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.1	2 x USB 3.1 Gen 2 ports (Type-A) 1 x USB 3.1 Gen 1 Type-C port
USB 1.1/2.0	4 x USB 2.0
Audio Ports	8-channel Audio I/O ports

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors	1 x Aura RGB Strip Header 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 2 x Chassis Fan connector(s) (2 x 4-pin) 1 x AIO_PUMP connector 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s)

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s)

Features
Features	Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology Special Features: ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS DIGI + VRM: 4+2+1 Phase digital power design ASUS EPU: - EPU TUF ENGINE! Power Design: - TUF Components (Choke, Cap. & MOSFET; certified by military-standard) AURA: - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features: - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 4 Core ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode CPU Installation Tool - Three-step simplicity and safety ASUS Q-Design: - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability: WfM 2.0, DMI 3.0, WOL by PME, PXE Support Disc: Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) Operating System: Windows 10 64-bit

Packaging
Package Contents	Accessories: User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x CPU installation tool 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant) 1 x TUF Gaming Sticker 1 x TUF Certification card(s)
