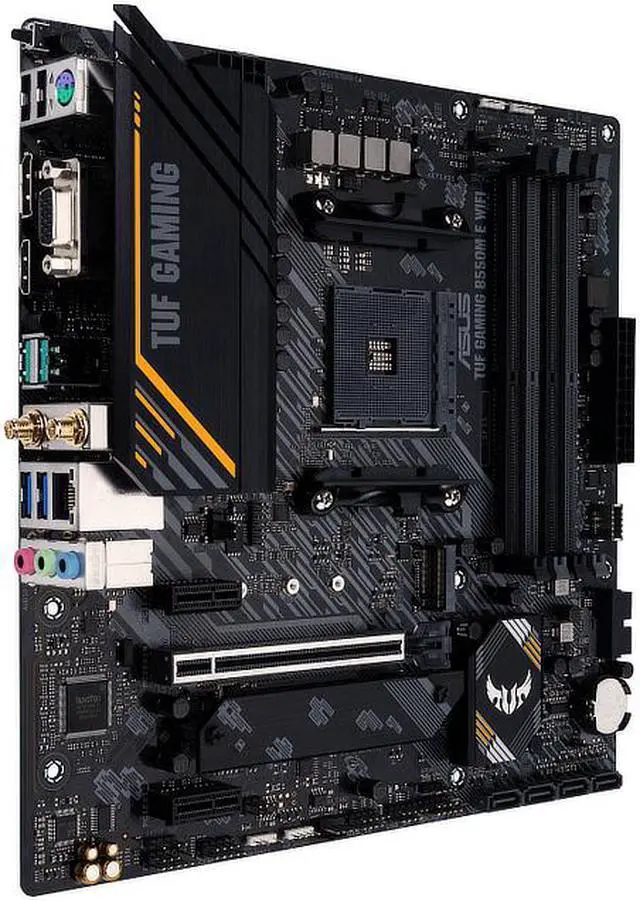

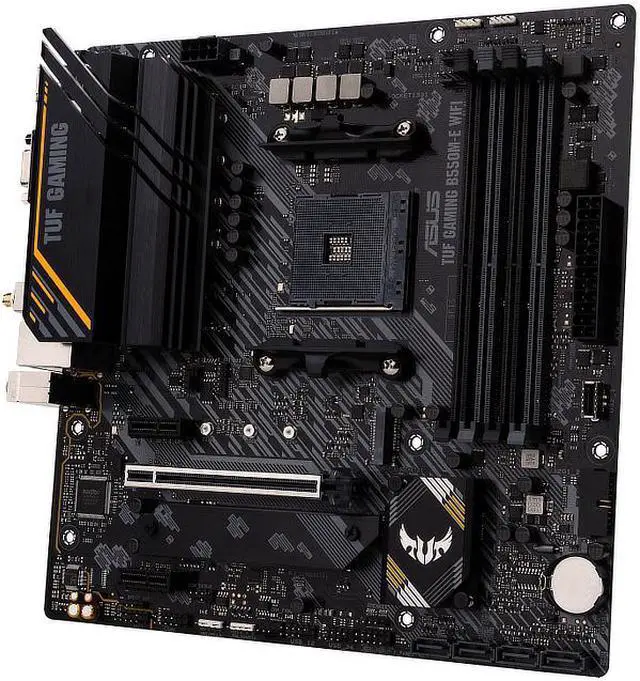

ASUS TUF GAMING B550M-E WIFI Socket AM4 AMD B550 DDR4 Micro ATX Motherboard (90MB17T0-M0EAY0)
- Socket AM4
- AMD B550
- Micro ATX
- DDR4
- 128 GB
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Internal IO
- Number of M.2 (M) slots: 2
- 12V power connector: Yes
- Supported storage drive interfaces: M.2,PCI Express 3.0,SATA III
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- TPM connector: Yes
- SPDIF out connector: Yes
- Number of SATA III connectors: 4
- Number of COM connectors: 1
- Number of chassis fan connectors: 2
- Front panel audio connector: Yes
- EPS power connector (8-pin): Yes
- CPU fan connector: Yes
- ATX Power connector (24-pin): Yes
- RGB LED pin header: Yes
- Motherboard chipset family: AMD
- Motherboard chipset: AMD B550
- Supported processor sockets: Socket AM4
- Parallel processing technology support: Not supported
- HDMI version: 2.1
- Motherboard form factor: micro ATX
- Component for: PC
- Audio output channels: 7.1 channels
- Supported storage drive types: HDD & SSD
- Windows operating systems supported: Windows 10 x64
- Motherboard chipset family: AMD
- Motherboard chipset: AMD B550
- RAID levels: 0,1,10
- Supported processor sockets: Socket AM4
- Audio output channels: 7.1 channels
- Motherboard form factor: micro ATX
- Component for: PC
- Processor manufacturer: AMD
- Compatible processor series: AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, 3rd Generation AMD Ryzen 9, AMD Ryzen 9 5th Gen
- Supported processor sockets: Socket AM4
- Processor socket: Socket AM4
- Number of memory slots: 4
- Memory slots type: DIMM
- Supported memory types: DDR4-SDRAM
- Memory channels: Dual-channel
- ECC: Yes
- Supported memory clock speeds: 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4100,4133,4200,4266,4333,4400,4466,4600,4800 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2,PCI Express 3.0,SATA III
- RAID levels: 0,1,10
- Number of storage drives supported: 6
- Parallel processing technology support: Not supported
- Maximum resolution: 3840 x 2160 pixels
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- DisplayPort version: 1.2
- USB connector type: USB Type-A
- USB 2.0 ports quantity: 2
- WiFi-AP antenna jack: 1
- VGA (D-Sub) ports quantity: 1
- PS2 ports quantity: 1
- Microphone in: Yes
- Headphone outputs: 3
- HDMI version: 2.1
- HDMI ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- DisplayPorts quantity: 1
- Ethernet LAN: Yes
- Wi-Fi: Yes
- Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
- Wake-on-LAN ready: Yes
- Ethernet interface type: Gigabit Ethernet
- Bluetooth: Yes
- Bluetooth version: 5.1
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- WLAN controller model: Intel Wi-Fi 6 AX200
- Windows operating systems supported: Windows 10 x64
- Motherboard chipset family: AMD
- Motherboard chipset: AMD B550
- Supported processor sockets: Socket AM4
- Audio output channels: 7.1 channels
- Motherboard form factor: micro ATX
- Component for: PC
- Audio chip: Realtek ALC887 Realtek ALC897
- Number of M.2 (M) slots: 2
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- BIOS type: UEFI AMI
- Clear CMOS jumper: Yes
- BIOS memory size: 256 Mbit
