Question 1

Should I be installing M.2 SSD drives with or without heatsinks?

Accepted Answer

If the drive doesn't come with a heatsink, use the motherboard's. If it comes with a heatsink, you'll want to use whichever heatsink is better - usually the one with more mass.

Question 2

Can I connect multiple M.2 drives to this motherboard?

Accepted Answer

I have 3 M.2 drives installed; It supports up to 4 but I left 2.2 open because M 2.2 would decrease lanes on the GPU.

Question 3

What kind of lane sharing does this board have?

Accepted Answer

The ASUS TUF GAMING X870E-PLUS WIFI7 uses a mix of lane sharing and dedicated connections for its expansion slots. The primary lane sharing occurs between the top PCIe 5.0 x16 slot for the graphics card and one of the M.2 slots.
Here is a breakdown of the lane sharing on this motherboard:
Primary GPU and M.2_2 slot: The main PCIe 5.0 x16 slot for your graphics card shares bandwidth with the M.2_2 slot. If you use a device in the M.2_2 slot, the PCIe x16 slot will automatically drop to x8 mode to accommodate it.
Bottom PCIe and M.2_4 slot: The bottom PCIe 4.0 x16 slot shares bandwidth with the M.2_4 slot. If the M.2_4 slot is populated, the PCIe slot will be disabled.
Dedicated connections:
The primary M.2_1 slot is directly wired to the CPU, ensuring that it operates at a full PCIe 5.0 x4 bandwidth without sharing lanes with other slots.
The M.2_3 slot also runs independently off the chipset, avoiding lane sharing with the main graphics card slot.

Question 4

Does the Asus TUF GAMING X870E-PLUS WIFI7 motherboard come with Wi-Fi capability?

Accepted Answer

Yes, the ASUS TUF GAMING X870E-PLUS WIFI7 motherboard has Wi-Fi 7 capability.

Question 5

What kind of memory does this motherboard support and what is the maximum capacity?

Accepted Answer

This motherboard supports DDR5 memory with a maximum capacity of 256GB.

Question 6

What kind of cooling solutions does this motherboard offer?

Accepted Answer

The motherboard offers comprehensive cooling solutions, including an enlarged VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 4 with AI Cooling II.

Question 7

Does this motherboard provide good connectivity options?

Accepted Answer

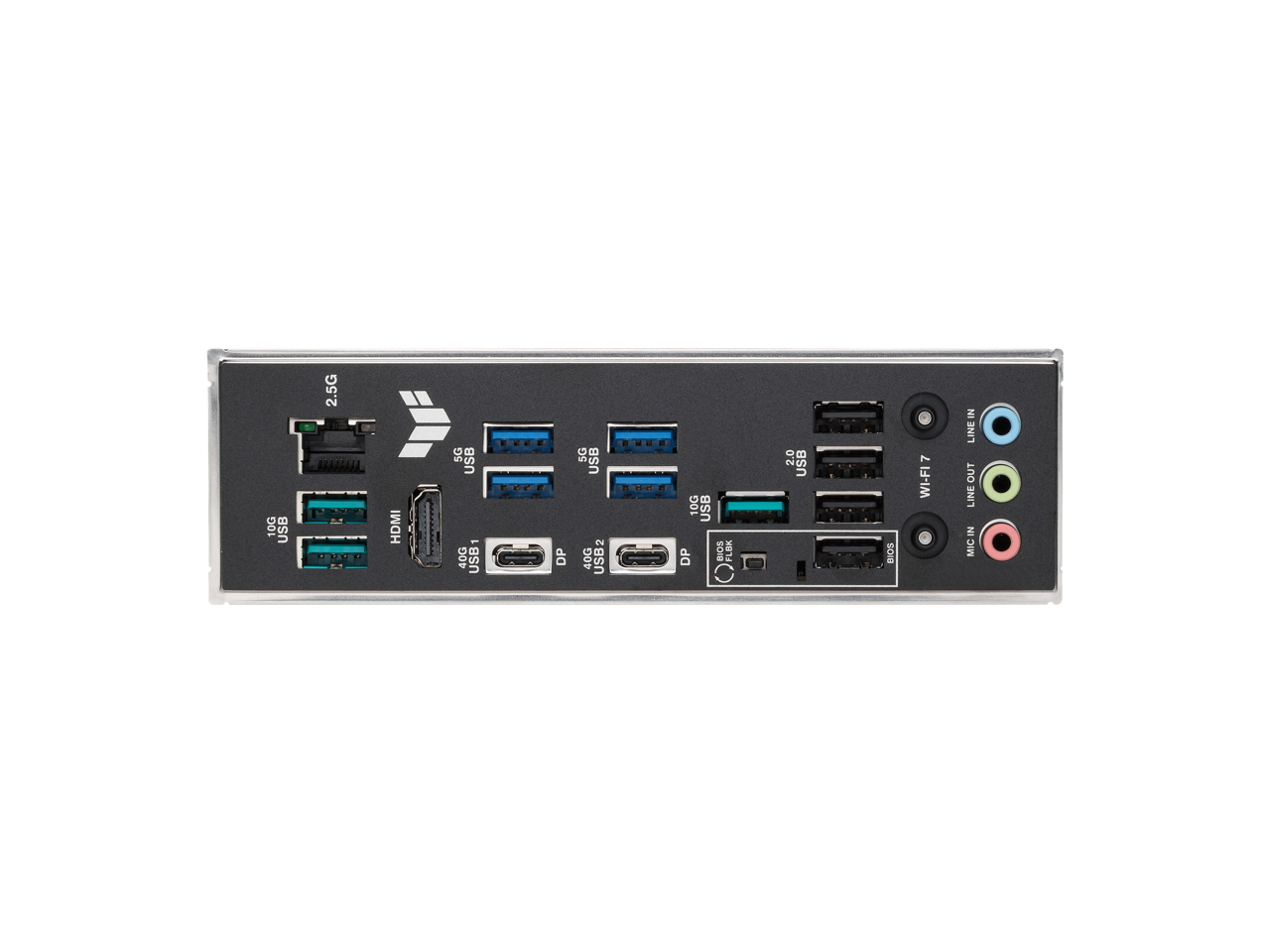

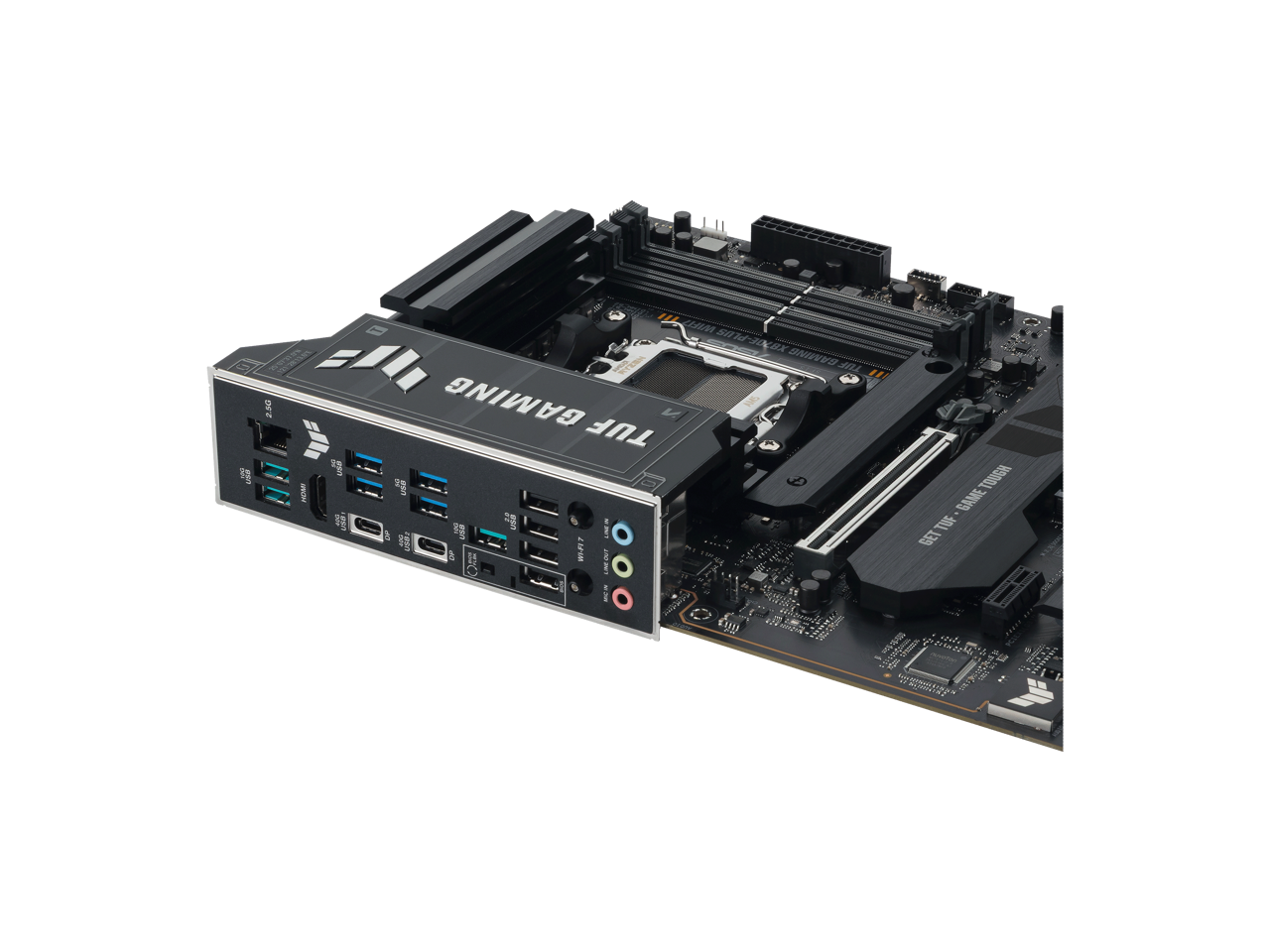

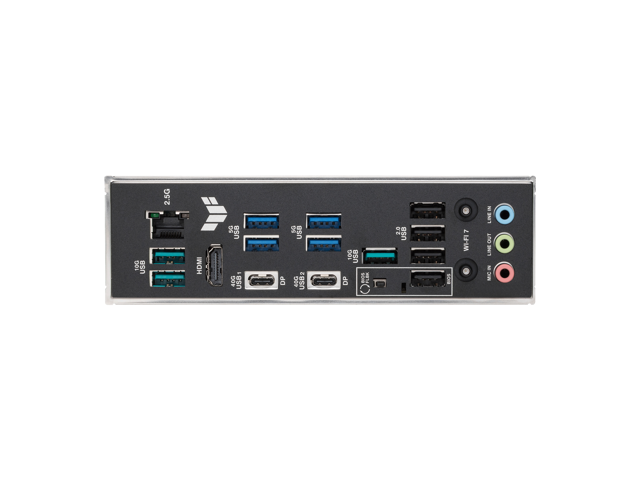

Yes, this motherboard provides excellent connectivity options, including Wi-Fi 7, PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, rear two USB4 (40Gbps) Type-C ports, and a front USB 20Gbps Type-C connector.

Question 8

Can this motherboard support the latest AMD Ryzen 9000 series processors?

Accepted Answer

Yes, this motherboard supports the AMD Ryzen 9000 series processors.

Question 9

This board has 2 8 pin sockets for the 12V but will it run properly with only 1 provided the PSU has the watts needed to run it?

Accepted Answer

From one Bill to another, most PSU mfrs say one CPU connection should be fine unless you plan to OC. Hope this helps.
