Does this board also support i7 Gen series? is it backward compatible ?

I bought this motherboard 8 months ago and it's great. I do competitive overclocking and benchmarking and ended up breaking 3 world records. That said, this motherboard will only support the high end X-series CPUs (not the regular lineup of processors). There is one i5-X and four i7-X (plus a few i9-X of course).

I just bought this X299 board, as well as Corsair H105 CPU Water Cooler. To what header should the H105's pump connect - AIO Pump? CPU Fan? CPU Opt?

does it have its own power connector? in this case to any. if not then use pump or CPU

It says in the product name "for Intel Core i9 and i7 X-Series Processors". Does this mean the motherboard is NOT compatible with the i5-7640X CPU?

It says that it supports all Intel X-Series Processors (Including the i5-7640X) in the description

Does ASUS provide drivers for windows 7 on their X299 motherboards?

Yes. Go to the manufacturer product page, select Support (top right), Drivers & Downloads (middle left), then choose your OS. They list Windows 7, 8.1, and 10 drivers.

Does this motherboard support USB-C connection from the chassis front I/O? The cable for it obviously is different than the USB 3.1 cables and I can't find where it goes..

It doesn't have a connector for that, so you'd have to use an adapter.

Will this motherboard fit a Noctua NH-D15 as well as a 1080ti? Also, will I run into trouble with the height of my RAM? Thanks!

Yes. I'm running this MB with a NH-D15, and an EVGA GeForce GTX 1080 Ti SC Black Edition. It's tight, but everything fits. You *might* have trouble w/RAM height. I didn't, w/G.Skill TridentZ (N82E16820232296). Just make sure you don't get super-tall RAM.

Can I return it if it comes faulty?

Hello, Thank you for contacting us in regards to your question. With any items received defective, please contact our customer service team at 800-390-1119 so we can better assist you in replacing or refunding the item. Thank you, Newegg Support

$265^.18

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by roboshine

Top Rated

4.5 (152 seller ratings)

Shipped by roboshine

Best Sellers

KeyComponents

Hot Seller

4.1 (424 total ratings)

$270^.00
+ $3.69 Shipping

Meet Your Seller

roboshine

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

Main image of ASUS TUF X299 MARK 2 LGA2066 DDR4 M.2 USB 3.1 X299 ATX Motherboard for Intel Core i9 and i7 X-Series Processors

Alt view image 2 of 6 - ASUS TUF X299 MARK 2 LGA2066 DDR4 M.2 USB 3.1 X299 ATX Motherboard for Intel Core i9 and i7 X-Series Processors

Alt view image 3 of 6 - ASUS TUF X299 MARK 2 LGA2066 DDR4 M.2 USB 3.1 X299 ATX Motherboard for Intel Core i9 and i7 X-Series Processors

Alt view image 4 of 6 - ASUS TUF X299 MARK 2 LGA2066 DDR4 M.2 USB 3.1 X299 ATX Motherboard for Intel Core i9 and i7 X-Series Processors

Alt view image 5 of 6 - ASUS TUF X299 MARK 2 LGA2066 DDR4 M.2 USB 3.1 X299 ATX Motherboard for Intel Core i9 and i7 X-Series Processors

Alt view image 6 of 6 - ASUS TUF X299 MARK 2 LGA2066 DDR4 M.2 USB 3.1 X299 ATX Motherboard for Intel Core i9 and i7 X-Series Processors

Customer images

Shop All ASUS Products | Visit Roboshine Store

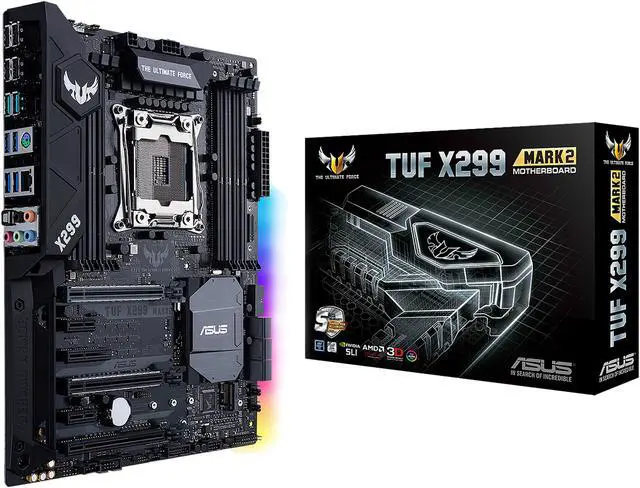

ASUS TUF X299 MARK 2 LGA2066 DDR4 M.2 USB 3.1 X299 ATX Motherboard for Intel Core i9 and i7 X-Series Processors

(127)(13) Write a Review

Option: TUF X299 Mark 2

Prime X299-A
Prime X299-A II
Prime X299-Deluxe
Prime X299-Deluxe II
Prime X299 Edition 30
ROG RAMPAGE VI EXTRME OMEGA
ROG Strix X299-E Gaming
ROG Strix X299-E Gaming II
TUF X299 Mark 1
TUF X299 Mark 2
WS X299 PRO
WS X299 PRO/SE
WS X299 SAGE

Designed for 7th generation LGA2066 socket Intel Core X-Series processors to maximize connectivity and speed with dual M.2, rear panel USB 3.1 Type-C connection, Intel VROC and Intel Optane Memory compatibility
Ultimate Protection with Thermal Radar 3 for customizable total system cooling and stability during overclocking

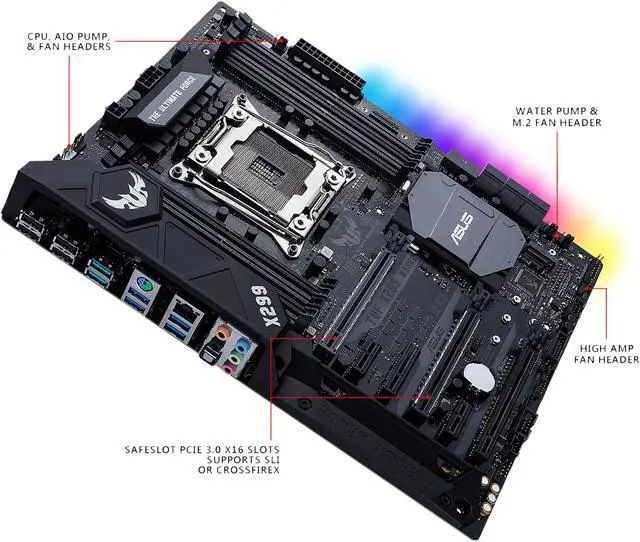

SafeSlots featuring an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
5-Year Warranty for guaranteed reliability and durability built on military-grade engineering
AURA Sync RGB Lighting features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of AURA Sync enabled products

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (127)

Any questions? Our AI beta will help you find out quickly.

Try me now

:?
. - OC Design - PRO Clock Technology
. - 7 +1 Digital Phase Power Design
. - TUF Components
. - TUF Thermal Armor
. - Thermal Radar 3
. - TUF ESD Guards 2
. - TUF LANGuard
. - Aura Lighting Control
. - Aura Lighting Effects Synchronization
. - MemOK!
. - AI Suite 3
. - Ai Charger
. - Turbo LAN File Transfer
. - Cloud GO!
. - EZ Flash 3
. - UEFI BIOS EZ Mode
. - Multi-Language BIOS
. - Q-Shield
. - Q-LED
. - Q-Slot
. - Q-DIMM
. - Q-Connector

|BIOS:?
. - 128 MB Flash ROM?
. - UEFI AMI BIOS?
. - PnP
. - DMI3.0
. - WfM2.0
. - SM BIOS 3.0
. - ACPI 6.0?
. - Multi-Language BIOS?
. - F11 EZ Tuning Wizrd
. - F3 My Favorites
. - Last Modified Log
. - F12 PrintScreen
. - DRAM SPD Memory Information
. - F6 Qfan Control
|Manageability:
. - WfM 2.0
. - DMI 3.0
. - WOL by PME, PXE
|Support Disc:
. - Drivers
. - ASUS Utilities
. - EZ Update
. - Anti-Virus Software
|Operating System Support:
. - Windows 10 (64bit)
|SKU: TUF X299 MARK 2

. .

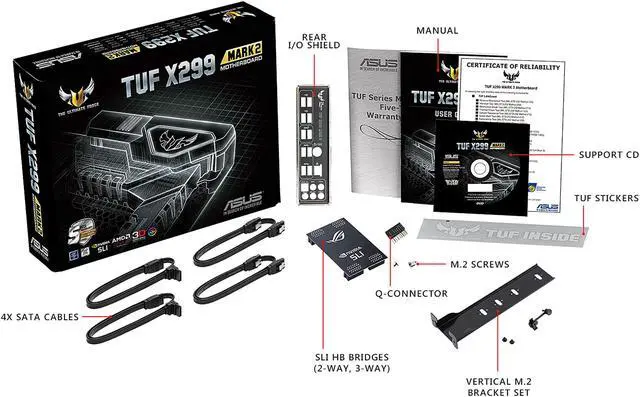

Includes:?

|User's Manual
|ASUS Q-Shield
|1 x Vertical M.2 Bracket Set
|4 x SATA 6Gb/s Cables
|2 x M.2 Screw Package
|1 x Supporting DVD
|1 x SLI HB BRIDGE(2-WAY-M)
|1 x Q-Connector
|1 x TUF Certification Card
. .

Model
Brand	ASUS
Series	TUF
Model	X299 Mark 2

Supported CPU
CPU Socket Type	LGA 2066
CPU Type	Core X series (LGA2066)
Supported CPU Technologies	The Intel Turbo Boost Max Technology 3.0 support depends on the CPU types

Chipsets
Chipset	Intel X299

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	Core X-series Processors (6-core above): 8 x 288pin Core X-series Processors (4-core): 4 x 288pin
Memory Standard	DDR4 4000(O.C.)/ 3600(O.C.)/ 2666/ 2400/ 2133 * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported	Core X-series Processors (6-core above): 128GB Core X-series Processors (4-core): 64GB

Expansion Slots
PCI Express 3.0 x16	44-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 28-Lane CPU- 3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4) 16-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1)
PCI Express x4	2 x PCIe 3.0 x4 (max at x4 mode) 1 1. PCIEX4_1 max. at x1 mode, PCIEX4_2 max. at x4 mode

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC S1220A
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

Rear Panel Ports
RJ45	1 x RJ45
USB 3.1	2 x USB 3.1 Gen 2 Type-A 4 x USB 3.1 Gen 1
USB 1.1/2.0	4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
S/PDIF Out	1 x Optical
Audio Ports	5 Ports

Internal I/O Connectors
Onboard USB	2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors	1 x AAFP connector 1 x COM port(s) connector(s) 1 x M.2_FAN connector () 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x Thunderbolt header(s) 1 x System panel(s) (Q-Connector) 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x CPU_OV jumper

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s)

Features
Features	Multi-GPU Support: Supports NVIDIA Quad-GPU SLI Technology Supports NVIDIA 3-Way SLI Technology Supports NVIDIA 2-Way SLI Technology Supports AMD Quad-GPU CrossFireX Technology Supports AMD 3-Way CrossFireX Technology Special Features: OC Design - ASUS PRO Clock Technology TUF Features: TUF ENGINE! Power Design: - 7 +1 Digital Phase Power Design - TUF Components (Choke, Cap. & MOSFET; certified by military-standard) Ultimate COOL! Thermal Solution: - TUF Thermal Armor Thermal Radar 3 Safe & Stable! Guardian Angel: - TUF ESD Guards 2 - TUF LANGuard AURA: - Aura Lighting Control - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features: - MemOK! - AI Suite 3 - Ai Charger - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN ASUS EZ DIY: - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design: - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds) BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability: WfM 2.0, DMI 3.0, WOL by PME, PXE Support Disc: Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) Operating System: Windows 10 64-bit

Packaging
Package Contents	Accessories: User's manual ASUS Q-Shield 1 x Vertical M.2 bracket set 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-Connector 1 x TUF Certification card(s) 1 x TUF 5 Year Warranty manual(s) (by region) 1 x TUF Inside sticker(s)(white)
