Can I bypass my PC sound card and plug my pc speakers into this instead? In other words replace my internal sound card with this and use my existing speakers?

Yes you can. That's what this gadget is for.

Hello, Thank you for contacting us in regards to your question. It seems that this item is still out of stock from Newegg's warehouse. However you may check other 3rd party marketplace vendors. Like item # 9SIA4RE8ZH4371 Thank you, Newegg Support

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List

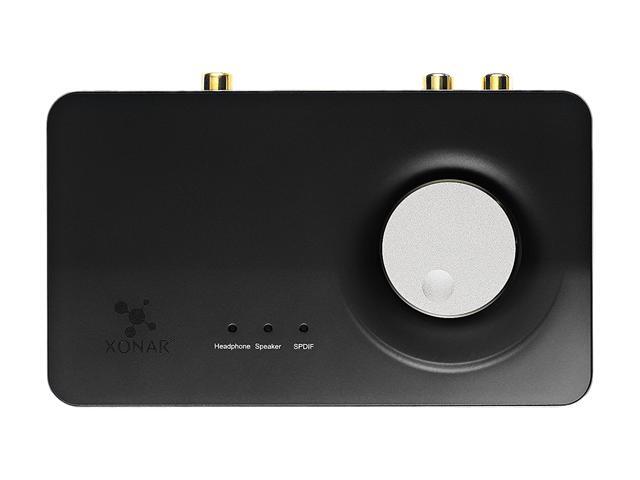

Main image of ASUS Xonar U7 MKII 7.1 USB DAC with Headphone Amplifier

Alt view image 2 of 4 - ASUS Xonar U7 MKII 7.1 USB DAC with Headphone Amplifier

Alt view image 3 of 4 - ASUS Xonar U7 MKII 7.1 USB DAC with Headphone Amplifier

Alt view image 4 of 4 - ASUS Xonar U7 MKII 7.1 USB DAC with Headphone Amplifier

Shop All ASUS Products

ASUS Xonar U7 MKII 7.1 USB DAC with Headphone Amplifier

(2) Write a Review

7.1 Channels
24-bit Analog Playback Sample Rate and Resolution: 44.1K / 48K / 88.2K / 96K / 176.4K / 192 KHz at 16bit / 24bit
Analog Recording Sample Rate and Resolution: 44.1K / 48K / 88.2K / 96K / 176.4K / 192 KHz at 16bit / 24bit
S/PDIF Digital Output: 44.1K / 48K / 88.2K / 96K / 176.4K / 192 KHz at 16bit / 24bit
USB 2.0 high-speed / USB 1.0 for playback Interface

Overview

Specs

Reviews (2)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	Xonar U7 MKII
Part	90YB00KB-M0UC00

Audio core
Audio Chipset	C-Media USB2.0 6632AX High-Definition Sound Processor (Max. 192 KHz/24bit)
Channels	7.1
Sample Rate	Analog Playback Sample Rate and Resolution: 44.1K / 48K / 88.2K / 96K / 176.4K / 192 KHz at 16bit / 24bit Analog Recording Sample Rate and Resolution: 44.1K / 48K / 88.2K / 96K / 176.4K / 192 KHz at 16bit / 24bit S/PDIF Digital Output: 44.1K / 48K / 88.2K / 96K / 176.4K / 192 KHz at 16bit / 24bit
Digital Audio	24-bit
SNR	Output Signal-to-Noise Ratio (A-Weighted) (Front-out): 114dB Input Signal-to-Noise Ratio (A-Weighted): 110dB Output THD+N at 1 KHz (Front-out): > 0.0006 % (104dB)

Ports
Line In	1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)
Line Out	4 x 3.5 mm jack (1/8") (Headphone out / Side out / Center-Subwoofer out / Rear out) 2 x RCA (Un-Balanced)
SPDIF Out	1 x S/PDIF out (1 x Coaxial)
MIC In	Yes

Details
Interface	USB 2.0 high-speed / USB 1.0 for playback
Operating Systems Supported	Windows 10 Windows 8.1 Windows 7 Mac OS X

Features
Features	Sonic Studio True 7.1-channel, 192kHz/24-bit HD surround sound with a 114dB SNR from a compact, USB-powered device Integrated headphone amplifier boosts sound and reveals musical details Dedicated headphone and mic volume controls enable instant audio adjustments for better gaming and media streaming experiences Clickable volume control knob for convenient switching between headphone and speaker output Sonic Studio software suite with intuitive, single-screen interface and Sonic Radar Pro for mapping opponent locations in first-person shooters Enjoy stunningly detailed audio with this plug-and-play USB sound card Powerful sound from a compact and portable device 114dB signal-to-noise ratio (SNR) Hyper Grounding technology Digital to analog converter (DAC) Integrated headphone amplifier pumps up every sound detail Designed for gaming and media streaming Dedicated headphone and mic volume controls Fast and easy switching between headphone and speaker output Plug-and-play USB convenience Total Audio Control Take full audio control with Sonic Studio Gain the gaming edge with Sonic Radar Pro! Works perfectly with Windows 10

Dimensions & Weight
Dimensions	0.98" x 3.15" x 5.12"
Weight	1.41 lbs.

Additional Information
First Listed on Newegg	May 03, 2017

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
