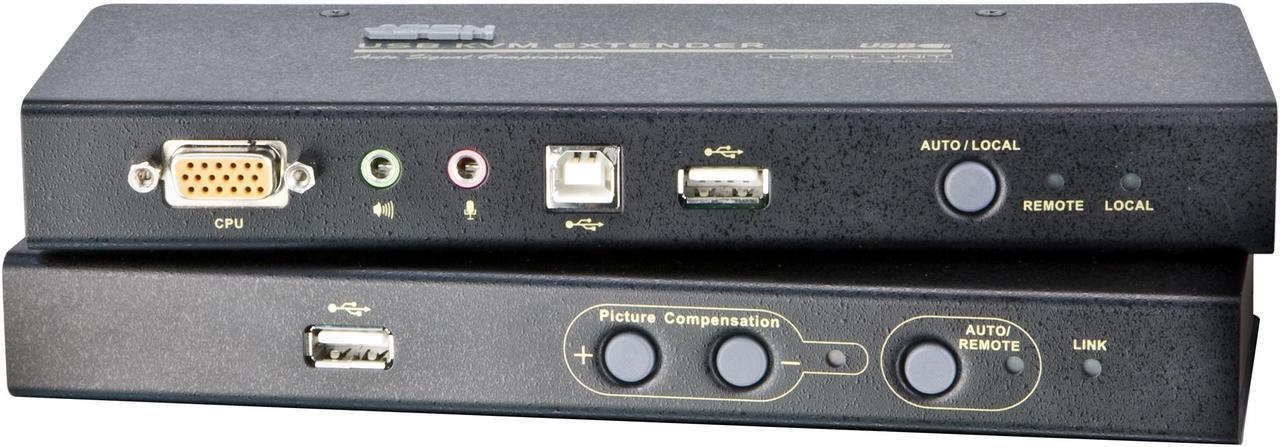

Main image of ATEN Cat5 USB Console Extender with Audio and USB Peripheral Support up to 850ft.

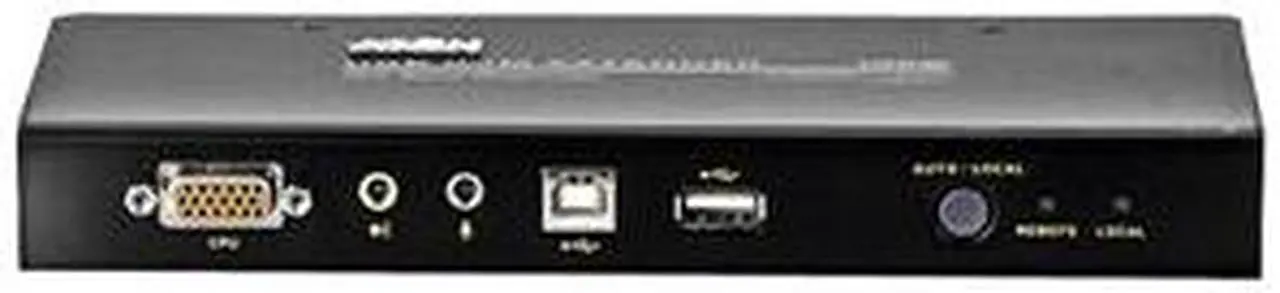

Alt view image 2 of 2 - ATEN Cat5 USB Console Extender with Audio and USB Peripheral Support up to 850ft.

Shop All ATEN Products

ATEN Cat5 USB Console Extender with Audio and USB Peripheral Support up to 850ft.

Be the first to review this product...

1 Port
Video Resolution 1600 x 1200@60 Hz, 500 ft;
1024 x 768@60Hz, 825 ft.

Overview

Specs

Reviews

The CE800B KVM console extender allows access to a computer or USB KVM from a remote console from up to 820ft. away. This extender is unique in that it not only supports Audio, but both units also support external USB mass storage compliant devices. Cat 5 (or higher) cable to connect the local and remote Units.

Model
Brand	ATEN
Model	CE800B

Details
Type	D-Sub, USB
Console Connectors	USB, Mini Stereo Jack
Computer Connections	1 Port
Monitor Connections	1 Port
Video Resolution	1600 x 1200@60 Hz, 500 ft; 1024 x 768@60Hz, 825 ft.

Environmental
Temperature	Operation Temperature: 32 ~ 122 F Storage Temperature: -4 ~ 140 F
Humidity	0 ~ 80% RH

Features
Power Features	Amps: 700 mA Local 1A remote Voltage: 5.3 VDC Power Consumption: 3.5 W / 12 BTU/h Local 5.1 W / 17.4 BTU/h Remote
Features	Cat 5e cable to connect the Local and Remote Units - up to 250 m (825 ft) apart Dual console operation - control your system(s) from both the local and remote consoles Pushbutton selection of the active console Built-in USB port on both units supports external USB Mass Storage compliant flash drives for easy file sharing Special security feature requires login when mounting an external USB storage device on the remote unit Supports VGA, SVGA, and multisync monitors: local monitor supports DDC; DDC2; DDC2B High resolution video - up to 1600 x 1200 @ 60 Hz Built-in 8KV / 15KV ESD protection and 2KV surge protection Adjustable gain control - manually adjusts signal strength to compensate for distance Supports stereo speakers and stereo microphone Supports Microsoft Intellimouse and the scrolling wheel on most mice Upgradable firmware Built-in ASIC for greater reliability and compatibility

Dimensions & Weight
Dimensions	13" x 8.3" x 3.8"
Weight	4.85 lbs.

Package Contents
Package Contents	1 x CE800L (local) 1 x CE800R (Remote) 1 x Custom KVM Cable 1 x F/W Upgrade Cable 2 x Grounding cables 2 x Power Adapter

Additional Information
Date First Available	June 02, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.

ATEN Cat5 USB Console Extender with Audio and USB Peripheral Support up to 850ft.
