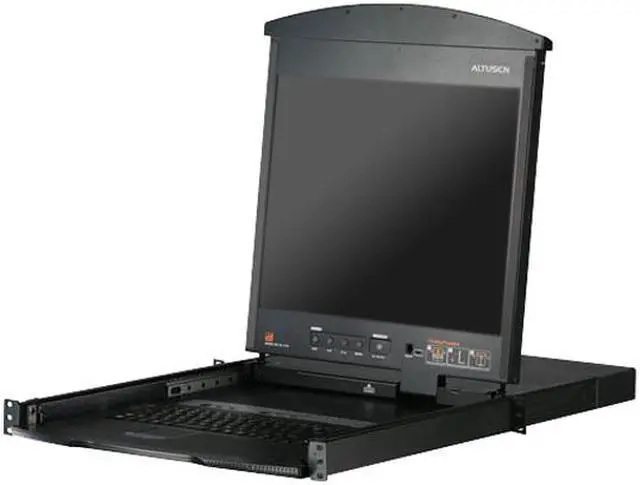

8PORT CAT5 DUAL RAIL KVM SWITCH 1U RM W/ 19IN LCD
Learn more about the ATEN KL1508AN
Model
Brand
ATEN
Model
KL1508AN
Details
Type
D-Sub, PS/2
PC Connectors
Keyboard, Mouse, and Monitor: 8 x RJ45 Female Flash ROM Upgrade: 1 x RJ11 Female
Console Connectors
Mouse: 1 x 6-pin Mini-DIN Female (Secondary Console Port) Keyboard: 1 x 6-pin Mini-DIN Female (Secondary Console Port) Monitor: 1 x VGA (HDDB-15) Female (Secondary)
Computer Connections
8 Ports
Monitor Connections
1 Port
Video Resolution
1280 x 1024
PC Selection
Push Buttons/Hot Keys/OSD
LED Indicators
Power On: 1 (Blue) On Line: 8 (Green) Station ID: 2 x 7-segment (Orange) Port ID: 2 x 7-segment (Orange) LCD Power: 1 (Orange)
Environmental
Temperature
32~104 F (0~40 C)
Humidity
0~80% RH, Non-condensing
Features
Features
KVM console with 19" LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high rack
RJ-45 connectors and Cat 5 cable – extends the distance between computers and switch up to 40m (130') for resolutions of 1280 x 1024 @60Hz
Dual Rail operation – LCD monitor slides independently of the keyboard/ touchpad
A dedicated console port for management from an external console – plus an extra PS/2 mouse port for external mouse use with the integrated LCD console
KVM adapter cables with automatic conversion allow flexible interface combinations. PCs, Macs, Sun computers, and serial devices can all coexist on the installation
A single console controls up to 8 directly connected computers – daisy chain up to 31 additional units to control up to 256 computers
No software required – convenient computer selection via port selection switches, Hotkeys and intuitive On Screen Display (OSD) menus
Console lock enables the sliding console to remain securely locked away when not in use
OSD screen automatically adjusts to resolution changes – OSD tree structure makes finding and managing computers easy
Quickly and conveniently switch to any computer with station and port selection switches LED displays indicate the station and port location
Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
Auto Scan feature for monitoring user-selected computers
Two level password security – only authorized users view and control the computers – up to four users plus an administrator with separate profiles for each
Broadcast support – commands from the keyboard can be broadcast to all available computers on the installation
Dedicated keys to invoke Hotkey Mode and the OSD from the keyboard for quick access to these functions
Dimensions & Weight
Dimensions
29.9" x 19" x 1.7"
Weight
40.7 lbs
Package Contents
Package Contents
1 x KL1508N, 19" LCD 8-port CAT5 KVM 1 x Firmware Upgrade Cable 1 x Power Code 1 x User Manaul 1 x Quick Start Guide
