Athena Power AP-MP4ATX55FEP8 550 W Micro ATX SLI Ready CrossFire Ready 80 PLUS Certified Active PFC Power Supply

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (13)

Any questions? Our AI mode will help you find out quickly.

Try me now

Learn more about the Athena Power AP-MP4ATX55FEP8

General
Brand	Athena Power
Model	AP-MP4ATX55FEP8

Details
Type	Micro ATX
Maximum Power	550 W
Fans	2
PFC	Active
Main Connector	20+4Pin
+12V Rails	4
SLI	SLI Ready
CrossFire	CrossFire Ready
Energy-Efficient	80 PLUS Certified
Over Voltage Protection	Yes
Input Voltage	115 / 230 V
Input Frequency Range	50/60 Hz

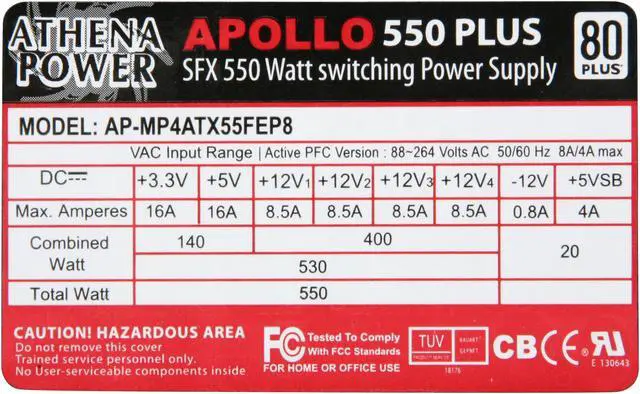

Output	+3.3V@16A, +5V@16A, [email protected], [email protected], [email protected], [email protected], [email protected], [email protected]
MTBF	>100,000 Hours
Approvals	UL, CB & CE

Features

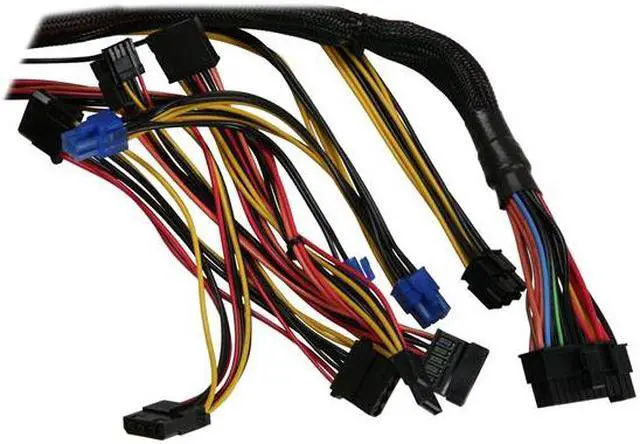

Features	Compatible with Intel Core i7 High efficiency Low Ripple & Noise Short circuit protection on all outputs Reset table power shut down HP Video Power Connector for HP PCs replace only 24Pin (20+4) ATX Connector 8 Pin EPS-12V Support Dual CPU Xeon M/B PCI Express 6 Pin & 8(6+2)pin SATA Power Lead Ready FCC part 15 subpart J Class B at 115VAC operation & CISPR 22 Class B at 230 VAC operation 100% burn-in under high ambient temperature Vacuum-impregnated transformer 100% Hi-pot tested

Dimension & Weight
Dimensions	5" x 2.5" x 5.12"

Additional Information
First Listed on Newegg	July 02, 2009
