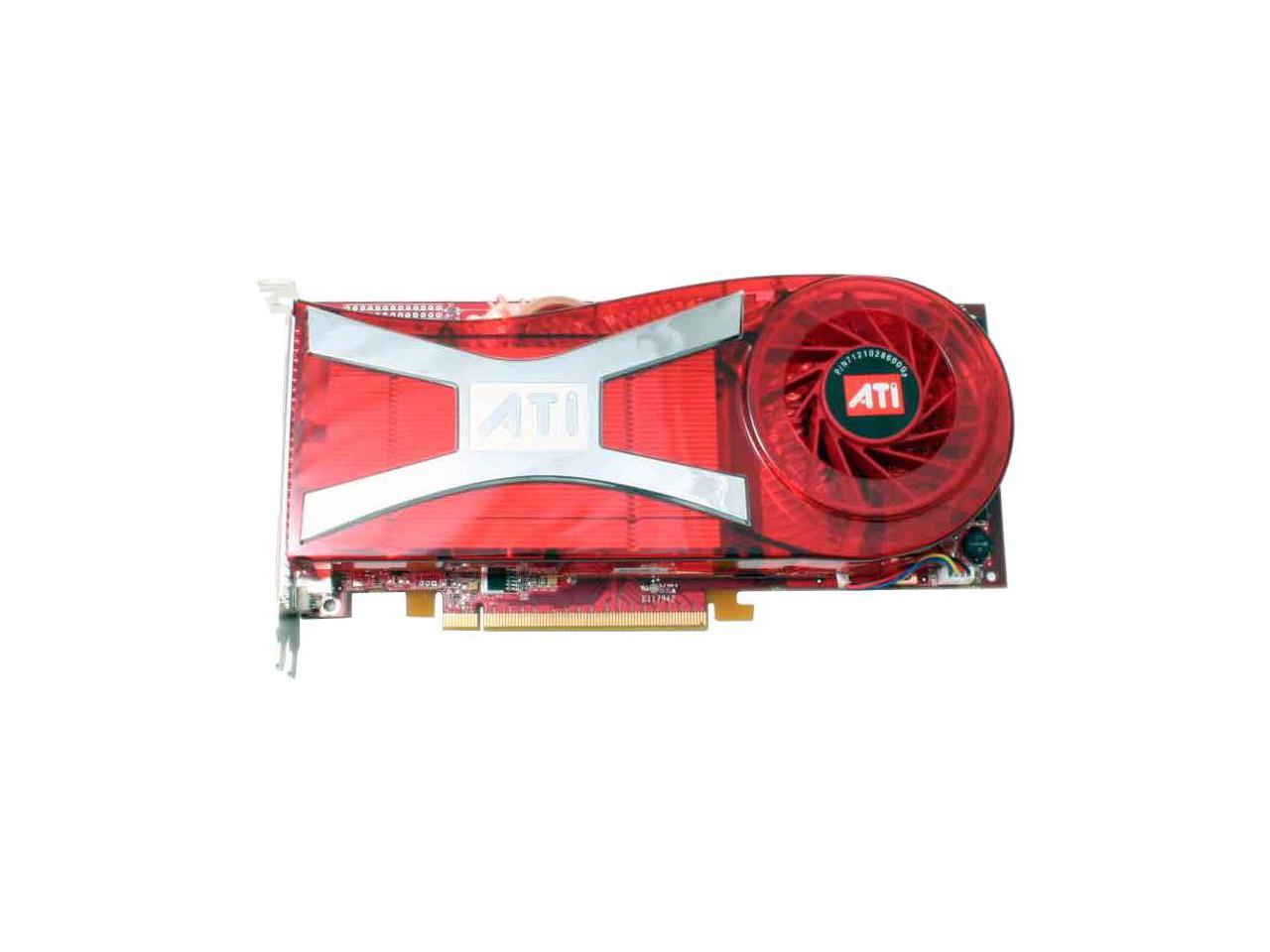

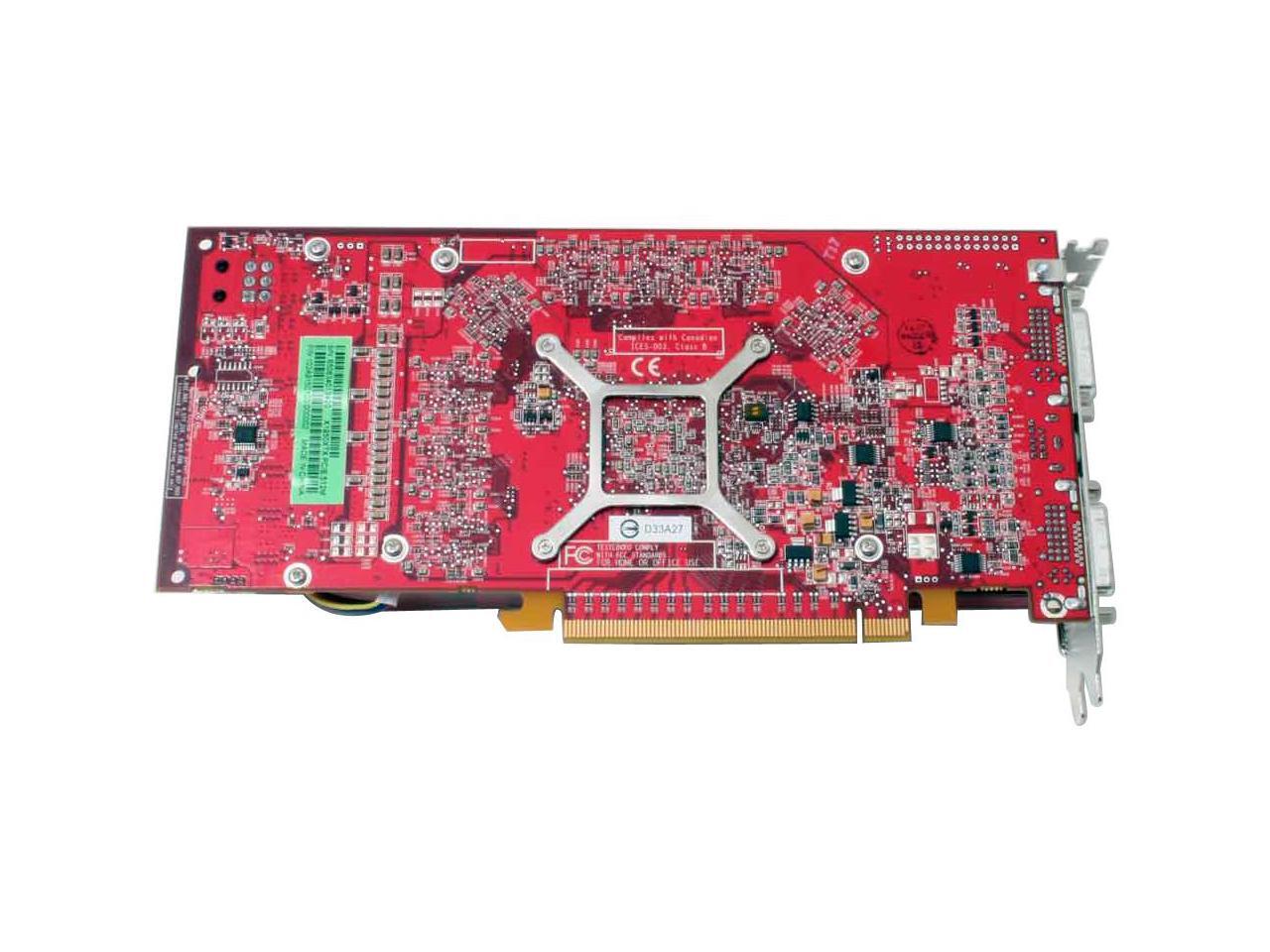

ATI Radeon X1950XTX DirectX 9 100-435843 512MB 256-Bit GDDR4 PCI Express x16 HDCP Ready CrossFireX Support Video Card
OUT OF STOCK.
- 512MB 256-Bit GDDR4
- Core Clock 650 MHz
- 2 x DVI
- PCI Express x16
Specs
Reviews
Learn more about the ATI 100-435843
| Brand | ATI |
|---|---|
| Model | 100-435843 |
| Interface | PCI Express x16 |
|---|
| Chipset Manufacturer | ATI |
|---|---|
| GPU | Radeon X1950XTX |
| Core Clock | 650 MHz |
| PixelPipelines | 16(48 Pixel shader processor ) |
| Effective Memory Clock | 2000MHz |
|---|---|
| Memory Size | 512MB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR4 |
| DirectX | DirectX 9 |
|---|---|
| OpenGL | OpenGL 2.0 |
| DVI | 2 x DVI |
|---|---|
| TV-Out | HDTV / S-Video / Composite Out |
| VIVO | Yes |
| Tuner | None |
|---|---|
| RAMDAC | 400MHz |
| Max Resolution | 2560 x 1600 |
| CrossFireX Support | Yes |
| Cooler | With Fan |
| Operating Systems Supported | Windows XP/XP x64/MCE 2005 |
| System Requirements | PCI Express based PC is required with one x16 lane graphics slot available on the motherboard and one additional adjacent expansion slot. Connection to the system power supply is required: 450-Watt power supply or greater, 30 Amps on 12 volt rail recommended (assumes fully loaded system) For CrossFire: 550 watt power supply or greater, 38 Amps on 12 volt rail 512MB of system memory Installation software requires CD-ROM drive DVD playback requires DVD drive and decoder software (not included) |
| Dual-Link DVI Supported | Yes |
| Windows Vista | Certified for Windows Vista |
| HDCP Ready | Yes |
| Features | Shader Model 3.0 CrossFire ready |
|---|

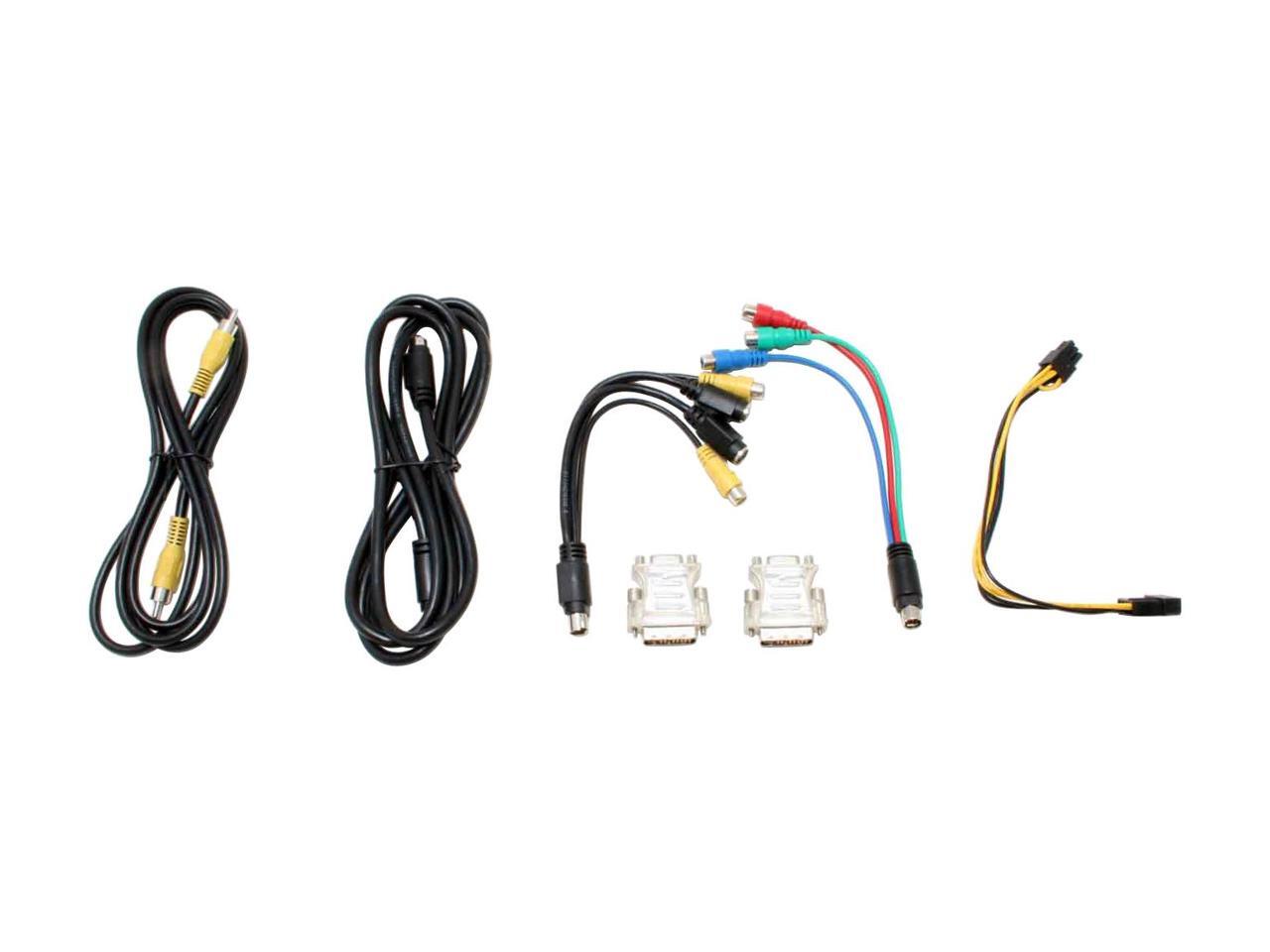

| Package Contents | 100-435843 HDTV Cable S-Video Cable Composite Cable 2 x DVI to VGA/D-sub Adapter VIVO Cable Power Cable |
|---|
| Date First Available | September 13, 2006 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 905-882-2626
- Support Website
- View other products from ATI
LOADING...
LOADING...
















Pros: I've used several of these cards on various builds and they've all worked very well on the systems.
Cons: Not a con, but beware of the size. 1) These are long and wide graphic cards and on some mobos they can block the SATA ports. 2) On some mobos the back of the graphic card is so close to the RAM-clasps that you have to remove the graphic card in order to swap RAM. 3) On nearly all mobos they will block adjoining PCI slots. 4) The clasps on the PCIe x16 slots can be difficult to reach when you have to remove these cards. But this is tru with all big graphic cards, not just these.
Overall Review: I've used them on 1-monitor, 2-monitor, 4-monitor, and 1-monitor CrossFire systems. I never had any technial problems with ATI. Just be SURE you select the appropriate mobo for what you want to do!!!
