1. Add 4 USB C ports to your desktop host via PCI-E slots, with a maximum data transfer speed of 10Gbps bandwidth per port, for you to achieve a fast connection.
2. This PCIe expansion card is powered from a PCI-E slot and can be easily installed on your computer without additional power cables.
3. The internal USB card passes from the motherboard through the PCI Express slot - ensuring a stable connection, ensuring a stable connection and increasing data transfer speed. No loss of connection issues like an external USB hub.
Warm Notes:

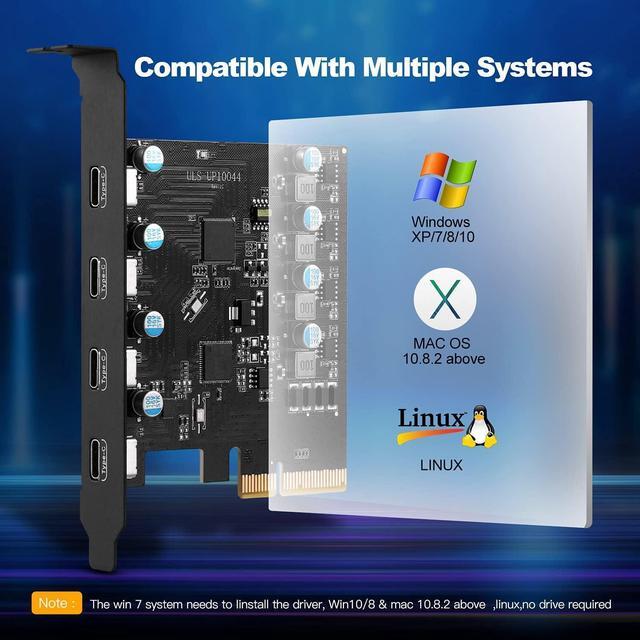

1.Operating system requirements are Windows XP/7/8/10, Mac OS 10.8.2 Above.(If your computer is experiencing compatibility issues/not recognizing any drivers, Go-*Online Support.)
2. Older versions of PCIE 1.0 are not supported.
3. Windows 7/XP system needs to install the driver from the included CD.
4. The USB C card only supports data transfer and doesn't support PD fast charging, Thunderbolt protocol and video signal transfer (ALT DP, HDMI, Bluetooth, Displays function conversion).
5. Only used for low-power USB devices to transfer data.
6. Since the internal USB pin board of this card USB interface is a precision part, please do not insert external devices into the USB-A/USB-C interface jack with great force when using it to avoid damage.

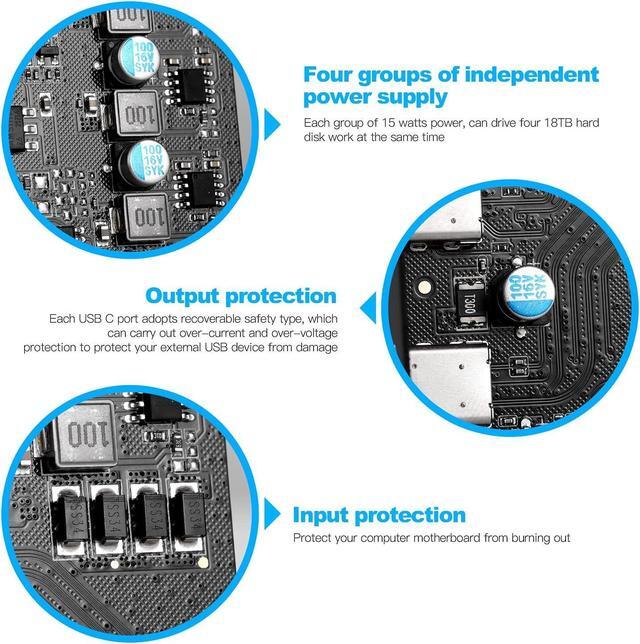

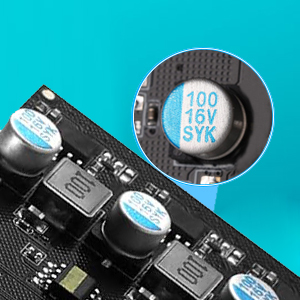

Explosion-proof capacitors are made of dielectric polymer materials. Each interface is equipped with a voltage regulating capacitor. Can ensure good temperature control during operation and ensure stable power supply for each interface.
Uses ASM3142 main control chip. It provides stable 10Gbps high-speed transfer for the USB 3.2 interface of the PCI expansion card, which is 70% faster than the conventional UASP USB 3.2.

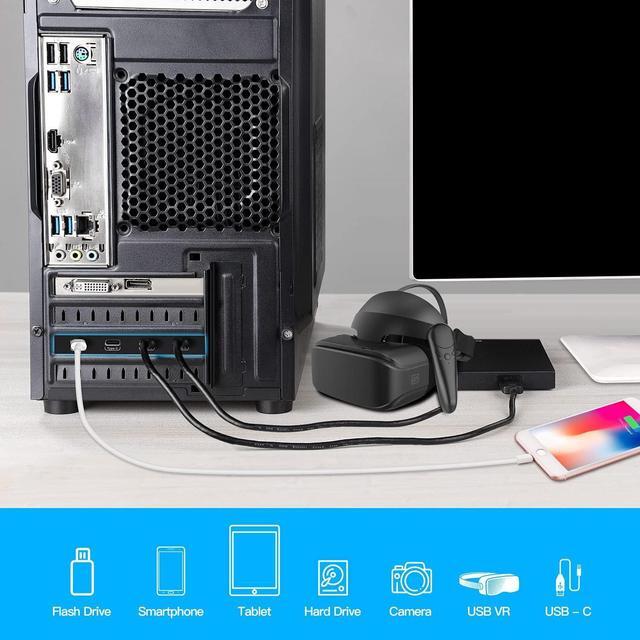

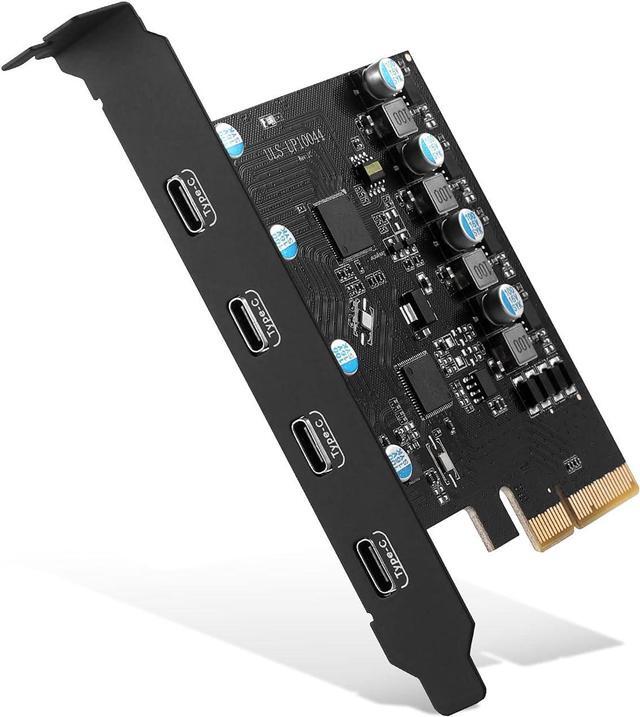

The PCIE card also has FOUR usb c ports. Which can solve the problem that there are no or few usb-c ports in the slot on the back of the pc host. The USB 3.2 Card can theoretically provide data transfer speeds of up to 10Gbps bandwidth.

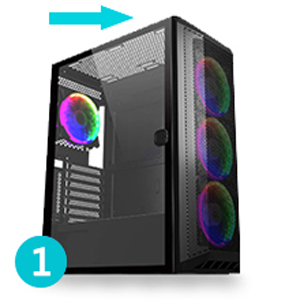

Power off the computer and unplug the power supply. Then remove the cover from the computer mainframe.

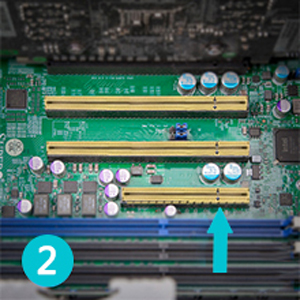

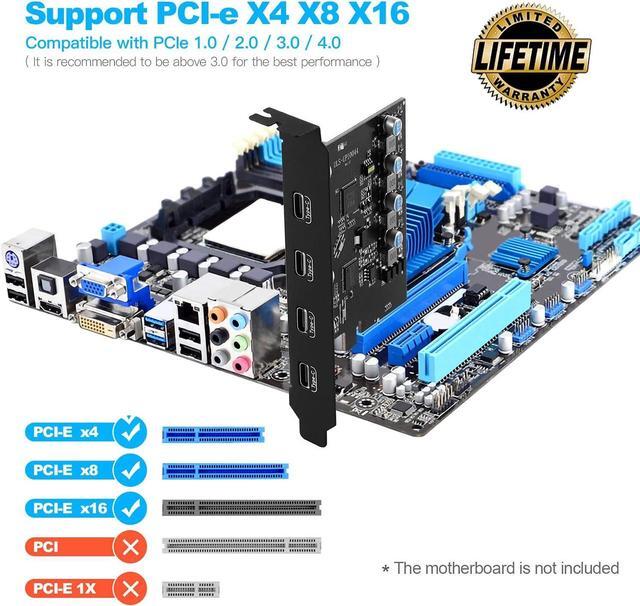

Find a PCI-E x4 or higher specification slot that fits the card.

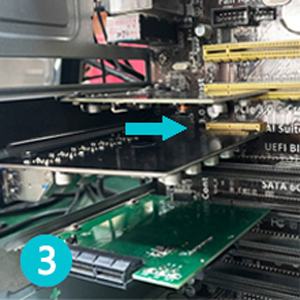

Insert the pcie usb c card down into the PCIE slot.

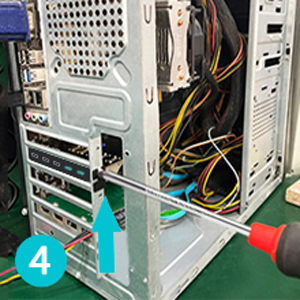

Tighten the screws on the side of the stand, replace the computer host cover, and insert the plug into the socket.

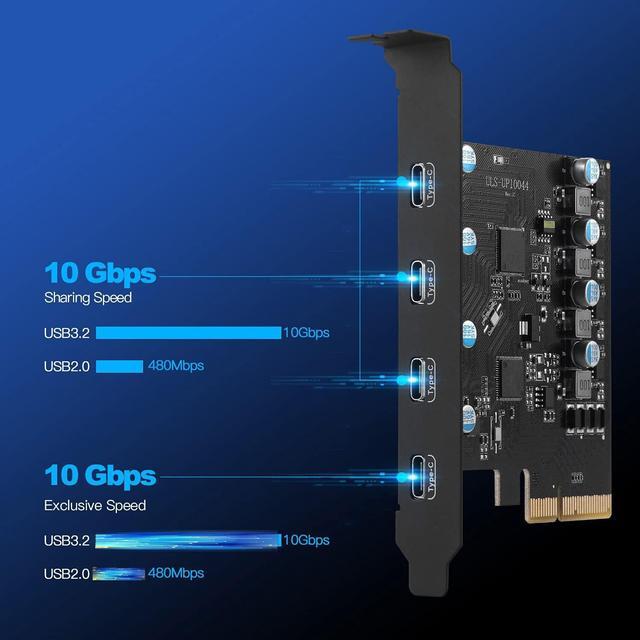

4-Port Type C USB ,the transfer data up to 10Gbps
General Feature:
- Bridge PCI Express to USB3.1/3.2
- Integrate eXtensible Host Controller
- Compliant with eXtensible Host Controller Interface specification Revision 1.1
- Upload firmware through external SPI ROM
- External 20MHz differential crystal
- Support driver on Windows7, Windows8, Windows 8.1, and Windows 10
- Support various Linux kernels
PCI Express Feature:

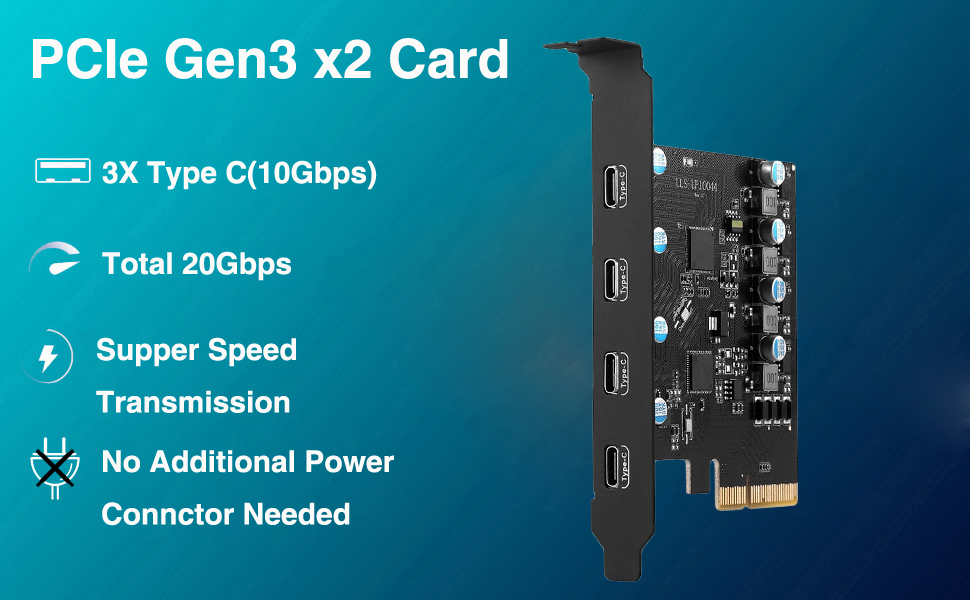

- Support PCI Express Gen-III x2
- Support high bandwidth performance with low latency
- Support PCI Express Link power management
- Compliant with PCI Express Base 3.0 Specification
- Compliant with PCI Express Card Electromechanical 2.0 specification
- Compliant with PCI Express Mini Card Electromechanical 1.2 specification
- Compliant with PCI Bus Power Management Interface Specification Revision 1.2
- Compliant with PCI Local Bus Specification Revision 3.0
- Integrate Spread Spectrum Controller for PCI Express interface
- Overclock capability on PCI Express bus
- Support SRIS mode
- Not support lane reversal
USB Feature:
Up to USB3.1/3.2 Gen-II 10Gbps
Compliant with Universal Serial Bus 3.1 Specification Revision 1.0
Compliant with Universal Serial Bus Specification Revision 2.0
Compliant with USB Attached SCSI Protocol Revision 1.0
Support Muliple INs function
Package:
1x PCI-E expansion card
1x CD Driver
1x Mounting Screw
1x User's Manual
