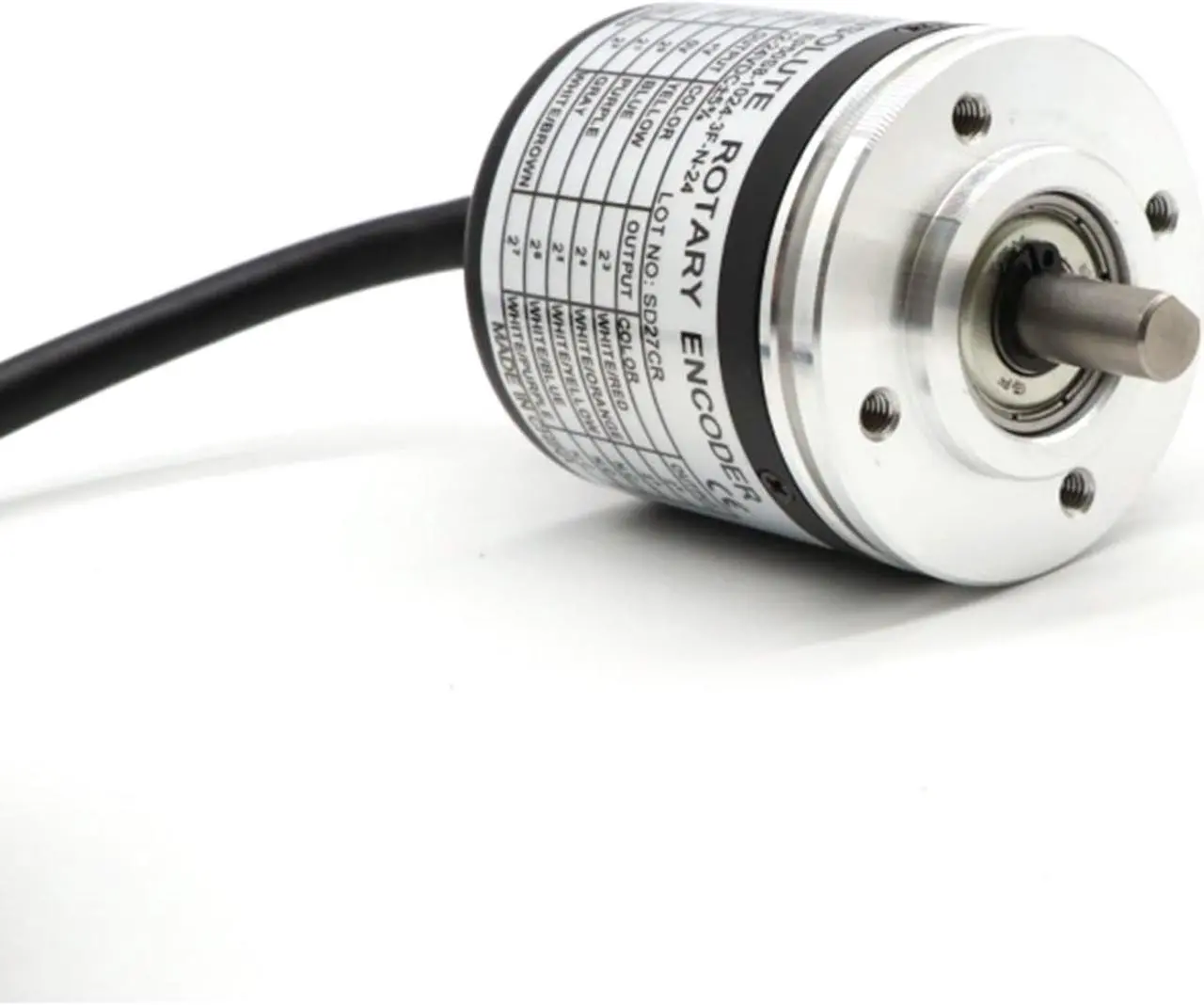

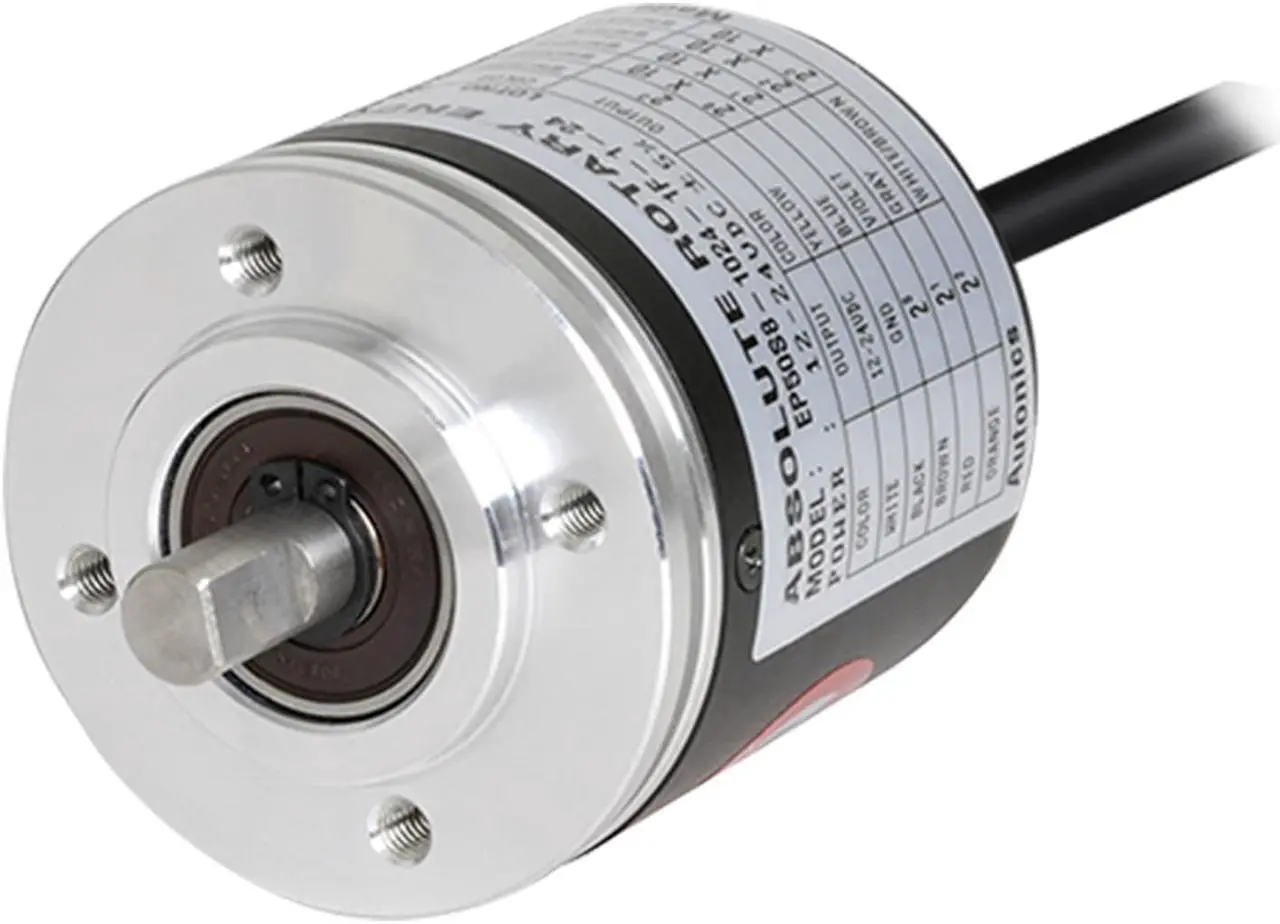

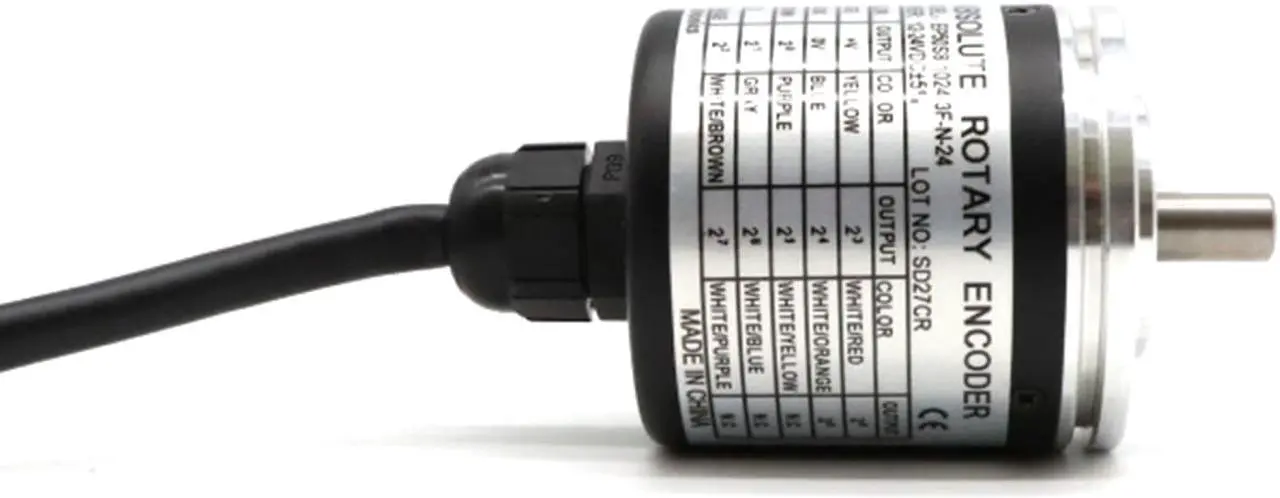

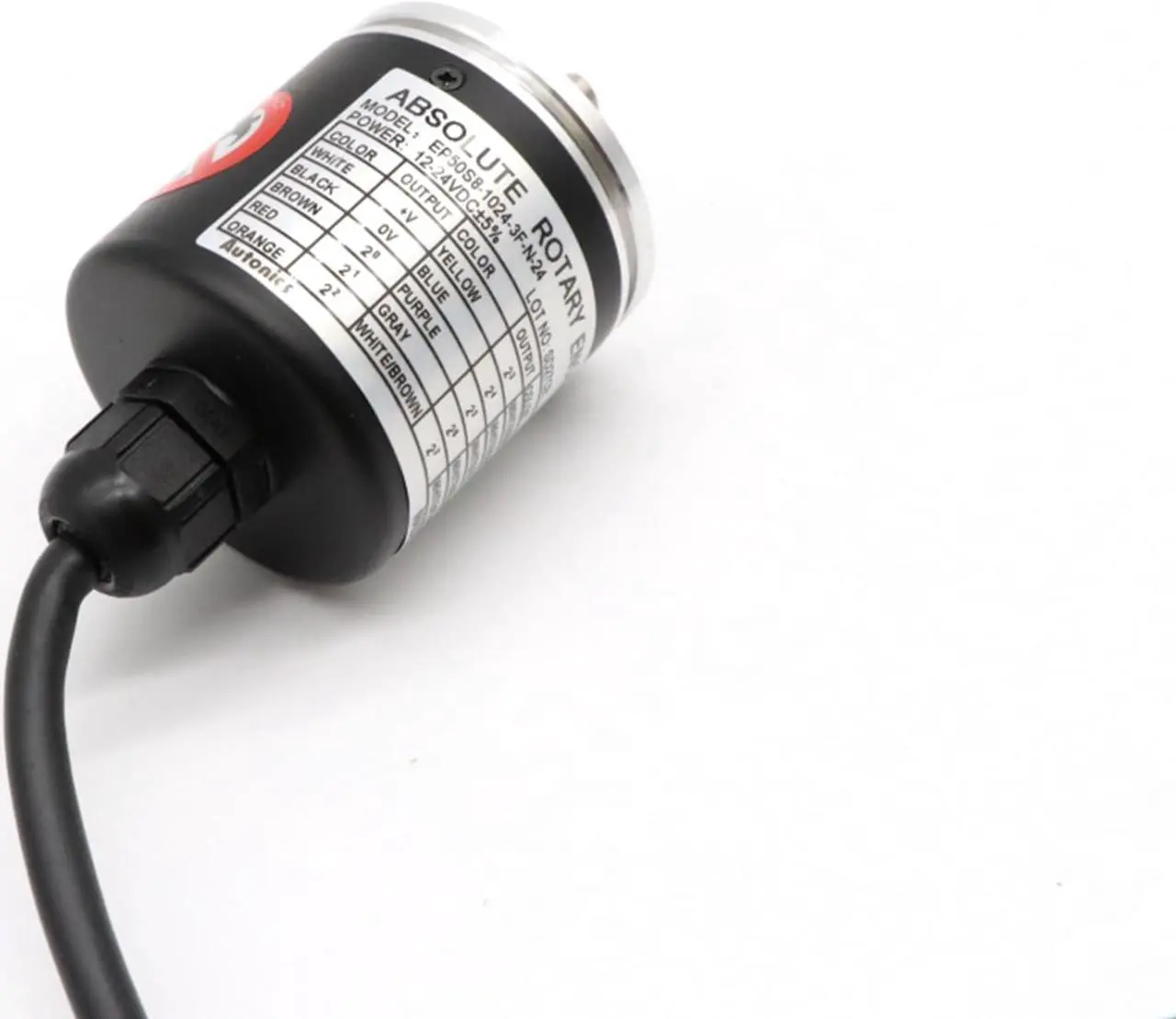

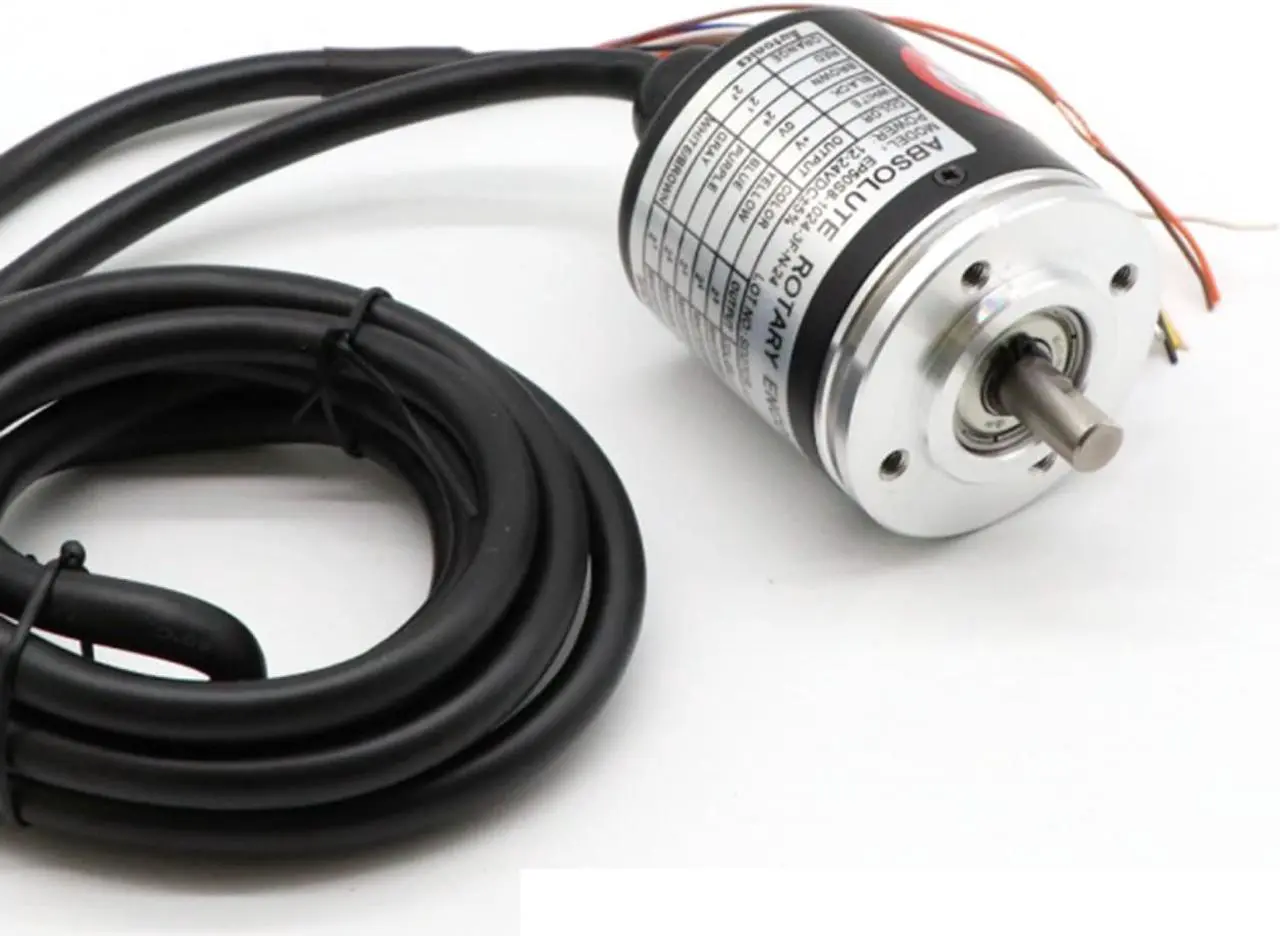

Autonics EP50S8-1024-3F-N-24 Rotary Encoders Absolute Type NPN New 1PCS

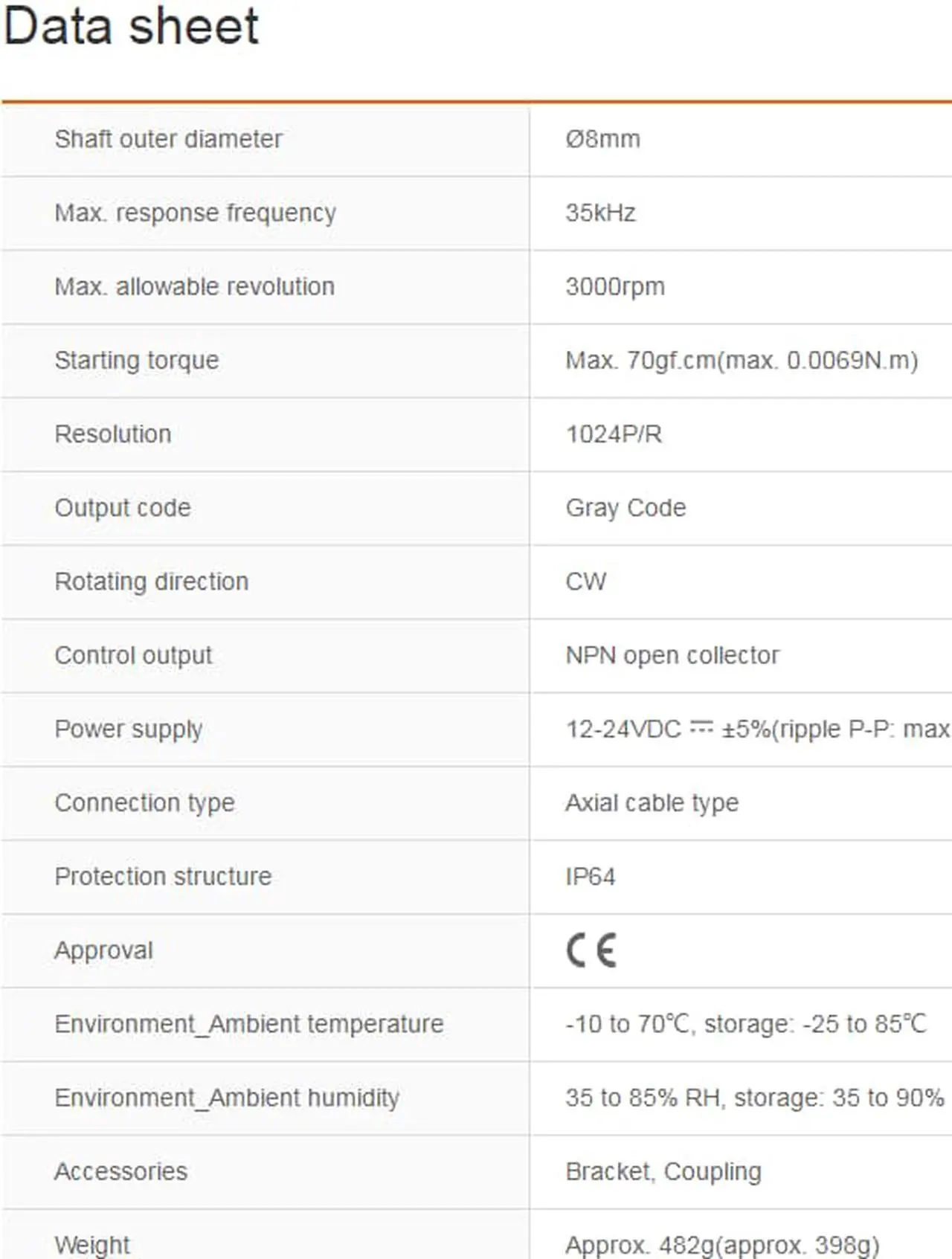

Shaft outer diameter : Ø8mm
Max. response frequency : 35kHz
Max. allowable revolution : 3000rpm
Starting torque : Max. 70gf.cm(max. 0.0069N.m)
Resolution : 1024P/R
Rotating direction : CW
Control output : NPN open collector
Power supply : 12-24VDC ±5%(ripple P-P: max. 5%)
Connection type : Axial cable type
Protection structure : IP64
