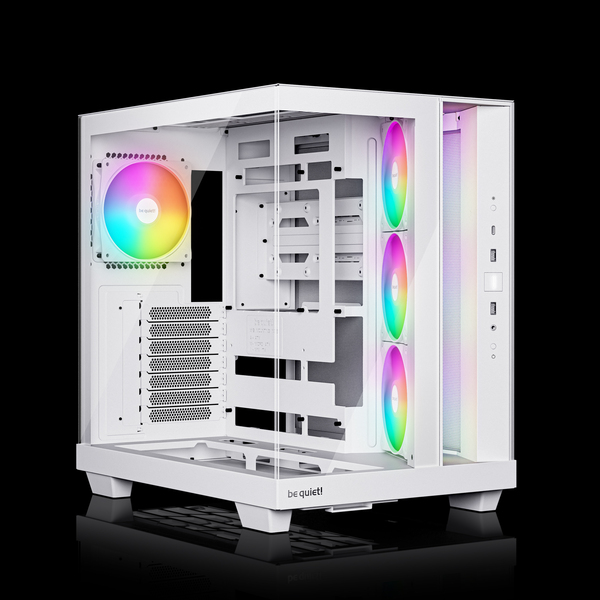

LIGHT BASE 500 LX WHITE
Core performance and aesthetics
Light Base 500 LX White stands for a clean design and the core values of gaming: performance, accessibility and functionality.
- Angled slide-out fan frame on the side routes air directly to the GPU
- Fans can be installed in the lowered fan bay to line up perfectly with the case floor
- 4 preinstalled Light Wings LX 120mm PWM fans for extraordinary airflow and impressive illumination
- ARGB controller button and ARGB fan hub
- Spacious design for radiators up to 360mm, and ATX motherboards
- 2 possible PSU positions enable backside connector motherboards
- Dust filters in the side and the bottom
ELEVATED ELEGANCE
Cool design, cooler GPU

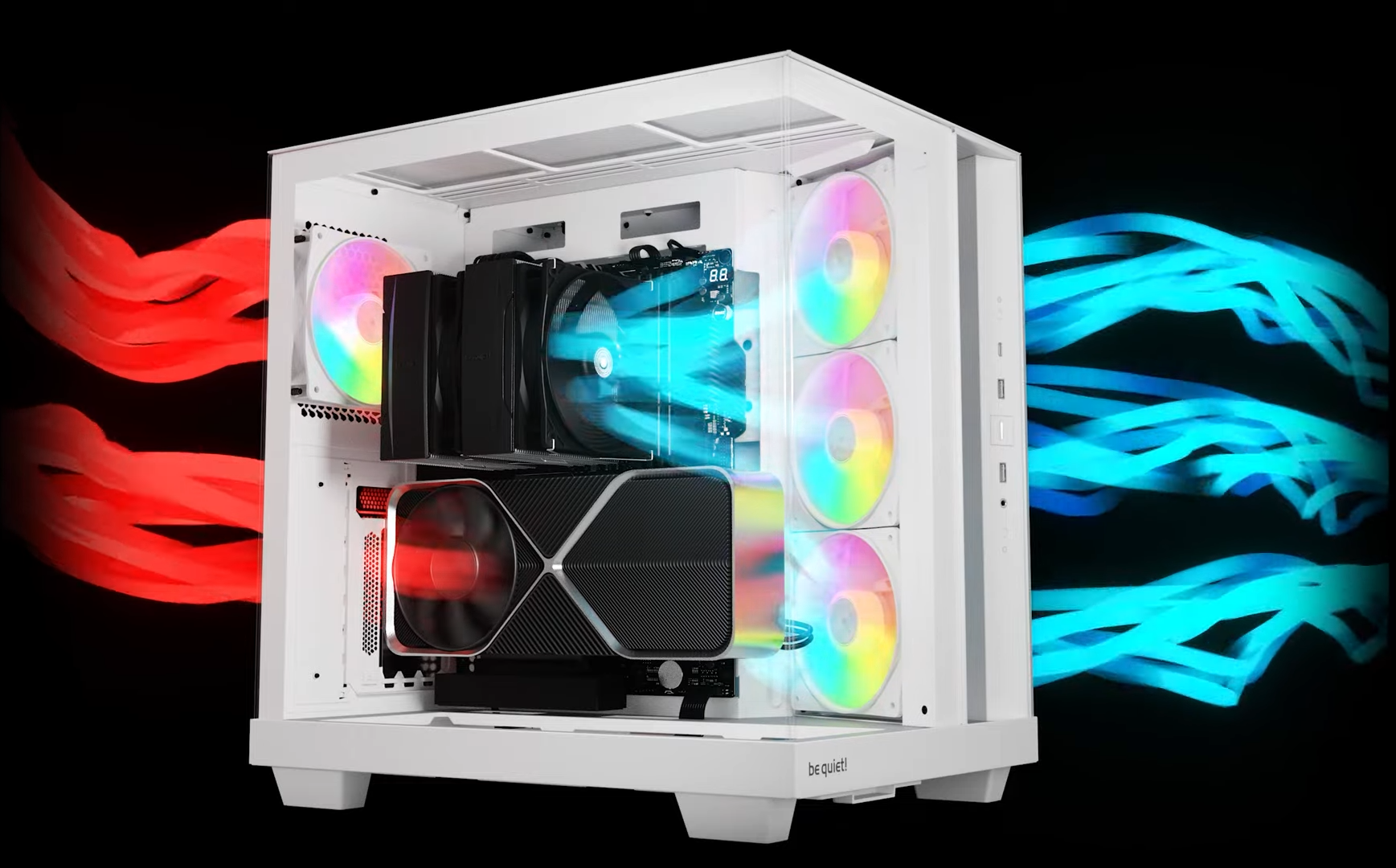

The angled fan frame in the side is not only a testament to elegance and functionality but also directs more air towards the GPU – a part that traditionally requires a lot of it. It provides a neat cutout that works as an efficient air intake. For an easy installation of fans, it slides out to the top. Cable management is easier than ever before with a channel that hides your equipment elegantly. If you install additional fans in the bottom, they line up perfectly with the case floor due to a lowered fan bay.
/11-734-023/4.png)
4 PREINSTALLED LIGHT WINGS LX
Wait, how many fans?!
Light Base 500 LX White features 4 preinstalled Light Wings LX fans. The rear fan is a Light Wings LX 120mm White, the fans on the side are Light Wings LX 120mm PWM White fans with reversed fan blades. All fans feature 16 LEDs inside their hub of the impeller, making for an unmistakable ARGB illumination. The reversed fan blades make sure that their pretty side is visible at all times.
SPACIOUS DESIGN
Size matters after all

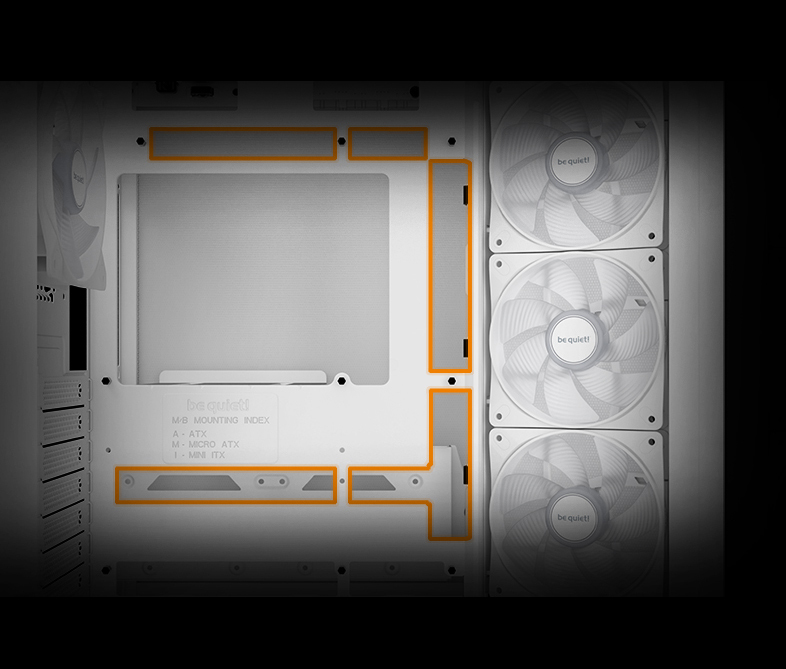

Light Base 500 LX White might appear compact, but it comes with enough space for a 360mm radiator, an ATX motherboard and graphics cards up to 400mm length. The smart design of the drive bracket features slots for 1 HDD and 2 SSDs at the same time, without impeding the room for cable management behind the motherboard tray.
/11-734-023/6.jpg)
/11-734-023/7.jpg)
BUSINESS IN THE FRONT...
... Party in the back!

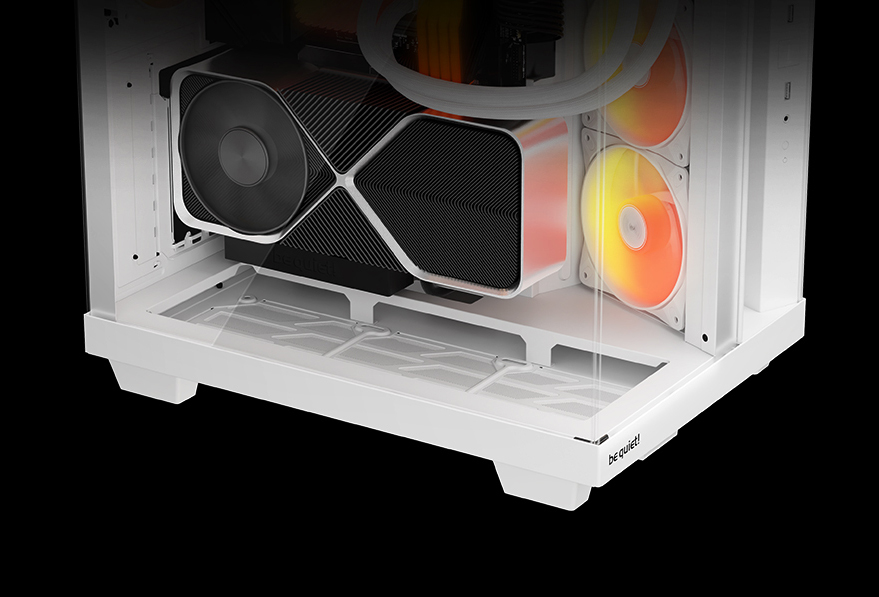

The motherboard tray fully supports backside connector designs like Asus BTF (Back to Future), MSI Project Zero, and Gigabyte Project Stealth, for a true and cable-free view. To enable backside connector support without giving up a drive slot, the position of the PSU and drive bracket are simply swapped!
YES TO ARGB
Join the light side

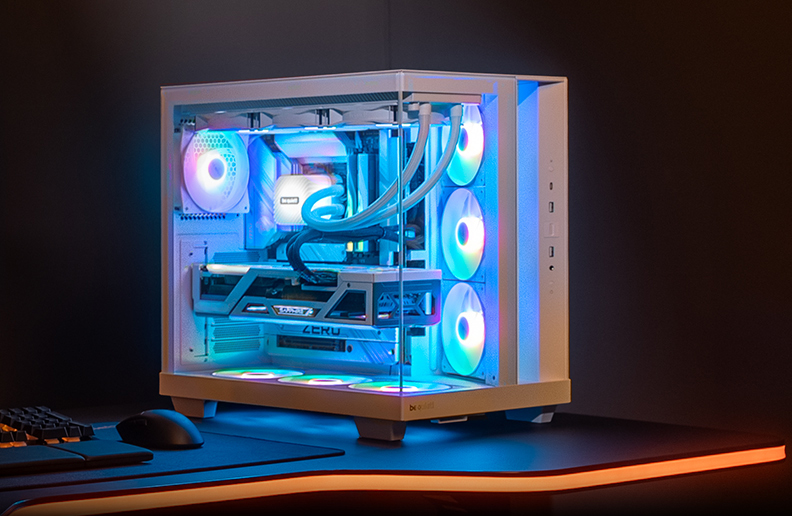

For those who appreciate subtle illumination without compromising on performance, the Light Base 500 LX White adds a touch of sophistication to the core design thanks to the included Light Wings LX White fans. An ARGB controller button with predefined lighting effects and colors is integrated into the I/O panel. The preinstalled rear fan and daisy-chained side fans are connected to a 6-way ARGB and PWM hub, leaving 4 free connectors for additional devices.
/11-734-023/8.jpg)
