be quiet! POWER ZONE 650W ATX 12V Fully Modular Power Supply Silentwings 135mm Fan

Feature Details

Performance Zone

• Massive 12V rail design, Active Clamp and Synchronous Rectifier (SR) technology (for 12V and 5V), DC-to-DC (for 3.3V and 5V) voltage step-down for rock-solid power stability and minimal signal noise

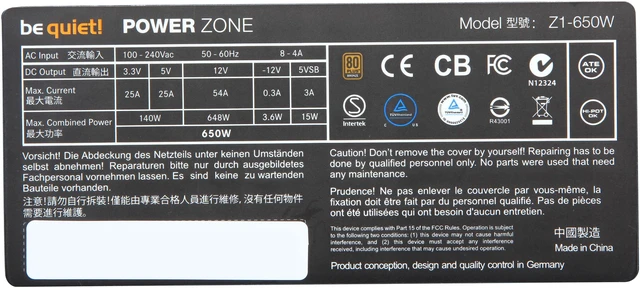

• Up to 54A / 648W available on the +12V rail, respectively 99.6% of the total power
• Designed for powerful operation even at 122°F (50°C)
• Certified for NVIDIA SLI and CrossfireX multi-GPU systems
• ATX12V 2.4 & EPS12V 2.92 compatibility supports the latest generations of processors from Intel® and AMDTM
• Ready for Intel® Haswell™ platform
• Excellent voltage regulation under 2% on the 12V rail

Quiet Zone

• Installed variable speed 135mm SilentWings® fan includes a wide array of electronic and mechanical optimizations for best-of-class air flow with very low noise production
  • Unique airflow-optimized fan blade design reduces noise-generating fan turbulence
  • Advanced fluid dynamic bearing with copper core provides greatly reduced operating noise and super-long life
  • Special 6-pole motor reduces power consumption and vibration
• SilentWings® fan reduces transmission of vibration and noise
• Variable fan speed is optimally governed to strike the best balance between proper cooling and deep quiet

Cooling Zone

• COOL*OFF feature runs fan for three minutes after system shutdown, protecting valuable components at their time of maximum heat stress
• Connect up to three case fans for optimized system cooling that is thermally controlled by the PSU, quieting your whole system

Connection Zone

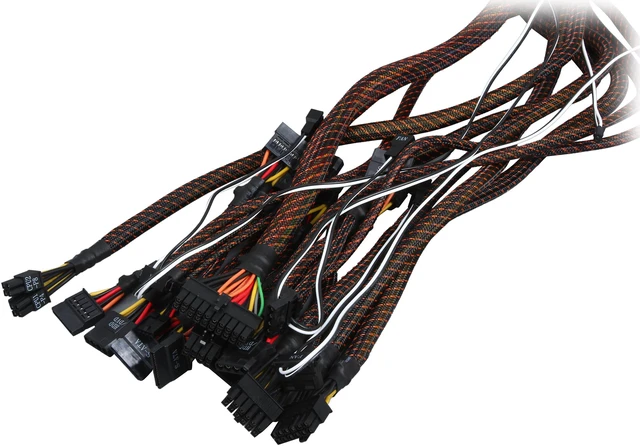

• Fully modular cable management with quality sleeved cables simplifies component installation, reduces annoying clutter, maximizes build flexibility, and improves cooling due to increased airflow
• System supports up to 21 connectors for massive system builds
• Four PCI Express connectors supported for powerful multi-GPU configurations (NVIDIA SLI and AMD CrossFireX)
• Excellent compatibility for past, current and future components
• Sleeved cable lengths up to 115cm also promote cooling and are perfect for large PC cases
• Individual P4 and P8 plugs support all common mainboard types
• Clearly labeled plugs and clever accessories promote simple installation

Safety Zone

• Top protection for components against over-currents, over- and under-voltages, short circuits, overheating and overloads
• Built-in surge protection included

Green Zone

• 80PLUS® Bronze certification for high efficiency of up to 90%
• Active Power Factor Correction with an PF of up to 0.99
• Standby power drain <0.15W
• Meets Energy Star 5.2 guideline
• ErP 2014 Ready
• Zero Load design supports Intel's Deep Power Down C6 mode

Quality Zone

• High quality 105°C-rated capacitors on AC and DC side for maximum performance, high reliability, and longer PSU life under high load
• Winner of the prestigious Red Dot Design Award 2014
• 5-year manufacturer's warranty
