BIOSTAR A740G M2+ AM2+/AM2 AMD 740G Micro ATX AMD Motherboard

Name: BIOSTAR A740G M2+ AM2+/AM2 Micro ATX AMD Motherboard
Brand: Biostar
SKU: N82E16813138112
Rating: 4 (76 reviews)

(76) Write a Review

AMD 740G
Phenom / Athlon 64 X2 / Athlon 64 / Sempron
DDR2 1066

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (76)

Learn more about the Biostar A740G M2+

Model
Brand	BIOSTAR
Model	A740G M2+

Supported CPU
CPU Socket Type	AM2+/AM2
CPU Type	Phenom / Athlon 64 X2 / Athlon 64 / Sempron
FSB	2000 MHz

Chipsets
Chipset	AMD 740G
South Bridge	AMD SB700

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR2 1066
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express x16	1 x PCI Express x16
PCI Express x1	1 x PCI Express x1
PCI Slots	2 x PCI Slots

Storage Devices
PATA	1 x ATA100 2 Dev. Max
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	ATI Radeon 2100

Onboard Audio
Audio Chipset	Realtek ALC662
Audio Channels	6 Channels

Onboard LAN
LAN Chipset	Realtek 8101E
Max LAN Speed	100Mbps

Rear Panel Ports
Back I/O Ports	1 x D-Sub / 1 x DVI / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2	2
Video Ports	D-Sub + DVI
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	3 x USB Header

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 8.5"
Power Pin	24 Pin

Packaging

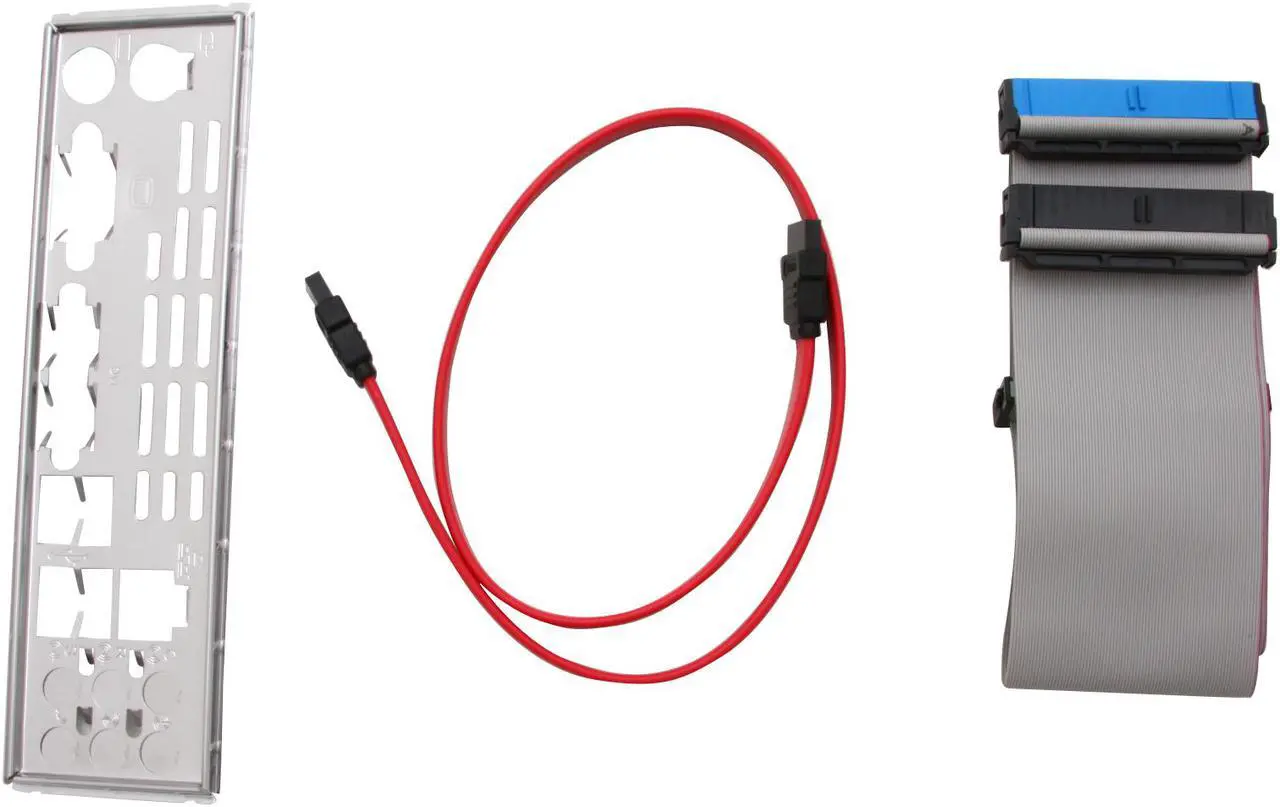

Package Contents	A740G M2+ Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable SATA Cable

Additional Information
Date First Available	May 15, 2008
