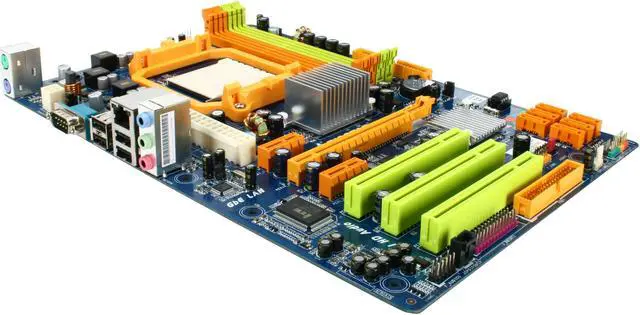

BIOSTAR A770E3 AM3 AMD 770 ATX AMD Motherboard

OUT OF STOCK.
  • AMD 770
  • Phenom II / Athlon II / Sempron 100 Series Maximum CPU TDP (Thermal Design Power): 125Watt
  • DDR3 800/1066/1333
Specs
Reviews

Learn more about the Biostar A770E3

Model
Brand BIOSTAR
Model A770E3
Supported CPU
CPU Socket Type AM3
CPU Type Phenom II / Athlon II / Sempron 100 Series
Maximum CPU TDP (Thermal Design Power): 125Watt
FSB 2600 MHz
Chipsets
Chipset AMD 770
South Bridge AMD SB710
Memory
Number of Memory Slots 4×240pin
Memory Standard DDR3 800/1066/1333
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 2 x PCI-E x1 2.0 Slot
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC662
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8111DL
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
COM 1
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor ATX
Dimensions (W x L) 12" x 8"
Power Pin 24 Pin
Features
Features Supports AMD Cool'n'Quiet Technology
AMD OverDrive with ACC feature (Advanced Clock Calibration) supported
Additional Information
Date First Available January 18, 2010
