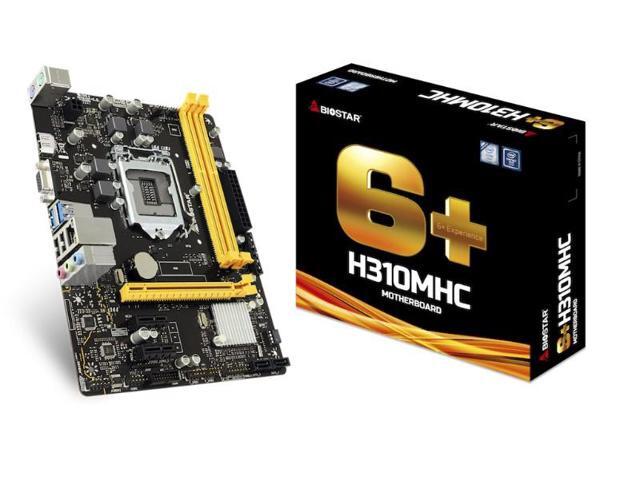

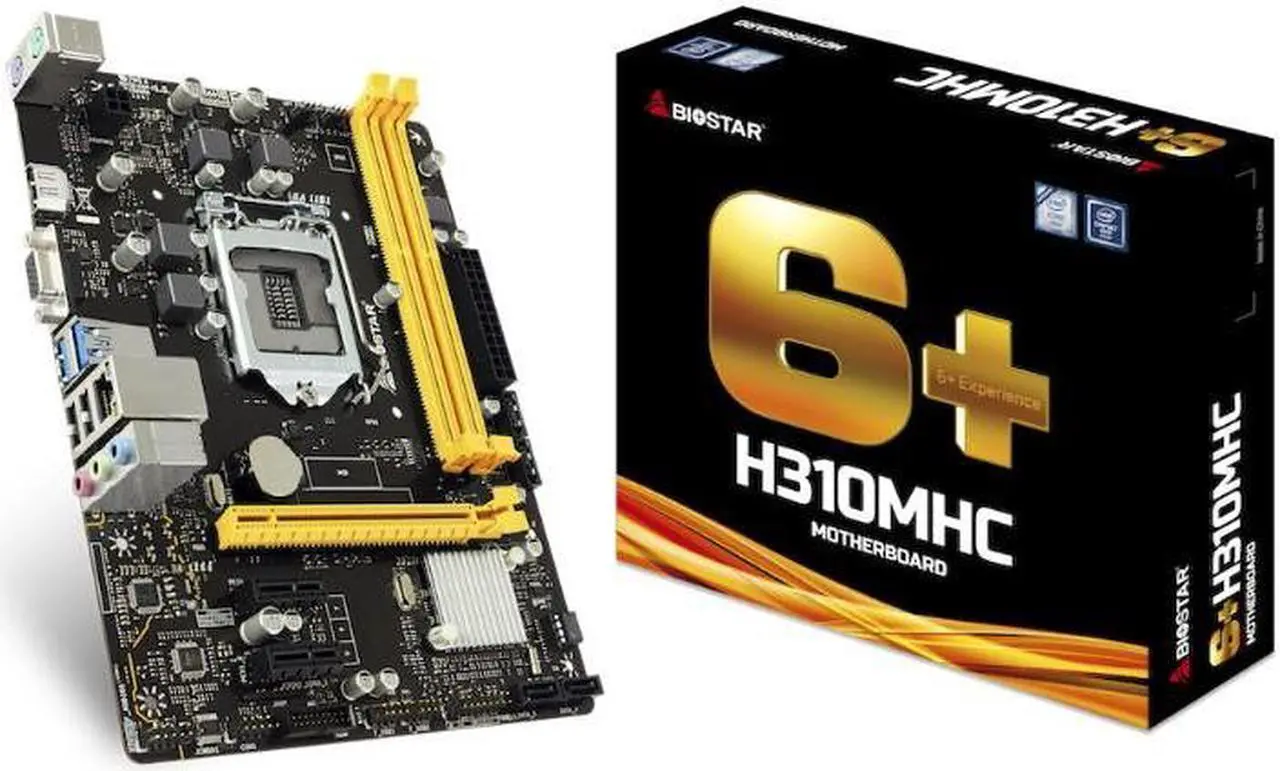

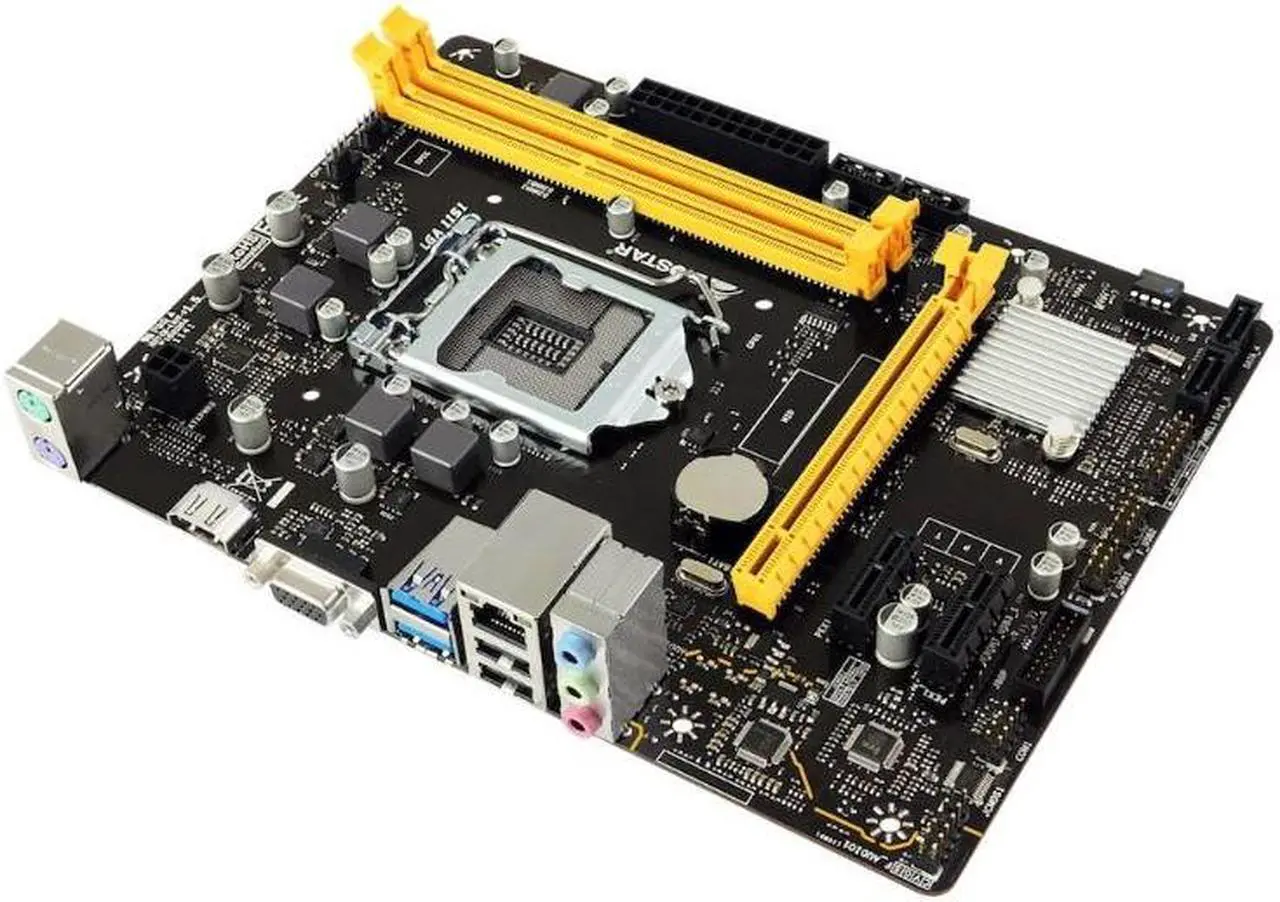

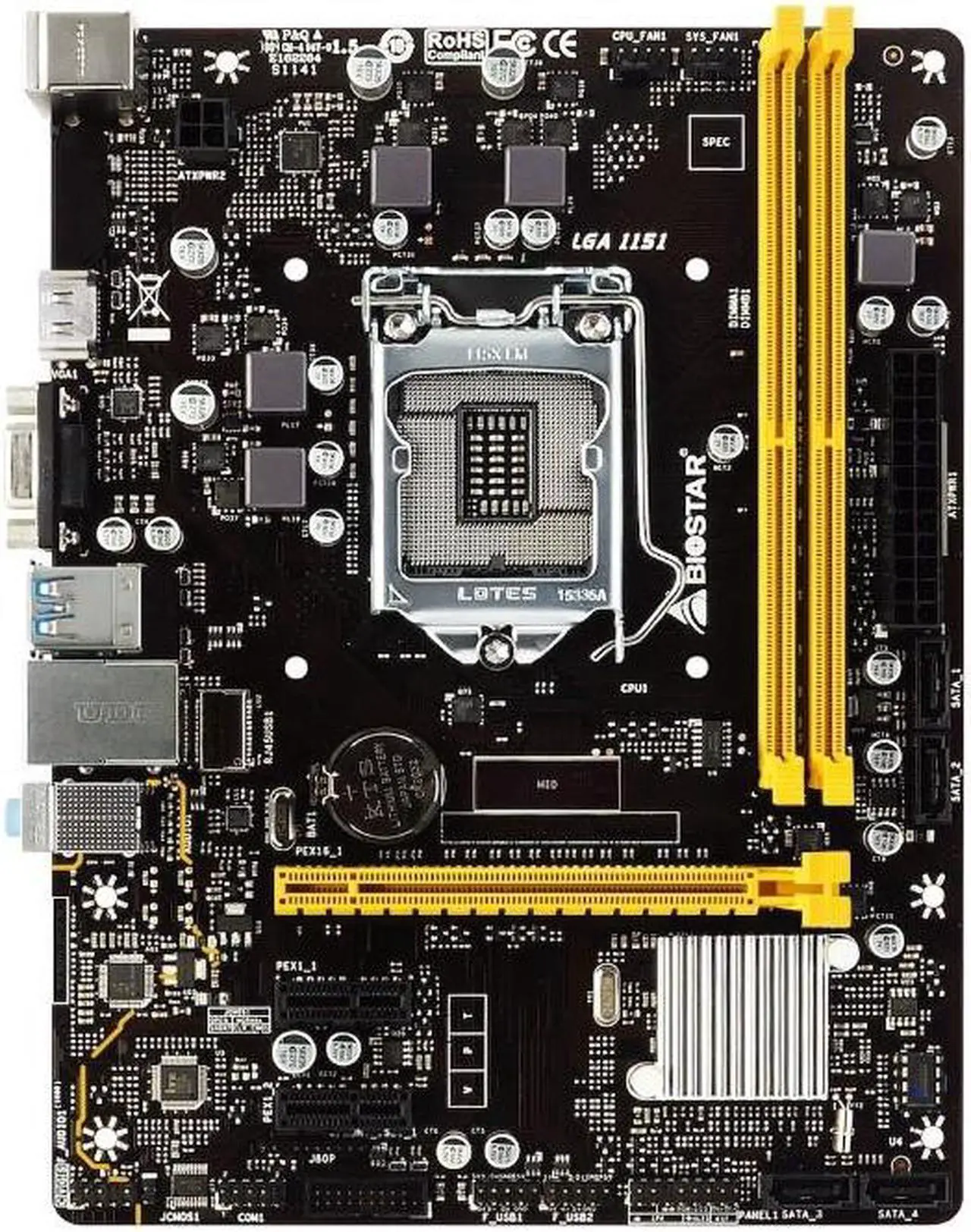

Biostar Intel H310MHC Socket LGA 1151 DDR4 Micro ATX Motherboard (H310MHC)
Used - Very Good Product Type
- Intel H310
+
+
Overview
Specs
Technical details
- Motherboard chipset family: Intel
- Motherboard chipset: Intel H310
- PC health monitoring: CPU, Fan, Temperature, Voltage
- Motherboard form factor: micro ATX
- Component for: PC
- Thermal Design Power (TDP): 95 W
- Audio output channels: 7.1 channels
- Windows operating systems supported: Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64
- Motherboard chipset family: Intel
- Motherboard chipset: Intel H310
- PC health monitoring: CPU, Fan, Temperature, Voltage
- Audio output channels: 7.1 channels
- Motherboard form factor: micro ATX
- Component for: PC
- Number of memory slots: 2
- Memory slots type: DIMM
- Supported memory types: DDR4-SDRAM
- Memory channels: Dual
- Supported memory clock speeds: 1866,2133,2400,2666 MHz
- Supported memory module capacities: 4GB,8GB,16GB
- Maximum internal memory: 32 GB
- Processor manufacturer: Intel
- Thermal Design Power (TDP): 95 W
- Compatible processor series: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
- Maximum number of SMP processors: 1
- Processor socket: LGA 1151 (Socket H4)
- Front panel connector: Yes
- USB 2.0 connectors: 2
- USB 3.0 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Number of COM connectors: 1
- Number of chassis fan connectors: 1
- Front panel audio connector: Yes
- CPU fan connector: Yes
- ATX Power connector (24-pin): Yes

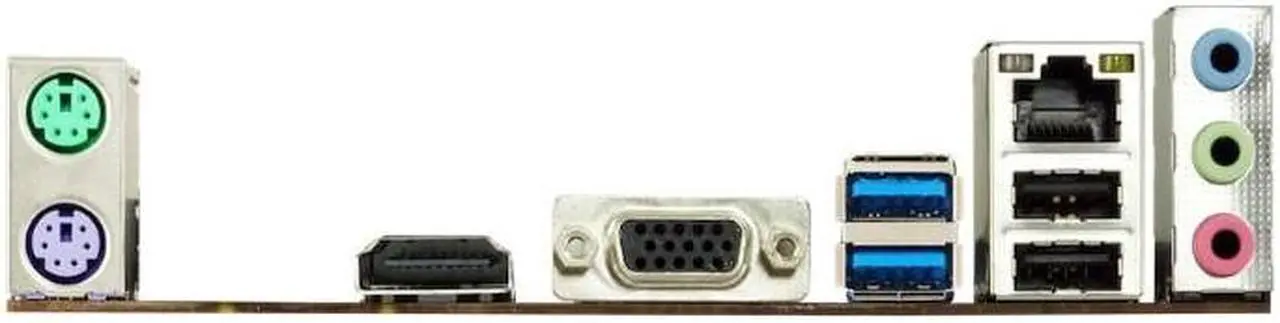

- USB 3.0 (3.1 Gen 1) Type-A ports quantity: 2
- USB 2.0 ports quantity: 2
- VGA (D-Sub) ports quantity: 1
- PS2 ports quantity: 2
- HDMI ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN: Yes
- LAN controller: Realtek RTL8111H
- Ethernet interface type: Gigabit Ethernet
- Windows operating systems supported: Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64
- Motherboard chipset family: Intel
- Motherboard chipset: Intel H310
- PC health monitoring: CPU, Fan, Temperature, Voltage
- Audio output channels: 7.1 channels
- Motherboard form factor: micro ATX
- Component for: PC
- Audio chip: Realtek ALC887
- HDCP: Yes
- DirectX version: 12.0
- PCI Express x1 (Gen 2.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- BIOS type: UEFI AMI
- Clear CMOS jumper: Yes
- HDCP: Yes
- DirectX version: 12.0
- Windows operating systems supported: Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64
- Drivers included: Yes
- Bundled software: BullGuard
- Width: 226 mm
- Depth: 171 mm
- Manual: Yes
- Drivers included: Yes
- Cables included: SATA
- Bundled software: BullGuard
