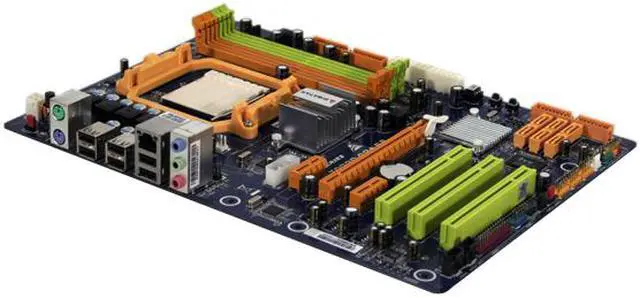

BIOSTAR TA770A2+SE AM3/AM2+/AM2 AMD 770 ATX AMD Motherboard
- AMD 770
- Phenom II / Phenom / Athlon II / Athlon64 /Sempron Support CPU up to 95W TDP
- DDR2 533/667/800/1066(1066 by AM2+ CPU)
Specs
Reviews (36)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Biostar TA770A2+SE
| Brand | BIOSTAR |
|---|---|
| Model | TA770A2+SE |
| CPU Socket Type | AM3/AM2+/AM2 |
|---|---|
| CPU Type | Phenom II / Phenom / Athlon II / Athlon64 /Sempron Support CPU up to 95W TDP |
| FSB | 2600 MHz |
| Chipset | AMD 770 |
|---|---|
| South Bridge | AMD SB700 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 533/667/800/1066(1066 by AM2+ CPU) |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8111C |
|---|---|
| Max LAN Speed | 1Gbps |

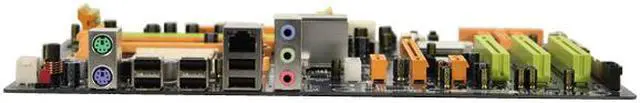

| Back I/O Ports | 2 x PS/2 / 3 x Audio Jacks / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 3 x USB 2.0 Header |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 8.9" |
| Power Pin | 24 Pin |
| First Listed on Newegg | January 22, 2009 |
|---|
