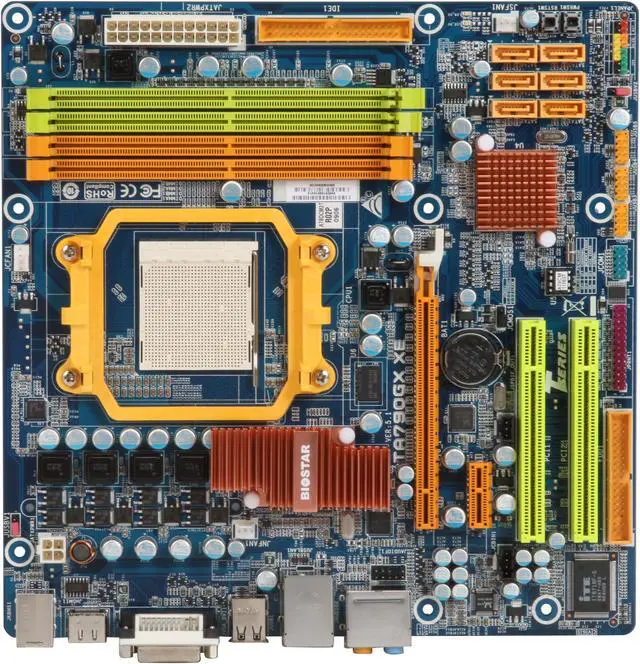

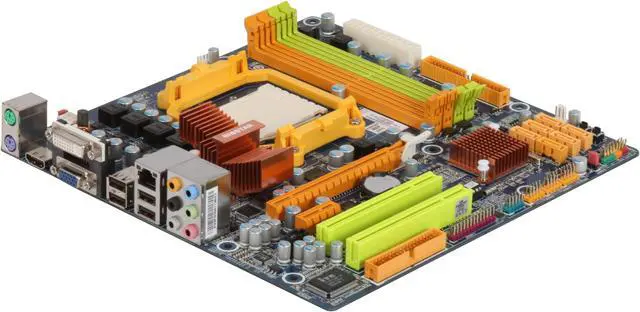

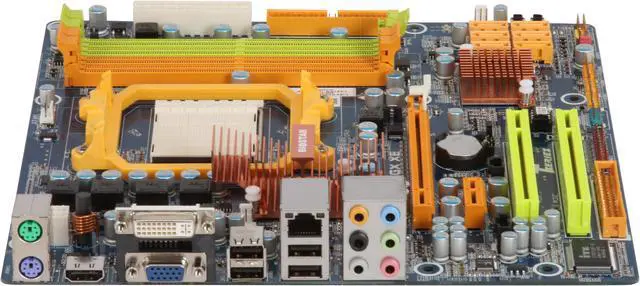

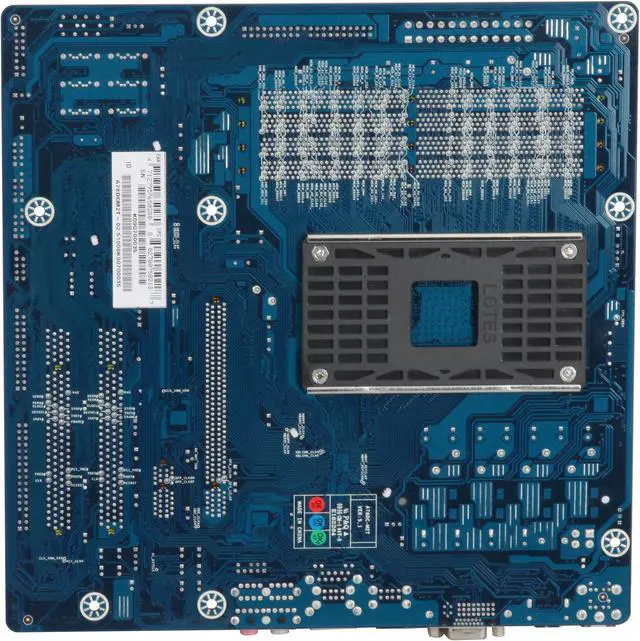

BIOSTAR TA790GX XE AM3/AM2+ AMD 790GX HDMI Micro ATX AMD Motherboard
- AMD 790GX
- AMD Phenom X4 / Phenom X3 / Athlon /Sempron
- DDR2 533/667/800/1066 (1066 by AM2+ CPU)
Specs
Reviews (139)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Biostar TA790GX XE
| Brand | BIOSTAR |
|---|---|
| Model | TA790GX XE |
| CPU Socket Type | AM3/AM2+ |
|---|---|
| CPU Type | AMD Phenom X4 / Phenom X3 / Athlon /Sempron |
| FSB | 2600 MHz |
| Chipset | AMD 790GX |
|---|---|
| South Bridge | AMD SB750 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 533/667/800/1066 (1066 by AM2+ CPU) |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 1 x PCI Express 2.0 x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express 2.0 x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA RAID | 0/1/5/10 |
| Onboard Video Chipset | ATI Radeon HD3300 Graphics with 128MB Side-port memory, Max. Memory share up to 512 MB Support ATI Hybrid Crossfire |
|---|
| Audio Chipset | Realtek ALC888 |
|---|---|
| Audio Channels | 8+2 Channel HD Audio |
| LAN Chipset | Realtek 8111C |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x D-Sub / 1 x DVI / 1 x HDMI / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| First Listed on Newegg | February 24, 2009 |
|---|
