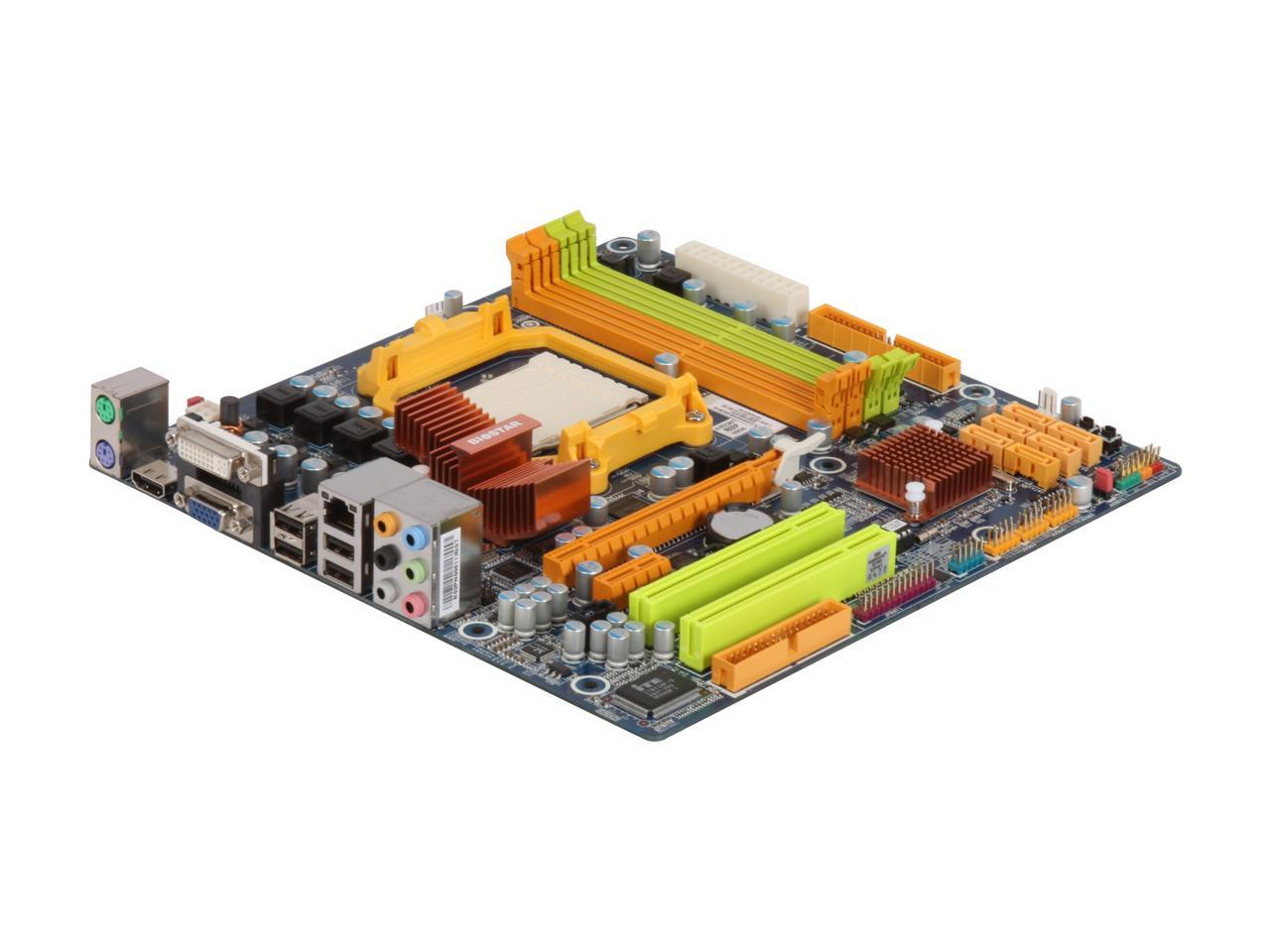

BIOSTAR TA790GX XE AM3/AM2+ AMD 790GX HDMI Micro ATX AMD Motherboard

(139) Write a Review
Check more best sellers of "AMD Motherboards"
Check more lowest price of "AMD Motherboards"
Check more deals of "AMD Motherboards"
OUT OF STOCK.
Newegg PC Builder
  • AMD 790GX
  • AMD Phenom X4 / Phenom X3 / Athlon /Sempron
  • DDR2 533/667/800/1066 (1066 by AM2+ CPU)
🔥Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download and USB versions available
Specs
Reviews

Learn more about the Biostar TA790GX XE

Model
Brand BIOSTAR
Model TA790GX XE
Supported CPU
CPU Socket Type AM3/AM2+
CPU Type AMD Phenom X4 / Phenom X3 / Athlon /Sempron
FSB 2600 MHz
Chipsets
Chipset AMD 790GX
South Bridge AMD SB750
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 533/667/800/1066 (1066 by AM2+ CPU)
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express 2.0 x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA 3Gb/s 6 x SATA 3Gb/s
SATA RAID 0/1/5/10
Onboard Video
Onboard Video Chipset ATI Radeon HD3300 Graphics with 128MB Side-port memory, Max. Memory share up to 512 MB
Support ATI Hybrid Crossfire
Onboard Audio
Audio Chipset Realtek ALC888
Audio Channels 8+2 Channel HD Audio
Onboard LAN
LAN Chipset Realtek 8111C
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x D-Sub / 1 x DVI / 1 x HDMI / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 4 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Additional Information
Date First Available February 24, 2009
