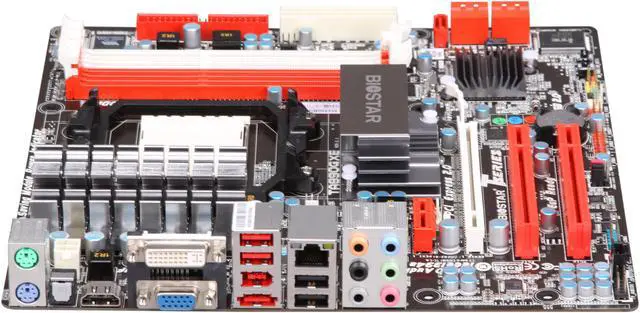

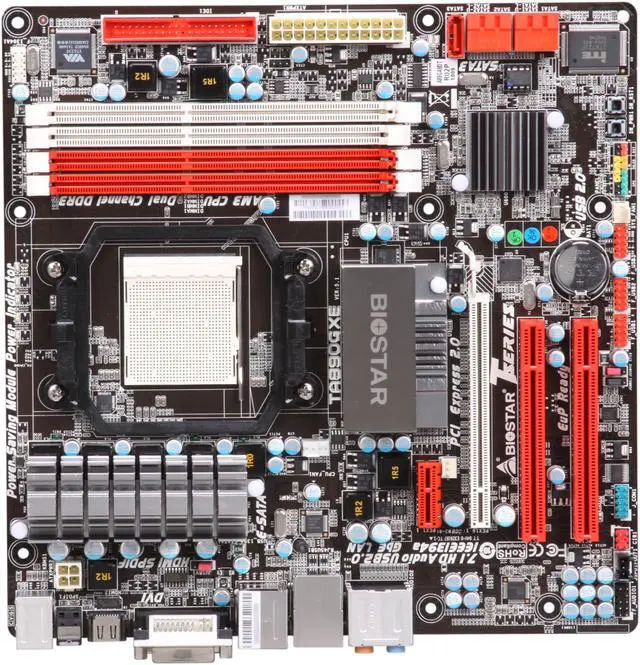

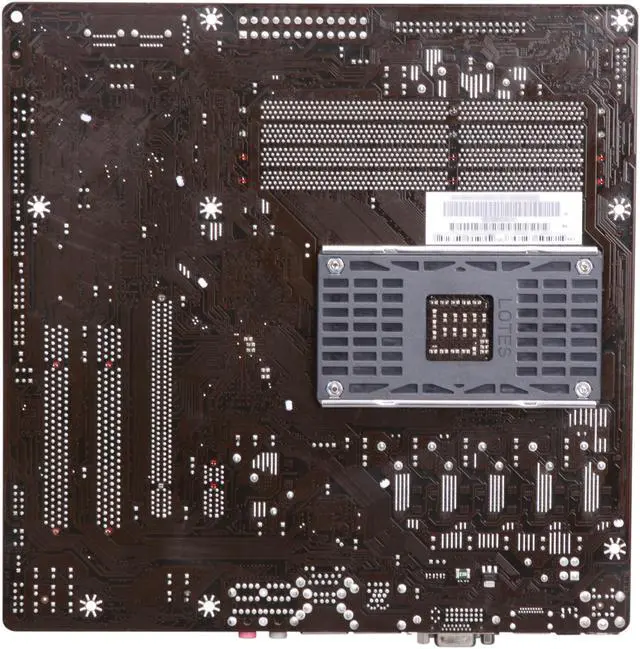

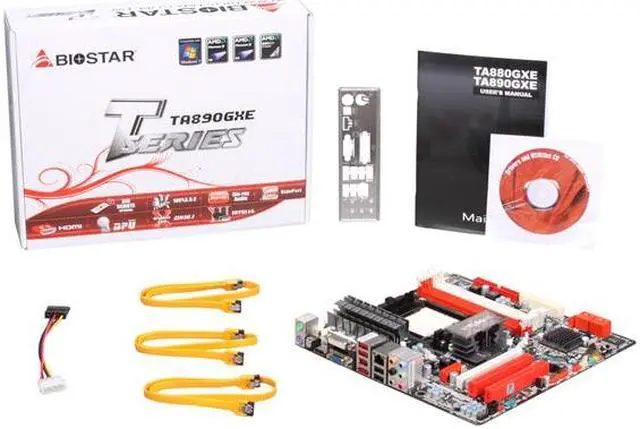

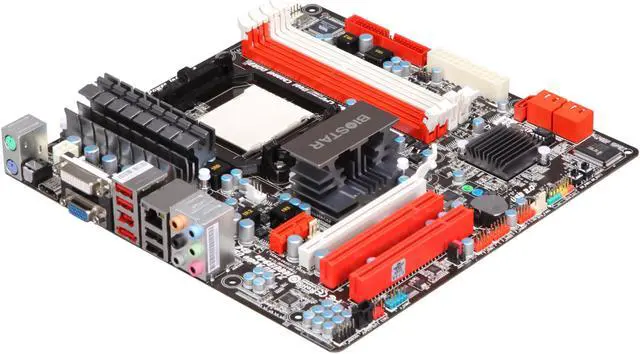

BIOSTAR TA890GXE AM3 AMD 890GX SATA 6Gb/s HDMI Micro ATX AMD Motherboard

OUT OF STOCK.
  • AMD 890GX
  • Phenom II / Athlon II / Sempron 100 Series Maximum CPU TDP (Thermal Design Power): 140Watt
  • DDR3 1600(OC)/1333/1066/800
Specs
Reviews

Learn more about the Biostar TA890GXE

Model
Brand BIOSTAR
Model TA890GXE
Supported CPU
CPU Socket Type AM3
CPU Type Phenom II / Athlon II / Sempron 100 Series
Maximum CPU TDP (Thermal Design Power): 140Watt
FSB 2600 MHz
Chipsets
Chipset AMD 890GX
South Bridge AMD SB850
Memory
Number of Memory Slots 4×240pin
Memory Standard DDR3 1600(OC)/1333/1066/800
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA133 2 Dev. Max
SATA 6Gb/s 5 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Video
Onboard Video Chipset ATI Radeon HD 4290
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8+2 Channel
Onboard LAN
LAN Chipset Realtek 8111DL
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2 2
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 1 x eSATA 3Gb/s
S/PDIF Out 1 x Optical
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Power Pin 24 Pin
Features
Features AMD 890GX Chipset with ATI Radeon HD 4290 DX10.1 Graphics
On Board 128MB DDR3 Side-Port memory
ATI Hybrid Graphics Support
Integrated HDMI/DVI interface with HDCP Support 1080P HD Video Experience
BIOSTAR G.P.U ( Green Power Utility ) for green power saving your desktop
D.P.U( Digital Power Unit ) Technology for better OC experience
Additional Information
Date First Available March 12, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: 30 days
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy
