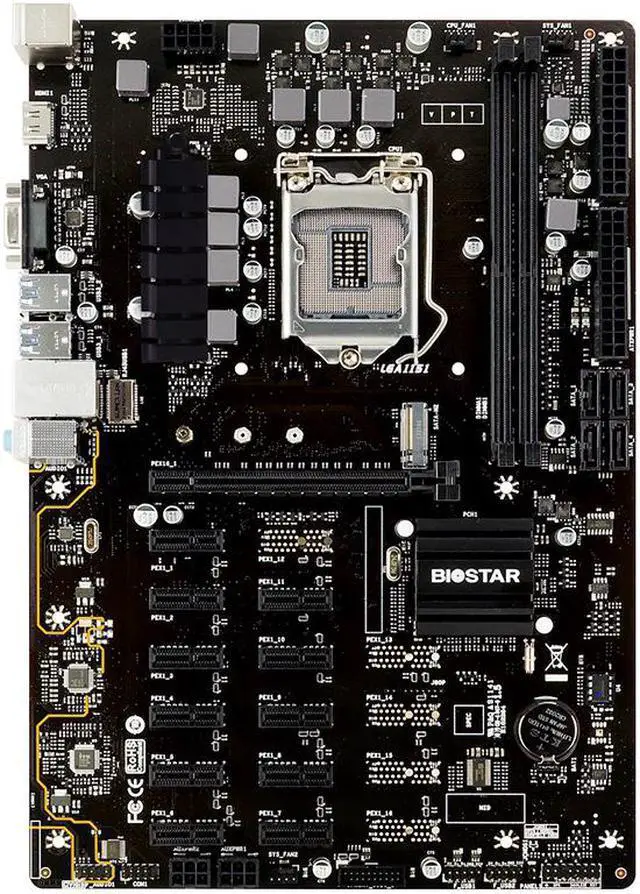

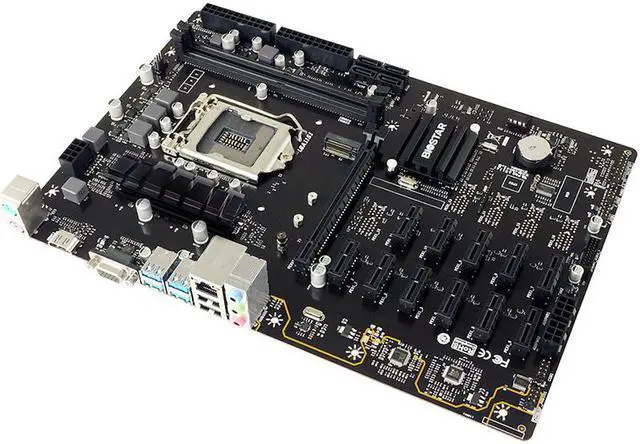

Biostar Tb360-Btc Pro Atx 32G 12 X Pci-E 3.0 Usb 3.1 Intel Btc Mine Board For Cryptocurrency Mining (Btc),Support 12 Gpu Mining Motherboard
- Support Intel9th & 8th Core processors
- Intel B360 chipset
- 2-DIMM supports DDR4-2666/2400/2133/1866, capacity can be expanded to 32G
- Onboard 12 x PCI-E 3.0 slots
- Onboard M.2 (6Gb/s) port
- Onboard HDMI HD output port
+
+
Overview
Specs
Reviews (4)
Any questions? Our AI beta will help you find out quickly.
Try me now
Biostar Tb360-Btc Pro Atx 32G 12 X Pci-E 3.0 Usb 3.1 Intel Btc Mine Board For Cryptocurrency Mining (Btc),Support 12 Gpu Mining Motherboard
Chipset Intel B360
Processor 8th Gen Intel® LGA 1151 Processor
9th Gen Intel® LGA 1151 Processor
CPU TDP (Thermal Design Power): 95W
?For detailed CPU support models, please visit www.biostar.com.tw
Memory support dual channel DDR4 1866/ 2133/ 2400/ 2666MHz
2 x DDR4 DIMM memory slots
Memory capacity can be expanded to 32GB
?For detailed memory support models, please visit www.biostar.com.tw
Expansion slot 11 x PCIe 3.0 x1 slot
1 x PCIe 3.0 x16 slot (x16)
* The maximum number of VGA card mining support depends on the VGA driver or mining software.
Storage capacity 4 x SATA3 6Gb/s interface
1 x M.2 (6Gb/s): Support SATA SSD
USB 4 x USB 3.1 ports
1 x USB 3.1 connector
2 x USB 2.0 ports
2 x USB 2.0 connector
Network configuration Onboard Realtek RTL8111H-10/100/1000 network card chip
?Super network card technology (intelligent speed-up + super lightning protection)
Onboard graphics card Intel's built-in integrated graphics core series CPU can only support the onboard output port display
The integrated graphics model is determined by the CPU model
Support DX12
Support HDCP
VGA interface, resolution up to 1920 x 1200 @60Hz
HDMI interface, resolution up to 4096 x 2160 @24Hz, in line with HDMI 1.4 specification
Sound card configuration Realtek ALC887 8-channel HD audio output

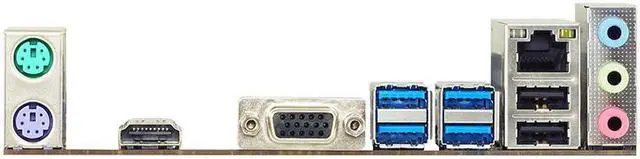

Backplane I/O interface 1 x PS/2 keyboard
1 x PS/2 mouse
2 x USB 2.0 ports
4 x USB 3.1 ports
1 x HDMI port
1 x VGA port
1 x RJ-45 port
3 x audio interface
Onboard I/O interface 2 x USB2.0 connector
1 x USB 3.1 Gen1 connector
4 x SATA3 6Gb/s ports
1 x front audio connector
1 x front panel connector
1 x CPU fan header
2 x system fan header
1 x serial connector
2 x 6-PIN PCIe power supply interface
Hardware monitoring and protection CPU/ system temperature monitoring
CPU/system fan speed monitoring
Smart/manual CPU fan control
System voltage monitoring
Motherboard specifications ATX architecture, size: 30.5cm x 21.0cm (W x L)
Operating System Support Microsoft® Windows® 10 (64bit)
?Linux, ethOS Mining OS, etc.
Accessory 2 x SATA data cable
1 x Chassis I/O baffle
1 x Driver CD
1 x User Manual
Product features PCI-E slot device detection screen
Chipset Intel B360
Processor 8th Gen Intel® LGA 1151 Processor
9th Gen Intel® LGA 1151 Processor
CPU TDP (Thermal Design Power): 95W
?For detailed CPU support models, please visit www.biostar.com.tw
Memory support dual channel DDR4 1866/ 2133/ 2400/ 2666MHz
2 x DDR4 DIMM memory slots
Memory capacity can be expanded to 32GB
?For detailed memory support models, please visit www.biostar.com.tw
Expansion slot 11 x PCIe 3.0 x1 slot
1 x PCIe 3.0 x16 slot (x16)
* The maximum number of VGA card mining support depends on the VGA driver or mining software.
Storage capacity 4 x SATA3 6Gb/s interface
1 x M.2 (6Gb/s): Support SATA SSD
USB 4 x USB 3.1 ports
1 x USB 3.1 connector
2 x USB 2.0 ports
2 x USB 2.0 connector
Network configuration Onboard Realtek RTL8111H-10/100/1000 network card chip
?Super network card technology (intelligent speed-up + super lightning protection)
Onboard graphics card Intel's built-in integrated graphics core series CPU can only support the onboard output port display
The integrated graphics model is determined by the CPU model
Support DX12
Support HDCP
VGA interface, resolution up to 1920 x 1200 @60Hz
HDMI interface, resolution up to 4096 x 2160 @24Hz, in line with HDMI 1.4 specification
Sound card configuration Realtek ALC887 8-channel HD audio output
Backplane I/O interface 1 x PS/2 keyboard
1 x PS/2 mouse
2 x USB 2.0 ports
4 x USB 3.1 ports
1 x HDMI port
1 x VGA port
1 x RJ-45 port
3 x audio interface
Onboard I/O interface 2 x USB2.0 connector
1 x USB 3.1 Gen1 connector
4 x SATA3 6Gb/s ports
1 x front audio connector
1 x front panel connector
1 x CPU fan header
2 x system fan header
1 x serial connector
2 x 6-PIN PCIe power supply interface
Hardware monitoring and protection CPU/ system temperature monitoring
CPU/system fan speed monitoring
Smart/manual CPU fan control
System voltage monitoring
Motherboard specifications ATX architecture, size: 30.5cm x 21.0cm (W x L)
Operating System Support Microsoft® Windows® 10 (64bit)
?Linux, ethOS Mining OS, etc.
Accessory 2 x SATA data cable
1 x Chassis I/O baffle
1 x Driver CD
1 x User Manual
Product features PCI-E slot device detection screen
