BitFenix Formula 80 Plus Gold Standard ATX PSU 550W BF-550G , BP-FM550ULAG-7R
- ATX 12V V2.4
- 80 PLUS GOLD Certified
- 100 - 120 V / 200 - 240 V 47 - 63 Hz
The Formula Gold is an extremely high-efficient power supply series with a 80+ Gold Efficiency Certification. With a custom 2oz pure copper and double layer PCB paired with high quality components, the Formula gold Series is rated at a Power Factor of 0.99 with an efficiency of up to 90+ at a 40% to 60% load, so it can achieve the performance of 80Plus Gold requirements. The Formula Gold Series was designed to provide an extremely stable power output with most efficient energy usage.

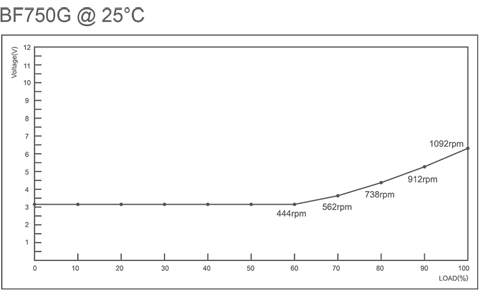

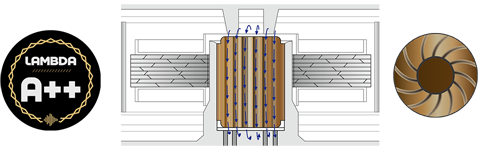

The Formula Gold power supplies provide stable currents, even at high loads, all while keeping heat levels low due to the high efficiency layout. To keep the performance even more silent, all Formula Gold power supplies are equipped with ultra-low noise level & high life expectancy fans. Optimized with an intelligent fan control curve, the 120mm FDB fans start operating at a voltage as low as 3V with 500rpm ± 10%, keeping the noise levels under 15-18dBA at a 60% load in 25°C surroundings. BitFenix silence engineering has improved when the engineer is using the low starting voltage fan and Fluid Dynamic Bearing Fan. Even the PSU is using a 120mm fan, but the performance is better than some 140mm fan in the market. Therefore, Formula Gold series PSU has got the approval of Cybenetics and had LAMBDA A++ certified.
Best performance Components and Circuits
|To ensure the best output quality and durability, BitFenix not only uses high quality components such as 100% Japanese industrial capacitors and solid capacitors but also built in with the all modern and advance circuit such as LLC resonant Converter and Synchronous Rectification & DC-DC converter…etc. The industrial capacitors are designed to withstand and continue working at elevated temperatures of up to 105°C, while the solid capacitors reduce up to 35% of ripple & noise on the motherboard.||The combination of all high quality extended lifetime components has only one main task which is resulting with solid performance and increasing the overclocking capabilities on Formula Gold PSU Platform. The specially designed flat ribbon-style cables feature pure copper and Japanese electronic components to improve the stability of the power delivered, thus resulting in better durability and reduced power drops caused by interferences of the system’s environment.|
Dedicated Rail Design

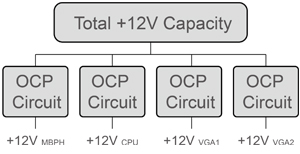

Working on a special and new design PSU platform which can only produce from BitFenix exclusively. A Dedicated multi-rail design is the symbol of BitFenix which paired with an advanced voltage switching circuit assure best output quality and stability. To support power hungry graphics cards and other components, the Formula Gold as a higher current capacity on the GPU and the other main rails. All main +12V rails feature an additional Over Current Protection (OCP) to avoid damage from over current or due to failing or damaged components, because each component has its own rail assigned.
Advanced Protection Circuits and warranty
To provide the perfect balance between performance, silent operation and safety, the Formula Gold Series feature a series of protections as listed below to keep the power supply and the system components safe. The Formula Gold Series comes with a respectable 5-year warranty.
|Intel Specification||ATX 12V V2.4|
|Dimension(DxWxH||140mm(D) x 150mm(W) x 86mm(H)|
|Frequency||47Hz - 63Hz|
|APFC PF value||PF > 0.99 at 115Vac input and full load|
|80Plus Certification||80Plus Gold, up to 92%|
|Protection||OPP/ OVP/ OCP/ UVP/ SCP/ NLO/ OTP/ SIP|
|Safety||cTUVus, TUV, CB, CE, FCC, BSMI|
|ErP regulation||ErP 2013 Lot 6|
|Output cable Type||Fixed Cable | Flat Cable|
|Connector Quantity||24Pin x 1 | CPU 8Pin x 1 | CPU 4+4Pin x 1 | VGA 6+2Pin x 4 | SATA x 8 | Molex x 4||24Pin x 1 | CPU 8Pin x 1 | CPU 4+4Pin x 1 | VGA 6+2Pin x 4 | SATA x 8 | Molex x 4||24Pin x 1 | CPU 4+4Pin x 1 | VGA 6+2Pin x 2 | SATA x 6 | Molex x 2||24Pin x 1 | CPU 4+4Pin x 1 | VGA 6+2Pin x 2 | SATA x 6 | Molex x 2|
|Formula Gold 450W||BP-FM450ULAG-7R||US||4712883216497||886027015551|
|Formula Gold 550W||BP-FM550ULAG-7R||US||4712883216480||886027015544|
|Formula Gold 650W||BP-FM650ULAG-7R||US||4712883216473||886027015537|
|Formula Gold 750W||BP-FM750ULAG-7R||US||4712883216466||886027015520|
