Antec TITAN650 Black Steel Pedestal Server /Workstation Case w/ 650W Power Supply 4 x 5.25" (one with 5.25" to 3.5" adapter) External 5.25" Drive Bays

(54) Write a Review
  • w/ 650W Power Supply
  • 4 x 5.25" (one with 5.25" to 3.5" adapter) External 5.25" Drive Bays
  • 1 rear 120 TriCool (Standard) 120mm Fans
Overview
Specs
Reviews (54)
avatar

Any questions? Our AI mode will help you find out quickly.

Try me now

Premium Server Enclosure
Model: TITAN 650

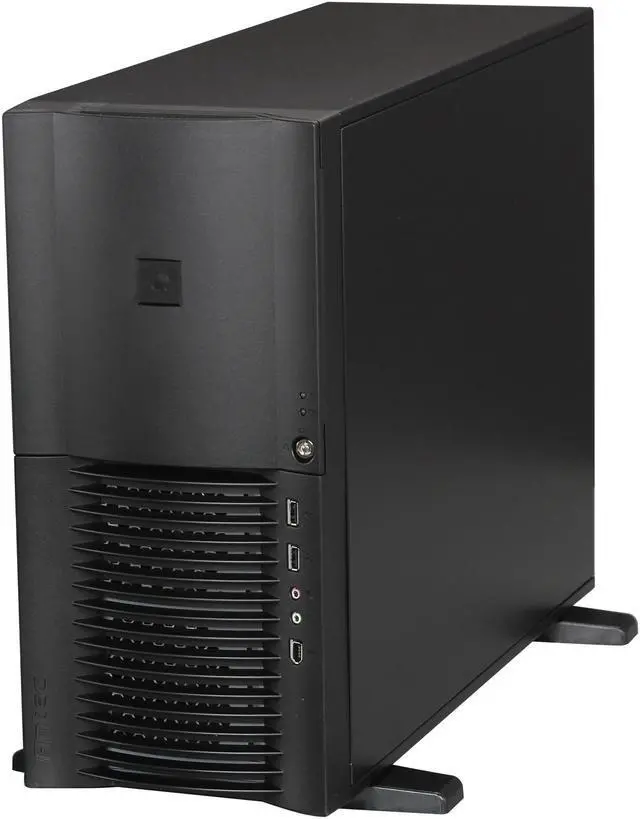

Looking for the perfect enclosure for your pedestal server? Then look no further than Antec’s Titan! The Titan is designed to exceed the needs of today's server and workstation markets and sets a bold new standard for server grade systems.

TITAN 650 TITAN 650 TITAN 650
TITAN 650
Expandability

With 10 drive bays and seven expansion slots, the Titan has the space for even the most demanding builders. In addition, the Titan’s front accessible HDD installation makes it easy to build and upgrade the system.


TITAN 650
Convenience

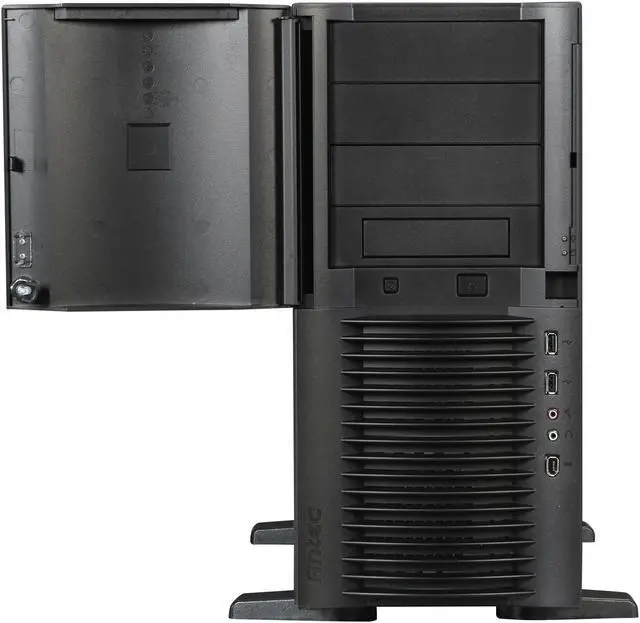

The front double-hinged door opens up to 270 degrees, making access to its external drives a breeze, while front USB, IEEE, and audio ports deliver the ultimate in convenience.


TITAN 650
Airflow

The Titan’s extra deep chassis creates better airflow and accommodates dual Xeon and Opteron based systems. All of these features and more make the Titan an ideal case for all professional system builders!


SPECIFICATIONS

Model
Titan 650
Unit Dimensions (H x W x D)
17.6 x 8.1 x 23" (44.6 x 20.5 x 58.4cm)
Package Dimensions (H x W x D)
20 x 11 x 26" (50.80 x 27.94 x 66.04cm)
Maximum Video Card Size
1.0mm Cold rolled steel for durability Compatible Motherboards Mini-ITX, microATX, Standard ATX, or Extended ATX including CEB specification motherboard 12" x 13"
Front Ports
2 x USB 2.0, 1 x IEEE 1394 (FireWire®, i.Link®), Audio In and Out.
Cooling System
1 Rdear 120mm standard fan with TriCool™ 3-speed switch; 2 front (optional) 92mm case fan mounts
Drive Bays & Front Ports
- External 4 x 5.25" (one with 5.25" to 3.5" adapter)
- Internal 6 x 3.5"
PSU
included TP-650
Weight
- Net 30.00 lbs (13.6kg)
- Gross 36.00 lbs (16.33kg)
Expansion Slots
7

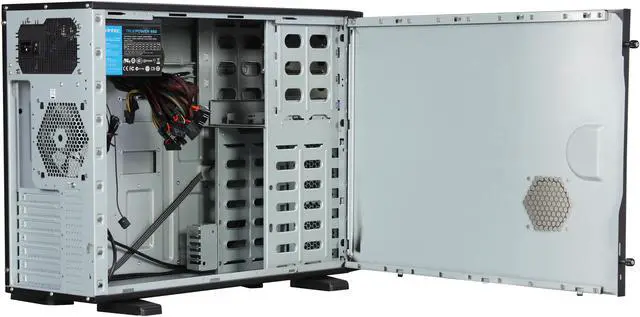

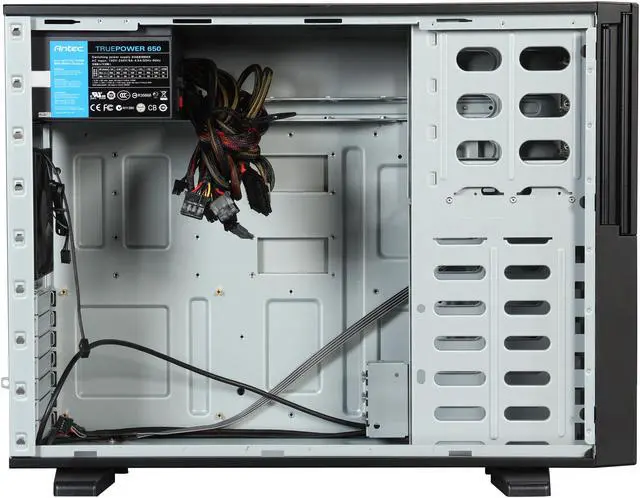

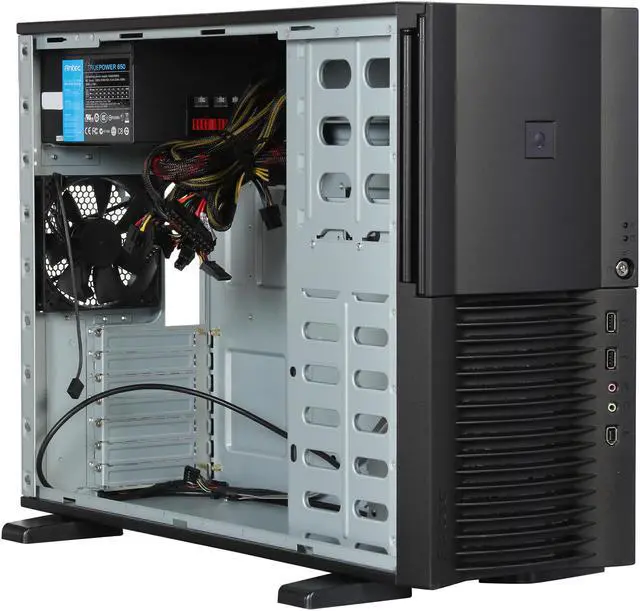

Antec's Titan 650 server case is all about space. The motherboard tray can handle EATX including CEB spec boards up to 30.5cm X 33cm. Once you've got the board installed it's time for drives. The 10 bays (four 5.25" exposed and six 3.5" internal) give you plenty of room, even if you want to build an internal RAID array. All the bays are tool-less and the rails for the internal bays have rubber grommets to minimize vibrations.

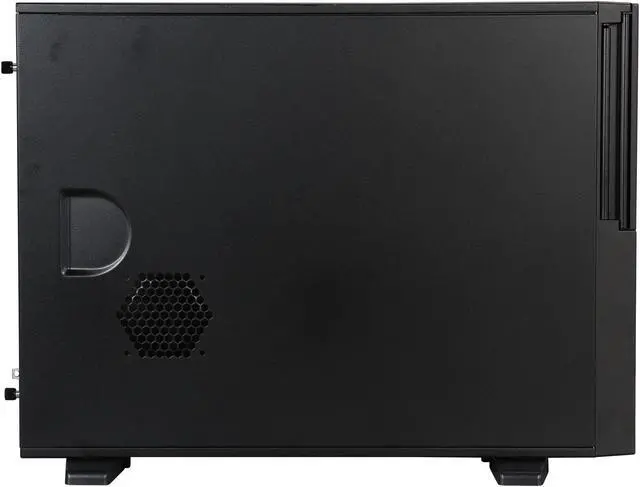

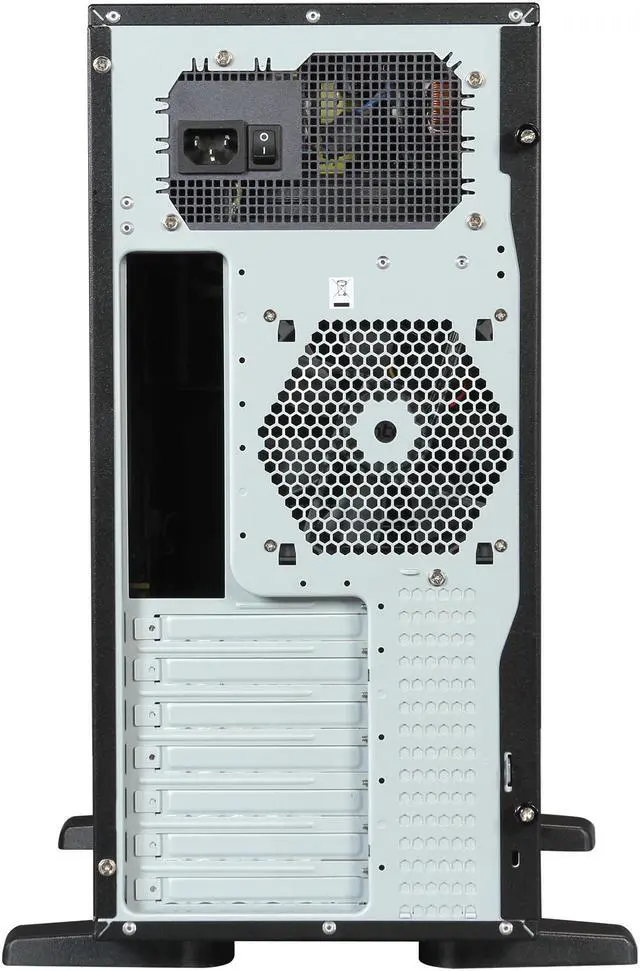

In addition to the front mounts, the front panel is vented for maximum airflow across all components. The side panel has a vent with holes to install an 80mm fan over the video card for additional cooling. The back panel has a three-speed 120mm fan to pull air through the system and over the CPU, keeping everything cool.

The TruePower Trio 650W PSU is Certified SLI ready by NVIDIA with dual PCIe 6-pin connectors. There are also 4 SATA connectors for today's high speed drives. Three 19A +12V rails provide balanced, stable power. An Antec case with an Antec PSU is a great foundation for a powerful system.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
