| Brand | ARCTIC COOLING |
|---|---|
| Model | AVC-AT1 Rev. 2 |
| Compatibility | ATI 9500SE ATI 9500PRO ATI 9600SE ATI 9600PRO ATI 9600XT ATI 9700SE ATI 9700PRO ATI 9800PRO ATI X600PRO ATI X600XT ATI X600AIW ATI X700PRO ATI X700XT ATI X700AIW |
|---|---|
| Bearing Type | ARCTIC Ceramic |
| RPM | 1500 RPM |
| Noise Level | 0.5 Sone |
| Fan Color | Black |

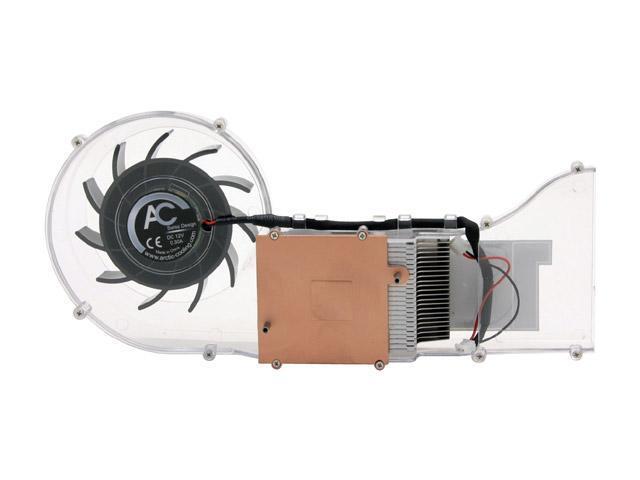

| Heatsink Material | Copper |
| Fan Dimensions | 72mm |
|---|---|
| Heatsink Dimensions | 218.5 x 100 x 40.5mm |
| Package Contents | VGA Cooling Fan Thermal Grease |
|---|
| Date First Available | March 10, 2005 |
|---|
Comments: I'm installed this yesterday on my ATI x800xt AIW card, and am quite pleased with the initial results. Temperatures went from 47 idle/74 load using the stock heatsink/fan and with an exhaust fan on the side of the case to 38 idle/60 load with the ATI silencer and without the side exhaust. (Temperatures were as reported by ATI tray tools.) I expect performance to improve even more once the thermal paste has had a chance to set properly. The only quibble I have is that the fan duct does not reach the PCI slot in the case, so there's a gap where the warm air being drawn from the GPU can escape back into the case. It should be easy enough to jury rig some sort of extender so that the exhaust goes directly out the back and only out the back, which should improve results even more.
