The CM 690 II Advanced raises the bar again with practical improvements over the top-selling CM 690. The spacious mid-tower will keep enthusiasts happy with room for up to 3 VGA cards, high-end CPU coolers, top or bottom mount water cooling radiator and 1.8"/2.5" drive adapter. It also features much improved airflow with oversized mesh and enough space for up to 10 fans. Maintenance will be a breeze with the tool-free drive bays, new cable management and CPU cooler retention hole.
Superior Expandability with 13 Drive BaysFeaturing four 5.25" external drive bays, seven 3.5" drive bays (one external and six internal) and two internal 2.5" drive bays, the Cooler Master CM 690 II Advanced provides superior expandability.

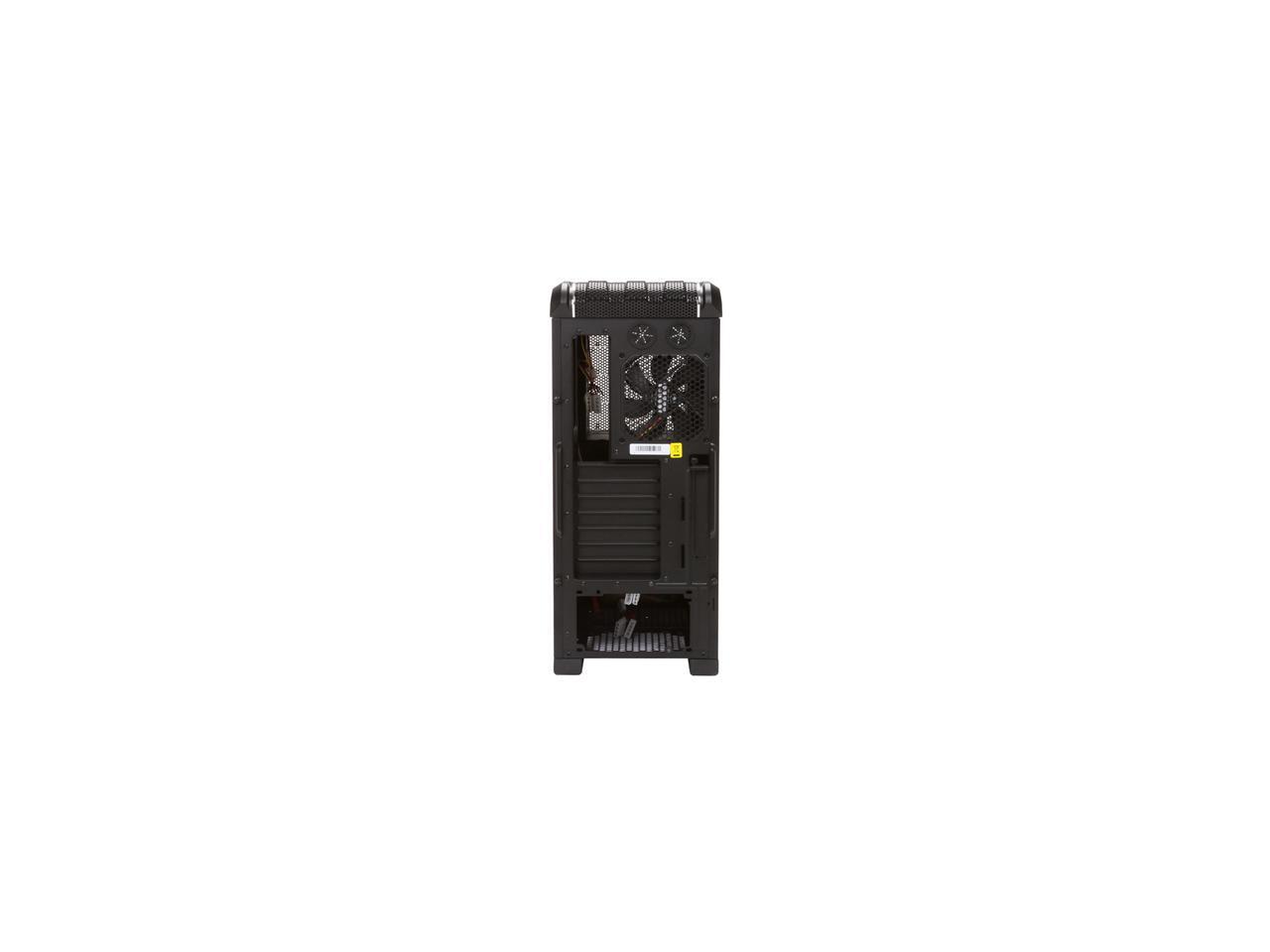

Peerless Cooling PerformanceThe Cooler Master CM 690 II Advanced features one 120mm rear fan, one 140mm blue LED fan and one 140mm top fan to optimize internal airflow for peerless cooling performance.
Easily Upgrade to Liquid CoolingThe Cooler Master CM 690 II Advanced features top and bottom mount water cooling for easy installation of liquid cooling systems.
Tool-free InstallationThe tool-free design ensures quick installation and upgrade for 3.5" devices to save you time.

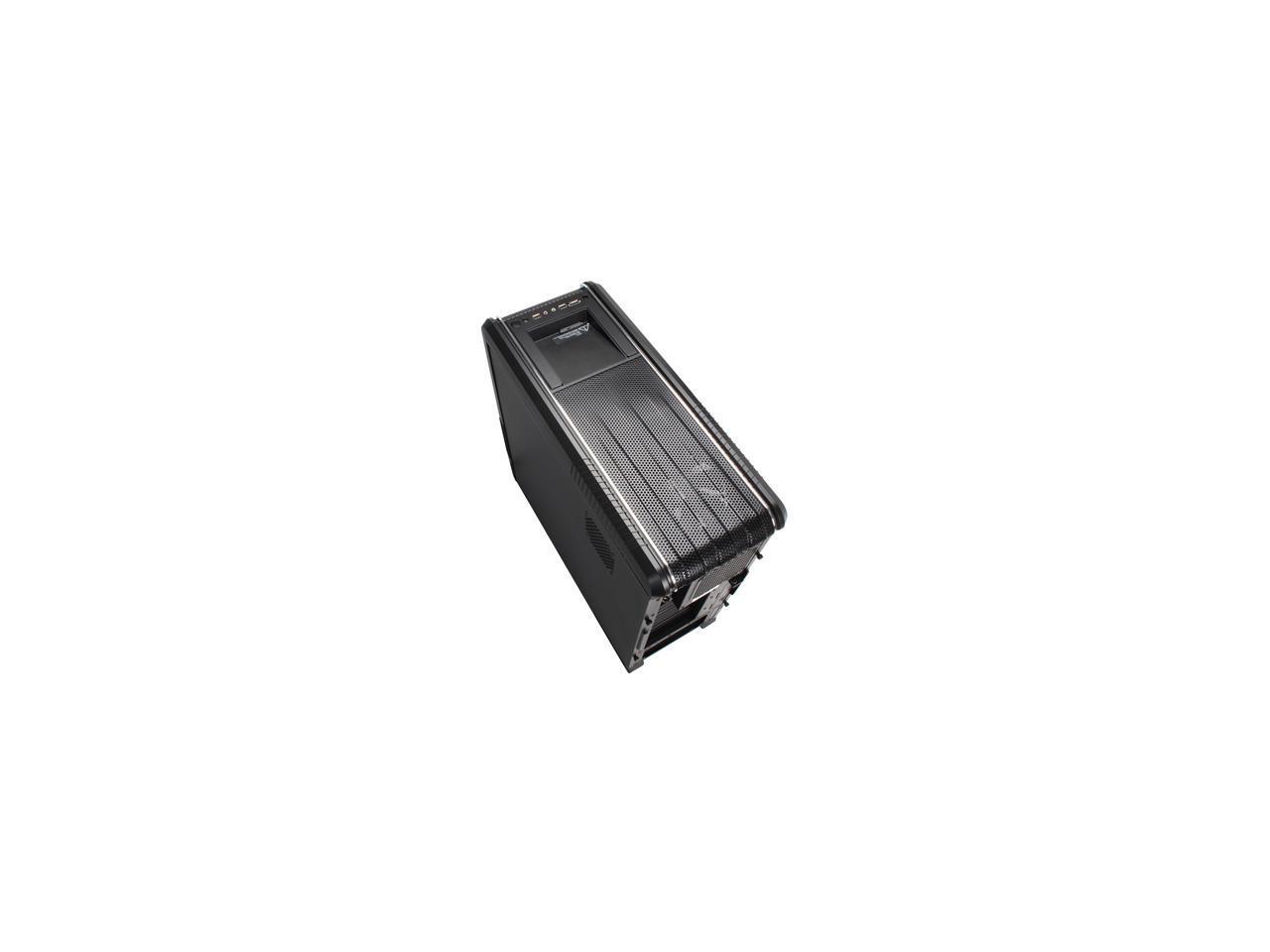

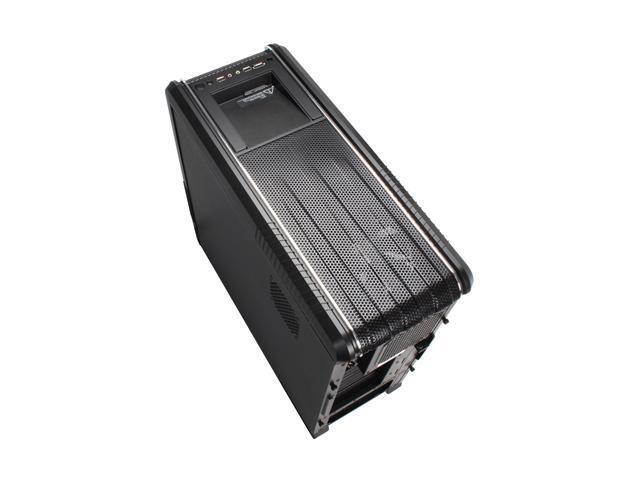

Convenient Top I/O PanelThe Cooler Master CM 690 II Advanced features a convenient top I/O panel for easy access to one eSATA, two USB 2.0 and two audio ports.
Learn more about the Cooler Master RC-692-KKN2
CM 690 II
ATX Mid Tower
Steel body / Plastic + Mesh bezel
With Power Supply
Power Supply Mounted
Micro - ATX / ATX / Mini - ITX (supports)
Side Panel Window
External 5.25" Drive Bays
4 (without the use of exposed 3.5" drive bay)
External 3.5" Drive Bays
1 (converted from one 5.25" drive bay)
Internal 3.5" Drive Bays
Internal 2.5" Drive Bays
2 (From 3.5" HDD Cage)
Front Panel Ports
USB 2.0 / Audio / e-SATA
Rear: 120 mm fan x 1 / 1200 RPM / 17 dBA
Front: 1 x 140 mm Blue LED fan Top: 1 x 140 mm fan(supports 120 / 140 mm fan x 2)
Dimensions & Weight
Dimensions (H x W x D)
20.80" x 8.40" x 20.10"
Oversized front and top mesh design for superb ventilation. Accommodates 120 x 240 mm radiator inside the top or bottom. Dust-control filters for all meshed areas. Air cooling support for up to 10 fans (with support for up to 5 x 140mm fans). External SATA X-dock . Front blue LED fan on/off switch. Rear retaining holes for water cooling kit. Includes 1.8" & 2.5" HHD and SSD adapter. Cable management and CPU retaining hole for easy maintenance. Includes VGA card bracket (supports triple GPU card).
