Question 1

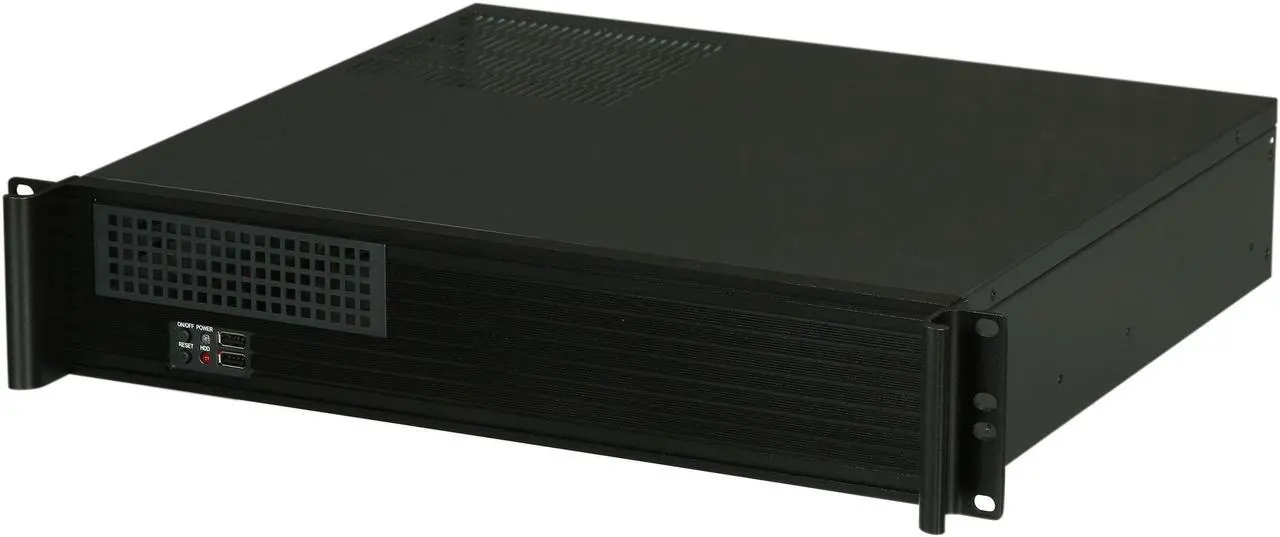

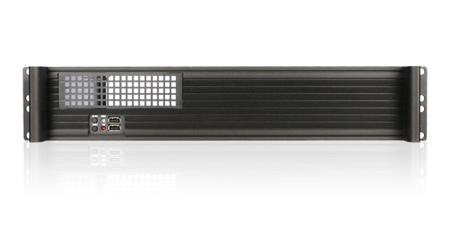

Where do the intake fans get air from? It looks like the front has no vents?

Accepted Answer

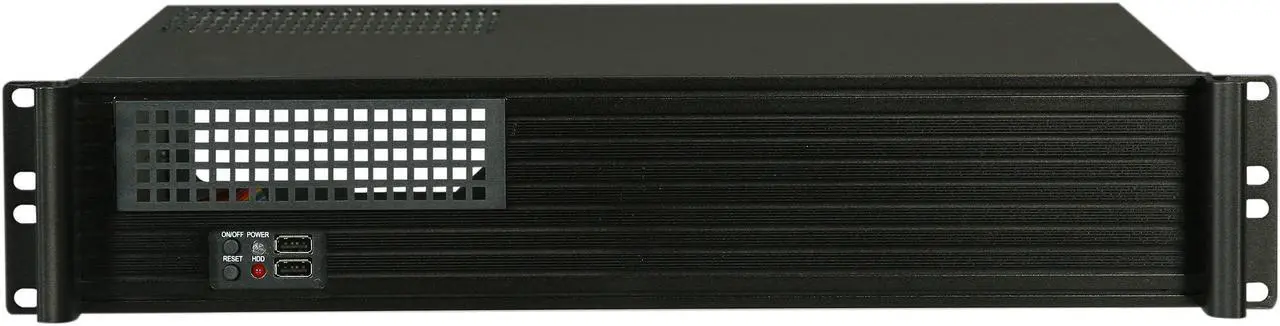

There is space between the striped face of the chassis and where the fans are located near the front which allows for ventilation and air flow from outside, in.  I purchased the case a while back but haven't actually used it yet, but if you take a flashlight and shine it on the front at an angle you can see the chassis/fans behind it.  It looks like it would be sufficient at cooling a 2u system, but if your unsure, maybe check out the D-214-MATX, same style with different face.

Question 2

Does it come with a rail kit?

Accepted Answer

No, the rail kit is sold separately. I had no need for a rail kit. The case is light enough and the front is more than strong enough to hold it to the rack. So if you don't have a need to slide it in and out on the rack, you won't need a rail kit.

Question 3

Is this really a microATX? I just received mine and it seems huge. Wanted to make sure before I opened a new motherboard.

Accepted Answer

Yes it is micro atx once you start your build you will run out of room very quickly.

Question 4

A user on NewEgg mentioned that this does not fit into a standard 19" rack as is too wide. Is this correct? I have seen no other bad reviews with this

Accepted Answer

I have this case in a Norco R4-15U rack and it fits perfectly.

Question 5

need a 2U, 19" rackmount chassis with a depth of 27" - 30"  Can you provide?

Accepted Answer

This chassis has a depth of 15.5".  It is 2U, but keep in mind that the vent for the power supply is on the top of the chassis, so this unit could not be placed directly under a unit of similar depth.

Question 6

What is the biggest heat sink will fit in this case?

Accepted Answer

The case is 3.5" thick so roughly any heat sink up to around 3". Stock Intel or similar would be best. I used Arctic low profile heat sinks in my D-213's

Question 7

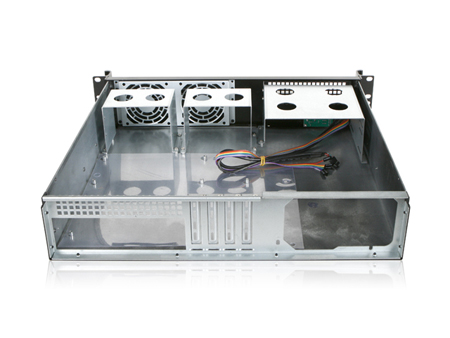

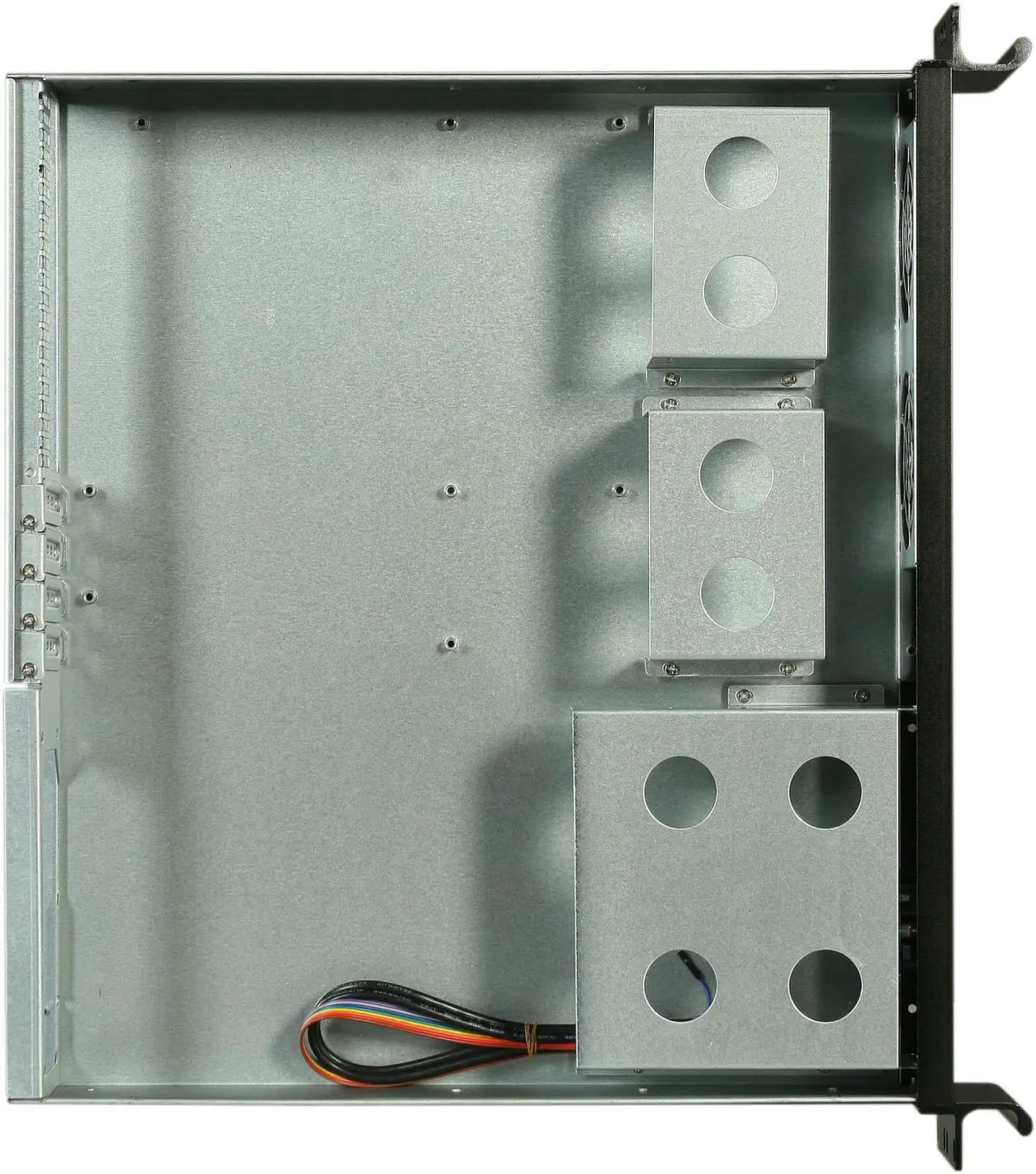

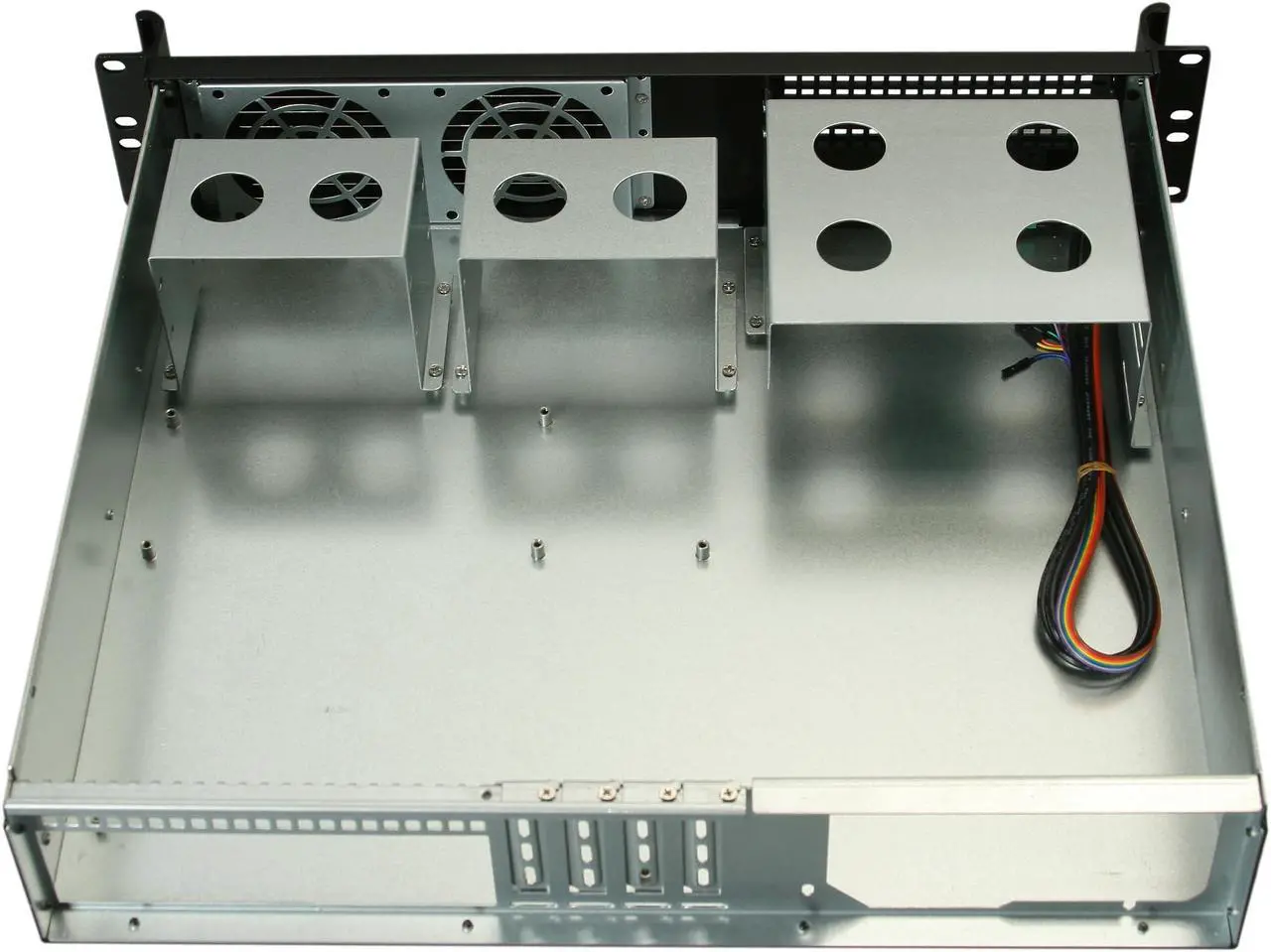

How many 3.5" Internal HDD bays? It says 2 on here and iStarUSA's website but, after looking closely at pictures I see what looks like 4 provisions for 3.5" HDDs

Accepted Answer

The product has 2 internal 3.5" drive bays.

Question 8

How many 3.5" Internal HDD's does this fit? It says 2 everywhere I look but, examining the pictures show space for at least 4 3.5" HDDs

Accepted Answer

The iStarUSA D-213-MATX chassis supports 2 internal 3.5" drive bays.

Question 9

Would this support water cooling?

Accepted Answer

No. It's a pretty tight case just the right size for a micro-ATX build. If you REALLY wanted to water cool it, then you'd have to cut out holes in the chassis to run the loop out of the back of the case. There is definitely no room to mount a radiator.

Model Number	D-213-MATX
RoHS Compliance Version	Yes
Standard Drive Bays	3.5" Drive (internal): 2 5.25" Drives: 1
Indicators	Power, HDD
Switches	Power, Reset
Supported PSU Type	PS2

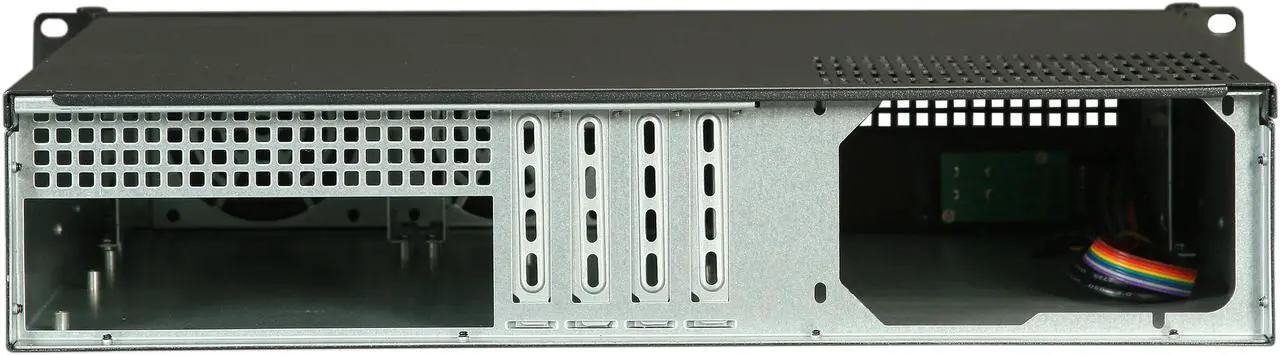

Expansion Slots	4 (Low profile)
Material of Front Bezel	Aluminum
Material of Handle	Aluminum
Material of Main Chassis	Zinc-Coated Steel
Color of Front Bezel	Black
Color of Main Chassis	Black
Front Connector	2x USB 2.0
Motherboard Size	9.6 x 9.6 (microATX, mini-ITX)
Optional Fan	80mmx2
Ordering Information (Part Number)	Black Bezel:D-213-MATX Blue Bezel:D-213-MATX-BLUE Red Bezel:D-213-MATX-RED Silver Bezel:D-213-MATX-SILVER
Dimensions (WxHxD)	19.00" x 3.50" x 15.35" 482.6 mm x 88.9 mm x 389.9 mm

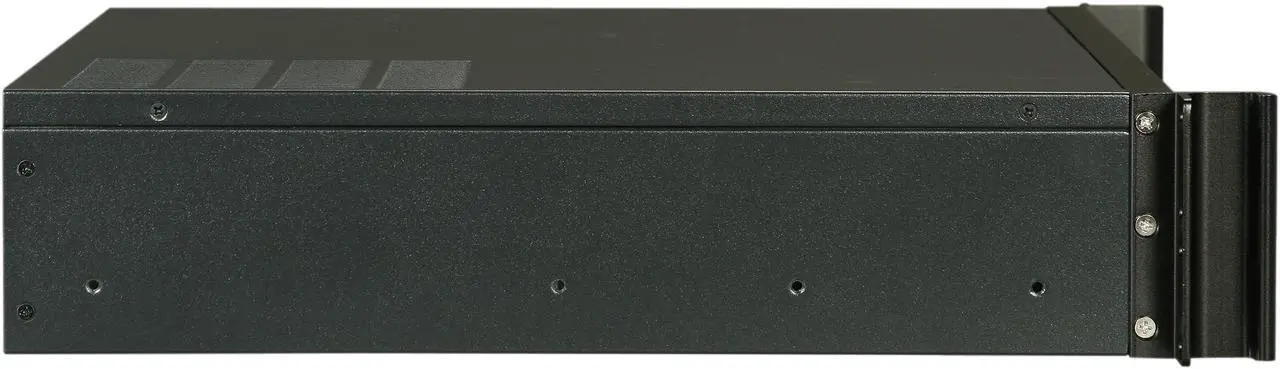

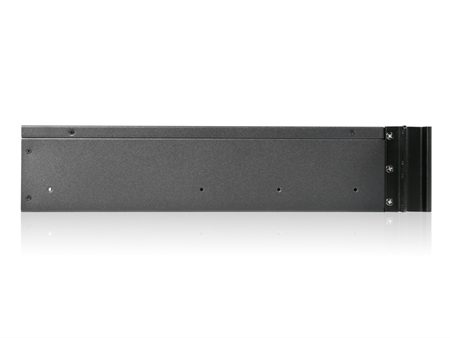

Notes	Note: optional sliding rails TC-RAIL-20 will only work with new version of this chassis with 4 mounting holes on sides

Chassis Type	Rackmount
Form Factor	2U
Color	Black
Case Material	Aluminum / Steel
Motherboard Compatibility	9.6" x 9.6" (microATX, mini-ITX)

External 5.25" Drive Bays	1
Internal 3.5" Drive Bays	2
Expansion Slots	4 (Low profile)

Dimensions	3.50" x 19.00" x 16.85"
Weight	15.00 lbs.

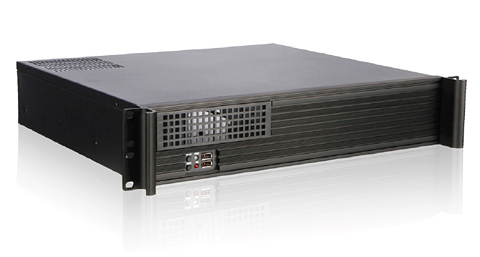

iStarUSA D-213-MATX Black Aluminum / Steel 2U Rackmount microATX Server Chassis - OEM
