Question 1

how many fans can this case hold?

Accepted Answer

The case fans are kind of funky, and I had to do a bunch of research in order to ensure I got the correct fan sizes.

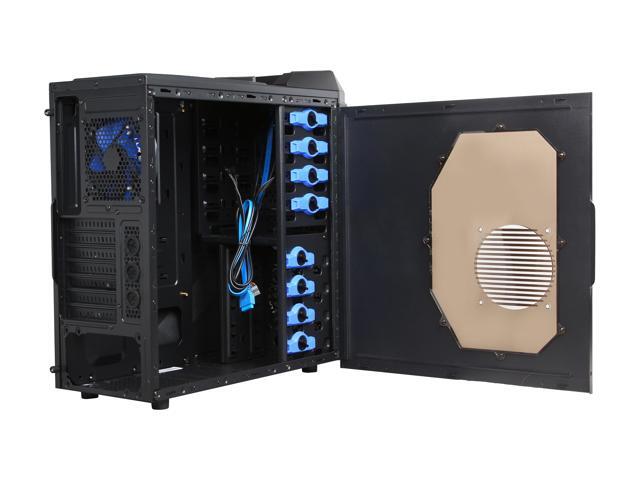

1 Side Window Fan 120mm(Not included)

1 Back Panel Fan 120mm(Fan with blue blades included)

The top supports 2 120mm fans OR 1 140mm fan.(Not included)  You can only choose one of those two options for the top.

The front behind the hard drive bays can support 1 120mm.

The only downfall about the front hard drive bay fan, is that when you add one to it, you can't use larger sized power supplies because the hard drives do not insert any farther than the fan permits it to.

Question 2

can you use any micro atx mother boards??

Accepted Answer

There are holes for the corresponding motherboard sizes.   You will have just install the pins in the correct holes for your motherboard and it should work fine.  One good thing about a micro atx board, you will have more space between your cards and your power supply.

I am running 3 way SLI and my video card sits right on top of my power supply, reducing the airflow from the cards fans.

Question 3

How many 120mm fan mounting points are there?

Accepted Answer

2 on top, 1 in rear, 1 on side, 1 or 2 on front. Total 5-6. Need more?

Question 4

Will the Cooler Master 212 EVO CPU cooler fit tight in this case?

Accepted Answer

Shouldn't have a problem fitting this. I recommend an extra fan in the front mount of the case and reverse the back fan so there is a nice cool air flow. The top holes are nice for extra heat to escape. Good choice if you get this.

Question 5

How do you get a front 120mm in this thing? I take the front cover off and I have two options. I can mount it inside the grill, sorta inside the harddrive bay, which blocks the harddrives from going all the way in. If I put it on the outside, the front case cover won't go back on all the way. What gives?

Accepted Answer

Put mine on the outside and slammed the front case back on, finally got it to seat after about 15 min of working it. After first boot I realized the fan wasnt on, plugged in a different one and still nothing. So yeah....

Question 6

can i mount 2 120mm fans in that top grate?

Accepted Answer

To be honest i dont remember...i sold that case to a friend...you can check online...sorry i cant be of more help

Question 7

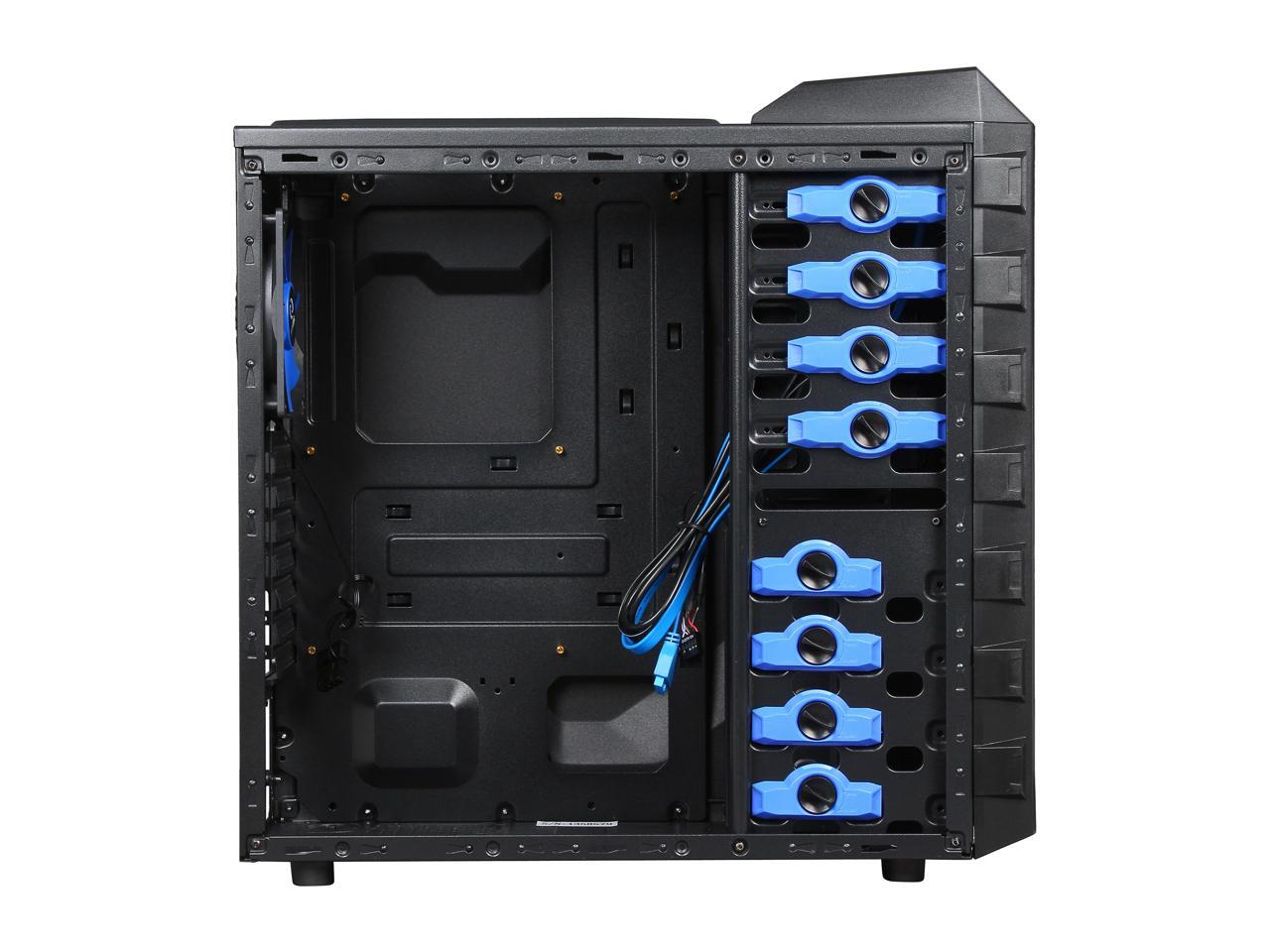

Are the 3.5" cages removable? And what is the length from the back of the case to the start of the 3.5" bays?

Accepted Answer

it has a about 10.5 inches of space from the rear to the edge of the drive bay. My EVGA GTX660 fits with about 1" of clearance.

No its not removable, the drive bay faces outward so there's no reason to remove it and if you could there would be no place to set the drives :)

Question 8

What is the maximum card length for this case? And those who have installed a front 120 mm fan, describe your experience.

Accepted Answer

You have just under 11 inches, regardless of front fan use, that's the front of the irremovable drive cage // front fan installs fine; nudges the drives out though 1 screw depth, meaning you only use/screw rear and center // an additional consideration on top fans; I used 2 standard 120's and one of them had to be notched with a file to plug in the 8-pin mobo power // TIP: if your 8-pin is up top, run the cable outside case then through before installing mobo, as there's just enough opening to clear cables but not connector after

Question 9

Can you mount a 200mm fan on the front of the case?

Accepted Answer

If you can add a second hard drive to your desktop, then you could have the OS and programs on the SSD and your data on the 1.5 TB drive.  Most software will not let you clone a larger drive to a smaller one.  But, there is an open source (free) program that will do that.  (I have used it, but cannot remember its name.)  It is a fairly difficult process, so you will need some tech skills and be able to follow the instructions.   You will need to partition your 1.5 TB or use an external hard drive to move you data to.  Most of the file folders (even if empty after transferring the data in them) will have to be moved with the OS and the program files that set up the folders.

Question 10

I am having problems with the hd audio jack. Recently, it has either played in just one ear, or poor quality in both ears. I have to keep twisting and pushing and bending the wire at certain angles (all with great time and effort) for it to work properly. I'm afraid this will eventually wear down either the wire or the jack, so I'm in need of a better solution.

And it definitely is not a headphone problem. I've tried 3 different headphones that work perfectly on my phone.

Help please?

Accepted Answer

It sounds like your jack is bad, either corroded or bent. You could replace it or perhaps fix it if you are so inclined. If not you could just plug in to the jack on the mother board. You can buy an extension audio cord. Some speakers have a headphone jack that may be in a more convenient location to plug in to.  Something else to consider is USB headphones or my favorite is Bluetooth headphones

Basic
External Drive Bays:	4 X 5.25", 1 X 3.5"
Internal Drive Bays:	4 X 3.5" HDDs
System Board:	10" X 12" Max. Size ATX Form Factor / Micro ATX
Expansion Slots:	Standard ATX 7 Slots
I/O Ports:	1 X USB 3.0 + 1 X USB 2.0; 2 x HD Audio
Dimensions (LxWxH):	18.5 x 8 x 18.66 inches (469 X 201 X 474mm)
Cooling System

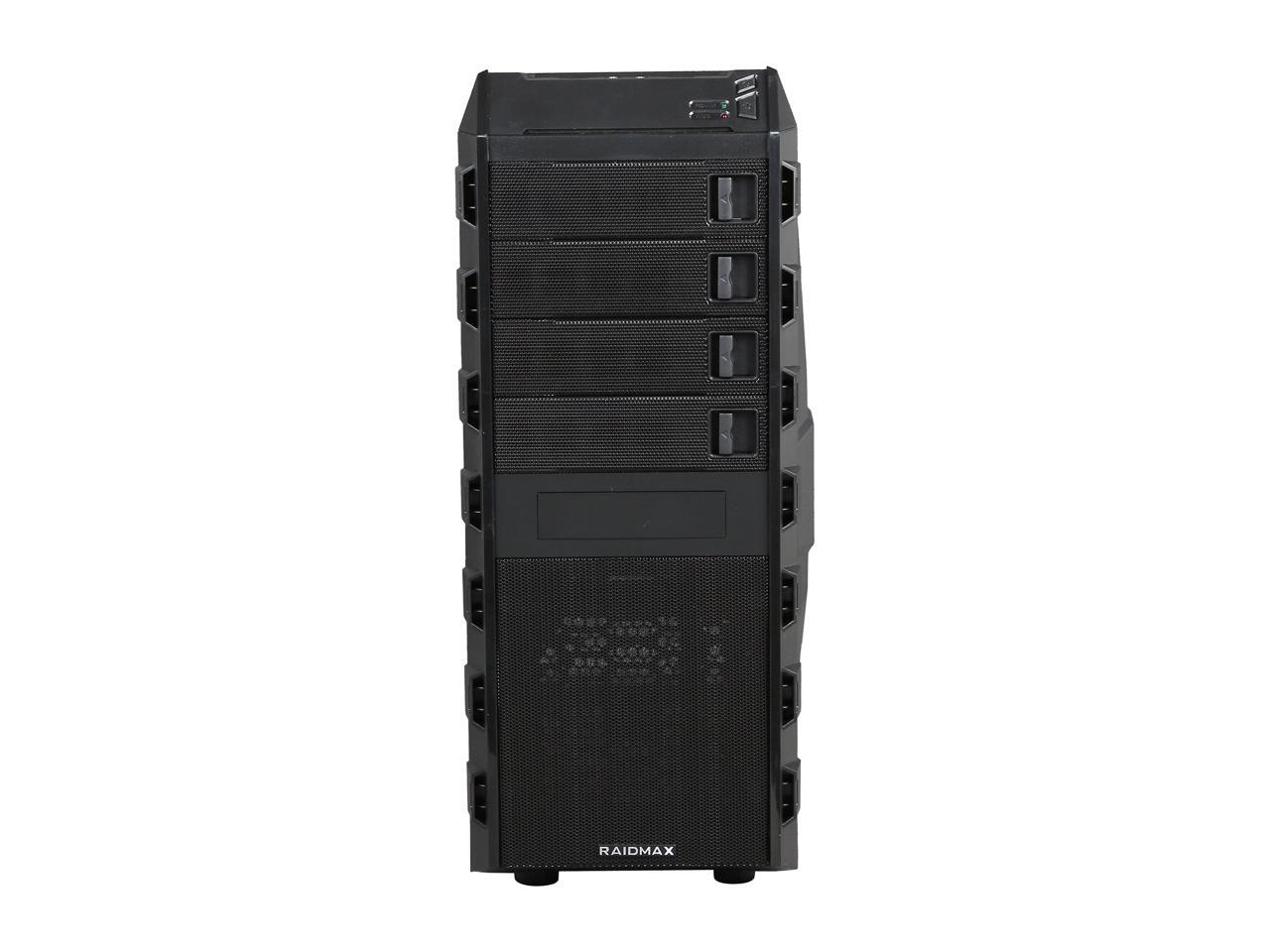

Front:	1 X 120mm blue LED fan (optional)
Side:	1 x 120mm blue LED fan (optional)
Back:	Black: 1 x 120mm Black frame with Blue fan blades
	Blue: 1 x 120mm Black frame with Blue fan blades
	White: 1 x 120mm Black fan

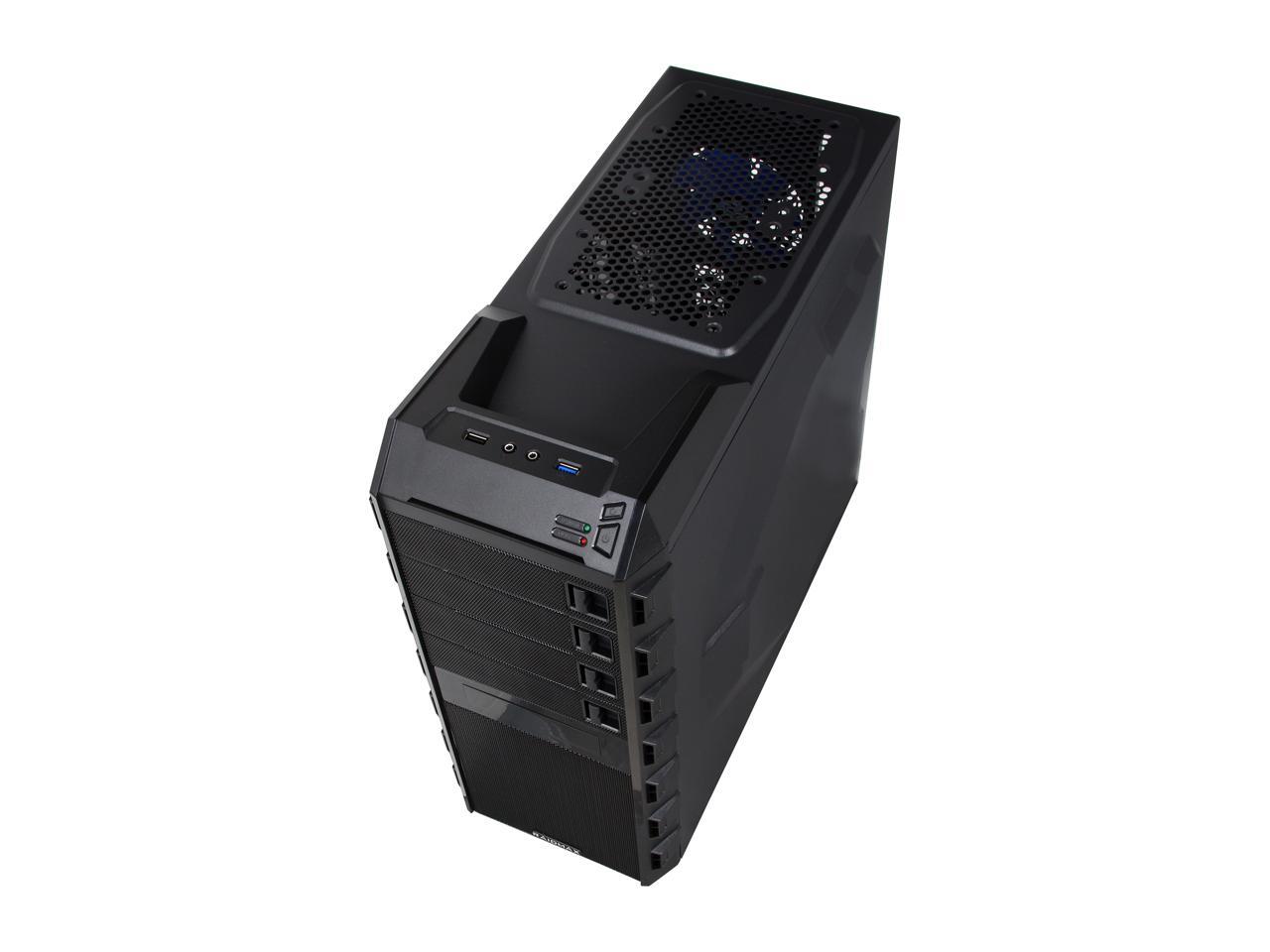

Top:	2 x 120mm or 1 x 140mm fan (optional)
Colors

Brand	RAIDMAX
Series	Altas
Model	ATX-295WB

Type	ATX Mid Tower
Color	Black
Case Material	Steel / Plastic
With Power Supply	No
Power Supply Mounted	Bottom
Motherboard Compatibility	Micro ATX / ATX

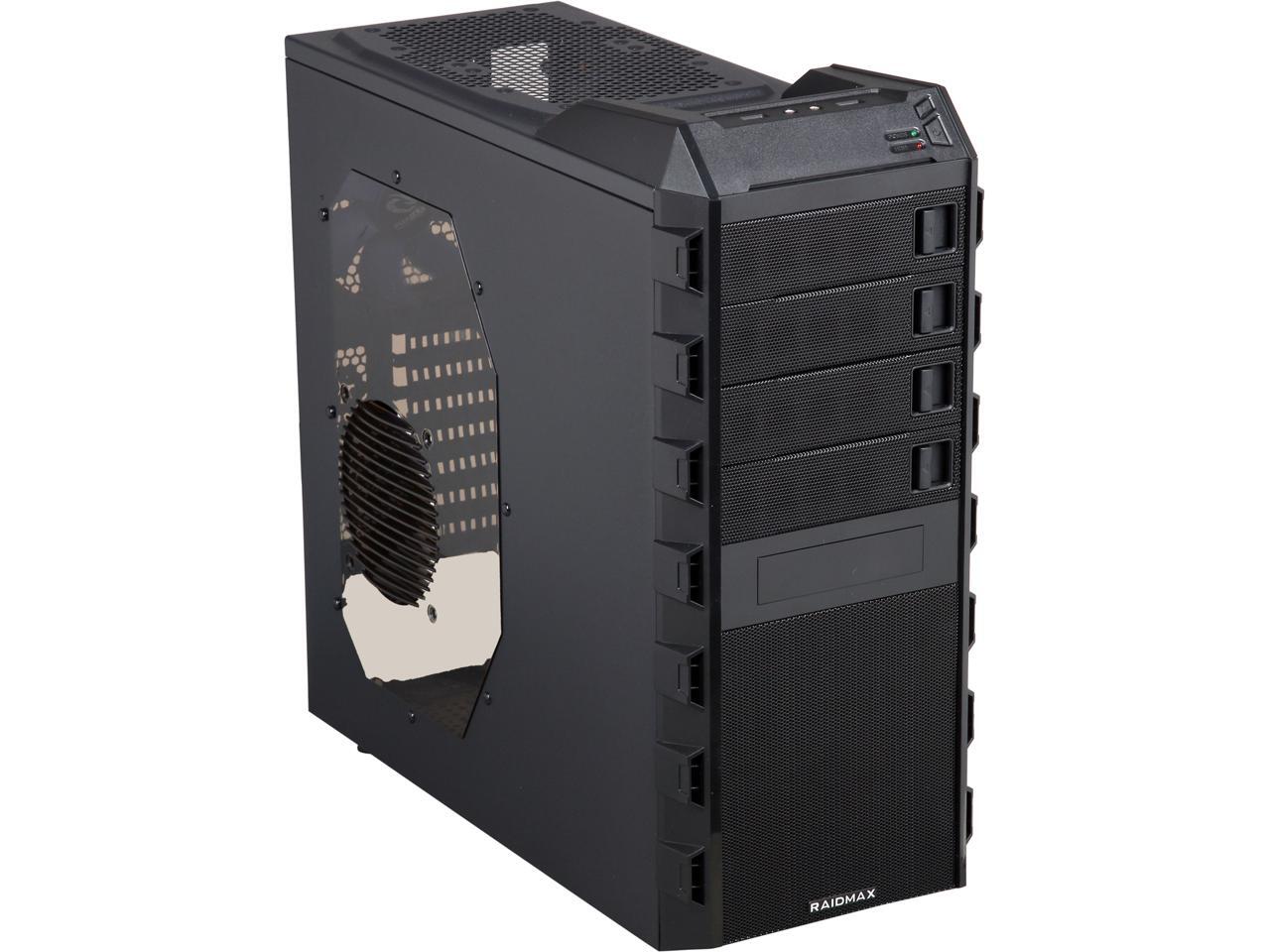

Side Panel Window	Yes
Dust Filters	Yes

External 5.25" Drive Bays	4
External 3.5" Drive Bays	1
Internal 3.5" Drive Bays	4
Expansion Slots	7

Dimensions (H x W x D)	18.5" x 8" x 18.5"
Weight	15 lbs.

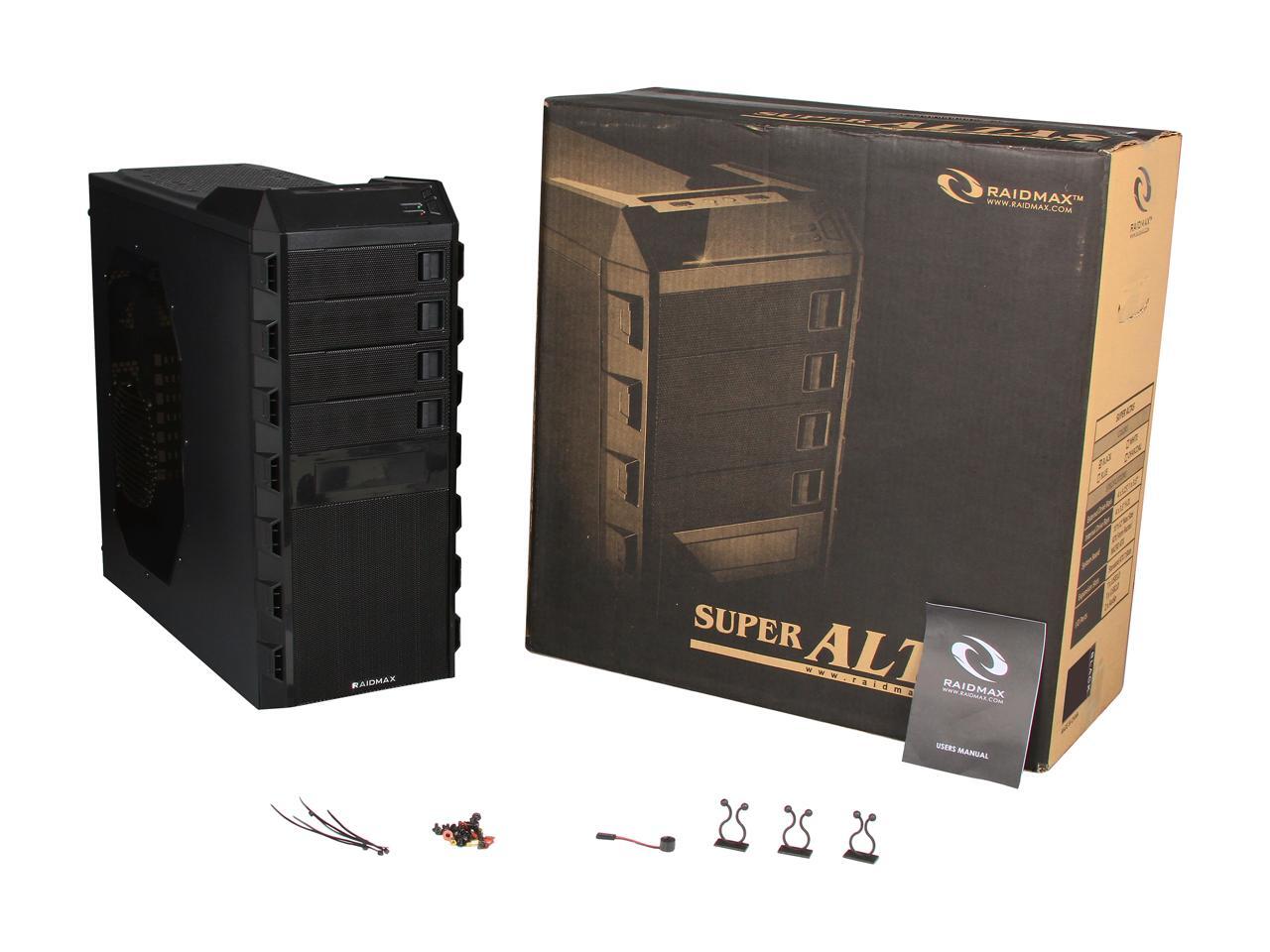

RAIDMAX Altas ATX-295WB Black Steel / Plastic ATX Mid Tower Computer Case

Super Altas

Features

Specifications

Image Gallery

Learn more about the Raidmax ATX-295WB

Customer Reviews of the Raidmax ATX-295WB

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Item#: N82E16811156247
