Is it possible to fit a EEATX (13.68x13) motherboard such asSUPERMICRO MBD-X8DAH+-F-O Dual LGA 1366 ? Thanks.

I don't think it will fit. I have an Asus K8N-DRE motherboard, which is EATX (12x13) and there is only about a quarter inch of clearance all the way around. There is the hard drive cage to the front or the powersupply on top which you'll run into depending on the dimensions of your board.

Will a regular ATX motherboard fit in this EATX case? Screwholes, ports, etc...

Yes a regular ATX motherboard should fit in this EATX case. Since i believe that the only difference is that the EATX case is the same just slightly larger (extended).

hi does the power supply have EPS 12V 8 Pin connector?

Yes - I plugged it onto my Z97-E board next to the CPU. There are extra too.

Does the included power supply support dual cpu motherboards? I'm specifically considering http://www.newegg.com/Product/Product.aspx?Item=N82E16813182320 to go with it.

Yes it does and the MB you're considering is a great MB & the case is perfect for it

Returns

& Orders

Black Friday Ad

Price Protection Deals

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 4 wish lists)

Sold by Newegg

Shipped by Newegg

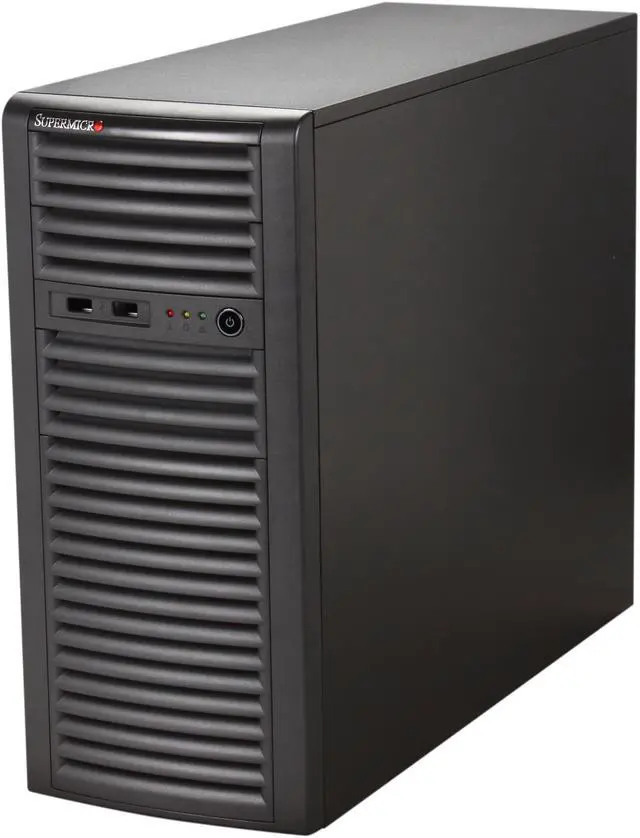

Main image of SUPERMICRO CSE-732i-500B Black Mini-Tower Server Chassis

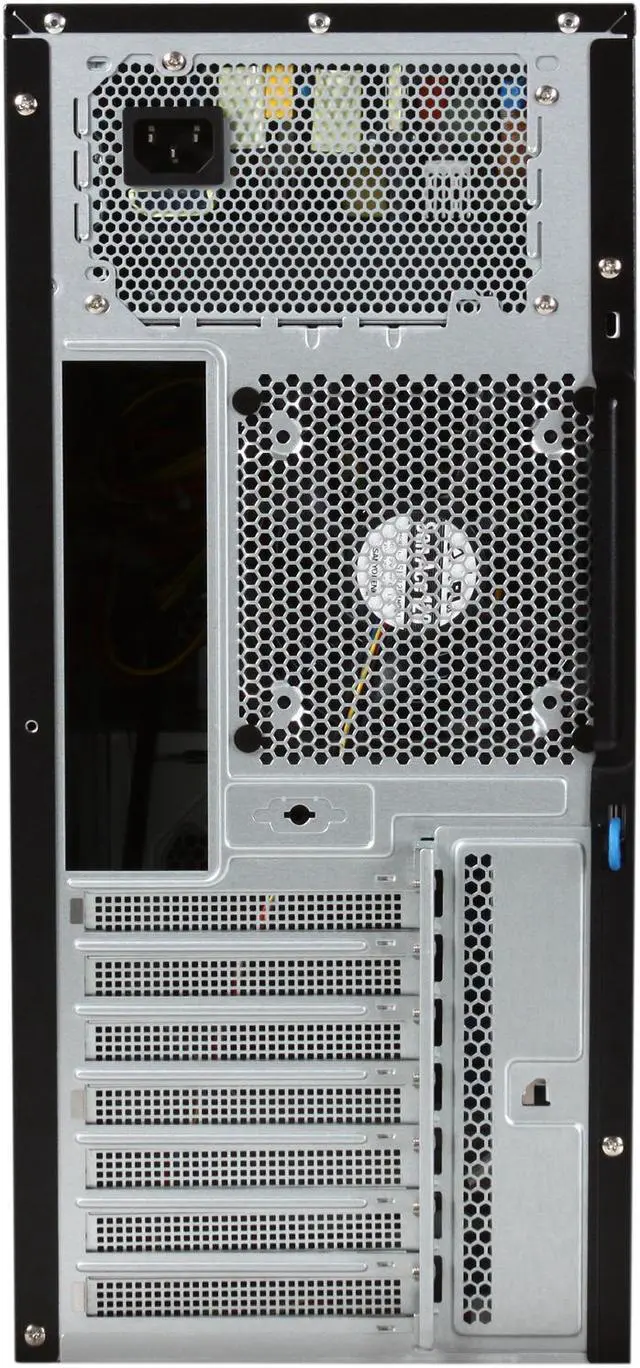

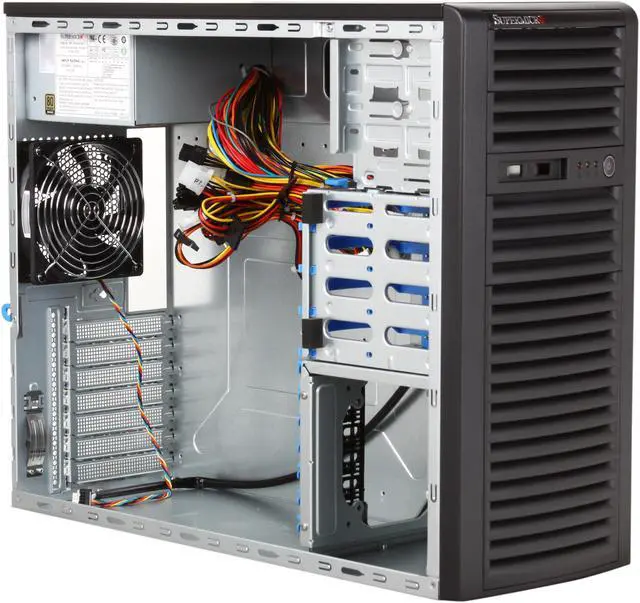

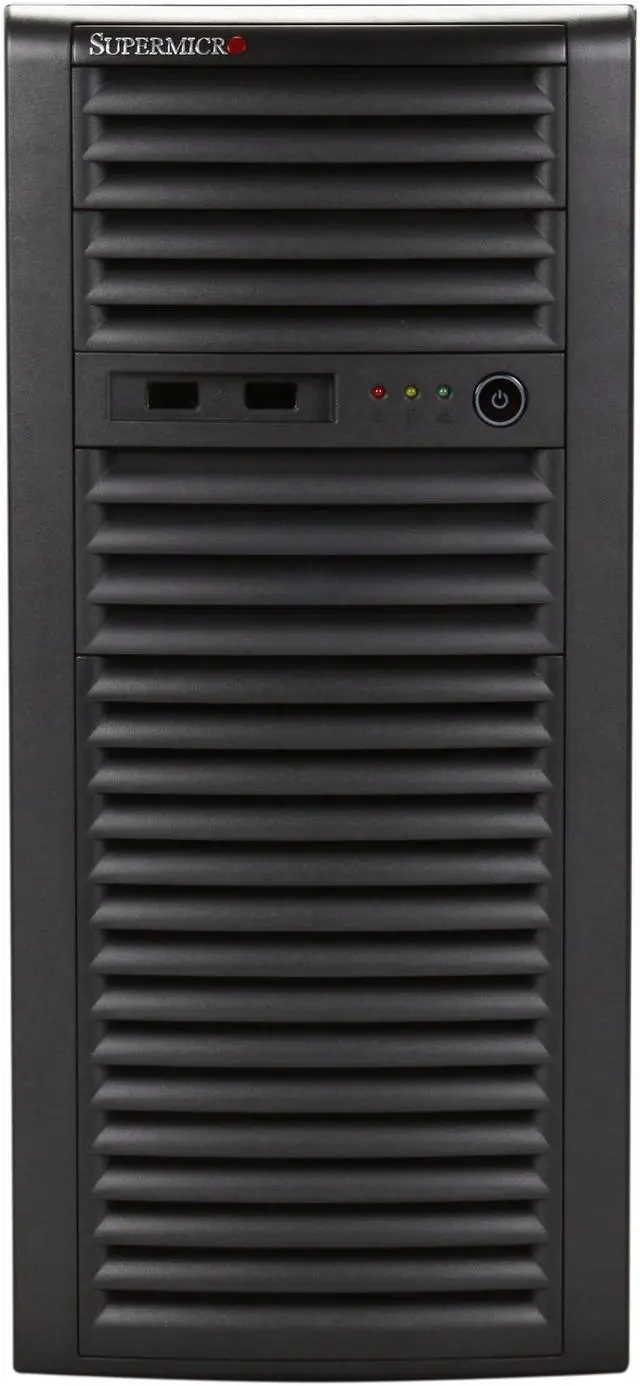

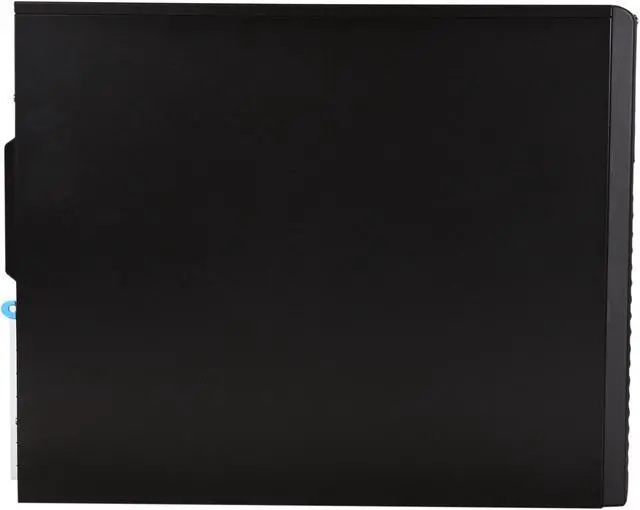

Alt view image 2 of 9 - SUPERMICRO CSE-732i-500B Black Mini-Tower Server Chassis

Alt view image 3 of 9 - SUPERMICRO CSE-732i-500B Black Mini-Tower Server Chassis

Alt view image 4 of 9 - SUPERMICRO CSE-732i-500B Black Mini-Tower Server Chassis

Alt view image 5 of 9 - SUPERMICRO CSE-732i-500B Black Mini-Tower Server Chassis

Alt view image 6 of 9 - SUPERMICRO CSE-732i-500B Black Mini-Tower Server Chassis

Alt view image 7 of 9 - SUPERMICRO CSE-732i-500B Black Mini-Tower Server Chassis

Alt view image 8 of 9 - SUPERMICRO CSE-732i-500B Black Mini-Tower Server Chassis

Alt view image 9 of 9 - SUPERMICRO CSE-732i-500B Black Mini-Tower Server Chassis

Shop All Supermicro Products

SUPERMICRO CSE-732i-500B Black Mini-Tower Server Chassis

(6) Write a Review

PS2 / ATX 500W Multi-output power supply with 12CM fan, Bronze level
2 x External 5.25" Drive Bays
1 x 120mm Fans

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews (6)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Supermicro's SC732

Supermicro's SC732 chassis features a unique and highly-optimized design, allowing most configurations of the chassis to be accomplished without tools or screws. The chassis is equipped with a high-efficiency power supply and high-performance fans provide ample optimized cooling for the FB-DIMM memory modules. Four 3.5" HDD drive bays and four optional 2.5" HDD drive bays offer maximum storage capacity.

Features

90° Rotatable HDD Cage
Whisper-Quiet (<21dB)
Kensington Lock Security
Front I/O Ports: 2x USB 2.0
1x Optional Front 12cm (1850 RPM) PWM Fan
Mid-Tower Chassis Supports Micro-ATX Motherboard, Sizes: E-ATX/ATX/Micro ATX
500W Bronze Level Certified High-Efficiency Power Supply
1x Rear 12cm (1850 RPM) PWM Fan
2x 5.25" External HDD Drive Bays & 4x 3.5" Internal HDD Drive Bays

Supermicro's SC732 chassis features a unique and highly-optimized design, allowing most configuration of the chassis to be accomplished without tools or screws. The chassis is equipped with a high-efficiency power supply and high-performance fans provide ample optimized cooling for the FB-DIMM memory modules. Four 3.5" HDD drive bays and four optional 2.5" HDD drive bays offer maximum storage capacity.

Model
Brand	SUPERMICRO
Model	CSE-732i-500B

Details
Chassis Type	Mini-Tower
Color	Black
Motherboard Compatibility	12" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX
Power Supply	PS2 / ATX 500W Multi-output power supply with 12CM fan, Bronze level

Expansion
External 5.25" Drive Bays	2
Internal 3.5" Drive Bays	4
Expansion Slots	7 x full-height & full-length expansion slots

Ports
Front Ports	2 x USB 2.0

Cooling System
120mm Fans	1

Features
Features	90 degree Rotatable HDD Cage Whisper-Quiet (<21 dB) Kensington Lock Security Front I/O Ports: 2 x USB 2.0 1 x Optional Front 12cm (1850 RPM) PWM Fan Mid-Tower Chassis Supports Micro-ATX Motherboard, Sizes E-ATX / ATX / Micro ATX 500W Bronze Level Certified High-Efficiency Power Supply 1 x Rear 12cm (1850 RPM) PWM Fan 2 x 5.25" External HDD Drive Bays & 4 x 3.5" Internal HDD Drive Bays

Dimensions & Weight
Dimensions	16.70" x 7.60" x 20.68"
Weight	28.00 lbs.

Additional Information
First Listed on Newegg	April 19, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 3 years
