The new Core X71 Tempered Glass Edition full tower chassis by Thermaltake features an enlarged 4mm thick tempered glass window, two preinstalled 140mm Riing Blue fans, and its groundbreaking interior design that offers full assembly capacity and expandability for PC enthusiasts to create an advanced or a massive liquid cooling system. The Core X71 is an ideal choice for those who are looking for a chassis with superior expansion and unparalleled cooling performance!
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

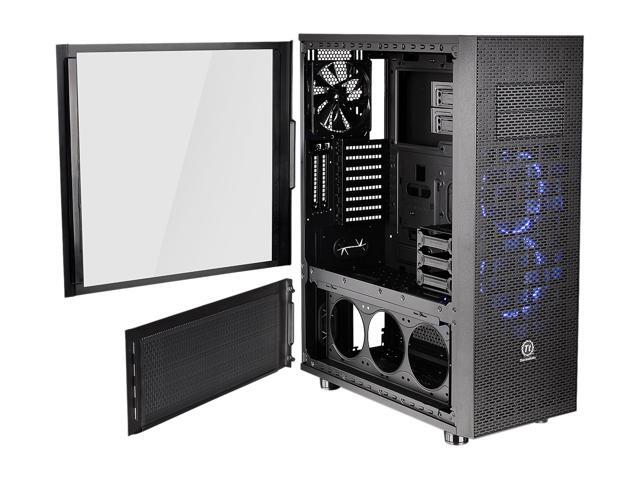

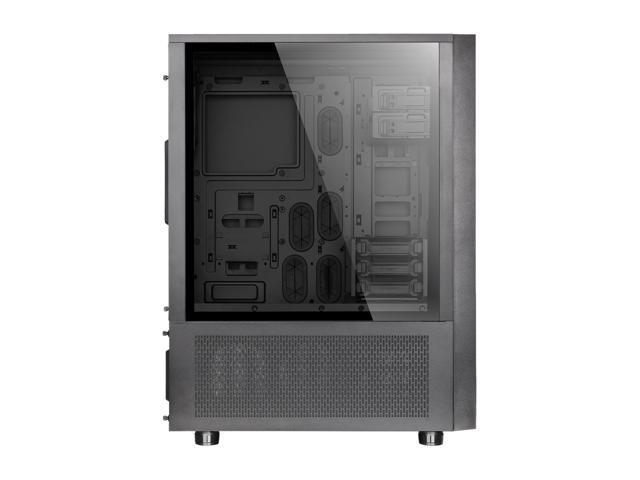

The tempered glass features 4mm thickness that guarantees the durability of the window. Moreover, the enlarged window design permits users to fully display and admire all components of the liquid-cooling system. Show off your dedicated set in the subtlest manner!

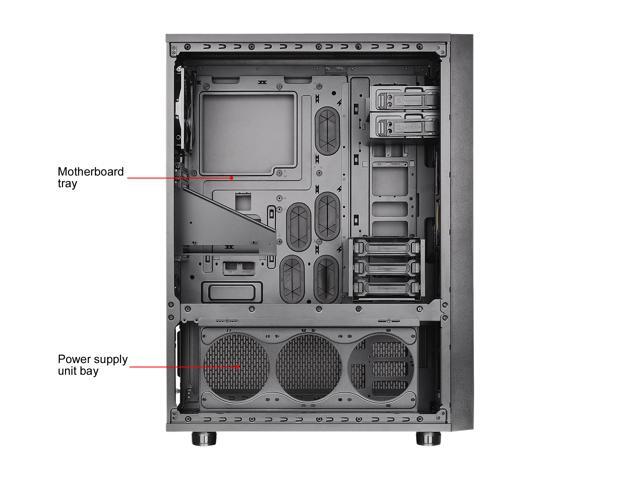

Optimized for space management, the Core X71 utilizes dual chamber design to offer a tidy looking system by separating the liquid-cooling loop, and PSU and HDD cages into a different chamber. The removable 3.5”/2.5” drive device racks give assemblers plenty of flexibility to gain the maximum interior space needed for advanced cooling performance.
*When placing the PSU at the lower chamber, 8 Pin power extension cable may be required.

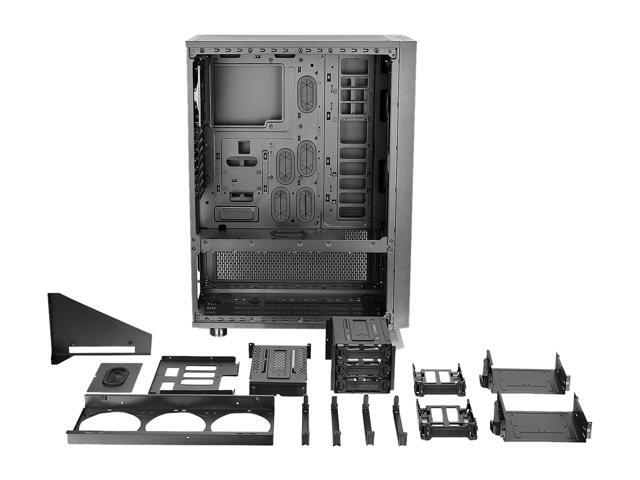

A “2 + 5” drive bay design for storage devices makes setting up the latest storage solution super easy and flexible. Besides hanging 2 x 3.5”/2.5” at the back of motherboard tray, users are also capable of freely adjusting the 3.5” drive cages within the upper chamber or to the lower chamber to suit their particular needs
Specially designed with dual GPU placement, the Core X71 has the support for vertical graphic card layout with dual PCI-E slots design. Plus, the included GPU support bracket not only can prevent the graphic card from sagging, but also helps to reduce the weight on the motherboard.
Thermaltake PCI-e X16 Riser Cable (Optional) – Support a wide range of GPU solutions.
Designed for high-end gaming system compatibility, the Core X71’s modular drive racks allow users to easily install up to seven data storage devices, a dual expansion slot VGA of up to 420mm in length, and a tower CPU cooler as high as 180mm. Even with a high-wattage PSU stretching to 220mm in length, the Core X71 still leaves plenty of interior space for cable management. Moreover, a 480mm radiator can be installed at front of the chassis, delivering superior cooling performance.
Featuring a width of 250mm, the Core X71’s unparalleled cooling ability offers fan brackets with various mounting points to support any type of gaming system that can be accommodated, including DIY/AIO liquid-cooling systems and air-cooling units. Users can install up to 480mm radiator at the front and a 360mm radiator on each side in the lower chamber. Additionally, the Core X71 comes with two 140mm Riing Blue fans at front and a 140mm fan at the rear to optimize system ventilation.
Patented Riing 14 LED Blue – A 140mm patented blue LED Ring radiator fan with high-static pressure design.
|Case Type||Full Tower|
|Model||Core X71 TG Edition|

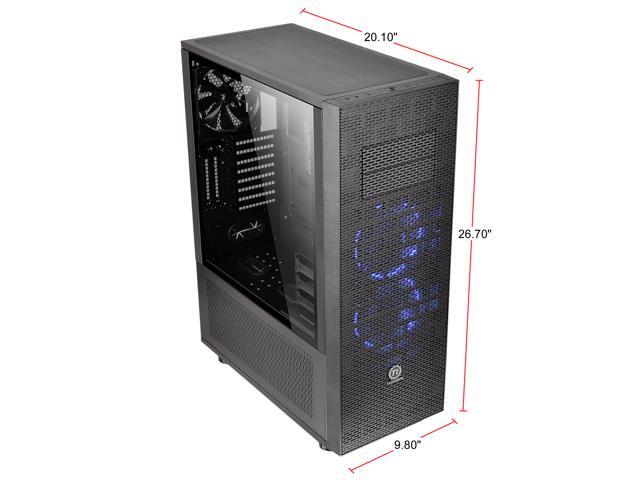

|Dimension (H x W x D)||677 x 250 x 511 mm
(26.7 x 9.8 x 20.1 inch)
|Net Weight||12.7 kg / 27.9 lb|
|Side Panel||Tempered Glass (4mm thickness)|
|Color||Exterior & Interior : Black|
|Cooling System||Front (intake) : 140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) x 2 (1000rpm, 22dBA with LNC)
Rear (exhaust) : 140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA)
|Drive Bays||-Accessible : 2 x 5.25’’
-Hidden : 3 x 3.5’’ or 2.5’’ (HDD Cage)
2 x 3.5’’ or 2.5’’ (Behind the M/B tray)
|Motherboards||6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)|
|I/O Ports||USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1|
|PSU||Standard PS2 PSU (optional)|
|LCS Upgradable||Supports 1/2”?3/8”?1/4” water tube|
|Fan Support||Front:3 x 120mm , 3 x 140mm , 2 x 200mm
Top:3 x 120mm , 3 x 140mm , 2 x 200mm
Rear:1 x 120mm , 1 x 140mm
Bottom: 2 x 120mm , 2 x 140mm
Left / Right Side: 3 x 120mm , 2 x 140mm
|Radiator Support||Front: 1 x 480mm , 1 x 420mm
Top: 1 x 360mm , 1 x 280mm
Rear: 1 x 120mm , 1 x 140mm
Bottom: 1 x 120mm , 1 x 140mm
Left / Right Side: 1 x 360mm , 1 x 280mm
|Clearance||CPU cooler height limitation: 180mm
VGA length limitation:
278mm(with HDD rack)
420mm(without HDD rack)
PSU length limitation:
180mm (With One Bottom Fan)
220mm (Without Bottom Fan)
