Thermaltake presents the adoption of the Urban with the new Urban T81 – The classic beauty impact. Beautifully designed, T81 is engineered for one solid purpose: provide enthusiasts the ability to build the highest performing systems while remaining the appearance simple and elegant. It is not merely a PC chassis, more like a creation of modernism.

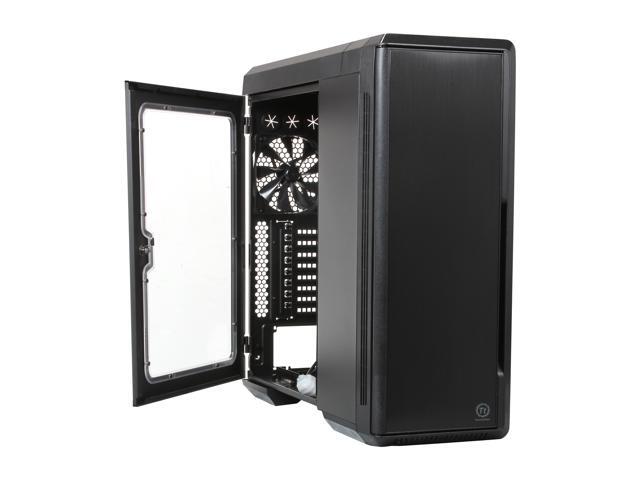

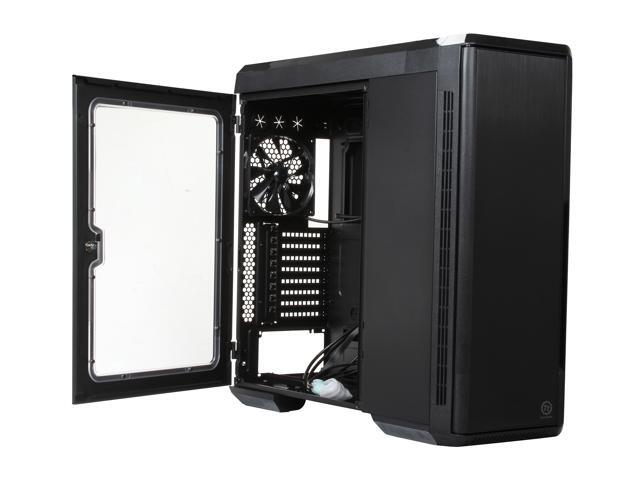

Inspired by the specific term "Suicide door" for a car door hinged at its rear rather than the front, as the origin of horse-drawn carriages - T81 is designed with this innovative inspiration apart from other modern chassis. Likewise, the front door panel is build with brushed aluminum finish to mask the extrusive drive devices, not only unify the appearance but a modern yet sophisticate aesthetic.

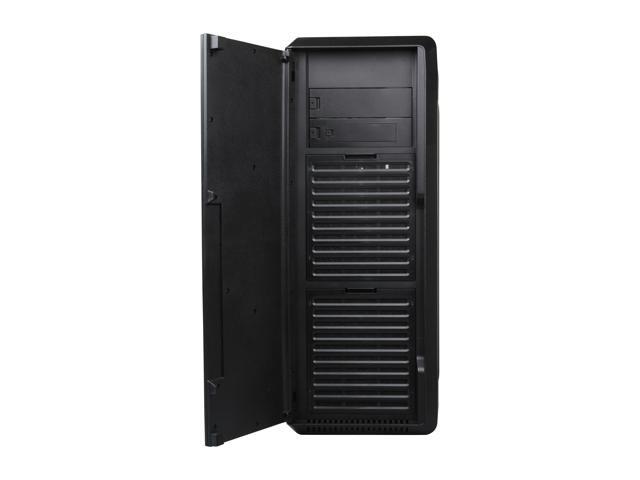

A highly customizable 5.25" & 3.5" drive bay feature enables users to freely interchange the 3.5" hard-drive cages to suit one's need; removing the 5.25" & 3.5" drive bays offers maximum interior space for advanced cooling performance or a liquid system build.
The sleek aluminum mental brushed I/O port section has implemented two of latest data transfer SuperSpeed USB 3.0 ports along with four USB 2.0 ports. The integration of fan controller and fan hub could easily manage the airflow of up to 10 fans at once. Besides, a HD microphone and headset jacks are built for grand direct access when needed.
Urban T81 is built with a fundamental airflow optimized design. Standard equipped with triple 200mm fans and a 140mm fan. It is the first chassis on the market that has the ability to house four 200mm fans along with three more 120mm fans by achieving unrivaled airflow in your chassis.
Urban T81 pushes the envelope and utilize high-end water cooling solution that feature with either front 360/top 420mm, or front 420mm/top 360mm, along with rear 120mm and bottom 120/240mm radiators support for extreme performance.
|Case Type||Full Tower|
|Dimensions (H x W x D)||23 x 9.3 x 23.7 inches (585 x 235 x 602mm)|
|Net Weight||30.4lbs (13.8kg)|

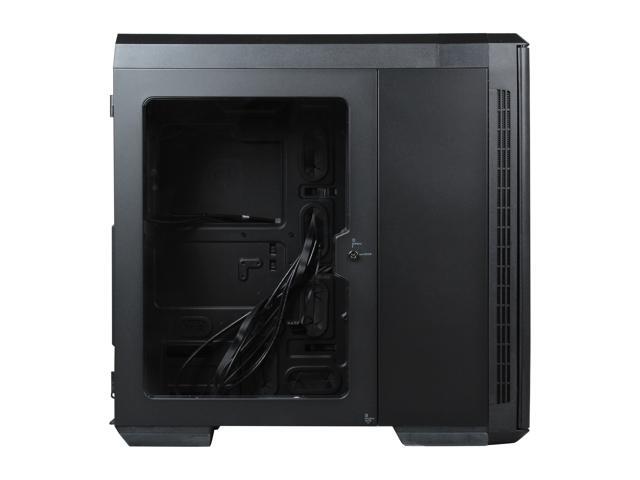

|Side Panel||Transparent Window|
|Color||Exterior & Interior: Black|
|Cooling System||Front (intake): 200 x 200 x 30mm fan (600 - 800RPM, 13 - 15dBA) x 2 Rear (exhaust): 140 x 140 x 25mm Turbo fan (1000RPM, 16dBA) Top (exhaust): 200 x 200 x 30mm fan (600 - 800RPM, 13 - 15dBA)|
|Drive Bays||-Accessible: 2 x 5.25", 1 x 3.5" (Converted from one 5.25" drive bay) -Hidden: 8 x 3.5" or 8 x 2.5"|
|Motherboards||9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX), 12" x 13" (Extend ATX)|
|I/O Ports||USB 3.0 x 2, USB 2.0 x 4, HD Audio x 1, Fan Speed Control|
|PSU||Standard PS2 PSU (optional)|
|LCS Upgradable||Supports 1/2", 3/8", 1/4" water tube|
|Other||CPU Cooler Height Limitation: 180mm
VGA length limitation: 360mm (with HDD rack) 400mm (without HDD rack)
