BZBGEAR 1X8 4K60 UHD 18Gbps HDMI Splitter/Distribution Amplifier up to 230ft over Category Cable

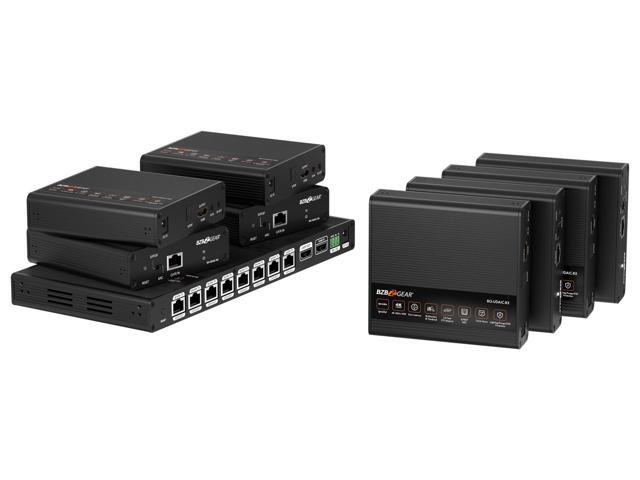

The BG-UDAIC-E18 is an HDMI extender and splitter kit that distributes one HDMI input to up to eight extender outputs. The signal can be extended at ranges of up to 70 meters (230 feet) with category cabling.

Connectivity & Quality

This HDMI extender and splitter kit supports resolutions up to 4K@60Hz. With the BG-UDAIC-E18, transmission of video signals is done with zero latency. The transmitter in this kit supports HDMI loop out for operators to utilize when necessary. Each receiver can output the digital audio of the TV (ARC) or from the source device via the S/PDIF port.

Control

With bi-directional IR passthrough via IR blaster and IR receivers, operators have a greater degree of control over connected displays from one location regardless of distance and obstacles. EDID passthrough can be used with the BG-UDAIC-E18. The EDID of the kit can also be manually set via EDID DIP switches when extra adjustment is  needed. RS-232 passthrough is also supported.

Features

• 4K - Supports resolutions up to 4K@60Hz


• ARC - Audio Return Channel support


• Control - Bi-Directional IR Passthrough


• Long Range - Transmit HDMI signals up to 70m


• HDMI - HDMI 2.0, HDCP 2.2


• Audio De-Embedding - Digital audio provided via TOSLINK connector on receiver


• Zero latency transmission


• Split and extend 1 HDMI input signal to 8 HDMI outputs


• Support up to 4K@60Hz resolution


• Transmission distance up to 70 meters by using Cat6/6A/7 cables


• Support bi-directional IR passback


• The transmitter supports HDMI loop out


• The receiver can output the digital audio of the TV or source device from the S/PDIF port


• Supports EDID passthrough or manually set the EDID of the product


• Supports RS-232 command control


• Surge Protection, Lightning Protection, ESD Protection


• Equipped with rack mount ears
