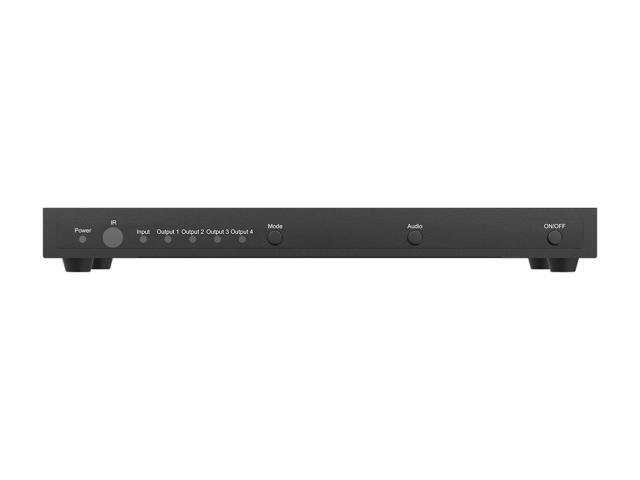

Video wall creation just got easier! The BG-UHD-VW2X2 video wall processor supports 4K@60 4:4:4 input resolution and features four 1080p HDMI video wall outputs. This unit requires almost no configuration. Connect your devices, select your layout, and adjust for bezel correction in 3 simple button presses.

Configure multiple layouts with the push of a button from the IR remote. Not only does it function as 2x2 video wall at 4K resolution, but this impressive unit can display at 1080p for a variety of layouts including 1x1, 1x2, 1x3, 1x4, 2x1, 3x1, and 4x1. Each output can easily be rotated 180 degrees. Whether you are using a consumer-based TV with bezel obstructions or dedicated video wall displays, setup is simple and fast.

The multiple control options (IR remote, front panel buttons, RS-232) make adjustments and control easy, while the RCA and TOSLINK audio outputs provide extraction for connecting external sound systems. The HDMI loop out allows an additional full screen display to be connected.

Designed for simplicity and efficiency, the BZBGEAR BG-UHD-VW2X2 is an affordable, easy to use 4k video wall solution.

Features:

• Compatible with the HDCP


• Support multiple Layout modes


• Support Edge Shielding function


• Supports AUX and Spdif audio output


• Controllable via front-panel buttons, IR and RS232 control


• Support HDMI Local loop out


• Metal housing


• Plug and play
