Cisco Aironet High Gain Omnidirectional Ceiling Mount Antenna Every Wireless Local Area Network (Lan) Deployment Is Different. When Engineering An In-Building Solution Varying Facility Sizes Construction Materials And Interior Divisions Raise A Hos

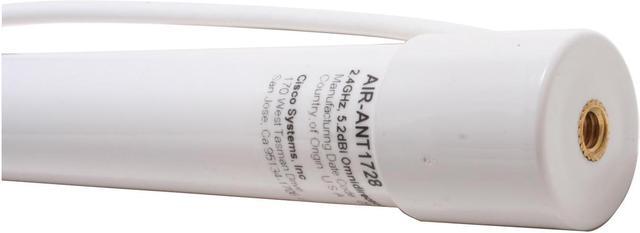

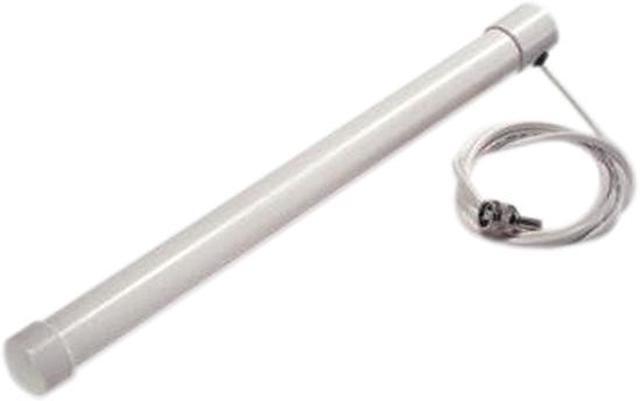

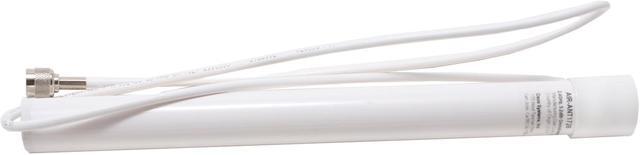

Learn more about the Cisco Systems, Inc. AIR-ANT1728
Model
Brand
CISCO
Model
AIR-ANT1728
Details
Type
Antenna
Color
White
Specifications
Antenna type: Dipole Operating frequency range: 2.4- to 2.83-GHz VSWR: Less than 2:1, 1.5:1 nominal Gain: 5.2 dBi Polarization: Vertical E-Plane (3dB bandwidth): 50 degrees H-Plane (3dB bandwidth): Omnidirectional Cable length and type: 3 ft (0.91 m), Plenum rated RG-58 Dimensions (H x W): 9.0” x 1.3” Weight: 4.6 oz.
Features
Features
This antenna is designed for use with CISCO Aironet access points, but can be used with any 2.4-GHz CISCO Aironet radio device that utilizes a RP-TNC connector.
Disclaimer
Disclaimer
For most updated manufacturer warranty, please go to www.cisco.com.
Registration Phone
1-800-Go-Cisco
Additional Information
Date First Available
November 28, 2005
Customer Reviews of the Cisco Systems, Inc. AIR-ANT1728
