Brand | Coboc |
---|---|
Model | HA-HMSW-4X1 |
Type | HDMI Switchers |
---|---|
Ports | 4 |
Audio | Yes |
Specifications | Input: HDMI x 4 Output: HDMI x 1 HDMI V1.4 with HDCP/CEC pass-through Video Amplifier Bandwidth:3.4Gbps/340MHz per channel, total up to 10.2Gbps Full HD 1080p Resolutuion:1920 x 1080@60Hz and PC 1920 x 1200 Color Depth : 12 bit per channel,total 36bit and xvYCC color space 3D Video Support:Full 3D such as 1080P@23.98/24Hz,720P@59.94/60Hz/50Hz Audio Supports: high definition audio signals such as DTS Digital, Dolby Digital(including DTS-HD and Dolby True HD),as well as standard LPCM stereo Input video signal:0.5-1.0 Volts P-P Input DDC signal: 5.0 Volts P-P(TTL) Max power consumption:2 Watts Enclosure: Black color metal housing Dimension(W-H-D):150 x 26 x 65 mm Net Weight :274g Certification: FCC/CE Environmental: Operating Temperature: 0 degree to +70 degree Operating Humidity: 10% to 85% RH (no condensation) Storage Temperature: -10 degree to +80 degree Storage Humidity: 5% to 90% RH (no condensation) |

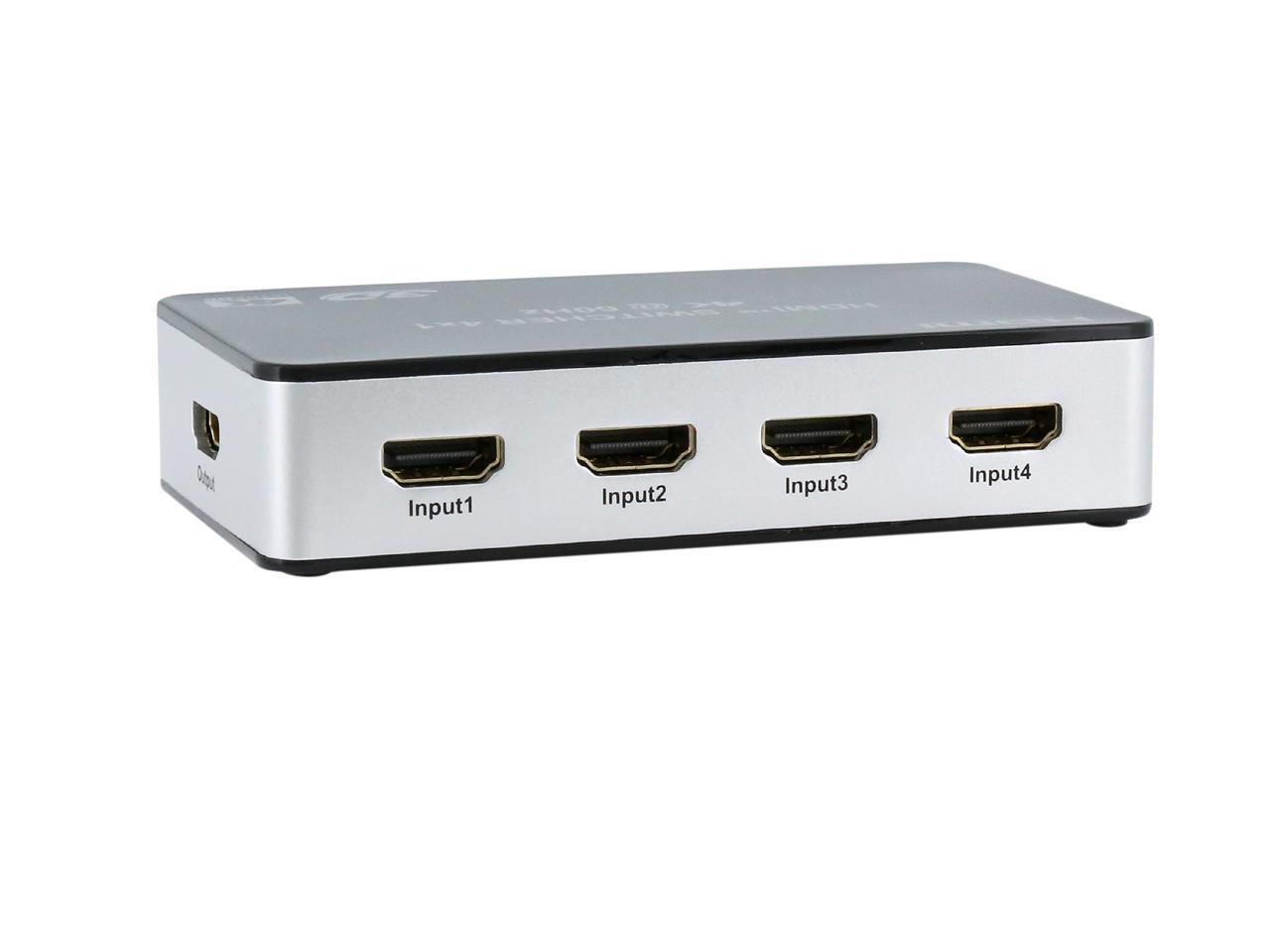

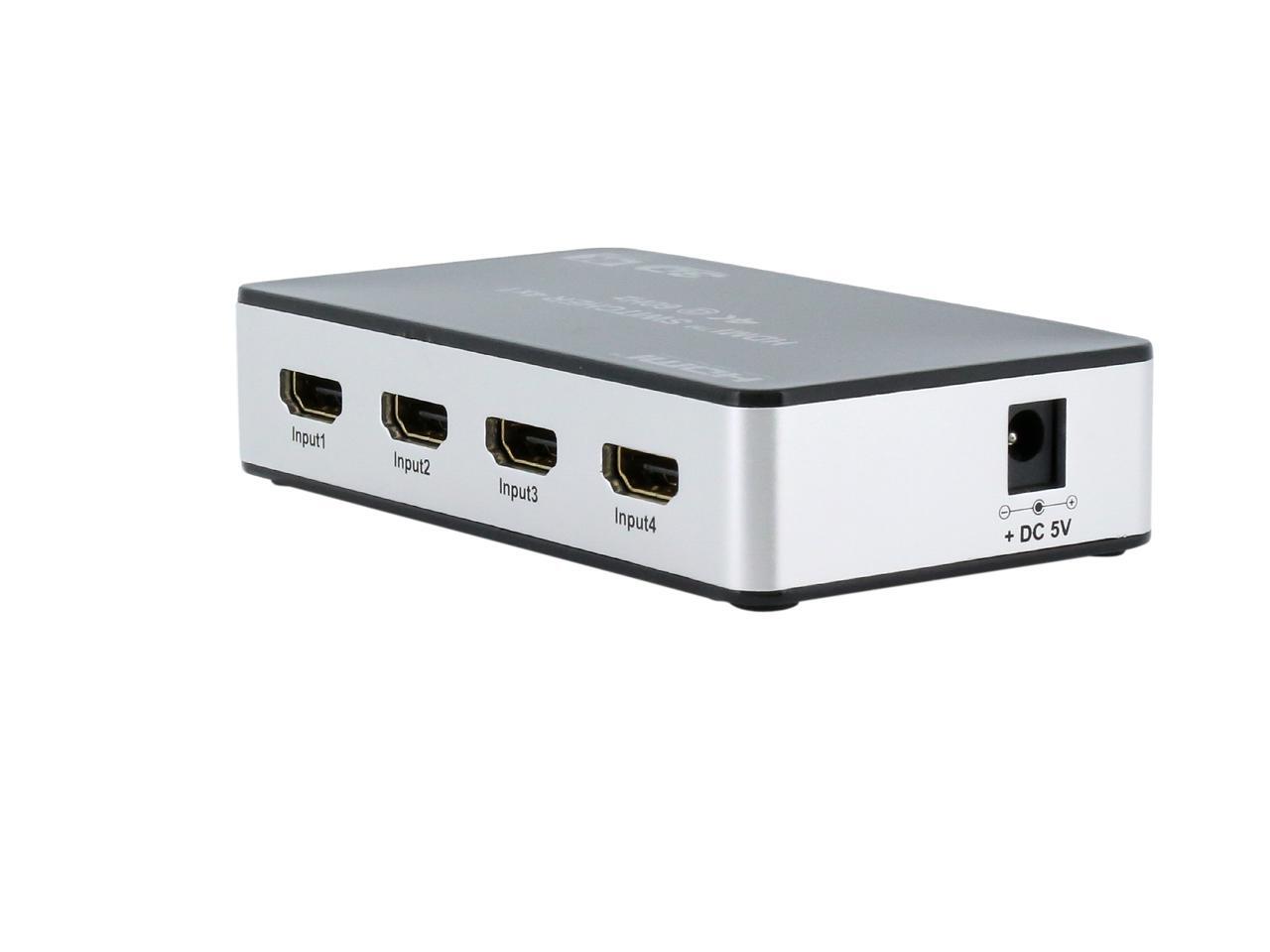

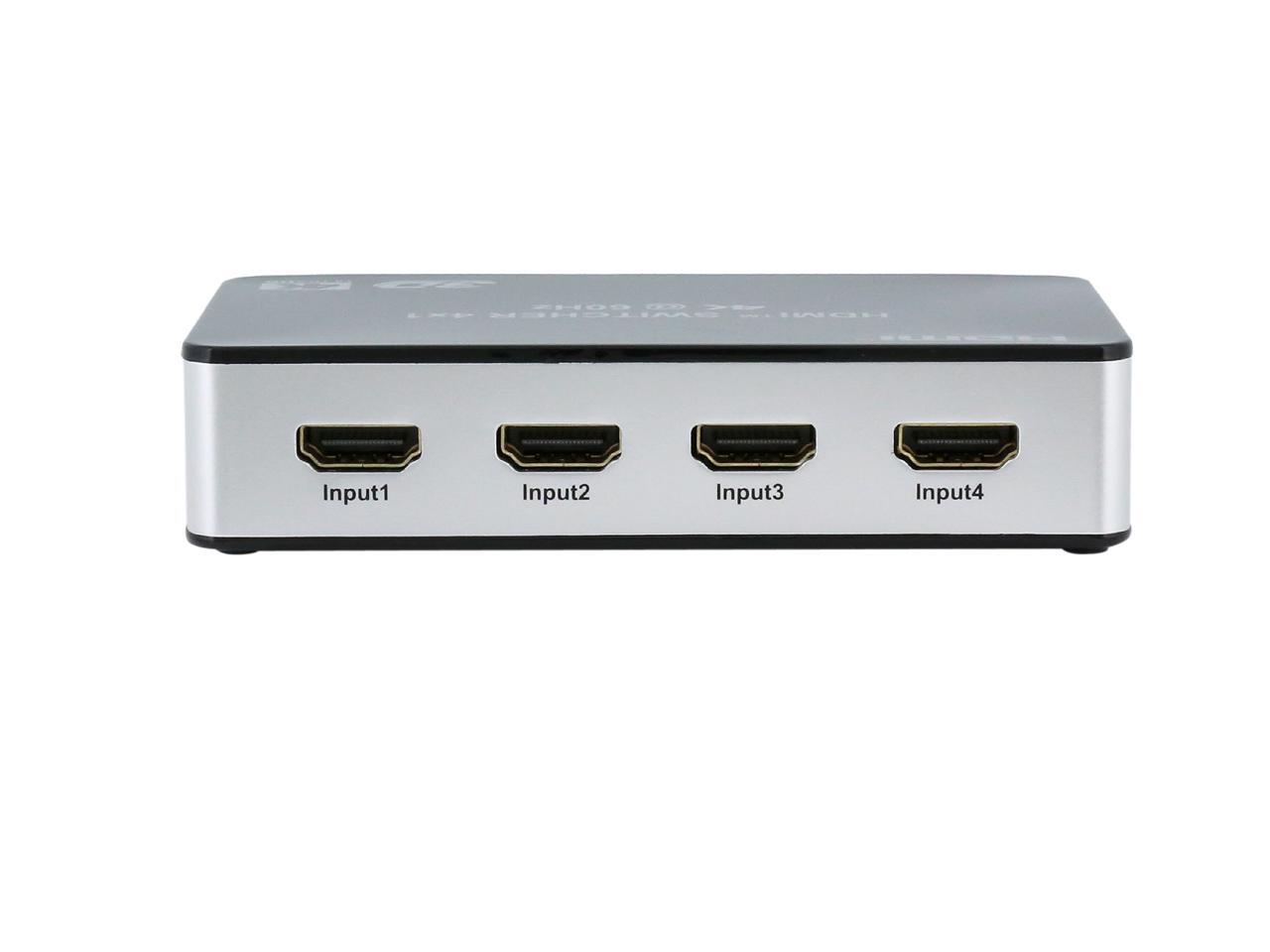

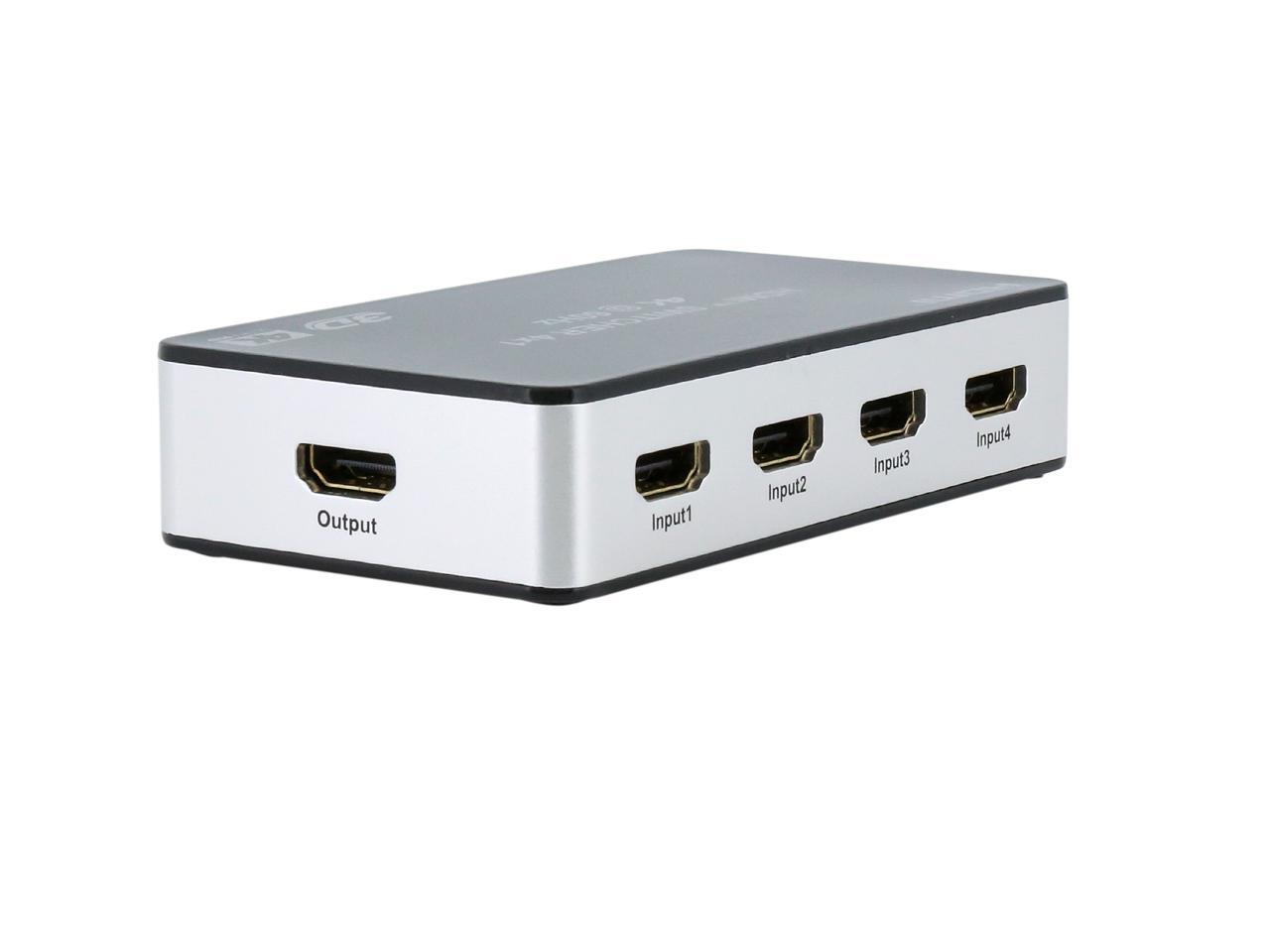

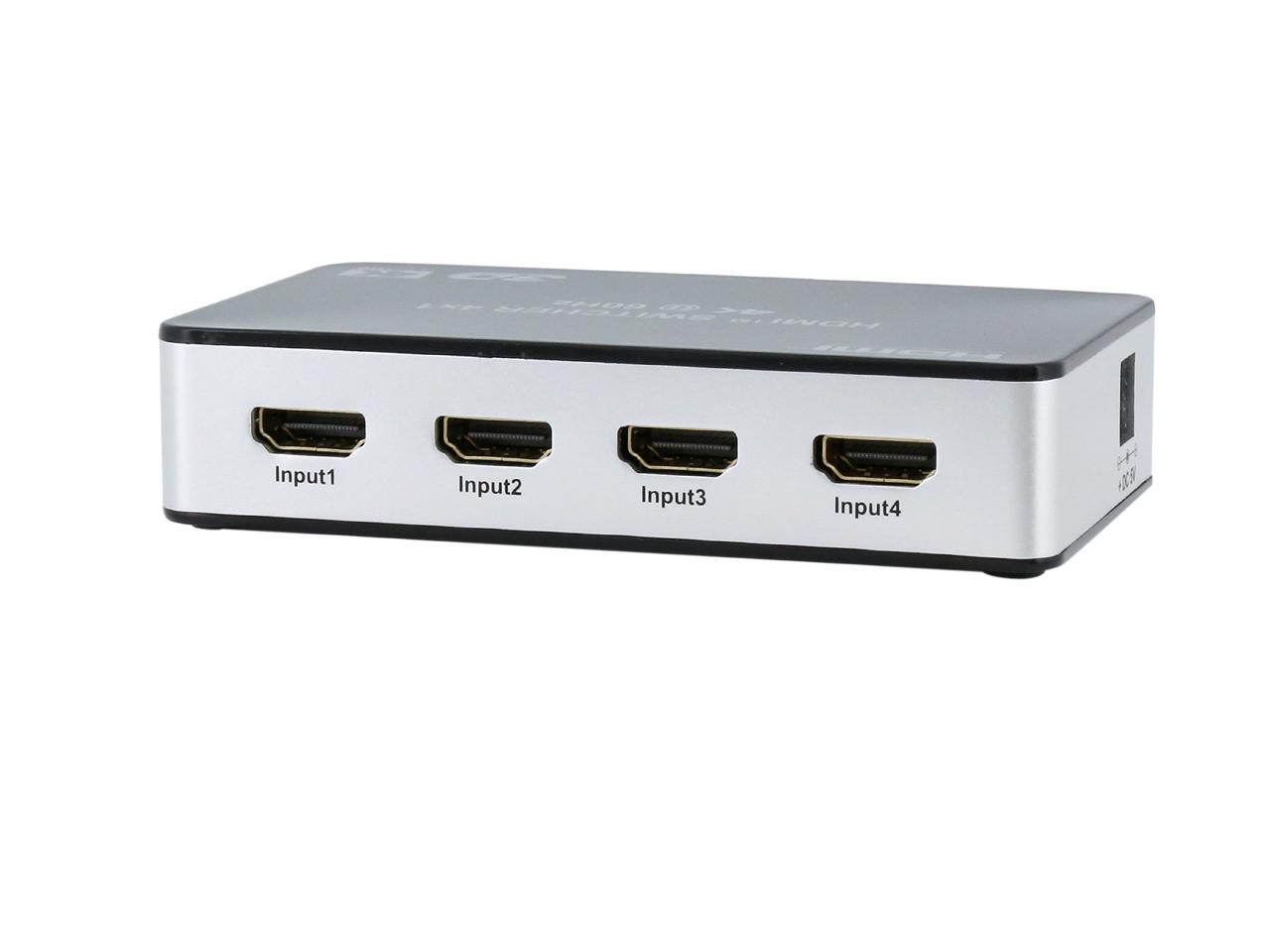

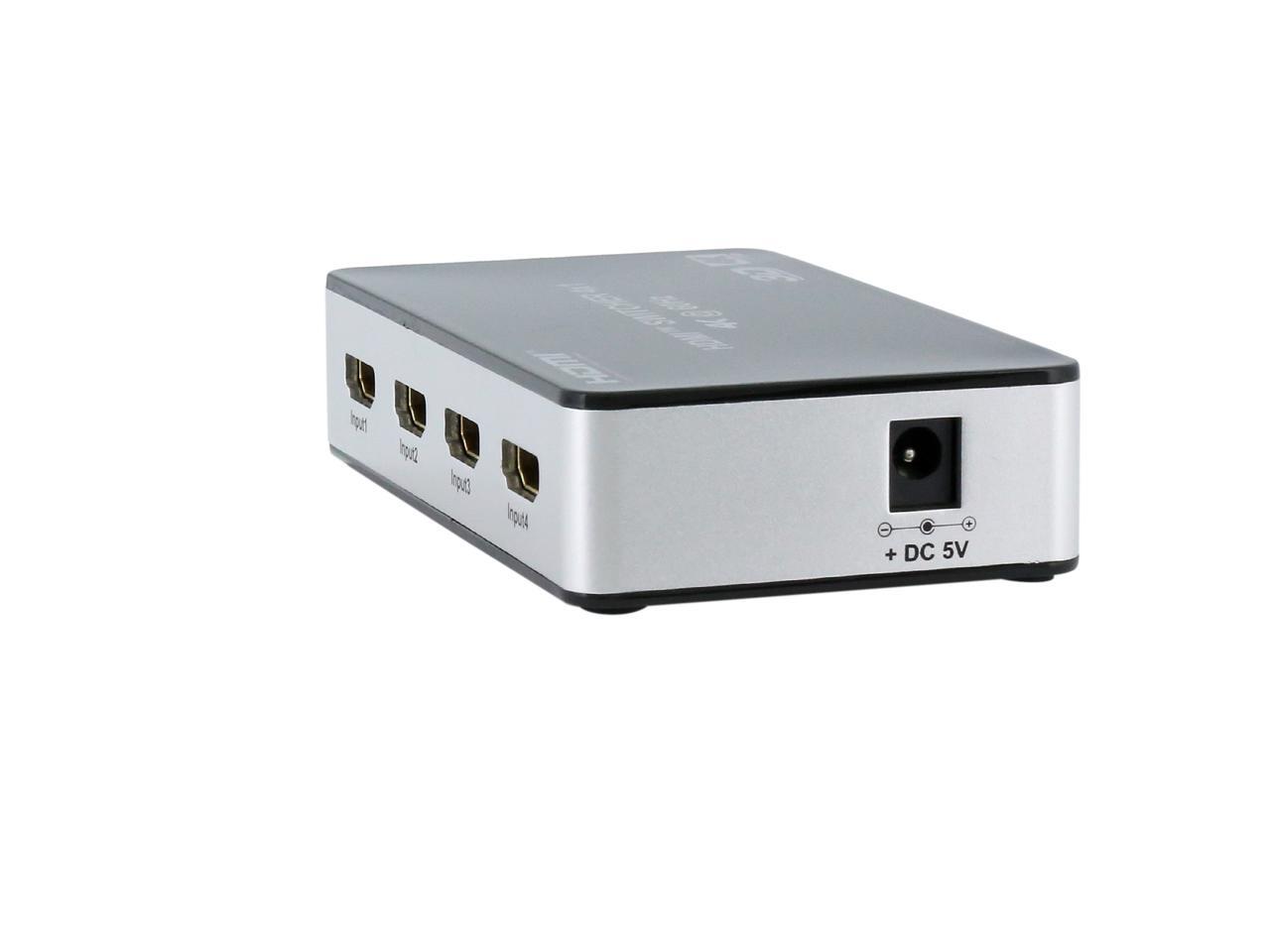

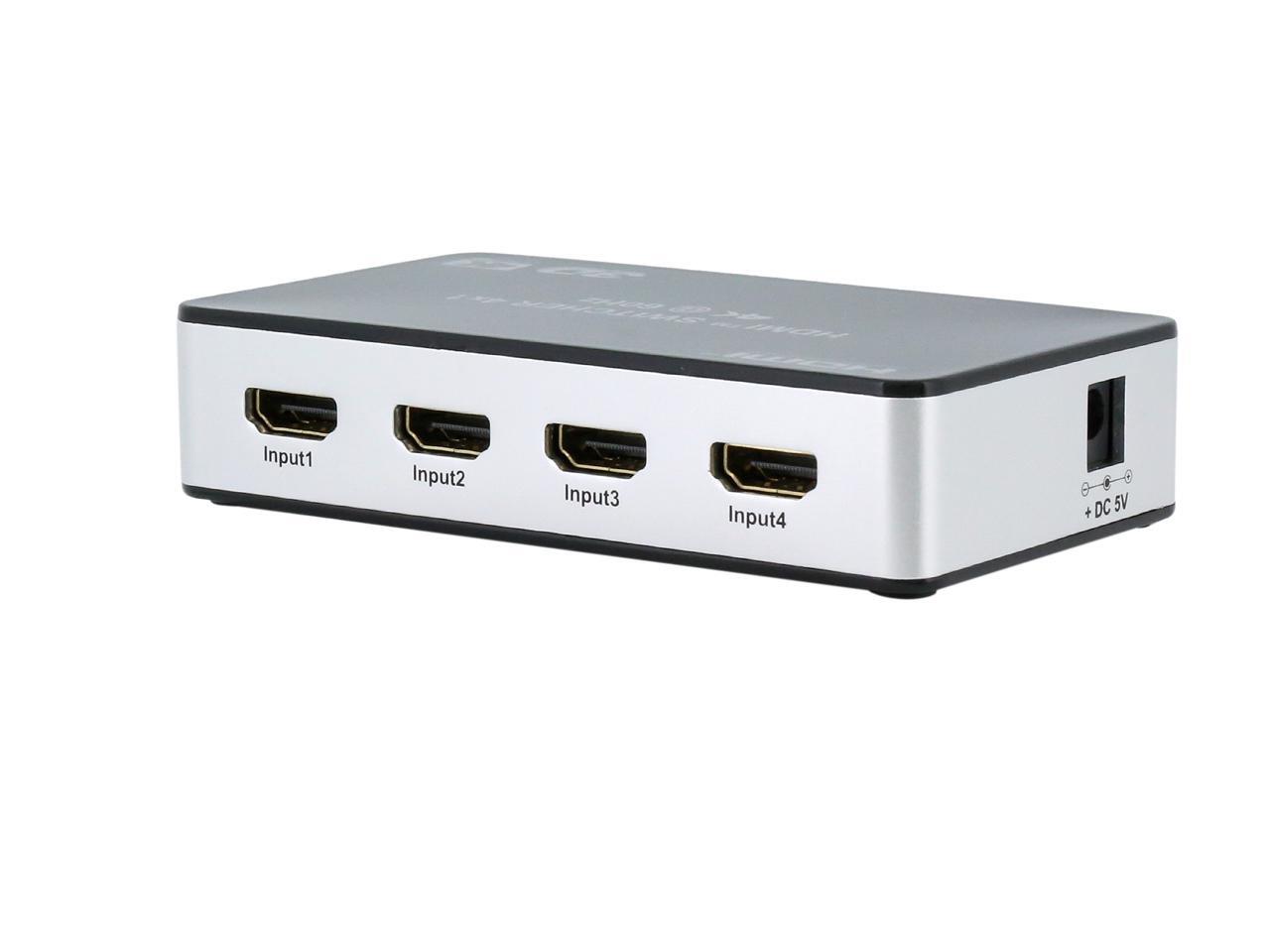

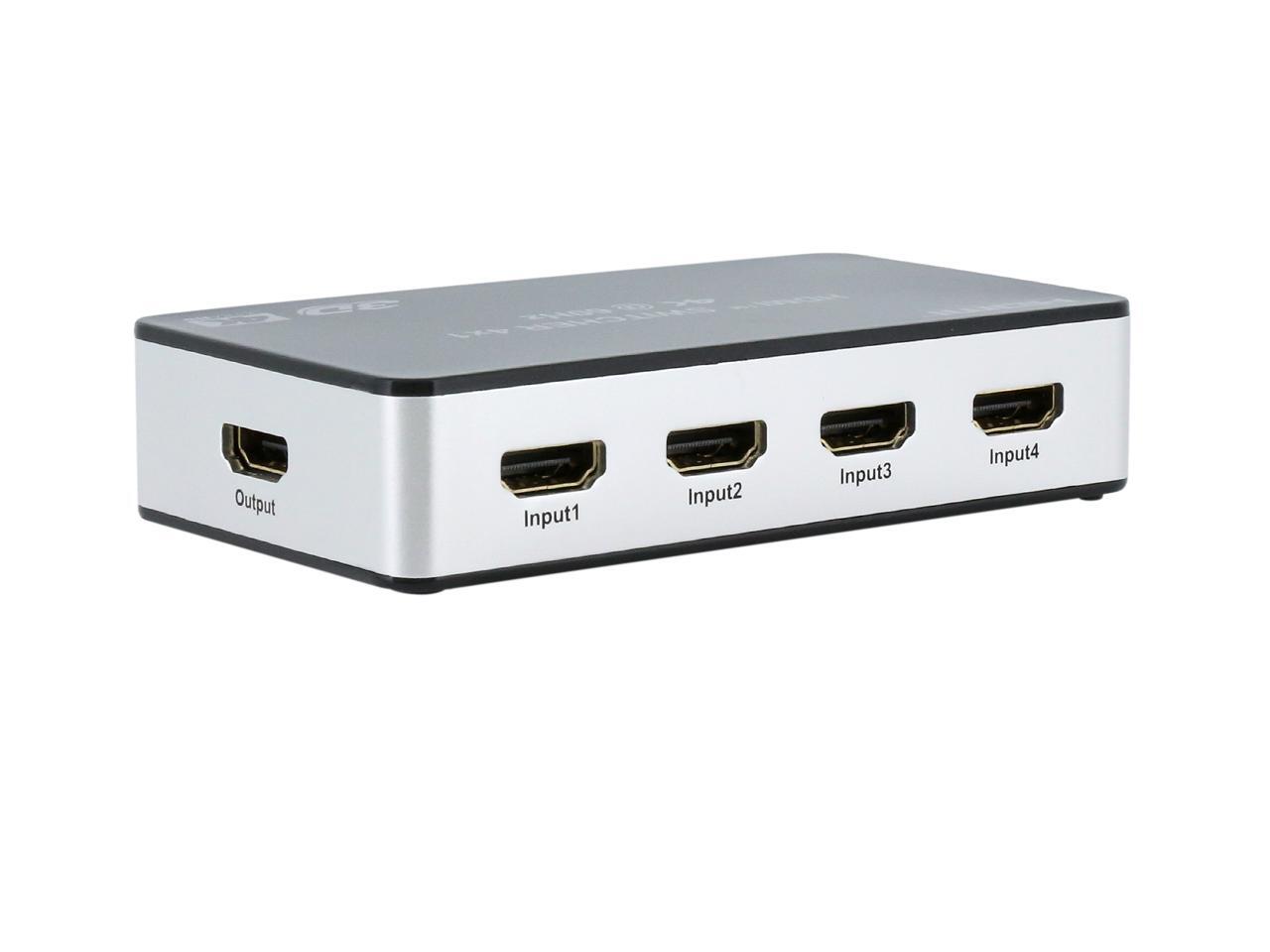

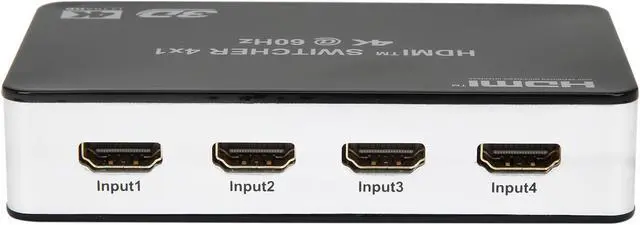

Input Connector | HDMI x 4 |
---|---|

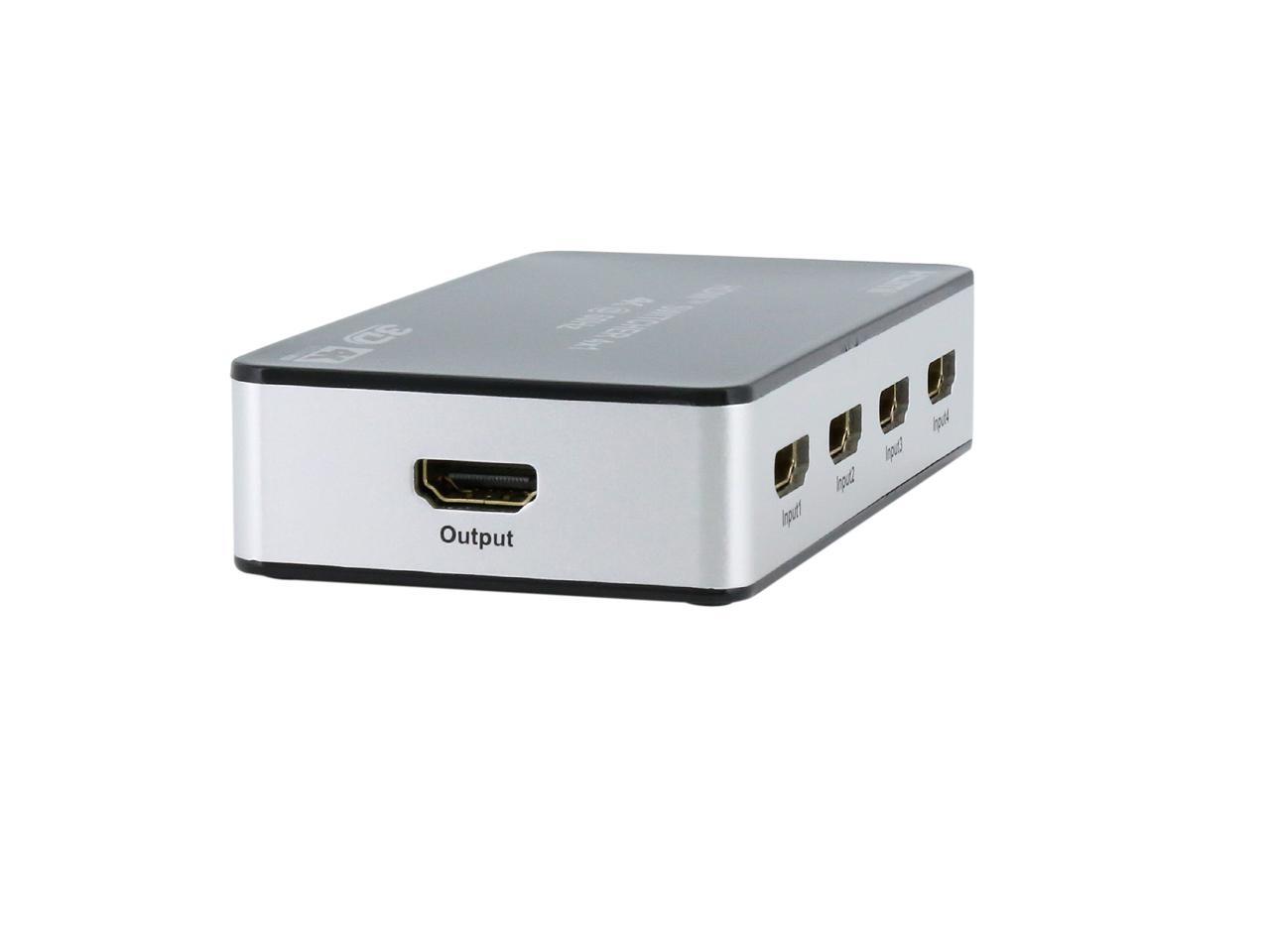

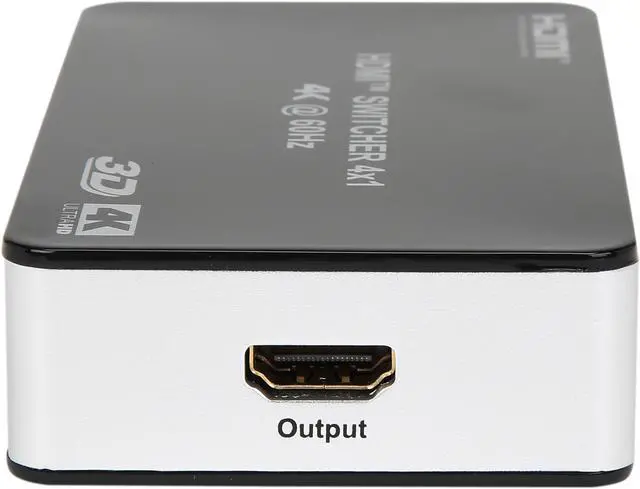

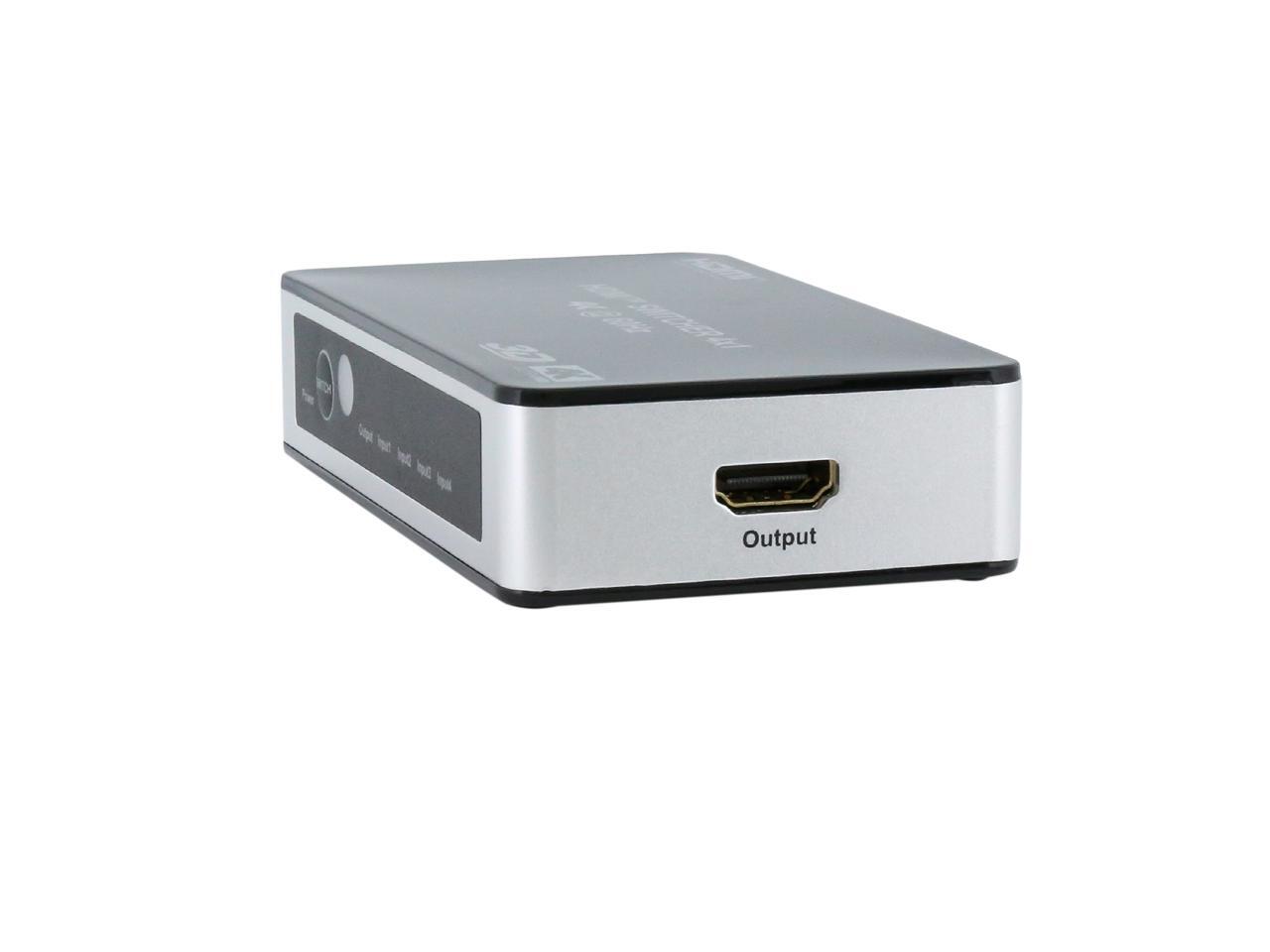

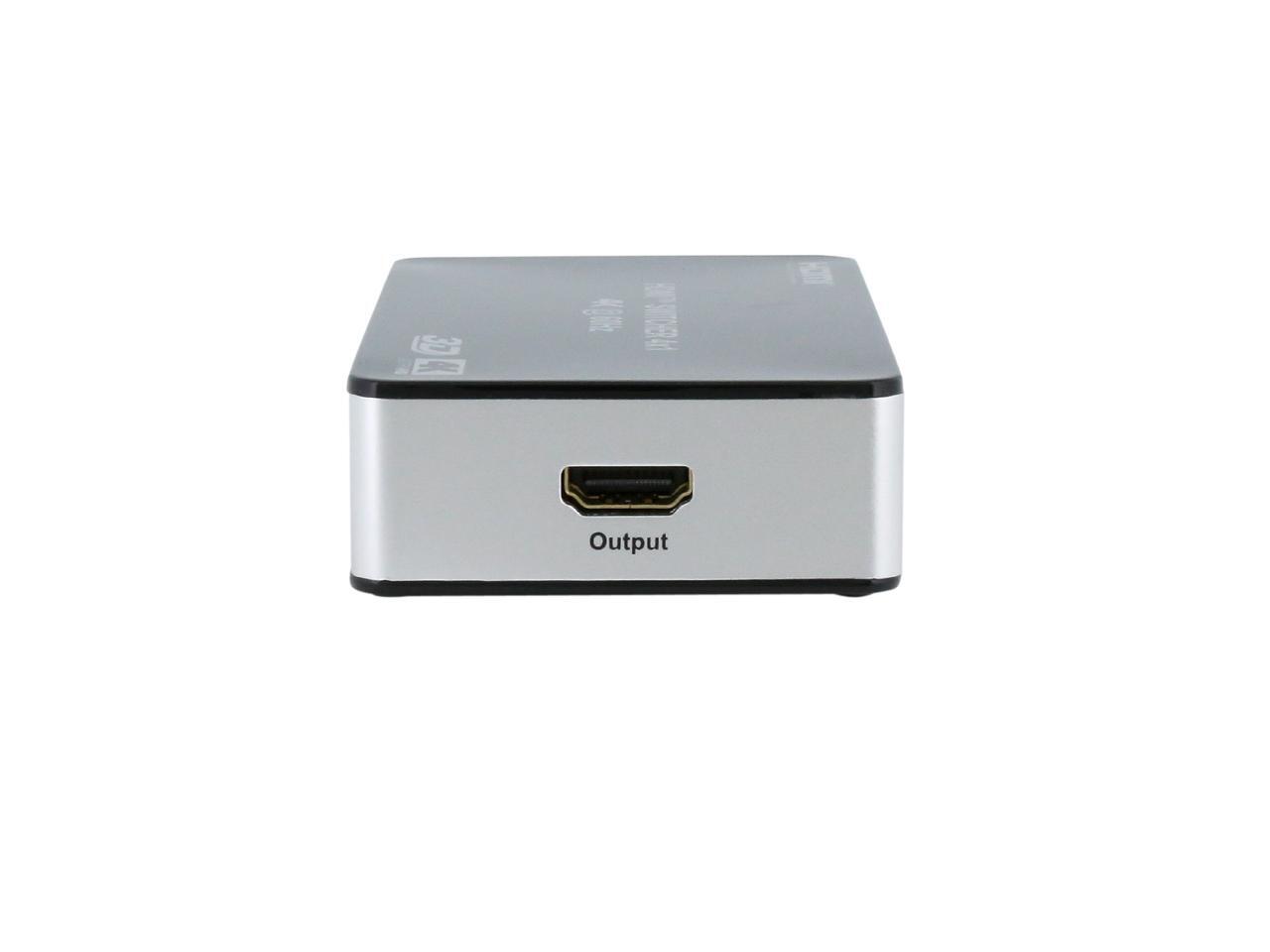

Output Connector | HDMI x 1 |
Maximum Resolutions | 1920 x 1080 |
---|

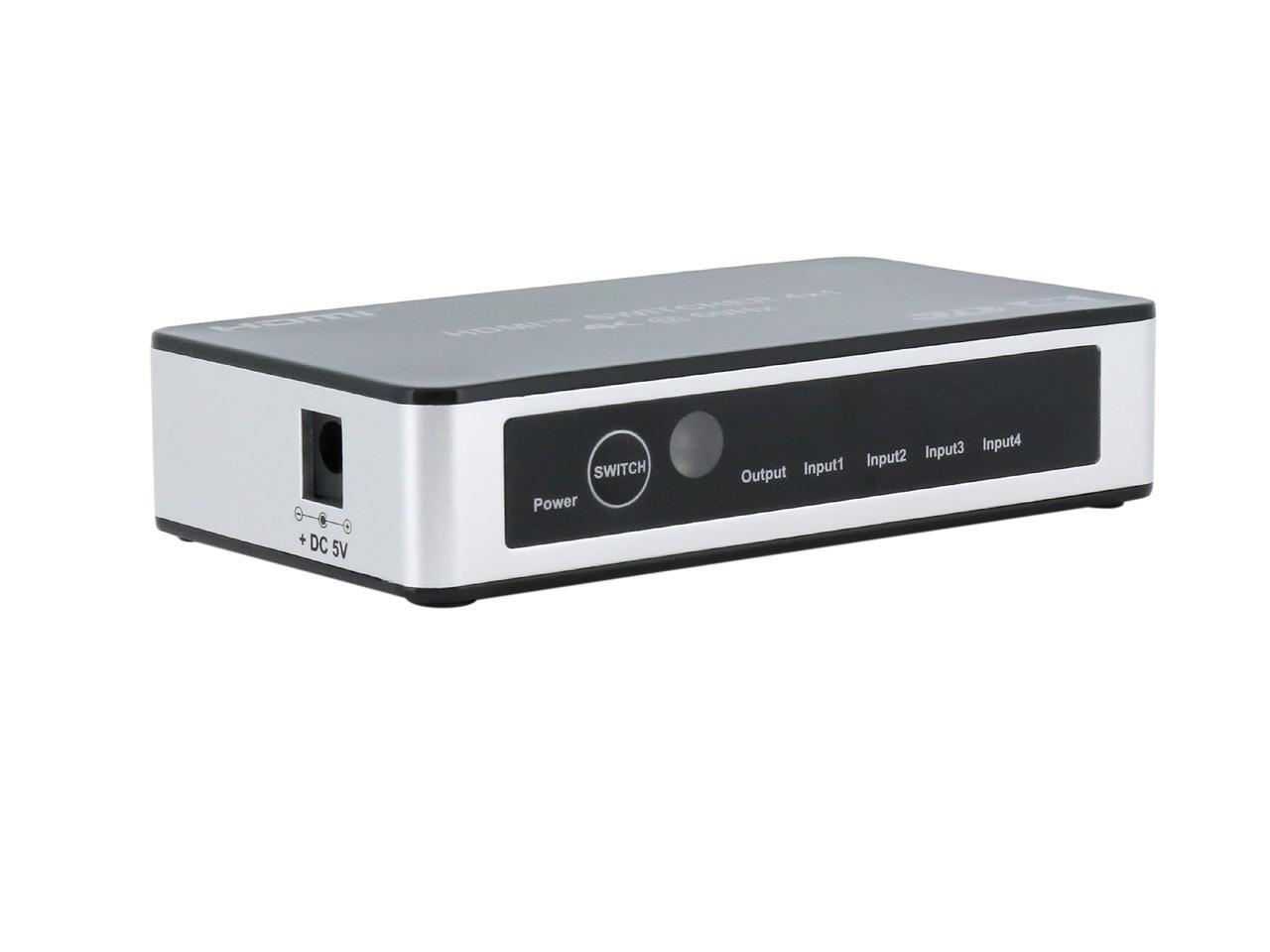

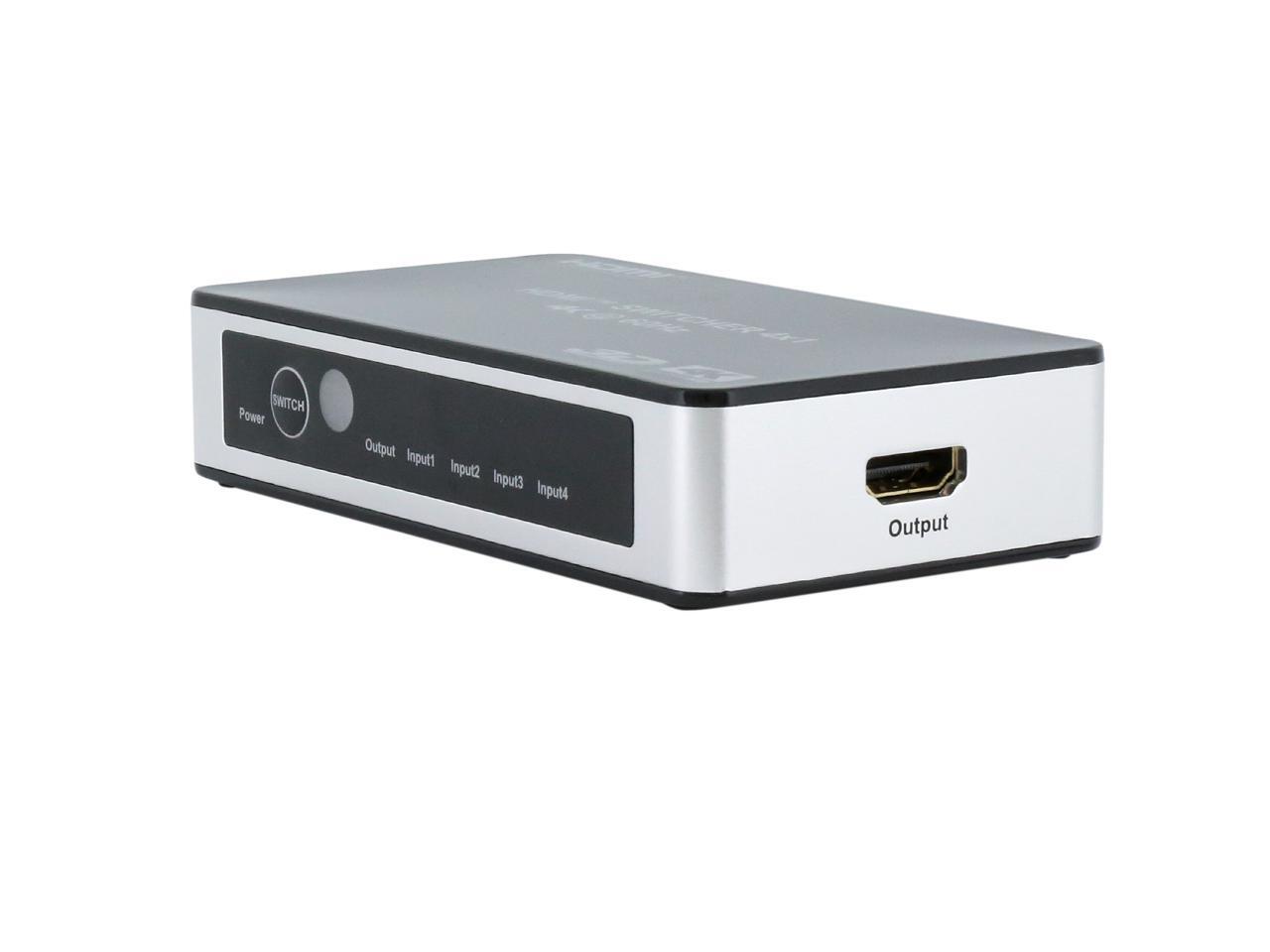

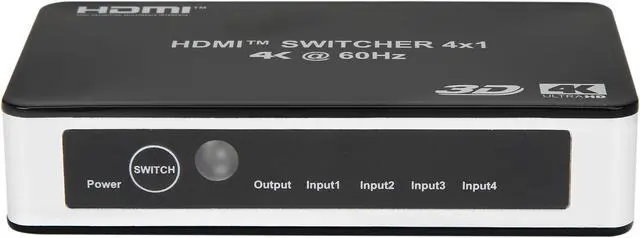

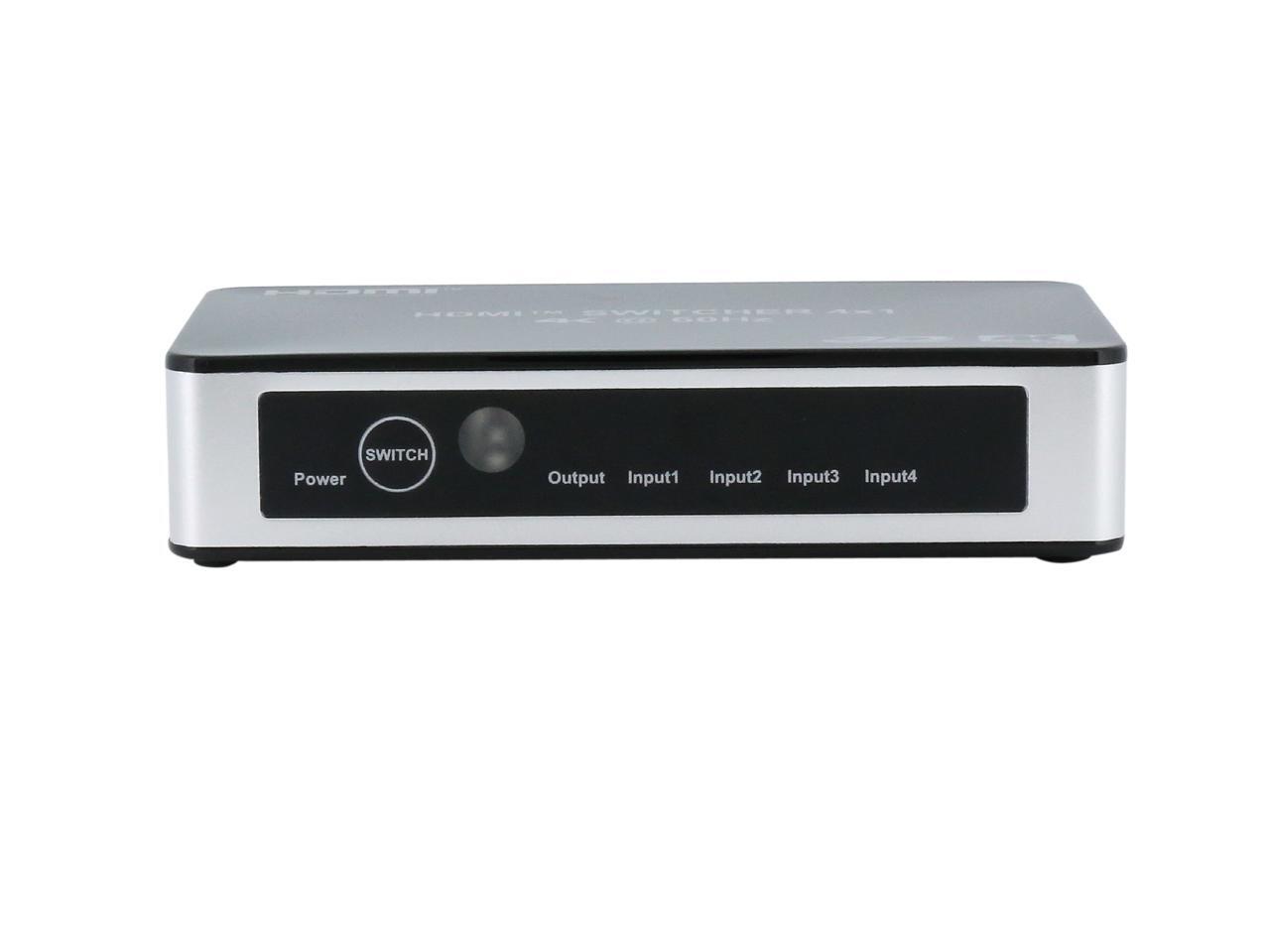

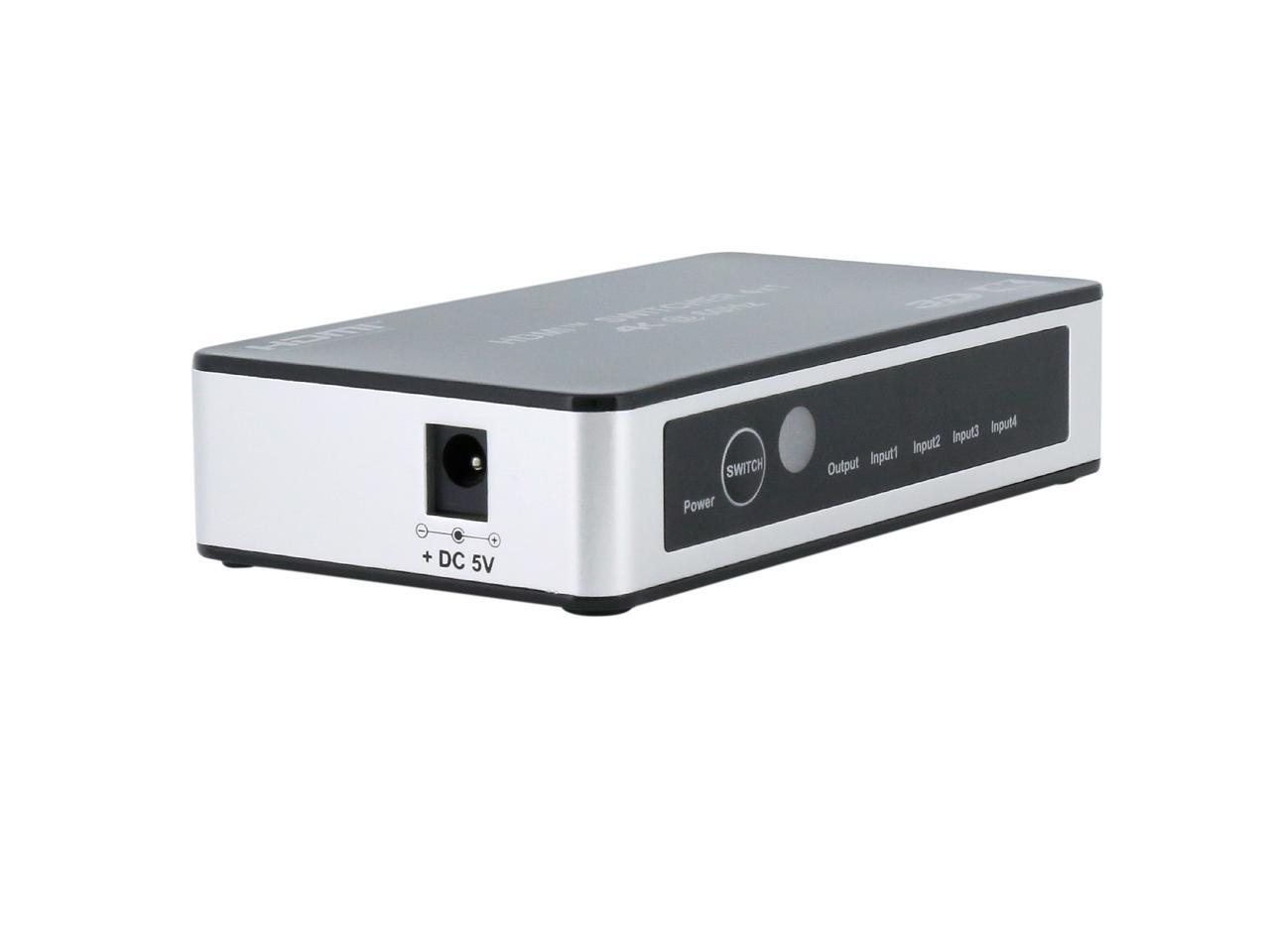

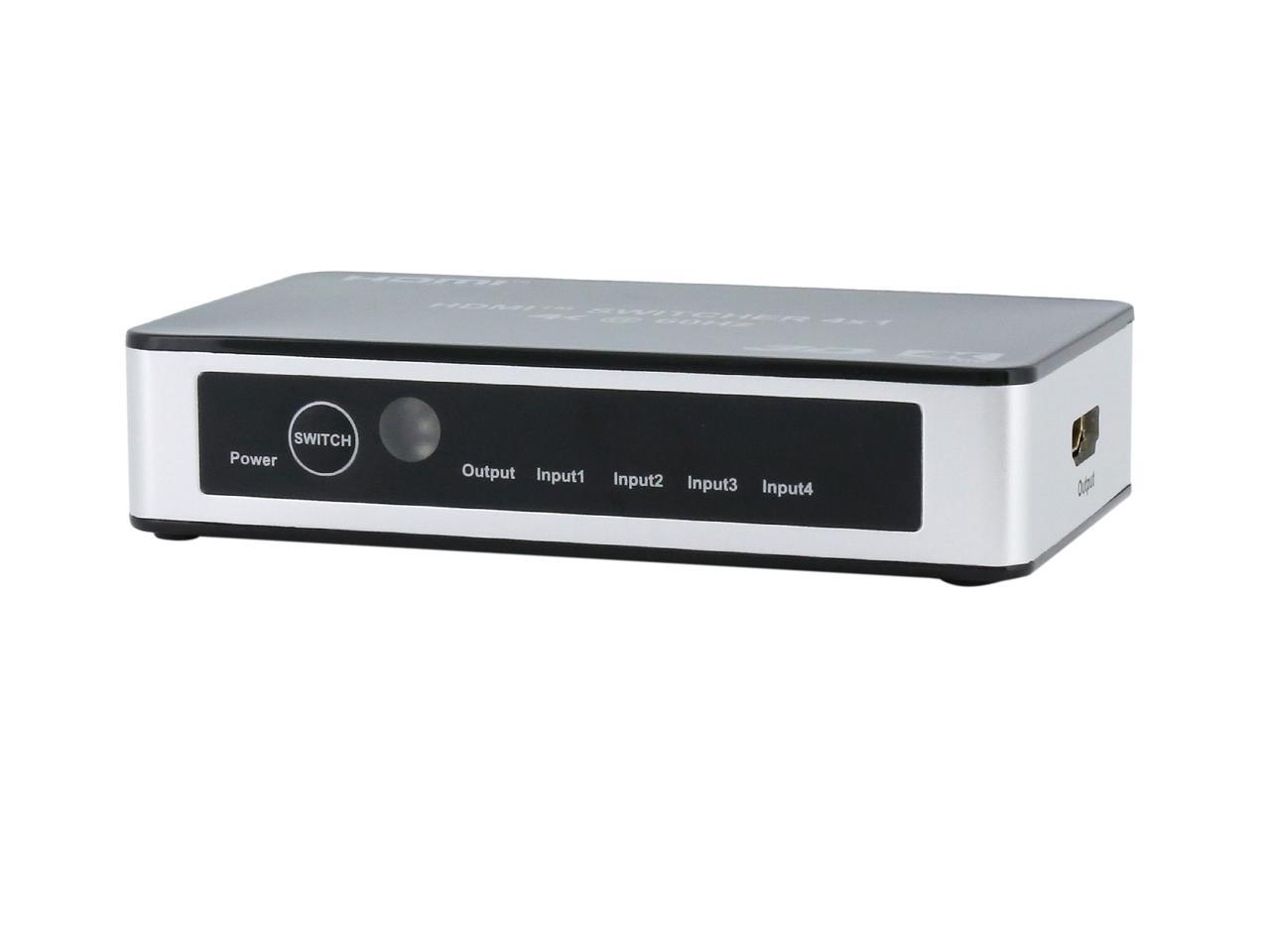

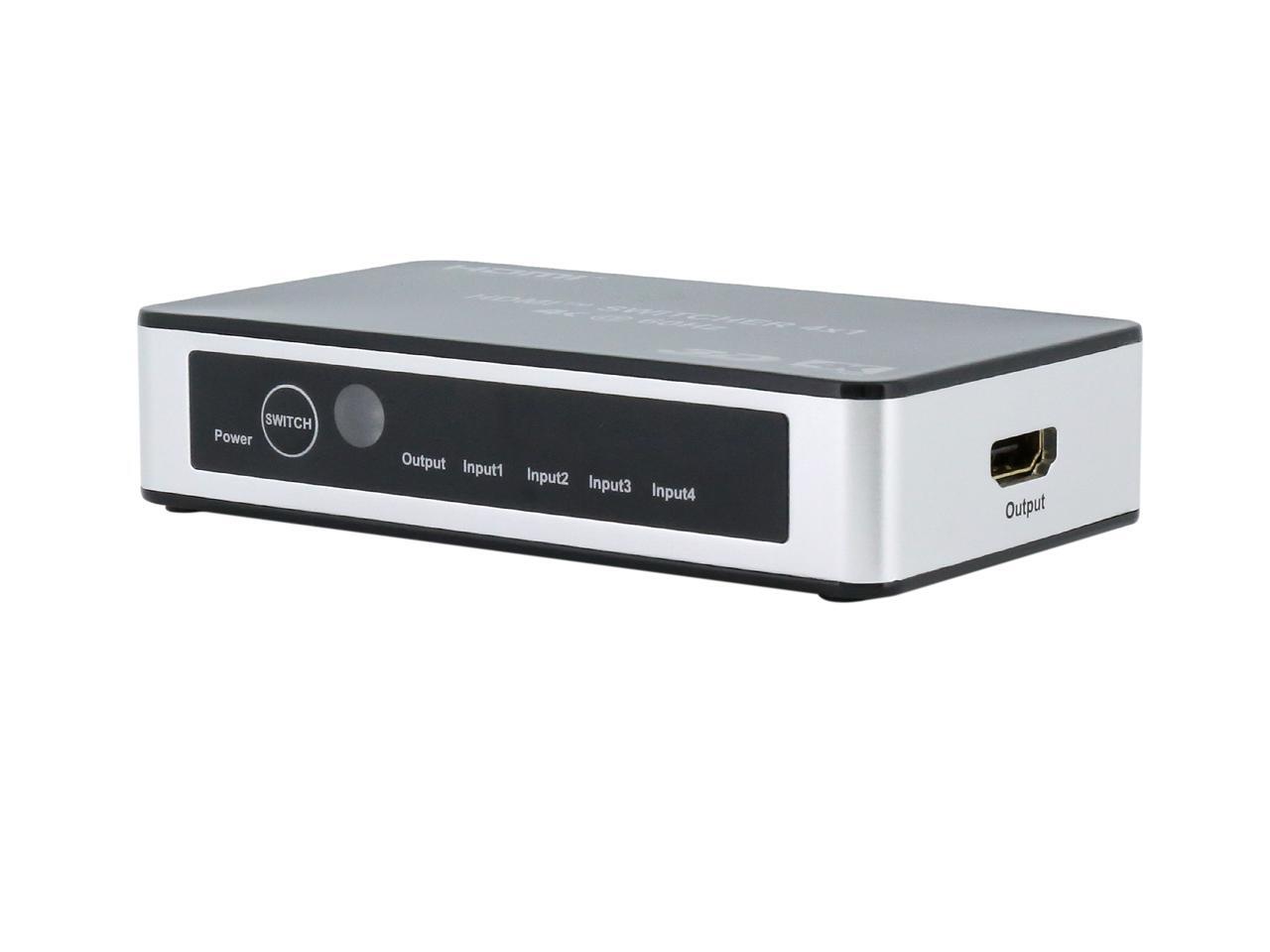

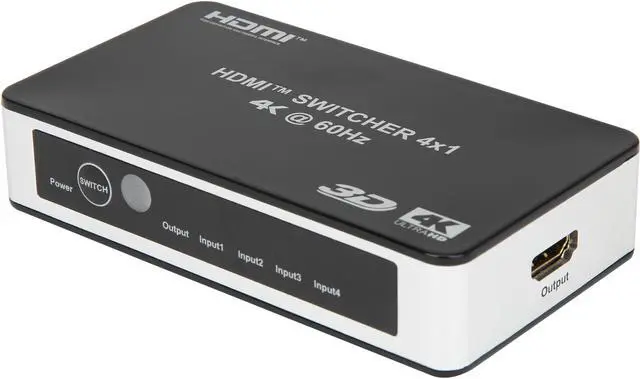

Features | The full HD 1080p HDMI switcher allows the user to input four HDMI sources and switch between these sources to provide a single HDMI output to a display by IR remote controller or key-press-switch. Built-in singal equalization let you use longer than normal HDMI cables running to the inputs and outputs. HDMI 1.4 and HDPC compliable Clock rate up to 340MHz,bandwidth up to 3.4Gpbs per channel, total 10.2Gbps Support high definition resolution 1080P@60Hz and 3D Deep Color supports 12bit/channel,36bit all channels Support uncompressed andio such as LPCM and compressed audio as DTS Digital, Doby Digital(including DTS-HD & Dolby True HD etc..) CEC pass-through Premium switcher with power adapter for durability application Versatile Switching Options: -Wireless IR remote controller Convenient select your purposed HD source via wireless IR remote controller - Manual Select the HDMI source via mechanical button - Intelligent Automatically Selection Automatically select the last turned on or plugged in HD source priority Automatically turn to the next power-on HD source when ongoing source is turned off or plugged out Transmission distance for 1080p 24AWG cable: Input up to 20 meter ,Output up to 20 meter 28AWG cable: Input up to 10 meter ,Output up to 10 meter |
---|
Dimensions | 112 x 62.5 x 26mm |
---|---|
Weight | 219g |

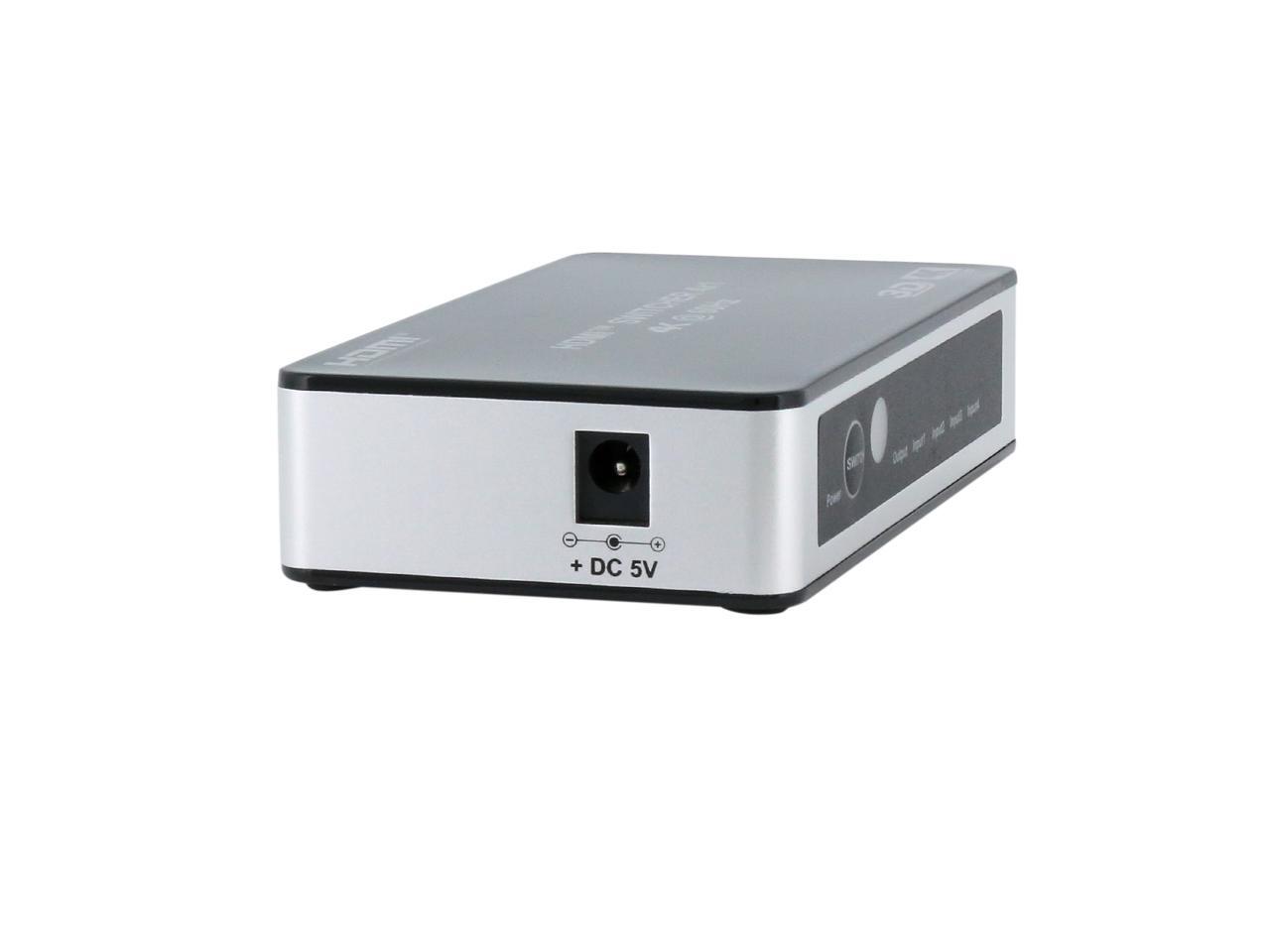

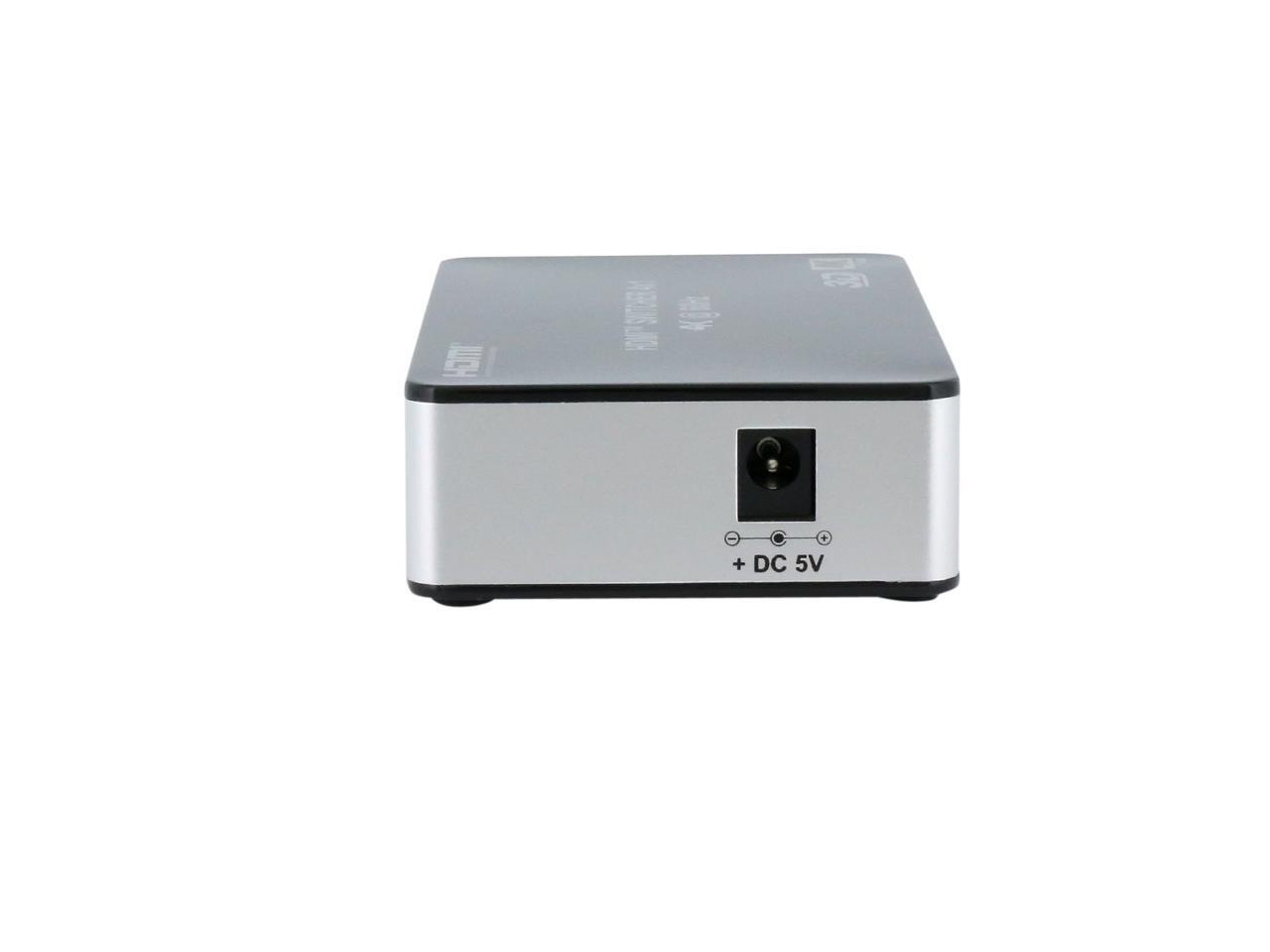

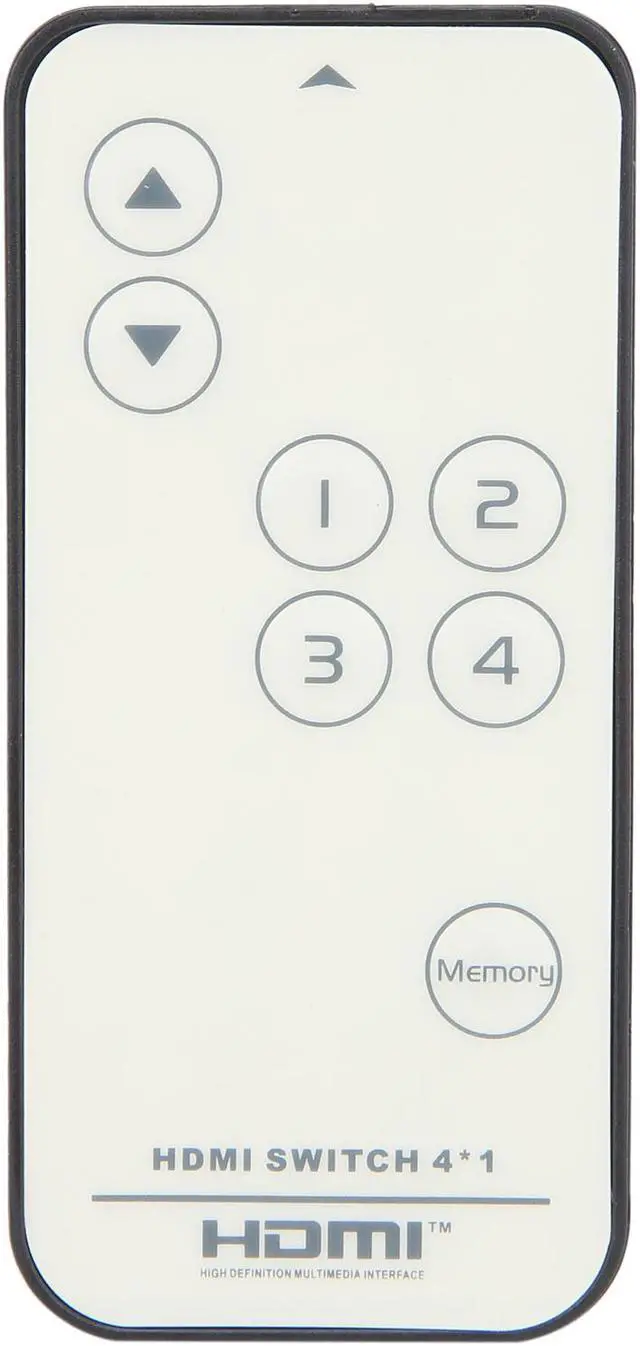

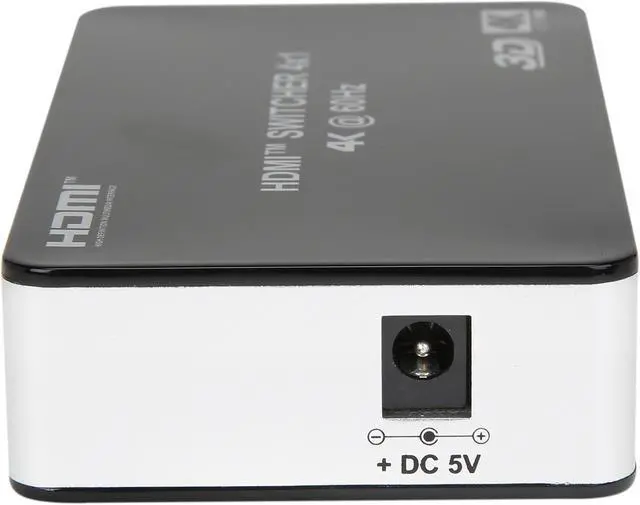

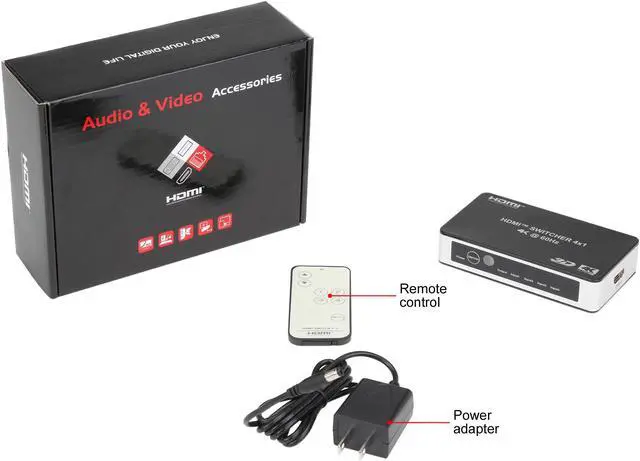

Package Contents | Main Unit User manual 5V/1A power adapter(UL Listed) IR Remote controller |
---|
Date First Available | December 17, 2013 |
---|
