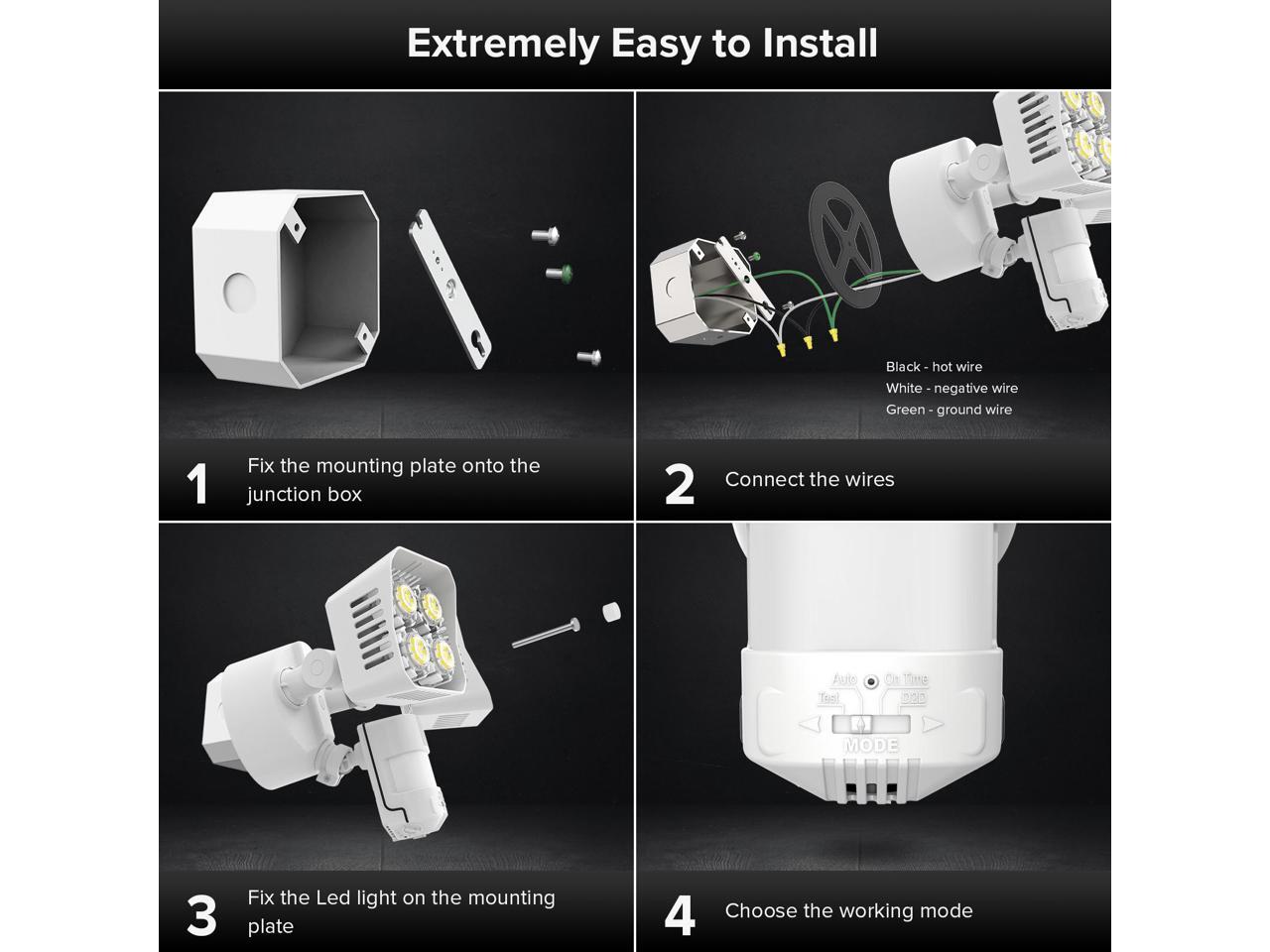

SANSI LED security motion sensor outdoor light will smartly light up any outdoor area through four smart working modes. Shine a 3600 Lumens flood light over 180 degrees and up to 50 feet away to eliminate darkness. It can be easily mounted on walls.
Wide Coverage
SANSI LED Security lights can turn on automatically when motion is detected, sensing light levels and motion at a range of 180 degrees and max 50 feet. The light is waterproof, which ensures that the light could work outdoors in rainy weather.
Adjustable Design
There are four working modes, Test Mode, Auto Mode, On Time Mode and Dusk to Dawn Mode. More options can meet different demands for each customer. Choose the most appropriate mode for your needs and desires.
TEST MODE Set-up: Put the "Mode" switch at Test position.
Function: Light turns on for only 5 seconds during daytime or night once it detects motion. This mode is used for checking whether the sensor is working properly. Test Mode can work during daytime and night. Except Range, the Lux and Time Setting doesn't work while using this mode.
AUTO MODE Set-up: Put the "Mode" switch at Auto position.
Function: When sensor detects motion, it lights up for 1-10 minutes according to the time it has been set. While using auto mode, toggle switch off and 2 seconds later on again. Light turns on continuously for 8 hours and goes off at daytime. Auto Mode only works at night. When it's bright (100-150 LUX) around the sensor, light goes automatically back to Auto Mode.
ON TIME MODE Set-up: Put the "Mode" switch at On Time position.
Function: Light can work as a standard LED light without motion sensing. Light turns on when switch on, turns off when switch off. On Time Mode can work during daytime and night. The Lux, Time and Range Setting don't work while using this mode.
DUSK TO DAWN MODE Set-up: Put the "Mode" switch at D2D position.
Function: Light turns on automatically at dusk or night and turns off at dawn or if it’s too bright for your sensor. D2D Mode only works at night. When it's bright around the sensor, it goes off automatically. Except Lux, Time and Range don't work while using this mode.
Three Setting Knobs:
1. Sensor Sensitivity for setting ambient brightness value to differ day from night. If the ambient brightness value exceeds the setting Lux, it is defined as "daytime"; otherwise it's known as "nighttime". Position 0 equals 3 Lux, Position 8 equals max Lux and it's always regarded as night no matter how bright around the sensor. Lux setting only works in Auto Mode and D2D Mode.
2. Detecting Range
Rotate the knob to adjust the sensing range to max 50ft. motion coverage. When you mount the light over 7.8 ft., please adjust the sensor upwards and set max range to increase the coverage area. Time setting only works in Auto Mode. Range setting only works in Test Mode and Auto Mode.
3. Stand By Time
Time knob is used for setting working time from 1-10 minutes when it detects motion. Time setting only works in Auto Mode.
