Question 1

Are the 5.25" drive bays removable? I'm planning on building a server with Rosewill 3 x 5.25-Inch to 4 x 3.5-Inch Hot-swap SATAIII/SAS Hard Disk Drive Cage (RSV-SATA-Cage-34) and it needs 3 x 5.25" drive bays to mount it.

Accepted Answer

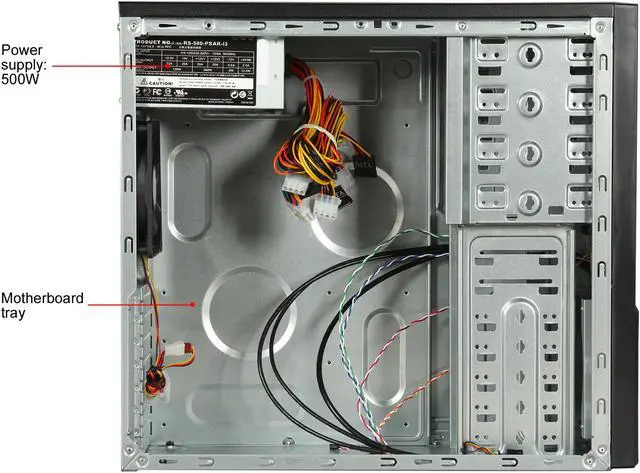

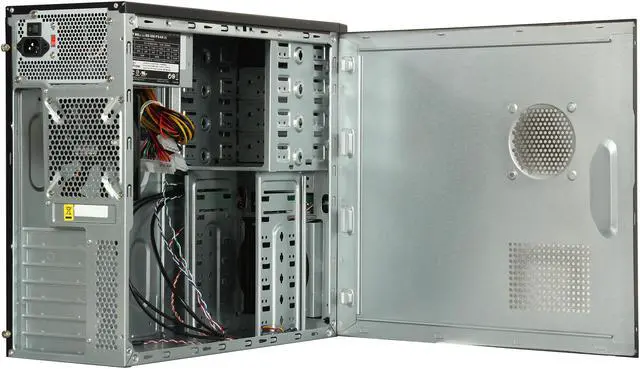

On the Cooler Master Elite 350 enclosure, the 5.25" drive bays are usable. It is necessary to pop out the plastic bay covers; the sheet metal bay covers need to be removed; and the individual bay shelf supports may need to be bent out of the way. The drive bay cage itself is not removable; as it extends from top to bottom of the enclosure, providing 5.25" bays up top, and 3.5" bays toward the bottom. I looked at the picture of the cage on newegg.com, it seems to provide provision for the shelf supports. Looks like it will work.

Question 2

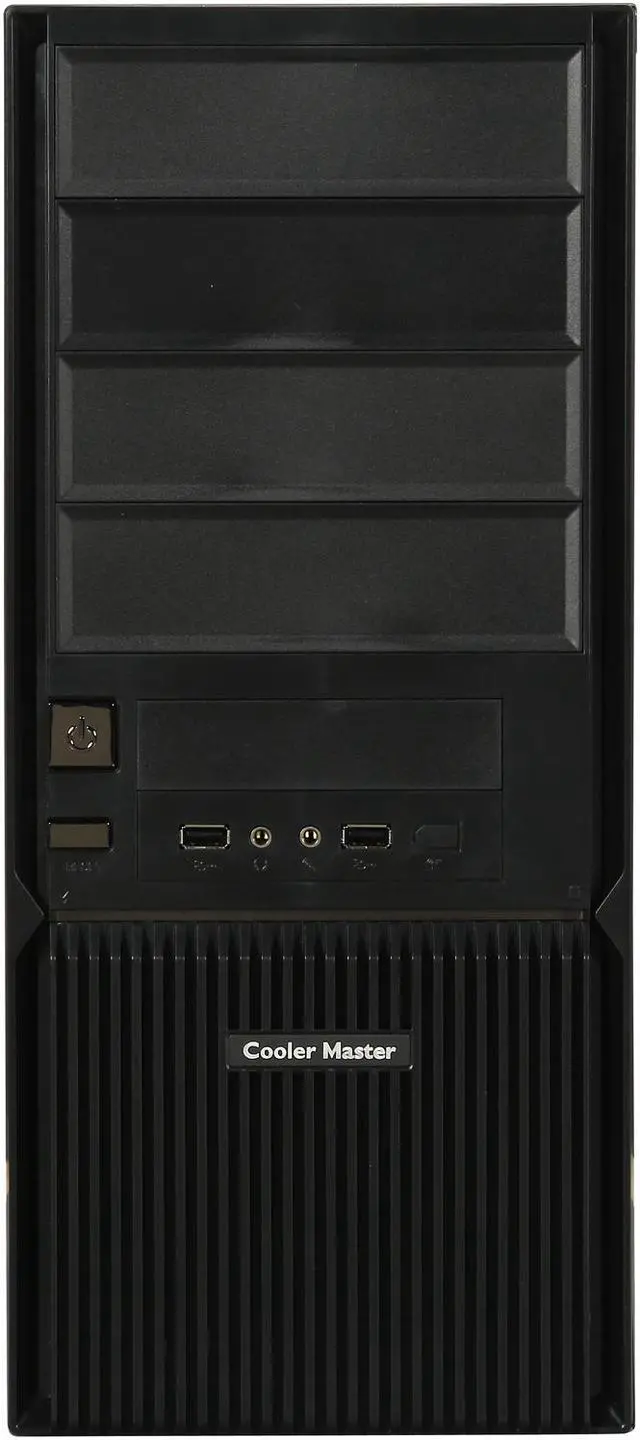

Just wondering if the io panel on the front can be removed so that a second exposed 3.5" device can be installed?

Accepted Answer

No the IO is cut out and doesn't come out.

Question 3

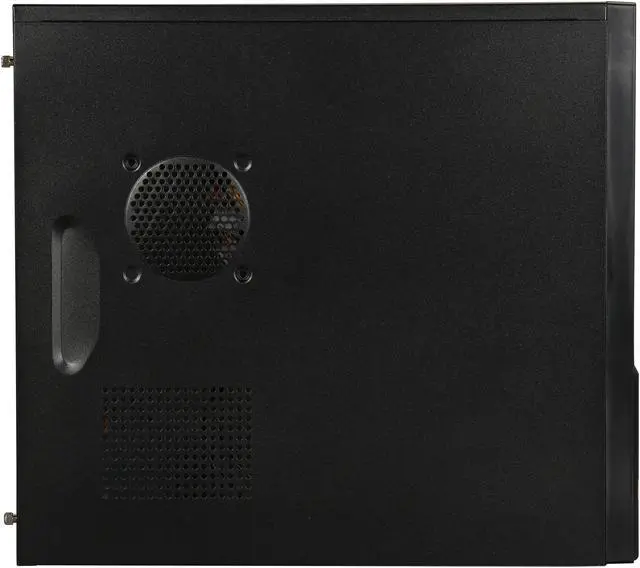

Can the side air duct grating mount a fan? If so, what size?

Accepted Answer

i believe it should fit a 80mm fan

Question 4

Does this case have an autoranging supply?

Accepted Answer

Ignore my previous response. Thought this was a different case.

Question 5

Will this case fit with my Cooler Master Hyper 212 EVO  CPU cooler?
(heatsink dimennsions 116 x 51 x 159 mm (4.6 x 2.0 x 6.3 in)

Accepted Answer

I don't see why the cooler wouldn't work with this case because the cooler is 120mm tall which is a little less than 5 inches and the case is 7.08 inches deep so even with your risers and motherboard you should have two inches or a little less clearance between the cooler and the case side panel.

Thanks,
Brian

Question 6

can the psu power a geforce gtx 660?

Accepted Answer

If you check the specifications for the GeForce GTX 660 --- and you can do this online, just like I did --- you will see that the minimum (REPEAT, MINIMUM) power requirement is 450W. This computer case, with a 500W power supply, if loaded with the GTX 660, would only have 50W remaining for all the rest of the installations (hard drives, DVD drives, USB resources, etc.), and since the GTX 660 uses 450W minimum, how many more watts would it claim while running some power intensive gaming software? While this computer case is great for general computer usage, it is not intended for gaming use. I did not purchase this case for gaming use, I purchased it to rebuild an ordinary Win7 computer running ordinary computing tasks. For that kind of use, this case is ideal and I would recommend it to anyone, but for gaming use where a power hungry video card is used, this case is not suitable --- just add up the watts.

Question 7

will this case fit a corsair h100iv2 aio cooler?

Accepted Answer

Yes but if you want the hoses from your radiator in the front then you will have a hard time fitting a 5.25 disk drive.

Question 8

Will my Crucial BX100 120GB hard drive (2.5") need special brackets to be mounted in my case (Cool Master Elite 350)?

Accepted Answer

Yes you will need a bracket to install this HDD

Question 9

Can this case work with MSI Z97 U3 Plus LGA 1150 Intel Z97 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard?

Accepted Answer

Sure as long as you don't get the full ATX board any case will work.

Question 10

for PSU - How many SATA connectors does it have.
Does it have  2 4 pin CPU connections or 8 pin ?

Accepted Answer

standard 8 pin.

Model	RC-350-KKN1 (without PSU) RC-350-KKR400 (with 400W PSU) RC-350-KKR500-GP (with 500W PSU)
Available Color	Black

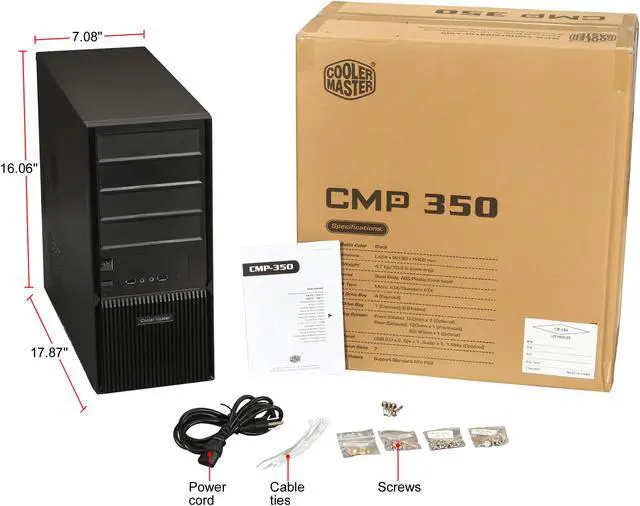

Dimensions (W x H x D)	7.08 x 16.06 x 17.87 inches (180 x 408 x 454mm)
Weight	Net Weight: 10.36 lbs (4.7kg) Gross Weight: 11.90 lbs (5.4kg)
Material	Steel body, ABS plastic front bezel
Motherboards	ATX / m-ATX
5.25" Drive Bay	4 Exposed
3.5" Drive Bay	6 Hidden 1 Exposed

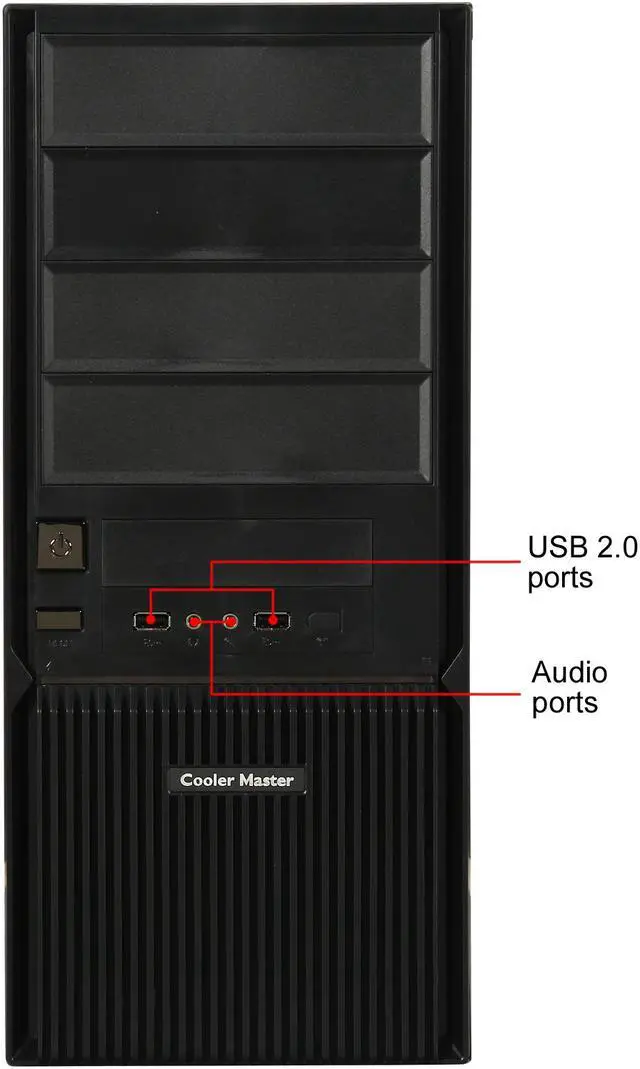

I/O Panel	USB 2.0 x 2, Spk x 1, Audio x 1, IEEE 1394a x 1 (optional)
Cooling System	Front: 120 x 25mm fan x 1 (optional) Rear: 120 x 25mm fan x 1 / 1200RPM / 17dBA (pre-installed) \| 80 / 90mm x 1 (optional)

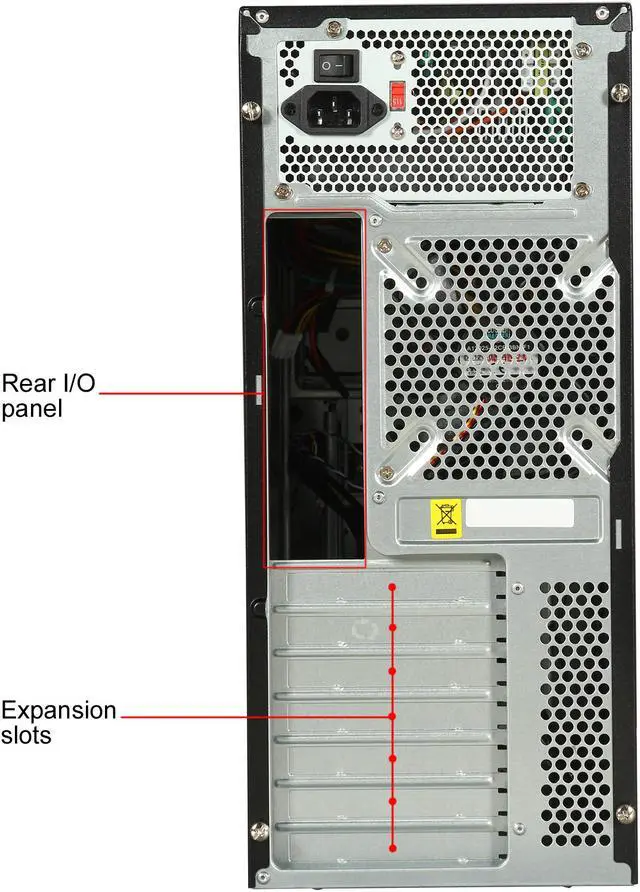

Expansion Slots	7
Power Supply	Standard ATX PS2 / EPS 12V
UPC Code	RC-350-KKN1 (without PSU) - 884102009822 RC-350-KKR400 (with 400W PSU) - 884102007125 RC-350-KKR500-GP (with 500W PSU) - 884102007132

Brand	Cooler Master
Series	Elite 350
Model	RC-350-KKR500-GP

Type	ATX Mid Tower
Color	Black
Case Material	Steel / Plastic
With Power Supply	500W
Power Supply	500W
Power Supply Mounted	Top
Motherboard Compatibility	Micro ATX / ATX
Side Panel Window	No

External 5.25" Drive Bays	4
External 3.5" Drive Bays	1
Internal 3.5" Drive Bays	6
Expansion Slots	7

80mm Fans	No

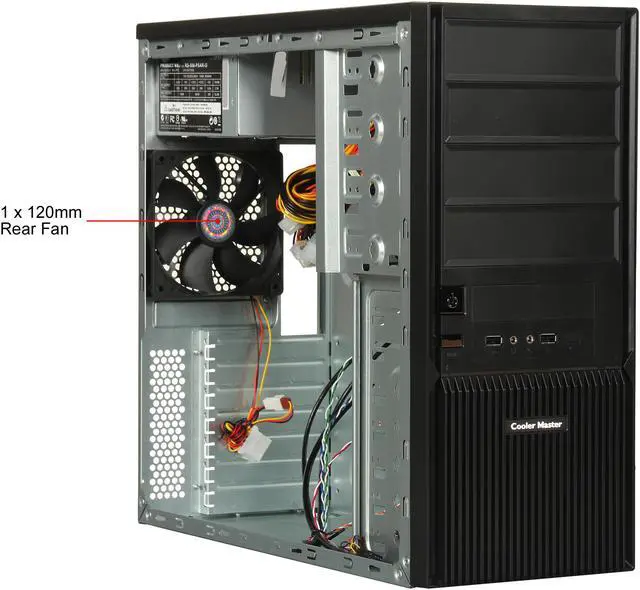

120mm Fans	1 x 120mm Rear Fan
Side Air duct	No

Cooler Master Elite 350 - Mid Tower Computer Case with 500W Power Supply and Blue LED Light Strip

Elite 350

Specifications

Learn more about the Cooler Master RC-350-KKR500-GP

Customer Reviews of the Cooler Master RC-350-KKR500-GP

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Max CPU Cooler Height	155 mm
Max PSU Length	180 mm
Dimensions (H x W x D)	16.06" x 7.08" x 17.87"
Weight	10.36 lbs.
