Cooler Master MasterLiquid ML240R Addressable RGB AIO CPU Liquid Cooler, 28 Independently-Controlled LEDS, Robust Sleeved FEP Tubing, Dual 120mm ARGB Air Balance MF

Cooler Master MasterLiquid ML240R Addressable RGB AIO CPU Liquid Cooler, 28 Independently-Controlled LEDS, Robust Sleeved FEP Tubing, Dual 120mm ARGB Air Balance MF

(43)
Write a Review

Ships from United States.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • 240mm Radiator Low: Profile Dual Chamber Addressable RGB pump with Dual Addressable RGB Fans for Push and Pull Air Flow
  • Addressable RGB Fans and Pump - Color option can be controlled through Cooler Master software CM Plus
  • Includes 1-to-3 Addressable RGB Splitter cable for multiple ARGB Fans
  • Includes: Wired Addressable RGB Controller for non RGB Motherboards for customize colors
  • Sleeved FEP Tubing's - Sleek Black Outer Sleeves with FEP Tubing's inside for Durable Lasting and Flexibility

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
Cooler Master

Custom, Inside and Out

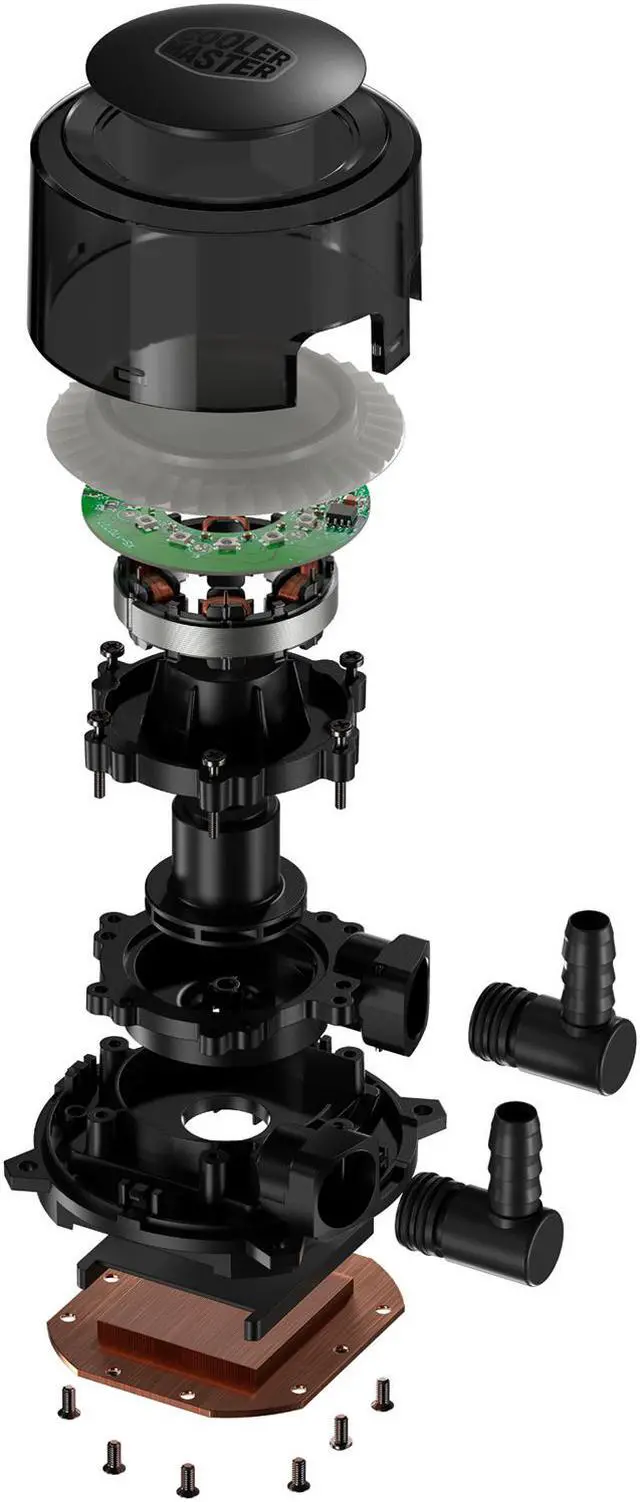

The MasterLiquid's dual-chamber pump outperforms its single-chamber predecessors in heat transfer. The MasterFan Air Balance fans work with our characteristically sturdy build quality to keep your build as quiet as a library.

Cooler Master

Addressable-RGB LEDs

Independently-controlled RGB LEDs on the pump and fan offer full color customization, controllable through our software, MasterPlus+.

Cooler Master

Dual-Dissipation

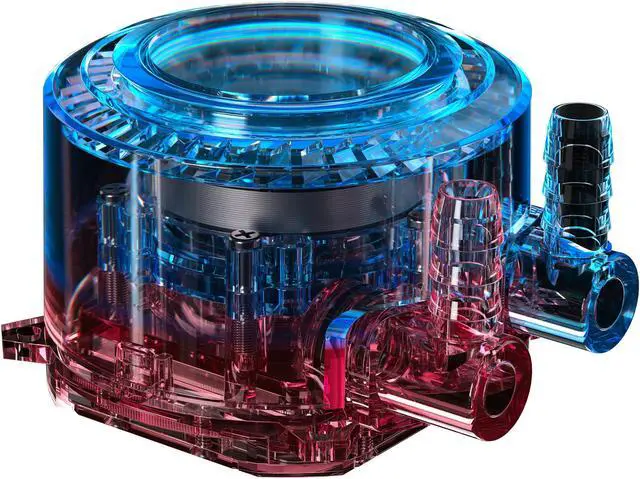

Our low-profile, dual-chamber pump enhances performance and durability over our last gen single-chamber designs.

Cooler Master

Dual MasterFans

Avoid dynamic losses—dual MasterFans maximize your build's air intake.

Cooler Master

Sleeved FEP Tubing

Underneath sleek black sleeves, FEP material beats rubber tubing in keeping liquid where it belongs – inside the cooler.

Cooler Master

Adjustable Pump Cap

Remove and adjust the pump's cap to compliment your build's orientation.

Cooler Master

Addressable-RGB Ready

1-to-3 A-RGB splitter and proprietary wired A-RGB controller included, allowing you to customize your colors even without an RGB motherboard.

Compare



  Cooler Master
MasterLiquid ML240R RGB		 Cooler Master
MasterLiquid ML120R RGB
Product Number MLX-D24M-A20PC-R1 MLX-D12M-A20PC-R1
CPU Socket Intel LGA 2066, 2011-v3, 2011, 1151, 1150, 1155, 1156, 1366, 775
AMD AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1		 Intel LGA 2066, 2011-v3, 2011, 1151, 1150, 1155, 1156, 1366, 775
AMD AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
Radiator
Material Aluminum Aluminum
Dimensions 277 x 119.6 x 27 mm 157 x 119.6 x 27 mm
Fan
Dimensions 120 x 120 x 25 mm 120 x 120 x 25 mm
Quantity 2 2
Speed 650–2000 RPM (PWM) ±10% 650–2000 RPM (PWM) ±10%
Air Flow 66.7 CFM, max 66.7 CFM, max
Air Pressure 2.34 mmH2O 2.34 mmH2O
MTTF 160,000 hours 160,000 hours
Noise Level 6–30 dBa 6–30 dBa
Connector 4-Pin (PWM) 4-Pin (PWM)
Rated Voltage 12 VDC 12 VDC
Pump
Dimensions 83.6 x 71.8 x 52.7 mm 83.6 x 71.8 x 52.7 mm
MTTF 70,000 hours 70,000 hours
Noise Level < 15 dBA < 15 dBA
Connector 3-Pin 3-Pin
Rated Voltage 12 VDC 12 VDC
Warranty 2 Years 2 Years
Compatible Motherboards
ASUS AURA SYNC Motherboards ROG Maximus X Formula, Code, Hero (Wi-Fi AC), Hero
ROG Strix Z370-E Gaming, Z370-F Gaming, Z370-I Gaming, X299-XE Gaming,
X299-E Gaming, X399-E Gaming, X370-I Gaming
ROG Zenith Extreme, Crosshair VI Extreme
Rampage VI Extreme, Prime X299-Deluxe
MSI Motherboards Z370 Godlike Gaming, Gaming Pro Carbon AC, Gaming Pro Carbon
Z370I Gaming Pro Carbon AC
ASRock Launching in May.

Learn more about the Cooler Master MLX-D24M-A20PC-R1

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: 1 day to 1 week
Verified Owner
1/ 5
It's a no go.

Pros: Decent rgb lights

Cons: The software doesnt work and fans are not detectable.

Overall Review: No software works and my PC doesnt detect it. I have a motherboard that supports it and have the right connections. I'll be returning it. Btw its NOT compatible with Aura.

Did you find this review helpful?
Manufacturer Response:
Hello Cesar,

The unit is compatible with Aura. If you need assistance on how to get the unit to sync with Aura, you can contact our support team. MasterPlus software will control the controller, and you can switch the source to read from a compatible ARGB header. In Aura, the setting you set for the ARGB LED strip will send the ARGB signal to anything plugged into the ARGB header. This is how Aura has that header labelled.

CM-PNguyen
Ownership: 1 month to 1 year
Verified Owner
3/ 5
Fans DOA

Pros: Great overall if fans weren't dead

Cons: Fans rgb works but not spinning DOA. Have tried 2 different compatible motherboards. Connections was on point but still dead.

Did you find this review helpful?
Manufacturer Response:
Hello,

Are you sure both fans are defective in the same way? That they are not spinning? Please contact our support team at support.coolermaster.com for some troubleshooting, as two fans having the same issue would usually mean that there is either something that wasn't wired up correctly, or the power splitter cable might be defective.

CM-PNguyen
3/ 5
Good Product

Pros: RGB looks nice
Works good

Cons: Not supporting Aura Sync, they advertise it supports and it doesn't.
cooling is good, but not as good as competitors

Overall Review: Its ok

Did you find this review helpful?
Manufacturer Response:
This cooler does support Aura; you would need to set it up correctly, and you would also need a motherboard with a compatible ARGB header. Aura controls both ARGB and RGB, but you would need the proper interface. If you do have an ARGB header on your motherboard, and are having issues with getting it to sync with Aura, you can contact our support team at support.coolermaster.com for assistance.

CM-PNguyen
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Ryzen 3600 Asus ROG Strix X470-i

Pros: -Beautiful.
-Good Performance.
-Removable Pump LED cover.
-Durable.
-Good Mounting hardware.
-Comes with tons of adapters.

Cons: -Did not come with fan Splitter

Overall Review: I was concerned when I bought this cooler. I have never been a huge fan of AIO's as they scare me but I have built a few of my friends rigs with them and never had an issue. With my last ITX build heat was a huge issue so this time I decided I would risk it for the biscuit. So far I am extremely happy with this cooler. It looks amazing and it seems very durable. The performance is about what I expected with idle temps on my 3600 sits at 30c and under full load for 30 min it was at sitting around 68c.

Did you find this review helpful?
Ownership: 1 month to 1 year
Verified Owner
2/ 5
Don't waste your money

Pros: Good fan,rgb looks good, decent cooling

Cons: They haven't updated their argb software (master plus) since last year. And it's still in beta. The software is buggy and overall likes limited. Other companies such as Corsair and Thermal take have updated regularly. Cooler master won't even comment on it. The light on the pump/cooler isn't very bright even in Max settings.

Overall Review: If your buying cooler master argb great for the rgb. Don't. Corsair and Thermal take keep their software up to date.

1 out of 3 people found this review helpful. Did you?
Manufacturer Response:
As mentioned on your other review, MasterPlus software has not been in Beta since the end of last year. Have you flashed the firmware for the ARGB controller either? You can find it on the product page for this cooler on our US site.

CM-PNguyen
Ownership: 1 month to 1 year
Verified Owner
1/ 5
THE ARGB DID NOT WORK AT ALL

Pros: WORKS FINE IF YOU DONT CARE ABOUT THE ARGB FUNCTION

Cons: ARGB DID NOT WORK CONTROLLER DOES NOTHING AT ALL AND THE ARGB ON THE FANS AND PUMP WHERE DOA UPON DELIVERY AND NOW I CANT RETURN IT WASTED $120

Overall Review: IF YOU WANT AN RGB AIO BUY ANOTHER BRAND

1 out of 3 people found this review helpful. Did you?
Manufacturer Response:
How do you have the ARGB lines wired up? Did you happen to flash the firmware for the ARGB controller? If anything, please contact our support team at support.coolermaster.com. One of our agents can assist you with troubleshooting the unit, or replacing the controller if necessary.

CM-PNguyen
Ownership: 1 week to 1 month
1/ 5
Lots of air bubbles

Pros: Nothing to consider since my unit failed the main purpose (cooling).

Cons: Under full load you its sounds like a water fall, i owned couple aio coolers before and i remember some producing little amount of water flow sound but its far from this unit.

i have an i7 9700k@stock and my ambient temp is 23C, the CPU is idling around 45C and under full load it immediately throttle at 100C and the clock speeds go down like crazy.

Both hoses have the same temp under load (shouldn't be the case), and one them is vibrating like crazy (lots of air bubbles i guess), It seems that my unit isn't filled up with water as it should be.

Overall Review: -i'm pretty sure this is not the case for this cooler in general and its just my unit and my luck

- I have re-pasted and remounted it couple of times just to make sure and the results are always identical

- I have repositioned the case into multiple orientations multiple times hoping to get rid of the bubbles and nothing changed

- I have tried couple of air purging methods like shaking the radiator gently while the pump is running and nothing changed

1 out of 1 people found this review helpful. Did you?
Manufacturer Response:
Hello Abdullah,

Sorry to hear that you receive a defective unit. I'm using one of these in one of my builds and it occasionally makes some gurgling noises. I have a similar K processor and experience temps in the low 40s at idle(although I have a pretty decent overclock). It doesn't go beyond mid 80s on full load while stress testing in Prime 95. I would suggest contact the vendor and getting an exchange. This cooler should be able to handle your processor at stock speeds.

CM-PNguyen
Ownership: 1 week to 1 month
Verified Owner
3/ 5
Upsetting

Pros: Its cool looking and works fine

Cons: The con to this product is it came really scratched and the manual was bent and had dirt all over it.

Overall Review: I would recommend this product if you dont care about small details.

0 out of 1 people found this review helpful. Did you?
