COOLER MASTER Silent Pro Hybrid (RS-D00-SPHA-D3) 1300W ATX 12V V2.3 / EPS 12V V2.92 80 PLUS GOLD Full Modular Individual Active PFC Power Supply w/Free Fan Controller and 10 Years Warranty
- Intel ATX 12V V2.3 & SSI EPS 12V V2.92
- Modular
- 80 PLUS GOLD Certified
- 90 - 264 V 47 - 63 Hz

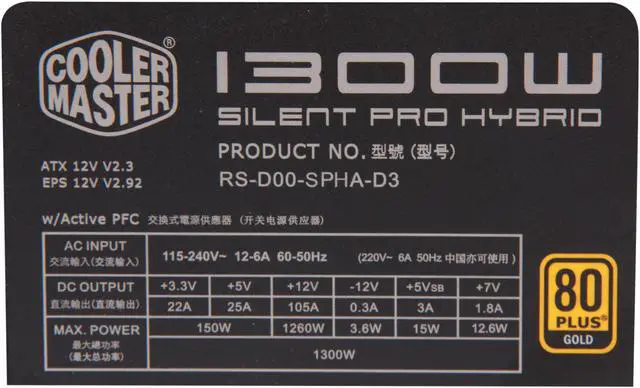

- +3.3V@22A, +5V@25A, +12V@105A, [email protected], +5VSB@3A, [email protected]
Overview
Specs
Reviews (26)
Cooler Master Silent Pro Hybrid 1300W Power Supply
Silent Pro Hybrid Series, built for those in need of high power that includes plenty of options for customization and noise control. Fully modular cables, extended cable lengths, exclusive built-in fan power ports, and an included 5.25� bay mountable fan controller make the Silent Pro Hybrid Series a superb choice for builders. This power supply series carries an 80 Plus Gold Certification.
 |
|
 |
80 PLUS GOLD 80 Plus certification from the Energy Star 5.0 to certify high efficient power supply. |
|
|
|
 |
FULLY MODULAR PSU Silent Pro Hybrid series are fully modularized including the 24pin connector as well. |
|
|
|
 |

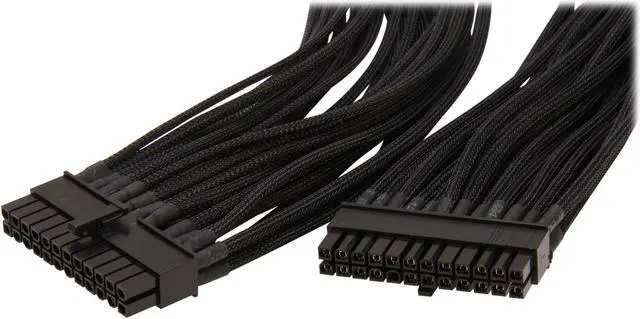

INDIVIDUAL SLEEVE CABLES Silent Pro Hybrid 1300W includes individual sleeve cables for easy cable management and better airflow for your system. |
|
|
|
 |
10 YEAR WARRANTY 10 years warranty to guarantee you never need to switch a power supply again. (only for SPH 1300W). |
|
|
|
Technical Specs:
| Model | RS-D00-SPHA-D3; RSD00-SPHAD3-US |
| Type | Intel ATX 12V V2.3 & SSI EPS 12V V2.92 |
| Dimension |
Dimension 150 x 180 x 86 mm 5.9 x 7 x 3.4 inch |
| Input Voltage | 90-264V (Auto Range) |
| Input Current | 12-6A |
| Input Frequency Range | 47Hz-63Hz |
| PFC | Active PFC (>0.9) |
| Power Good Signal | 100-500ms |
| Hold Up Time | 17ms |
| Efficiency | 90% Typically |
| MTBF | 100,000 Hours |
| Protection | OVP / UVP / OCP / OPP / OTP / SCP |
| Output Capacity | 1300W |
| Operation Temperature | 0~40°C (Nominal Input Voltage) |
| Regulatory | TUV / GOST / CE / C-Tick / UL / BSMI / CCC / FCC / KCC |
| Fan | 135mm (Silent Hydraulic Bearings) |
| Certification | 80 Plus Gold |
| Connector |
Connector M / B 24 pins x 1 CPU 4 + 4 pins x 2 PCI-e 6+2 pins x 8 SATA x 12 Peripheral 4 pins x 5 Floppy 4 pins x 1 Fan cable 3 pins x 3 |
| Warranty |
5 years 10 years (USA ONLY) |
| UPC Code | 884102012082 |
