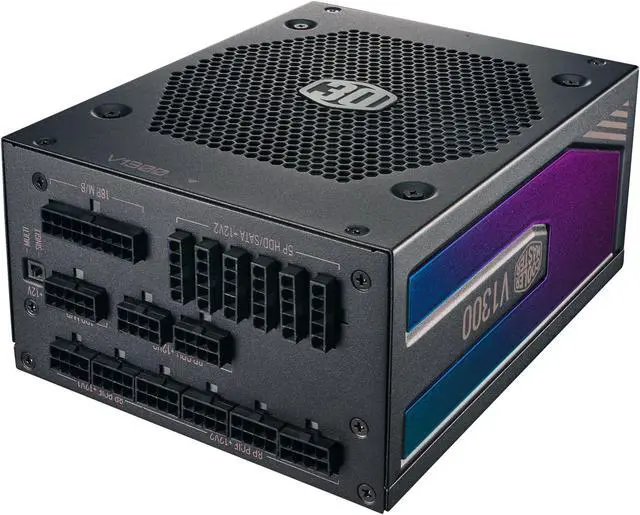

Cooler Master V1300 Platinum 30th Anniversary Fully Modular, 1300W, 80+ Platinum, 135mm FDB Silent Fan, Single/Multi-Rail Switch, Intel ATX 12V Ver 2.53, 100% Japanese Capacitors (MPZ-D001-AFBAPV-WU)

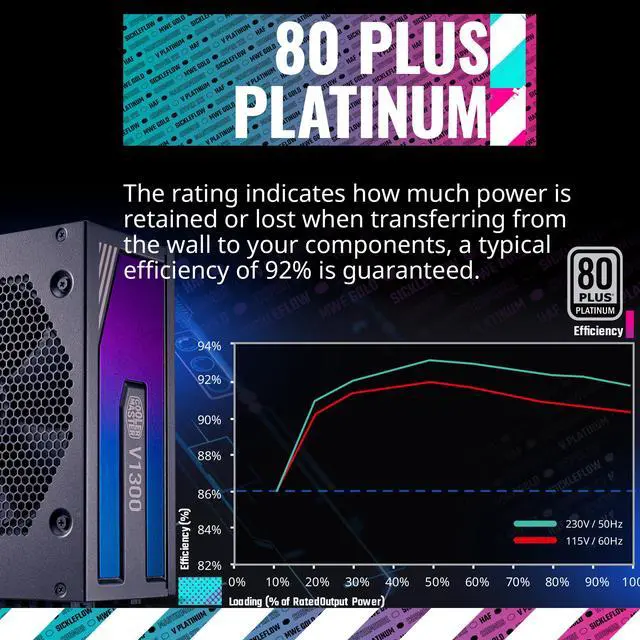

- 80 PLUS Platinum Certified: This certification guarantees a typical efficiency of 92% under normal operating conditions.

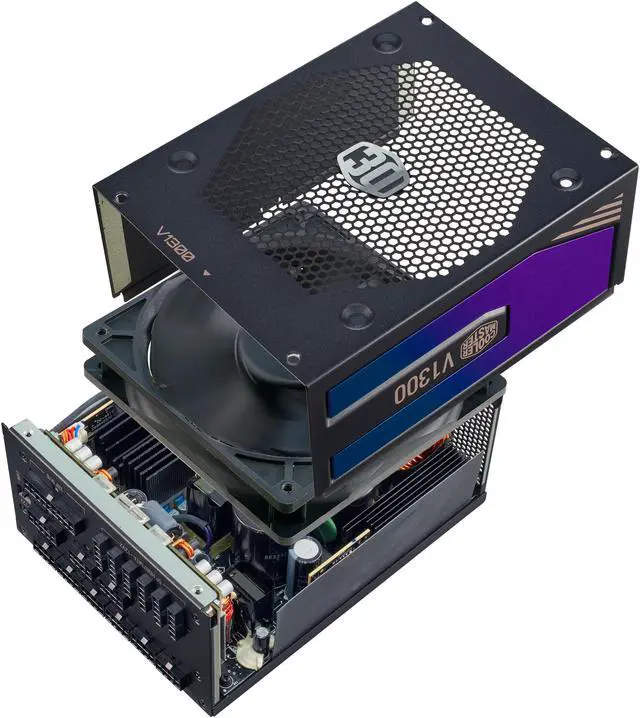

- Quiet 135mm Fan: The 135mm silent fan creates less friction, making it great for low RPM operations while delivering quiet cooling performance.
- Performance Driven Topology: The full-bridge LLC resonant converter and DC-DC technology offer reliable and stable voltage outputs for safer, more reliable performance and higher efficiency.

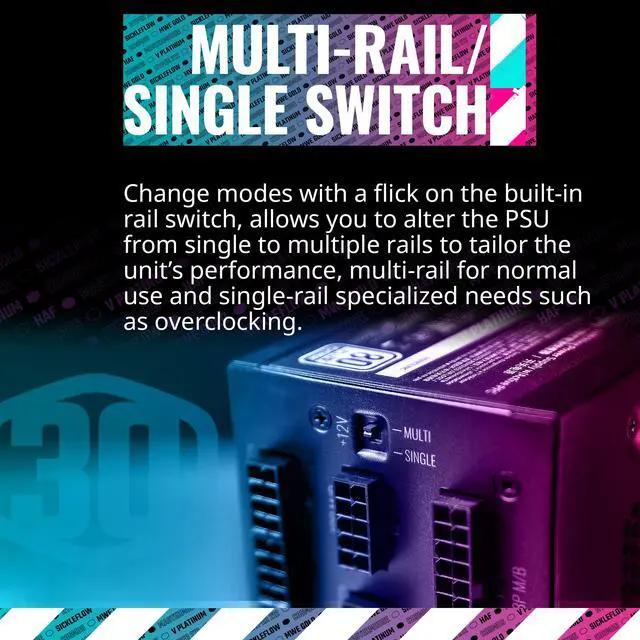

- Single/Multi-Rail Switch: Built in rail switch allows users to change between multi and single rail power output settings.
- 16 AWG PCI-e Cables: The thicker 16 AWG PCI-e cables allow for higher currents, thereby improving both efficiency and safety.
Specs
Reviews (1)
Learn more about the Cooler Master MPZ-D001-AFBAPV-WU
| Brand | Cooler Master |
|---|---|
| Series | V Platinum series |
| Model | MPZ-D001-AFBAPV-WU |
| Type | ATX12V |
|---|---|
| Maximum Power | 1300 W |
| Fans | 1 x 135 mm FDB fan |
| PFC | Active |
| Main Connector | 24Pin |
| PCI-Express Connector | 6 x 6+2-Pin |
| SATA Power Connector | 16 |
| Max PSU Length | 202 mm |

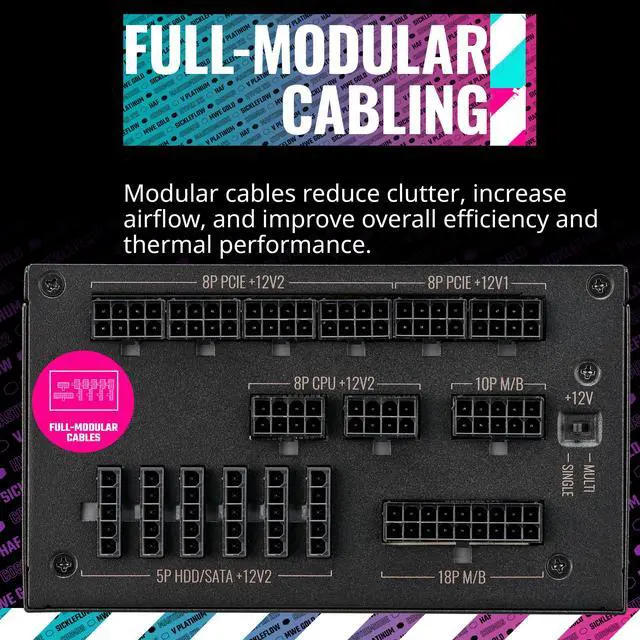

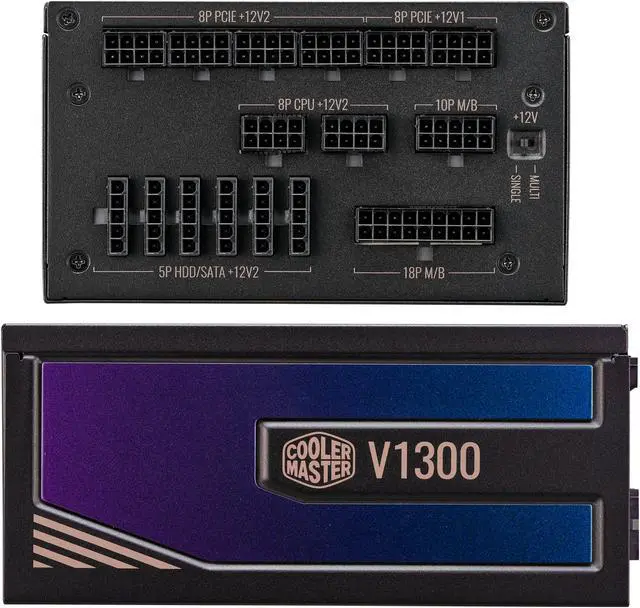

| Modular | Full Modular |
| Power Good Signal | 100-150 ms |
| Hold-up Time | >=20ms |
| Efficiency | >=92% @ Typical Load |
| Energy-Efficient | 80 PLUS PLATINUM Certified |

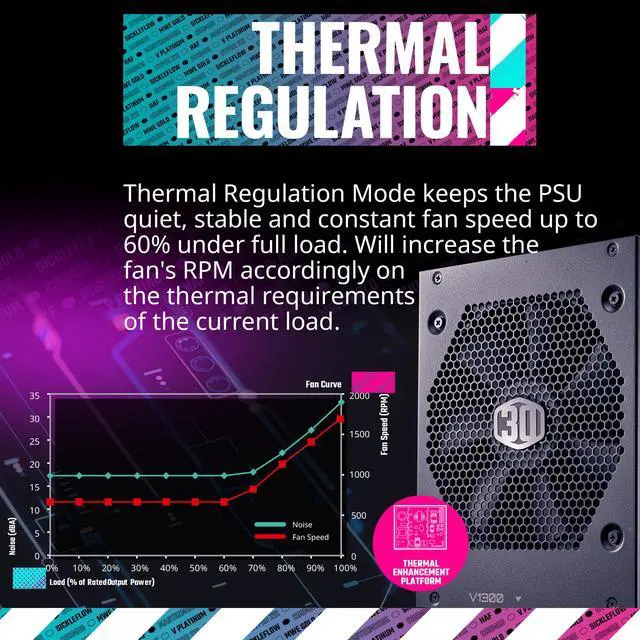

| PSU Noise Level | Noise @ 20% 17.1 Noise @ 50% 17.1 Noise @ 100% 33 |
| Protection | OVP / OPP / SCP / OCP / UVP / OTP / Surge & Inrush Protection |

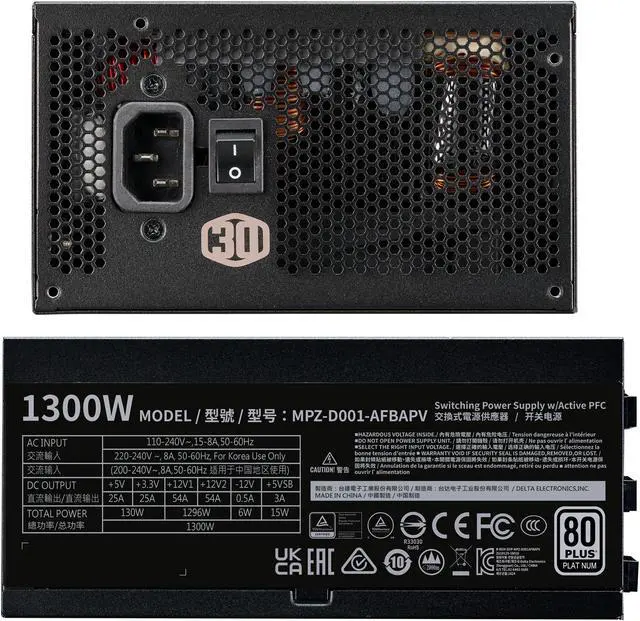

| Input Voltage | 110 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 15-8A |
| Output | +3.3V@25A, +5V@25A, +12V1@54A, +12V2@54A, [email protected], +5VSB@3A |
| MTBF | >100,000 Hours |
| Approvals | cTUVus, TUV, CE, CCC, FCC, EAC, RCM, BSMI, KC, UKCA |

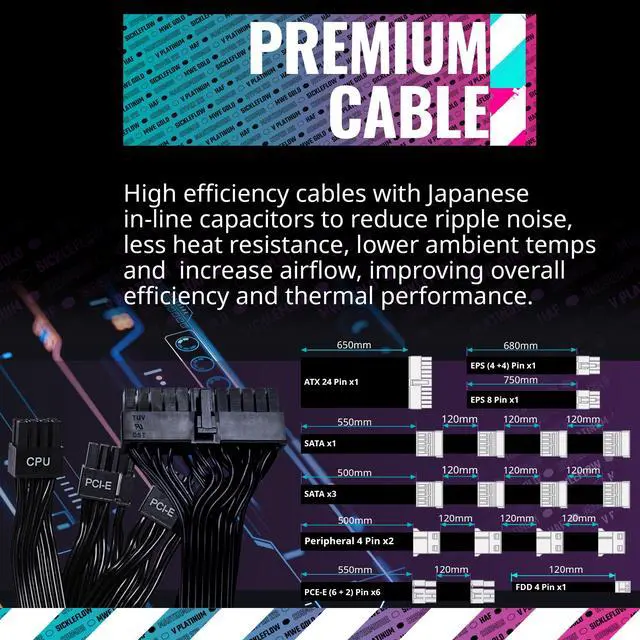

| Connectors | ATX 24 Pin: 1x = 1x (650mm) EPS 4+4 Pin: 1x = 1x (650mm) EPS 8 Pin: 1x = 1x (750mm) SATA: 16x = 3x (500+120+120+120mm) & 1x (550+120+120+120mm) Peripheral 4 Pin: 8x = 2x (500+120+120+120mm) PCI-e 6+2 Pin: 12x = 6x(650+120mm) |
| Dimensions | 7.48 x 5.91 x 3.39" |
|---|---|
| Weight | 7.998 lbs |
| Package Content | V1300 Platinum 30th Anniversary Platinum Connectors Power Cord 4x screws Manuel |
|---|
| First Listed on Newegg | March 29, 2023 |
|---|
