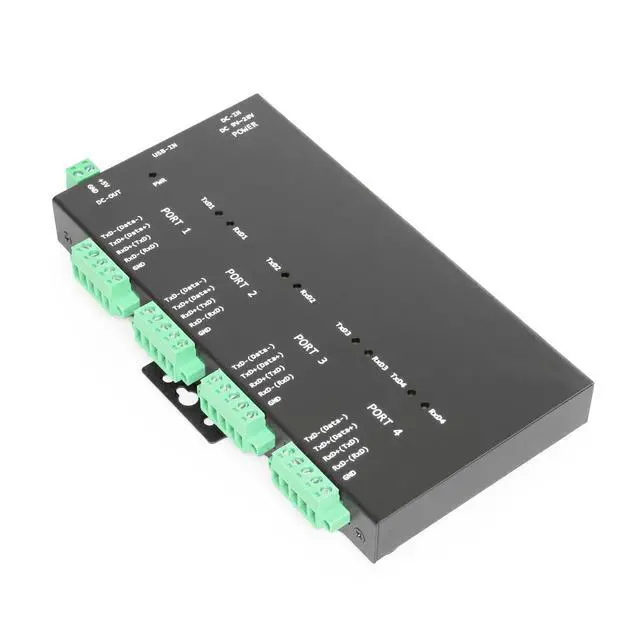

Coolgear 4-Port USB Adapter for RS-232/422/485 via Terminal Block, DIP Switch Configurable, Optical Isolation, Surge & ESD Protection
- [ Versatile Serial Support ] : Add four independently configurable 5-pin screw lock terminal block RS-232/422/485 ports via USB connection - includes DIP switch control for adaptable communication across multiple protocols.

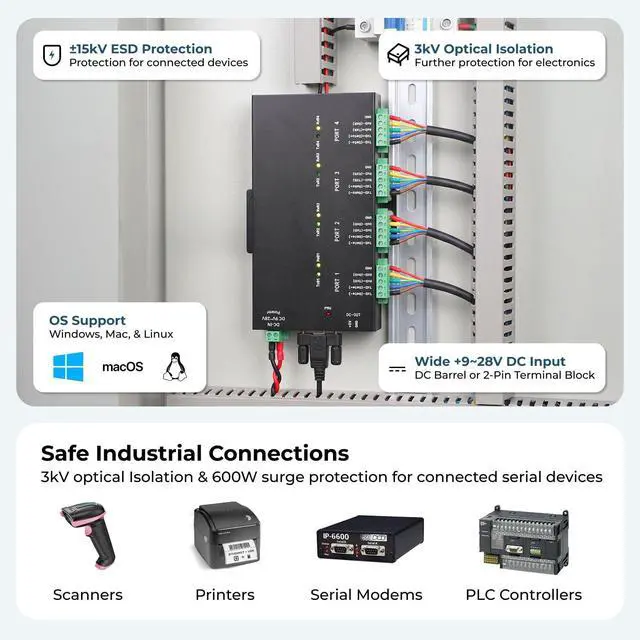

- [ Industrial-grade Protection ] : Each port is safeguarded with 3KV optical isolation, 15KV ESD protection, and 600W surge protection, ensuring safe and stable operation in harsh environments.
- [ Reliable Data Throughput ] : Equipped with 2,000-byte FIFO buffers for both transmit and receive, supporting high-speed data rates up to 921.6K bps.

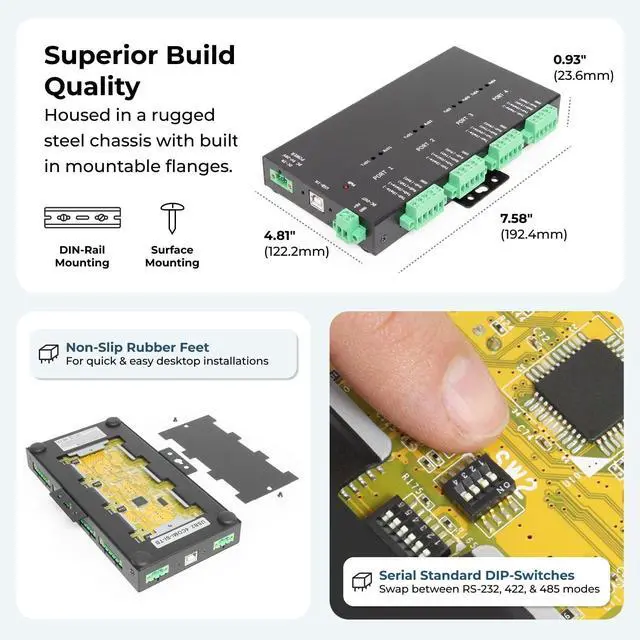

- [ Rugged Construction ] : Housed in a durable steel chassis with mountable flanges, perfect for installation in labs, factories, or embedded industrial systems.
- [ Flexible Power Options ] : Powered by a 12V/1A adapter or terminal block connection, offering deployment versatility in various setups.
- [ OS Compatibility and COM Retention ] : Virtual COM port drivers are available for Windows 11, 10, 8.1, 8, 7, Vista, 2003, 2000 to support port assignment retention across reboots.
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

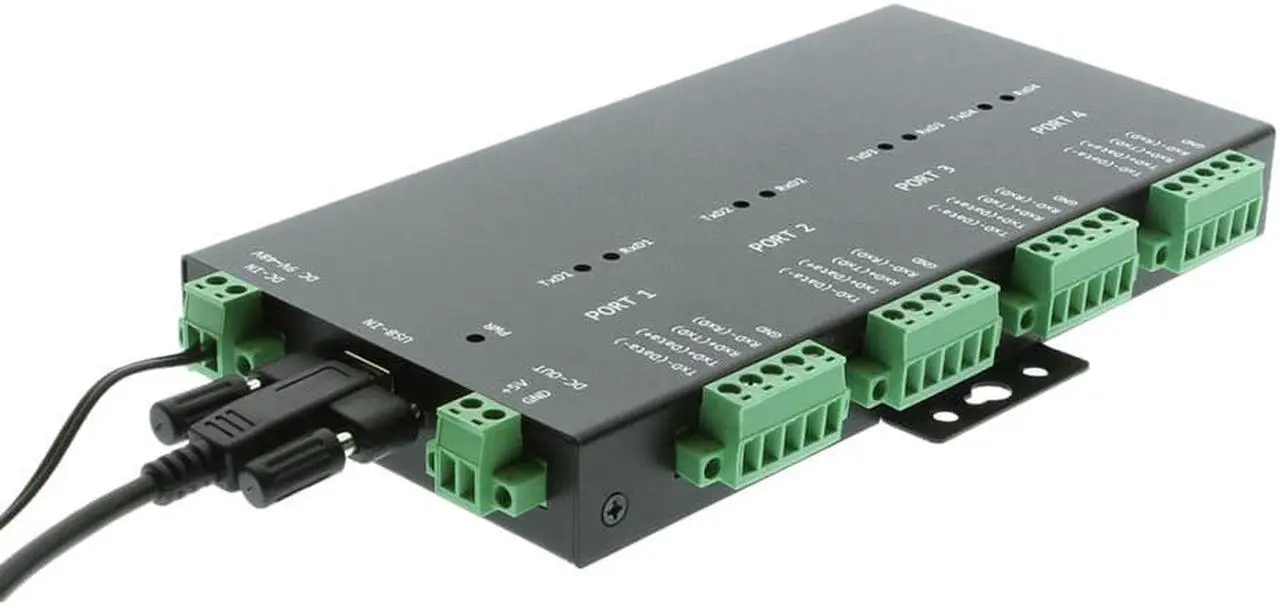

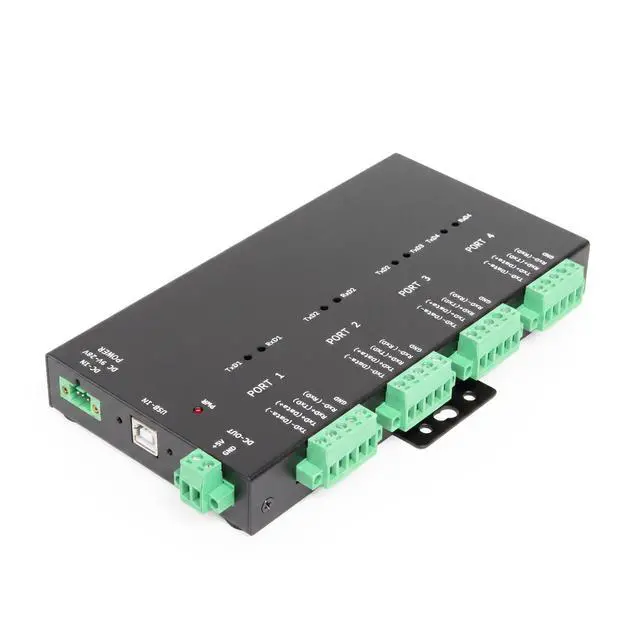

4 optically isolated and surge protected terminal block ports
USB 2 to 4-port industrial serial adapter that protects you device(s) with optical Isolation, 15KV ESD protection and 600W surge protection over each port. It is designed to make RS-422 and RS-485 serial port expansion quick and easy.
Very easy to add 4 protected industrial communication ports to your system though its terminal block interface with DIP switch controls.
Features:
- Supports USB 1.1 and USB 2.0 transfer speeds from 1.5 up to 480 Mbps, automatic link and speed detection.
- Adds four high-speed RS-232/422/485 serial ports via USB connection.
- 2K byte receive buffer.
- 2K byte transmit buffer for high speed data throughput.
- Requires no IRQ, DMA, I/O port.
- Data rates: 300 bps to 921.6K bps.

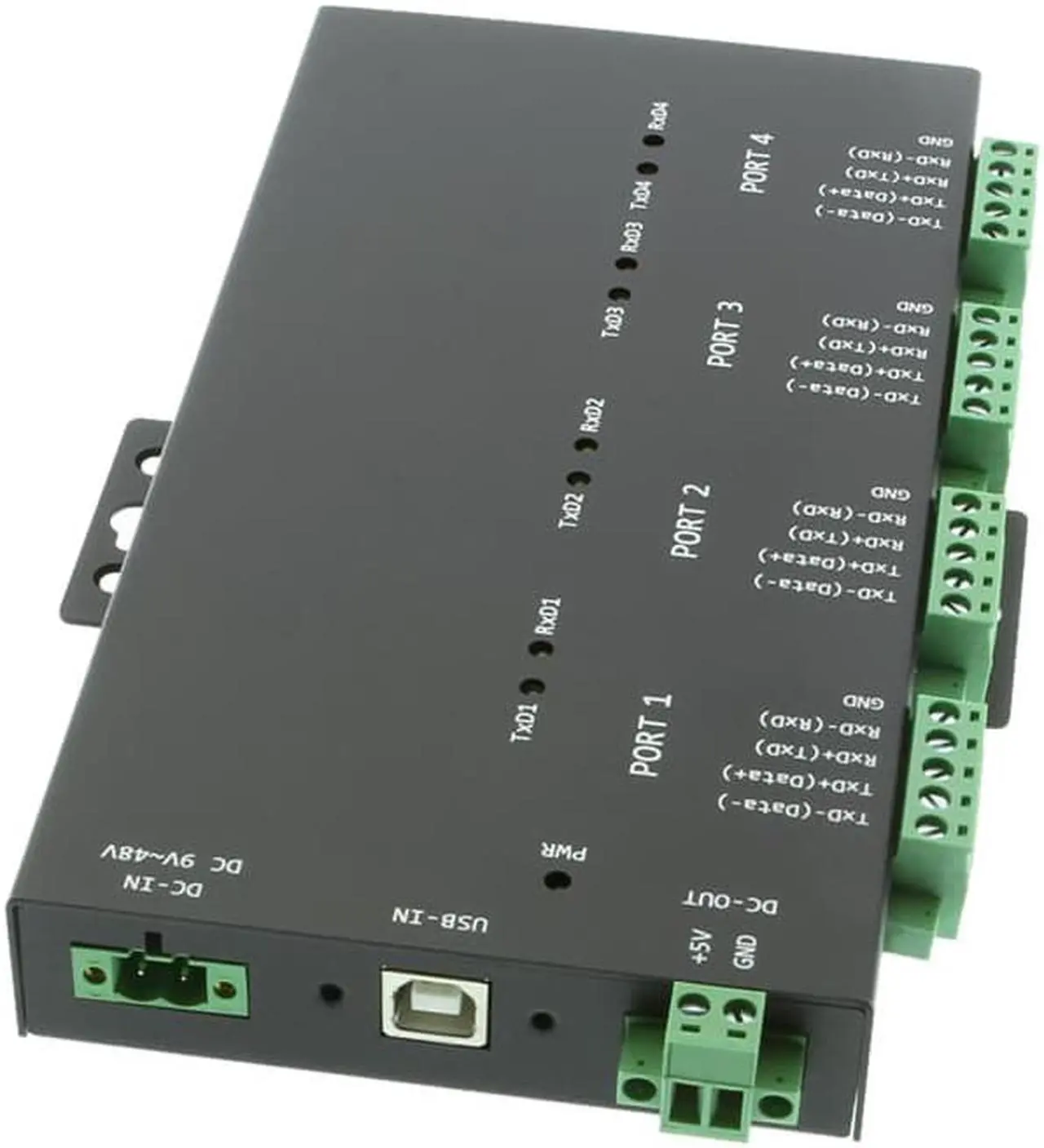

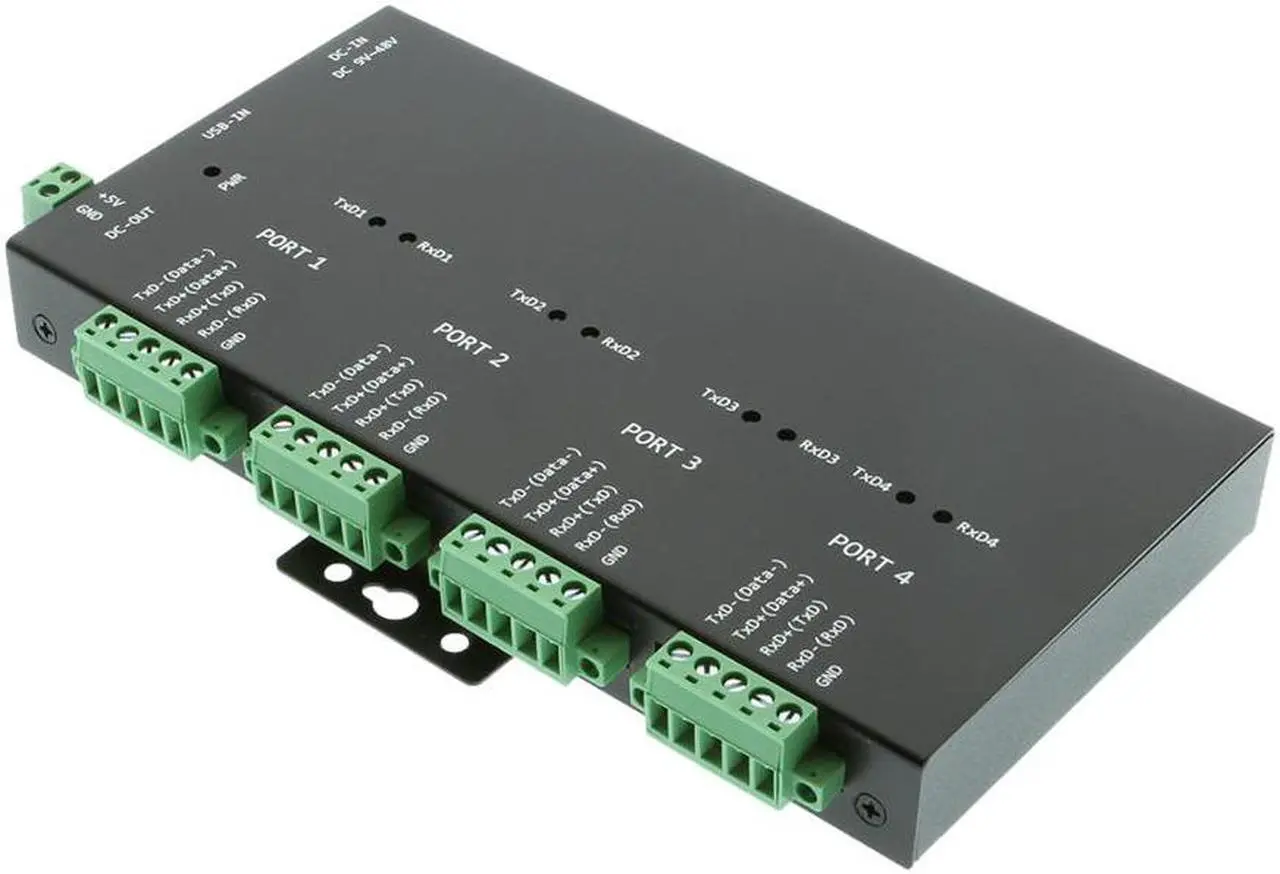

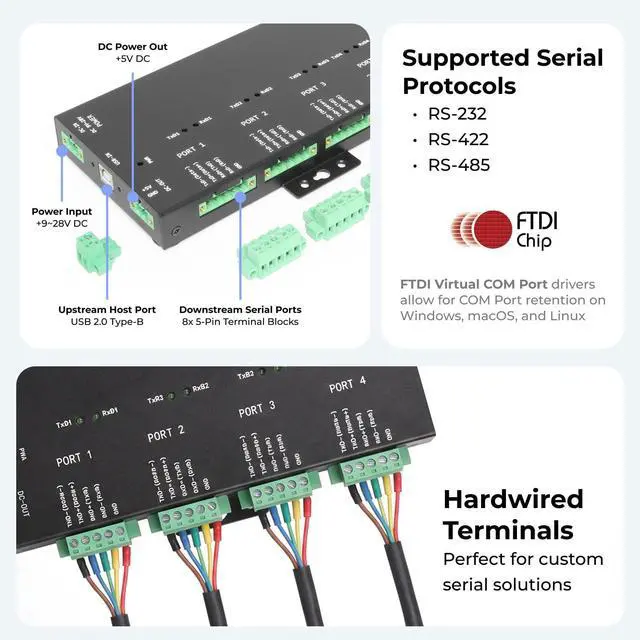

- Each serial port supports 5-pin screw-lock-type terminal block connector.
- Auto-transmit buffer control for 2-wire RS-485 half-duplex operation.

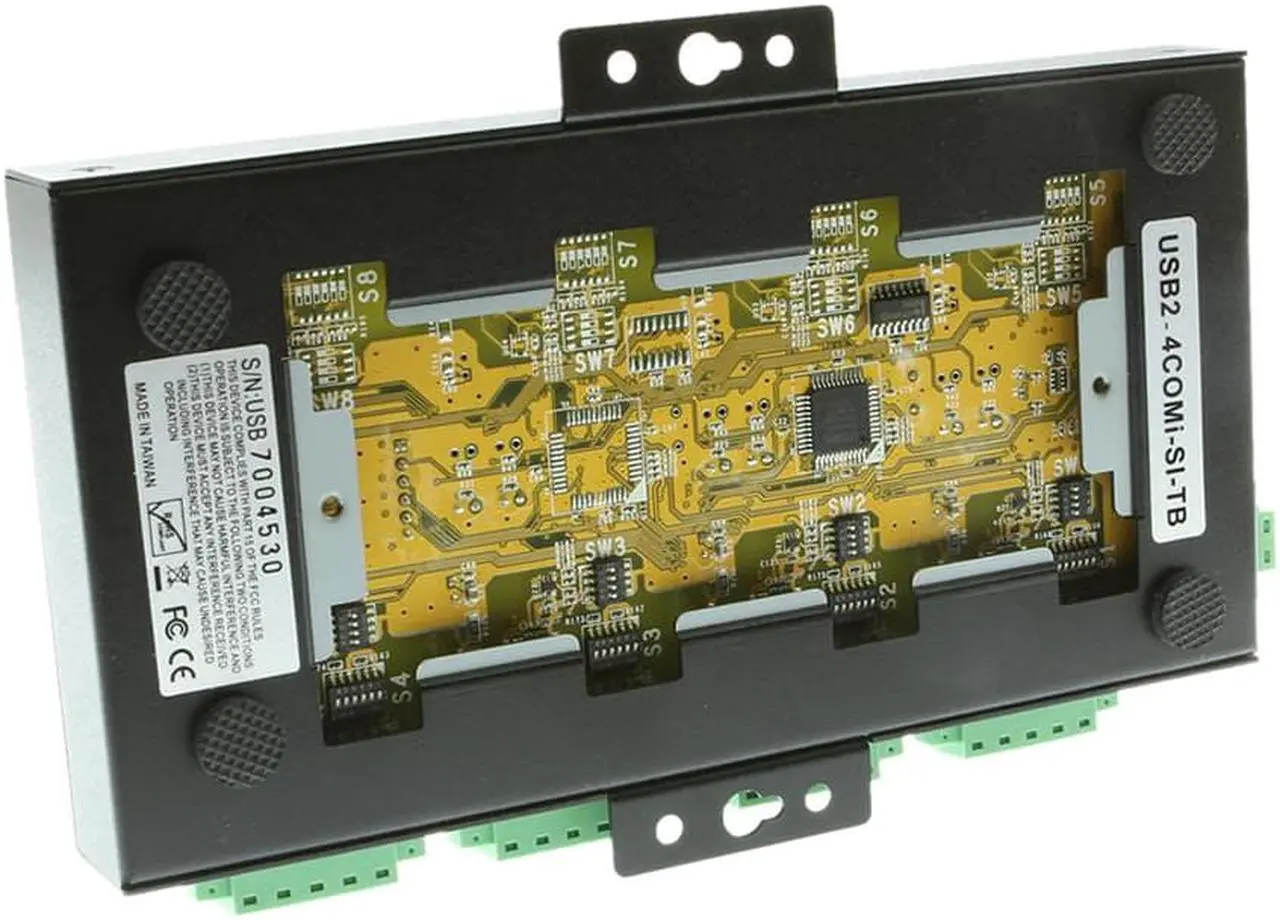

- Biasing and Termination resistors installed on-board.
- Supports RS-232 3-wire signals: RxD, TxD, GND
- Supports RS-422, RS-485 4-wire signals: TxD-, TxD+, RxD+, RxD-
- Supports RS-485 2-wire signals: data-, data+
- Monitor LEDS of TxD, RxD indicating port status
- AC to DC-12V, 1A switching power supply included
- Supports 3KV optical Isolation, 15KV ESD protection and 600W surge protection
- Virtual COM port drivers available for Windows 10, 8.1, 8, 7, Vista, 2003, 2000

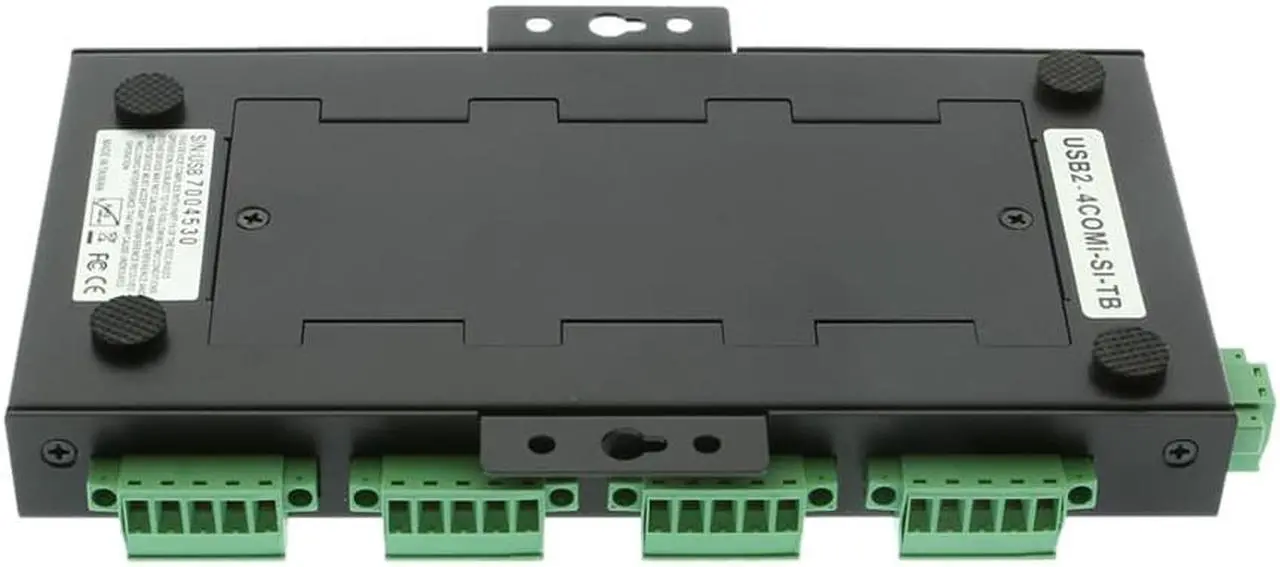

- Industrial grade metal case with DIN-rail ears for Din-rail mounting.
- Chipset: FTDI FT4232H USB 2.0 to quad UART chip
- Dimensions: 192.42 x 122.22 x 23.60 mm (L×W×H), dimensions are to DIN rail(W), to power plug(L)

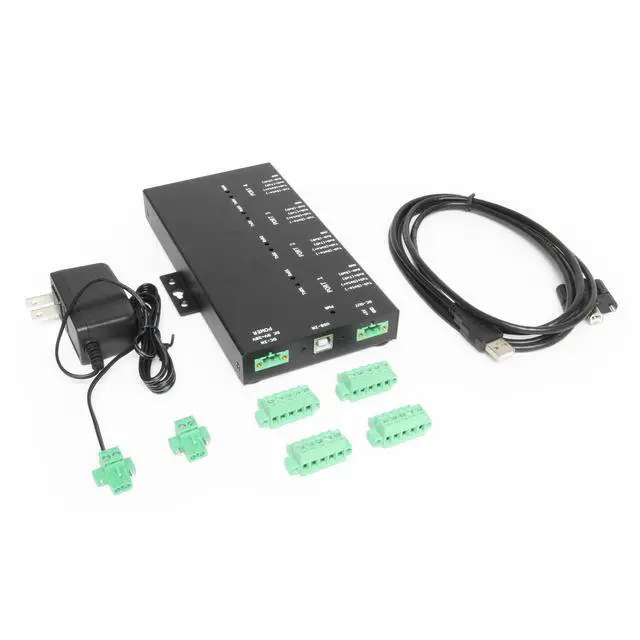

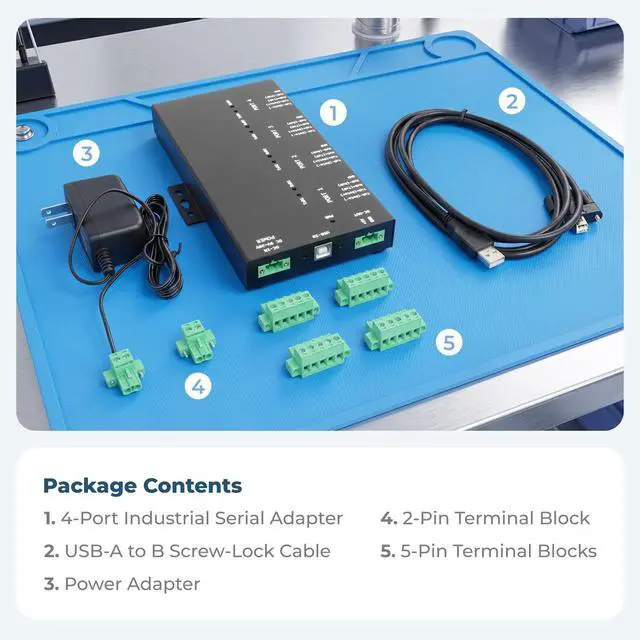

Package Contents:
- USB2-4COMi-SI-TB serial adapter
- Power adapter
- USB cable
