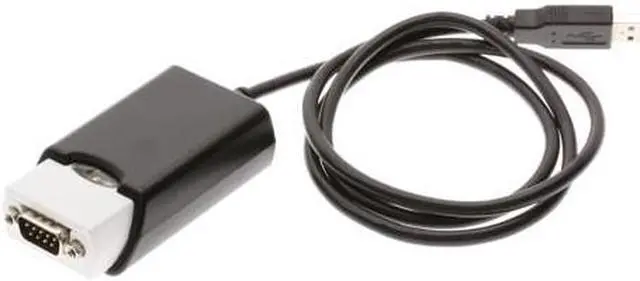

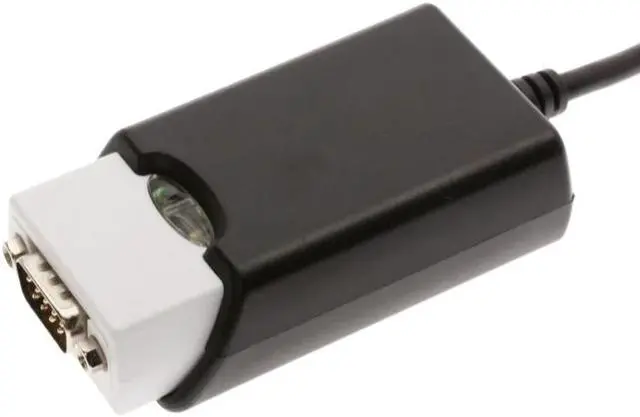

Coolgear Industrial Professional USB Serial Adapter RS232 FTDI with 5Volt Out - USBG-COM-X

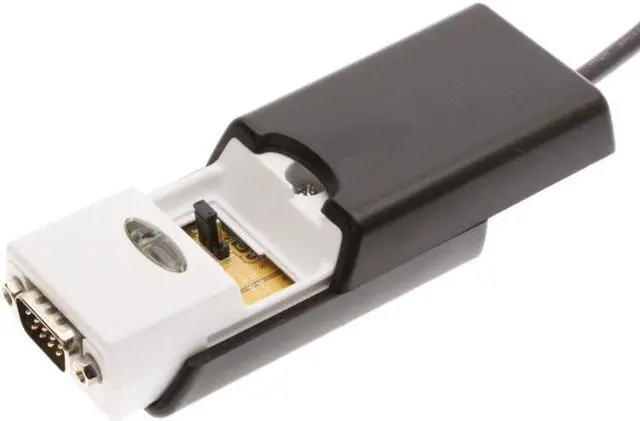

USB Serial Adapter RS232 with 5Volt Output Option on Pin9 Selectable Via Jumper, Great for Barcode Scanners and POS devices. FTDI Chip with Windows 7 Drivers Supports Windows 7 and Vista (32 and 64-Bit) Install as a standard Windows COM port, Full RS-232 modem control signals, RS-232 data signals; TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND. This USB to Serial converter allows you to connect a RS-232 serial device such as a modem to a USB port on your Desktop or Laptop PC.

Connect most Serial Devices to a USB Port. Data and Status LED Plug & Play Bus Powered The Ultimate USB Serial Adapter PC/MAC/Linux Fully RoHS compliant and is CE and FCC approved. Virtual COM port (VCP) drivers cause the USB device to appear as an additional COM port available to the PC.

RS232 DB9 male port Speed up to 921.6kbps no external power supply Overview Serial ports on USB allow further use of existing devices, even when the computer doesn't offer serial ports. The high speed serial port with the 128 byte FIFO allow high speed communication, even in heavy loaded systems. Unique features reduce the system load. The serial port also allows unusual speed settings like 500,000bps.

Hardware Specifications

• Ports: One RS232 port Speed up to 921.6kbps
• RS232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• Power: USB bus powered, no external power supply
• Connectors: one DB9 male

Features

• Over 500 kbps Data Transfer
• Works with Modems, PDAs, Cell phones, Digital Cameras and more serial legacy devices
• Features industry standard FTDI logic board for compatibility
• Baud rate from 9600 baud to 920Kbps
• No IRQs to assign, NO IRQ Conflicts
• LEDs for transmit and receive between devices
• Compatible with: Windows 98, 2000, ME, XP / MAC 8.6, 9.0, 9.1/Linux
• Operating Temperature 15 C ~ 55 C
• Storage Temperature -5 C ~ 75 C

Package Contents

• Adapter
• USB cable 0.25m
• CD, English Documentation
