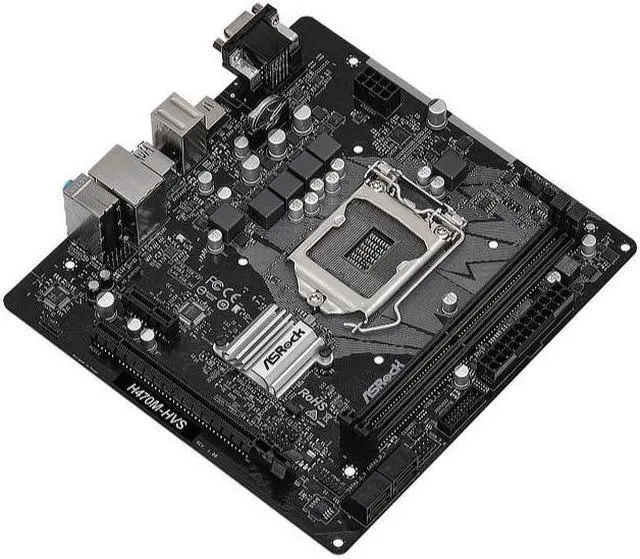

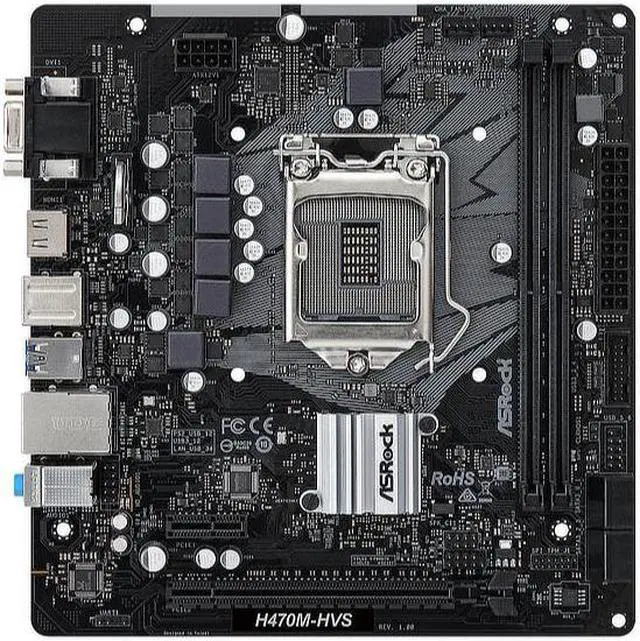

H470M-HVS LGA 1200 Intel H470 SATA 6Gb/s Micro ATX Intel Motherboard
- Supports 10th Gen Intel Core Processors (Socket 1200)
- Supports DDR4 2933MHz
- 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, D-Sub
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 SATA3
- 4 USB 3.2 Gen1 (2 Front, 2 Rear)
- Chipset Intel H470
- Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory (more details in specification)
- Max. capacity of system memory: 64GB (based on system)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Supported CPU
CPU Socket Type LGA 1200
CPU Type Supports 10th Gen Intel Core Processors
Supported CPU Technologies Turbo Boost Technology 3.0
Chipsets
Chipset Intel H470
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard DDR4 2933 / 2800 / 2666 / 2400 / 2133 * Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16 * Supports NVMe SSD as boot disks.
PCI Express x1 1 x PCI Express 3.0 x1
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC897
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek RTL8111H
Max LAN Speed 1Gbps
Rear Panel Ports

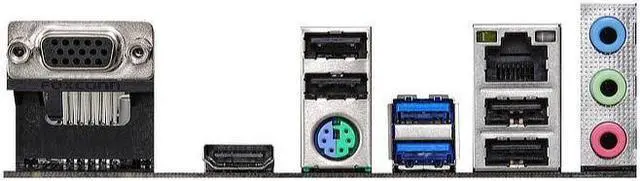

Back I/O Ports 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 4 x USB 2.0 Ports (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and
SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) ** 1 x Front Panel Audio Connector * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 7.8" x 7.4"
Power Pin 1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
Windows Compatibility
Windows 11 Supported

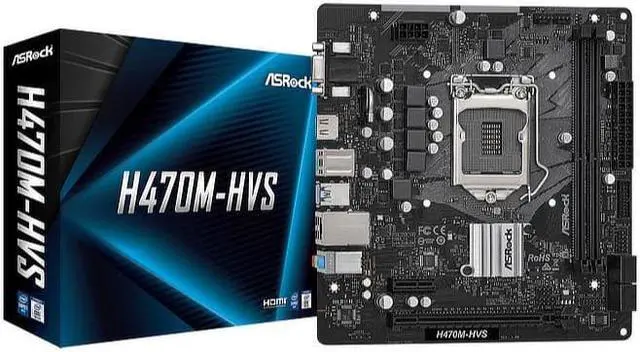

Package Contents Accessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables
CPU Socket Type LGA 1200
CPU Type Supports 10th Gen Intel Core Processors
Supported CPU Technologies Turbo Boost Technology 3.0
Chipsets
Chipset Intel H470
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard DDR4 2933 / 2800 / 2666 / 2400 / 2133 * Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express 3.0 x16 * Supports NVMe SSD as boot disks.
PCI Express x1 1 x PCI Express 3.0 x1
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC897
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek RTL8111H
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 4 x USB 2.0 Ports (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and
SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) ** 1 x Front Panel Audio Connector * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 7.8" x 7.4"
Power Pin 1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
Windows Compatibility
Windows 11 Supported
Package Contents Accessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables
