If you're looking for a power supply to feed your hungry system, look no further. The new TX850W PSU from Corsair puts out an impressive 850 watts of power and supports the latest ATX12V v2.2 standards as well as EPS12V 2.91 standards. The unit is 80 Plus certified and has a 99% Active Power Factor Correction to ensure maximum efficiency.

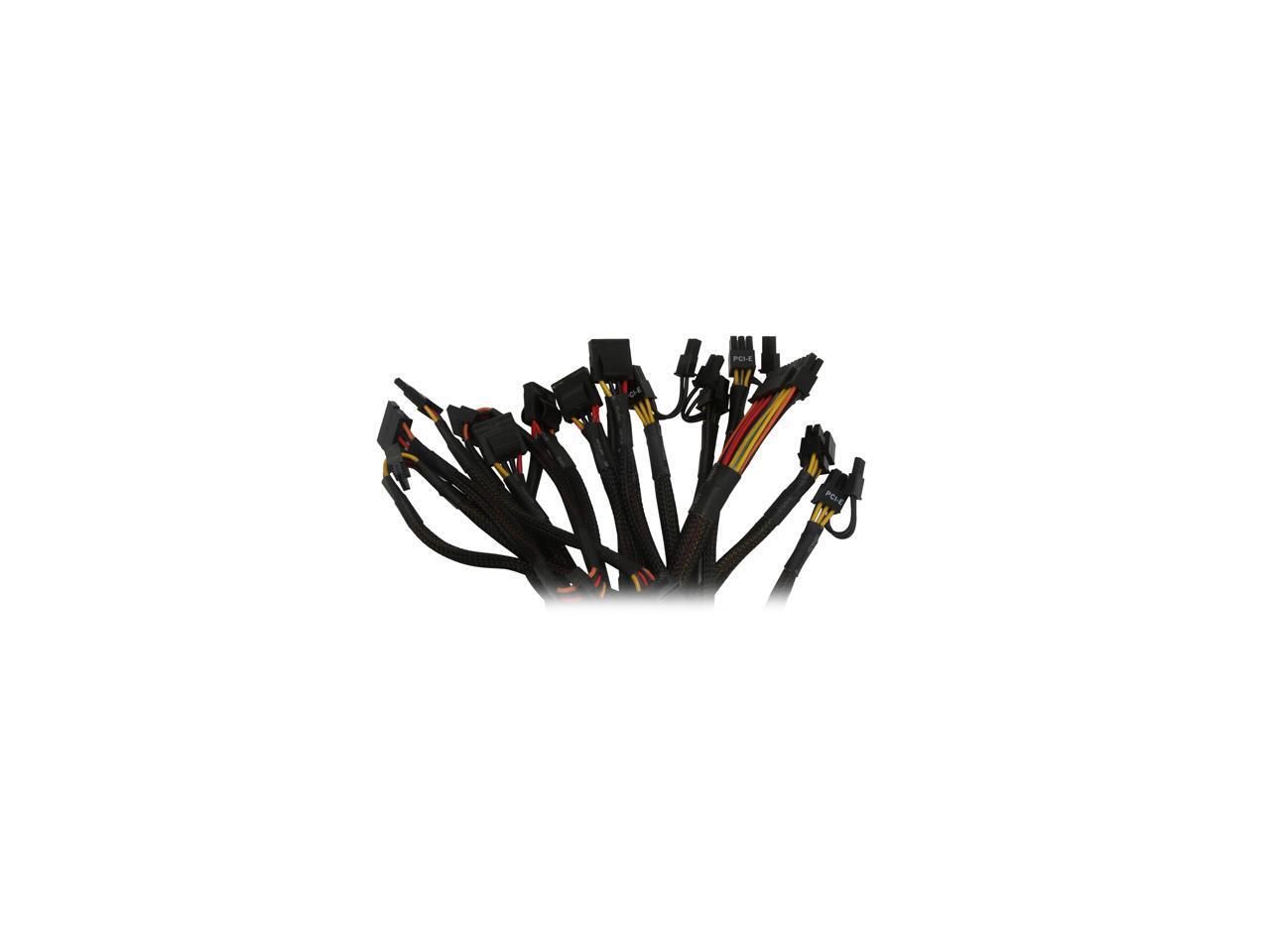

The cables are extra long to work in the largest tower. They are fully sleeved for easy routing and bundling. There are four 8-pin PCIe power connectors so you can build up a CrossFire or SLI system using today’s high end video cards. There are also 8 SATA and 8 Molex connectors so you can connect multiple drives and peripherals.

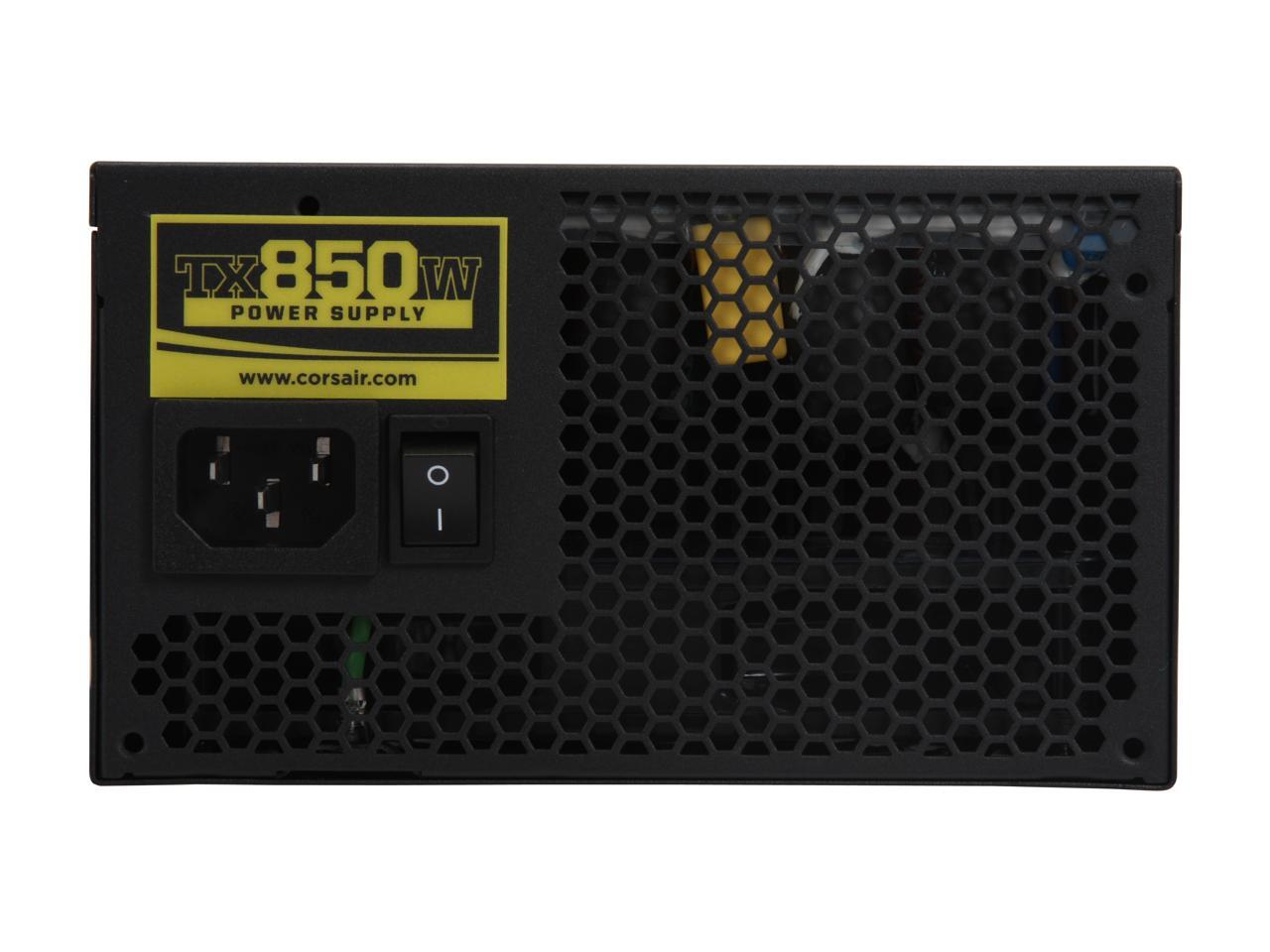

Keeping it all cool is a temperature-controlled 140mm fan. Air is vented through the hexagon mesh back panel. The universal input accepts voltages from 90-264 so you no longer have to worry if the switch was in the right position.
ATX12V and EPS12V CompatibleCompatible with the ATX12V v2.2 and EPS12V v2.91 standards, the Corsair CMPSU-850TX provides maximum power stability to drive the latest Intel and AMD processors as well as other components for desktop and server computer systems.
850W Maximum PowerThe Corsair CMPSU-850TX provides a maximum power of 850W for a safe, reliable output for high-end computer systems.
80 PLUSCertifiedThe 80 PLUS certified power supply provides high power efficiency of at least 80% at any load between 20% and 100%, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
Four PCI-E ConnectorsWith four 6+2-pin PCI-E connectors, the Corsair CMPSU-850TX is ideal for building up a SLI or CrossFire gaming system.
140mm Silent Cooling FanThe Corsair CMPSU-850TX features a 140mm thermally controlled fan for increased overall airflow and heat dissipation in the power supply enclosure.
Learn more about the Corsair CMPSU-850TX
ATX12V v2.2 / EPS12V v2.91
1 x 140mm double ball-bearing fan
4 x 6+2-Pin
SATA Power Connector
80 PLUS Certified
Over Voltage Protection
100 - 240 V
Input Frequency Range
+3.3V@30A, +5V30A, +12V@70A, -12V@0.8A, +5VSB@3A
5.9"(W) x 3.4"(H) x 6.3"(L)
1 x Main connector (20+4Pin) 1 x 4+4 Pin EPS/ATX12V 4 x PCI-E 2 x Floppy 8 x Peripheral 8 x SATA Power
Supports ATX12V v2.2 standard and older ATX12V 2.01 spec
Ultra-quiet 140mm double ball-bearing fan delivers excellent airflow
80%+ energy efficiency at 20%, 50% and 100% load condition for less heat generation and lower energy bill
99% Active Power Factor Correction provides clean and reliable power to your system
Universal AC input 90~264V automatically scans and detects the correct voltage
Dedicated single +12V rail offers maximum compatibility with latest components
Over Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components.
High quality Japanese capacitors provide uncompromised performance and reliability.
Extra long cables support full tower size chassis.
