Question 1

Should I buy the Corsair SF750 (2024) or step up to the Corsair SF850?

Accepted Answer

Choose the SF750 (2024) if your SFF build has a mid-to-high-end GPU and you want an SFX unit with ATX 3.1 / PCIe 5.x support, strong efficiency, and lower cost than the 850W version. Step up to the SF850 if you want more headroom for higher transient GPU spikes, future GPU upgrades, or sustained power draw closer to the top end of 750W. In practice, the decision is mainly about power margin, because Corsair positions both units in the same 2024 SF family with the same small SFX form factor and modern cable standard.

Question 2

Is the Corsair SF750 (2024) worth buying over an older Corsair SF750 Platinum?

Accepted Answer

Buy the SF750 (2024) if you want native support for newer GPUs and platforms, since the refresh adds ATX 3.1 and PCIe 5.x readiness in the same compact SFX size. The older SF750 Platinum still makes sense if you already own one and do not need the newer power connector standard, because it remains well regarded for quiet operation and strong real-world performance. The main trade-off is modernization versus reuse: the 2024 model is the better fit for a new build, while the older model remains practical for an existing build.

Question 3

Corsair SF600 or Corsair SF750 (2024): which one is the better buy for a mini-ITX gaming PC?

Accepted Answer

The SF750 (2024) is the better buy for most new mini-ITX gaming builds because 750W gives more room for modern GPUs, ATX 3.1 / PCIe 5.x compatibility, and less chance of running near the PSU's limit under gaming spikes. A 600W class SFX unit is still reasonable for lower-power systems, especially if you are using a more efficient midrange GPU and want to control budget. The practical trade-off is headroom: SF600-class units suit tighter power budgets, while the SF750 (2024) is the safer choice for broader GPU compatibility over time.

Question 4

Corsair SF750 (2024) or Corsair SF1000 for a high-end small-form-factor build?

Accepted Answer

Choose the SF750 (2024) if your system fits comfortably within 750W and you want to avoid paying for unused capacity. Choose the SF1000 if you are building around a top-tier GPU, want more upgrade flexibility, or prefer extra overhead for transient-heavy loads in a compact chassis. Reviews and Corsair's own lineup positioning show these models target different power tiers more than different feature tiers, since both belong to the same 2024 SFX family.

Question 5

Corsair SF750 (2024) vs Cooler Master V850 SFX: which is better for portability-focused SFF builds?

Accepted Answer

The SF750 (2024) is usually the better fit when you want a true SFX unit with modern GPU power support and 750W is enough for your parts list. A V850 SFX-class option makes more sense when your build benefits from the extra wattage buffer, especially for more power-hungry GPUs. Community comparisons around SFF builds commonly frame this choice as 750W efficiency and fit versus 850W headroom, so the better option depends on whether compact power planning or extra margin matters more in your case.

Question 6

Is the Corsair SF750 (2024) a good choice for a Mini-ITX or other small-form-factor PC?

Accepted Answer

Yes. This model is a true SFX power supply, so it is primarily suited for Mini-ITX and other cases that specifically support SFX PSUs. It is a strong fit when you want high wattage in a compact footprint. The main compatibility check is case support for SFX, not ATX.

Question 7

Can this 750W SFX PSU handle a high-end gaming build?

Accepted Answer

Usually yes, for many single-GPU high-end builds. A 750W Platinum SFX unit is suitable for compact gaming systems with modern CPUs and one performance GPU, especially when the goal is efficient power delivery in a small case. The trade-off is upgrade headroom: if you expect a very power-hungry GPU or heavier future upgrades, an 850W or 1000W option gives more margin.

Question 8

Can I use the SF750 in a standard ATX case, or is it only for SFX cases?

Accepted Answer

Yes, it can be used in many ATX cases because Corsair includes an SFX-to-ATX adapter bracket. That said, it is not always the best value for a full-size ATX build. In a standard ATX tower, an ATX PSU often gives longer cables, easier routing, and sometimes more watts per dollar. The SF750 makes more sense when you specifically want SFX size or plan to reuse it in a compact build later.

Question 9

Does the SF750 support newer GPUs without needing a bulky adapter?

Accepted Answer

Yes. This 2024 version is ATX 3.0 compliant and PCIe 5.0 ready, and it includes a native 12+4-pin GPU cable. That makes it a better fit for newer graphics cards than older SFX PSUs that rely on adapter dongles. The practical benefit is cleaner cable management in small cases.

Question 10

What is the main trade-off between this SF750 and a similarly rated ATX power supply like a 750W RM-series model?

Accepted Answer

The SF750 prioritizes compact size, which is valuable in SFF builds, but the trade-offs are usually price and cable length. Compared with a similarly rated ATX unit, an SFX model often costs more and may have shorter cables that are ideal for compact cases but less convenient in larger towers. If you are building in ATX and do not need the smaller form factor, a standard ATX PSU is often the more practical choice.

Question 11

Is the 2024 Corsair SF750 a good choice for a modern SFF gaming build?

Accepted Answer

Yes, if you want a compact 750W SFX PSU for a current small-form-factor build. Reddit discussion repeatedly focuses on the 2024 model’s practical upgrades for newer GPUs: ATX 3.x support and an included 12VHPWR cable, which reduces the need for adapters. Based on the product data, it also fits typical SFF priorities: 80 Plus Platinum efficiency, fully modular cables, Zero RPM mode, and a 125 mm SFX form factor. The main limitation is still capacity: 750W is best for efficient high-end builds, not the most power-hungry flagship CPU/GPU combinations.

Question 12

Should I buy the 2024 SF750 over an older SF750 model?

Accepted Answer

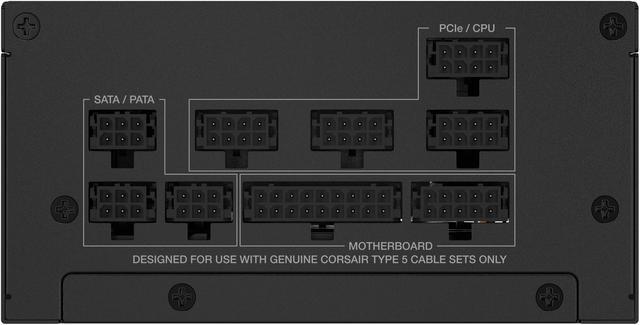

Choose the 2024 SF750 if you want native support for newer GPUs and do not already depend on older Corsair cable kits. Reddit users repeatedly highlight two decision points: the 2024 unit includes a 12VHPWR cable, and it uses newer Type-5 connectors, so older Type-4 Corsair cables are not directly reusable. If you already own custom or replacement Type-4 cables, the older model may be simpler. If you are building fresh with RTX 40-series or later hardware, the 2024 model is the more straightforward option.

Question 13

Who is the SF750 best suited for, and who should skip it?

Accepted Answer

The SF750 is best suited for builders who need a premium SFX PSU for Mini-ITX or other space-constrained systems. Its feature set matches that use case well: SFX size, fully modular design, 92 mm fan, Zero RPM mode, SFX-to-ATX bracket, and 750W output. It is a weaker fit for buyers building large ATX cases, reusing older Corsair PSU cables, or planning very high-power flagship systems where more wattage headroom would be preferable.

Question 14

Can the Corsair SF750 be used in a regular ATX or mid-tower case?

Accepted Answer

Yes, but it is not the most convenient choice unless you specifically want an SFX PSU. The box includes an SFX-to-ATX bracket, so physical installation is supported. The trade-off discussed on Reddit is cable reach: in larger cases, the included short SFX-oriented cables may be tight, especially for the 24-pin motherboard cable and sometimes the GPU cable. It is a better fit in compact builds than in standard mid-towers.

Question 15

What are the main trade-offs of buying the 2024 SF750?

Accepted Answer

The main trade-offs are ecosystem compatibility and fit, not feature count. Reddit discussion repeatedly points to three practical downsides: the 2024 model uses Type-5 cables instead of older Type-4 cables, some users report the newer cables feel less flexible, and SFX cable lengths can be limiting outside compact cases. There are also isolated discussion threads about fan noise, so buyers who are highly noise-sensitive should pay attention to return policy and warranty support rather than assume every sample will behave the same way.

Brand	CORSAIR
Series	SF Series
Model	CP-9020284-NA

Type	SFX
Maximum Power	750 W

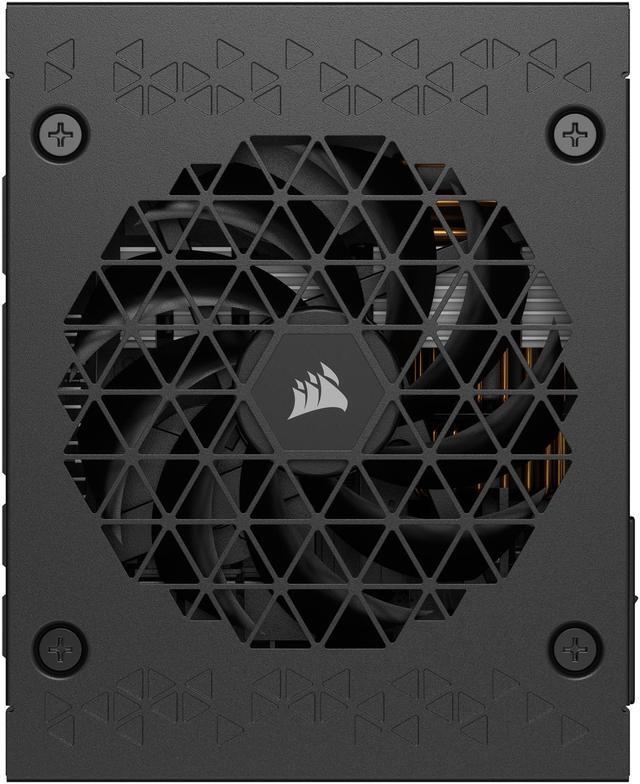

Fans	92mm PWM cooling fan
Max PSU Length	125 mm
Modular	Full Modular
Energy-Efficient	80 PLUS PLATINUM Certified
Input Voltage	100 - 240 V
Input Frequency Range	47 - 63 Hz
Input Current	10A-5A
Output	+3.3V@20A, +5V@20A, [email protected], +5VSB@3A
Connectors	1 x ATX Cable (24-PIN) (24): 300mm 2 x EPS/ATX12V Cable (8-PIN) (4+4): 400mm 2 x PCI-E Cable (8-PIN) (6+2): 400mm 1 x PCI-E Cable (12+4)PIN: 400mm 1 x SATA CABLE (4 Straight SATA): 100mm, 115mm, 115mm, 115mm 1 x SATA CABLE (4 Right SATA): 100mm, 115mm, 115mm, 115mm 1 x PATA-PATA-PATA: 100mm, 115mm, 115mm

Dimensions	4.923.942.50 inch
Weight	2.09 lbs

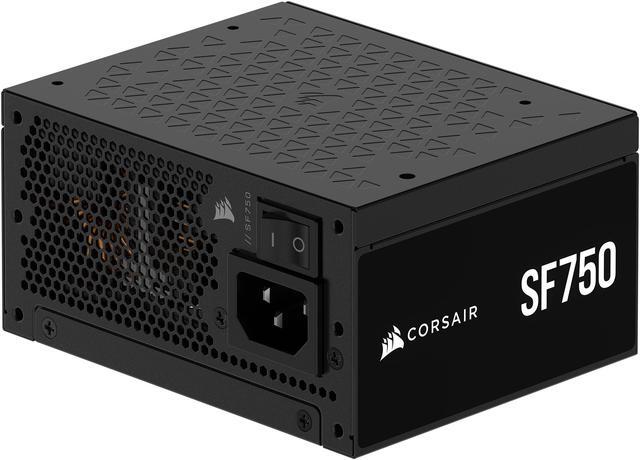

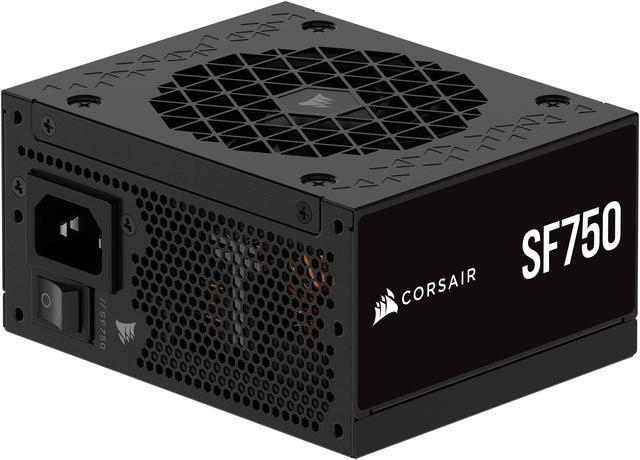

Corsair SF Series (2024) SF750, 80 PLUS Platinum, Fully Modular SFX Power Supply, CP-9020284-NA
