RACKBAR 14OUT RM ETL CSA C22.2

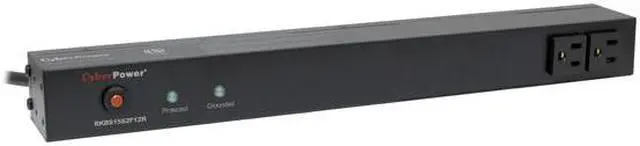

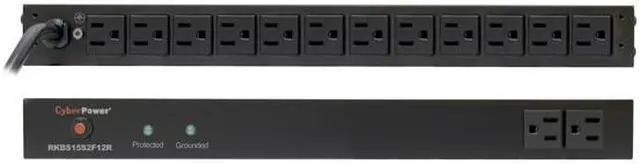

The CyberPower 14-outlet (2 Front and 12 Rear) rack mounted Rackbar surge suppressor (RKBS15S2F12R) provides 120V 15A output and a surge suppression rating of 3,600 joules. It distributes power to 14 NEMA 5-15R receptacles from a single NEMA 5-15P plug. Designed for data centers and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty and $150,000 Connected Equipment Guarantee ensures the Rackbar surge suppressor is free of defects in design, assembly, material or workmanship.
Learn more about the CyberPower RKBS15S2F12R
Model
Brand
CyberPower
Series
Rackbar
Model
RKBS15S2F12R
Details
Outlets
Total: 14 (2 x Front, 12 x Rear)
Outlets Type
NEMA 5-15R
Cord Length
15 ft.
Input Voltage
120V
Voltage Compatibility
120V AC
Output Amperage Capacity
15
AC Suppression Joule Rating
3600 J
Clamping Voltage
400V
Protection Modes
N-H, N-G, H-G
Certifications
UL1363 UL1449 certified by ETL(USA), CSA C22.2(Canada)
Color
Black
Specification
Surge Protection & Filtering Maximum Surge Current: 105,000 amps Maximum Surge Voltage: 6,000 volts Response Time: 1 nanosecond EMI/RFI Filtration: Yes Attenuation: Up to 50 dB
Output / Input LED Indicators: Power On (green) / Grounded (green) Overload Protection: 15A Frequency: 50/60 Hz Plug Type: NEMA 5-15P Plug Style: Straight
Physical Rack Size: 1U Form Factors Supported: 1U rackmount, 0U vertical rackmount, undercounter installation supported Style: Rackmount, Vertical Rackmount, Under-Counter Cord Retention Tray/Cord Organizers: Yes External Site Ground Pin: Yes Material of Construction: Metal Adjustable Mounting Brackets: 2 sets (L-short, L-long)
Environmental Operating Temperature: 32 to 95 degrees Fahrenheit (0 to 35 degrees Celsius) Operating Humidity: 0 to 95% (non-condensing) Storage Temperature: 5 – 113 degrees Fahrenheit (-15 to 45 degrees Celsius) Maximum Operating Elevation: 10,000 ft (3,000 m) Maximum Storage Elevation: 50,000 ft (15,000 m)
Features
Features
Rackbar Surge Protectors are professional-grade rackmount surge protectors designed for the most demanding applications. Available in 15-Amp and 20-Amp models, these surge suppressors safeguard systems and networking equipment against destructive power events that can cause equipment damage and loss of valuable data. Rackbars may be installed vertically or horizontally in racks or under benches. Key features include switch-free design, LED indicators, metal housing, network-grade plugs and outlets, and a long input power cord.
