An entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world
Perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments
Offers snappy reading performance on most 1D bar codes and features a wide scanning angle with an extended scanning line which is perfect for capturing longer and wider bar codes typically found on utility bills and used by manufacturers of electronic parts
Thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance
The Datalogic Aladdin configuration software provides user-friendly features that simplify the start-up procedure, even for inexperienced users
Includes USB Cable (90A052065) - Type A, Enhanced, Straight, Power Off Terminal, 2M (USB Certified)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

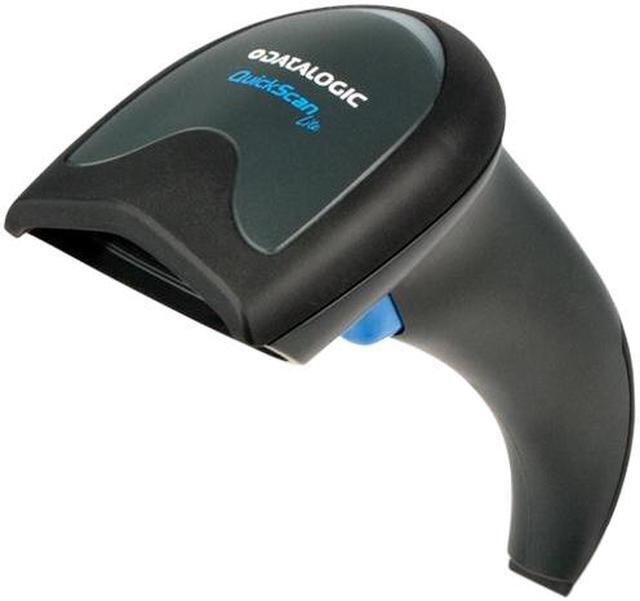

DATALOGIC ADC,QUICKSCAN LITE IMAGER, BLACK, QW2120-BK USB INTERFACE WITH USB CABLE 90A052065
Learn more about the Datalogic QW2100
General
Brand
Datalogic
Series
QuickScan Lite
Model
QW2100
Part Number
QW2120-BKK1
Form Factor
Handheld
Connectivity
Corded
Scan Engine
1D Linear Imager
Connectivity
Included Cables
USB 6' straight cable
Interfaces Supported
USB
Scan Performance
Light Source
Red LED 610-650 nm
Resolution
4 mils
Depth of Scan Field
Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. 5 mils : 2.5 to 15.0 cm / 1.0 to 6.0 in 7.5 mils : 0 to 24.0 cm / 0 to 9.4 in 10 mils: 0 to 35.0 cm / 0 to 13.8 in 13 mils: 0 to 40.0 cm / 0 to 15.7 in 20 mils: 0 to 60.0 cm / 0 to 23.6 in
Pitch
±65 degree
Roll
±45 degree
Yaw
±70 degree
Scan Speed
400 reads/sec
Print Contrast Ratio (Minimum)
25%
Electrical
Input Voltage
5 VDC ± 5%
Current
Operating (Typical): 340 mA 5 VDC Standby/Idle (Typical): 190 mA 5 VDC
Mechanical
Color
Black
Dimensions
6.70" x 2.50" x 2.70"
Weight
0.26 lb.
Features
Features
Decoding Capability
1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes Postal Codes: Australian Post; British Post; Canadian Post; China Post; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional
Environmental
Ambient Light: 100,000 lux Drop Resistance: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface ESD Protection (Air Discharge): 16 kV Humidity (Non-Condensing): 5 - 95% Particulate and Water Sealing: IP42 Temperature Operating: 0 to 50 °C / 32 to 122 °F; Storage/Transport: -40 to 70 °C / -40 to 158 °F
Drop
5 feet
Additional Information
Date First Available
October 14, 2024
