i5 8250U 6 LAN Core i3 8130U 3855U 8550U 1 RS232 COM 4G WiFi Windows Pfsense Sophos Support AES-NI Firewall Router Mini PC

Product Option:Color:4GB RAM 32G SSD,Bundle:I7 8550U WIFI.Contact with us if you need other option.

Product Parameters

CPU

3865U/3867U/3955U3965U/4405U/4415U/I3-7130U/I5-7360U/I7-7660U/I3-8130U/I5-8250U/I7-8550U/I7-8650U

RAM

2*DDR4 2133-2666 memorysupport 64GB of memory

Storage interface

1 x SATAinterface,1 x SSD mSATA interface

Graphics chip

Integrated HD Graphiacs core graphics

Display interface

HDMI display output interface

Front I / O

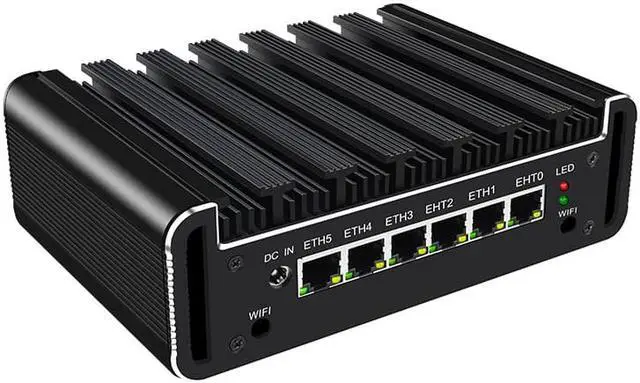

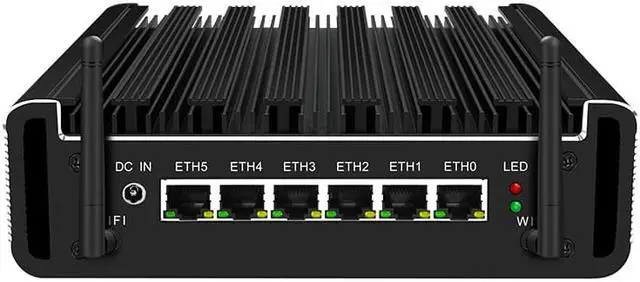

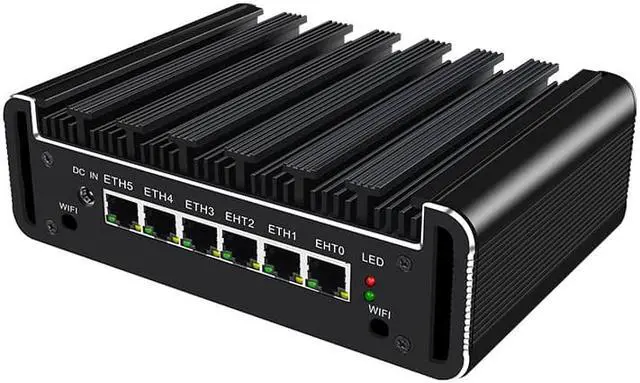

6* Gigabit Lan1*Adapter interface2WIFI antenna hole

Back I / O

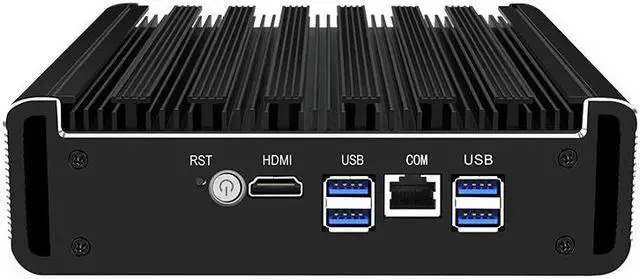

1*Reset button1*Power button1*HDMI4*USB3.01*RJ45 com

Extension port

USB2.0, miniPCie (half-height PCI protocol)

CPU fan

Passive cooling

Power supply

External power supply Delta 12V 4ADC5.5*2.5 interface (optional)

Operating system

Windows,10,Server2012/EXSI/Ikuai/WayOS/Mikrotik/Openwrt/Ubuntu/Centos/Pfsense/Lede/Liunx

Working humidity

0%~60% Non-condensing state

Operating temperature

0°C~60°C

Safety certificate

CE/CCC/FCC Class A/ROHS

Product Size

180*130*55mm(L*W*H)

Net weight of whole machine

1.5kg

Package weight of the whole machine

2kg

Material

Aluminum profile 1 2.5 hard disk bit 7-9MM thickness (optional black, silver, iron gray)

Product List

One host, one power supply, one package of screws, hard disk cable, foot pads, and one set of warranty card certificate

Our service:

1.We can provideOEM/ODMservices .

2.We can sellone samplefor your test .

3.High-quality product and competitive price.

4.1 years Warranty,the second year and the third year,we can repair it .

1.Delivery Time:1 ~ 3 Days for one sample, 4~6 days for a large quantity.
