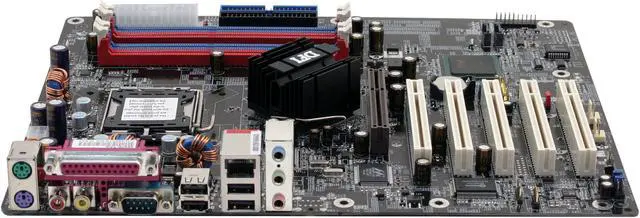

DFI 865PE-TAG LGA 775 Intel 865PE ATX Intel Motherboard
- Intel 865PE
- Pentium 4 Prescott / Celeron D
- DDR 400
Specs
Reviews (14)
Any questions? Our AI beta will help you find out quickly.
Try me now

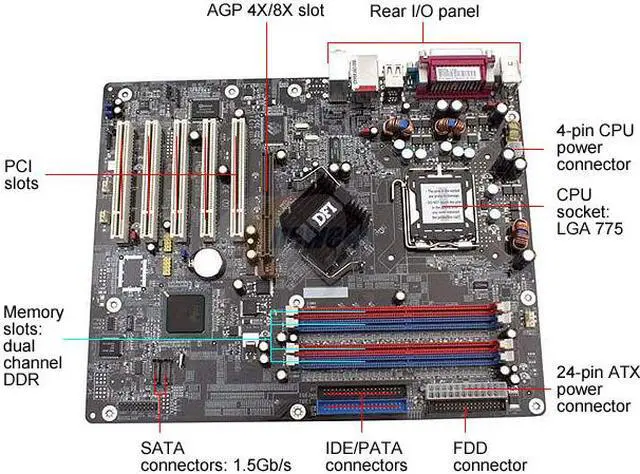

Learn more about the DFI 865PE-TAG
| Brand | DFI |
|---|---|
| Model | 865PE-TAG |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Pentium 4 Prescott / Celeron D |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 865PE |
|---|---|
| South Bridge | Intel ICH5 |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 5 x PCI Slots |
| Audio Chipset | AC97 Codec |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Marvell 88E8001 |
|---|---|
| Max LAN Speed | 1Gbps |

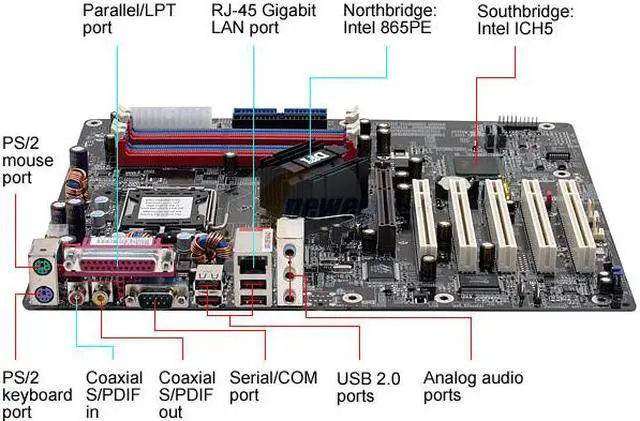

| Back I/O Ports | 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Coaxial |
| S/PDIF In | 1 x Coaxial |
| Audio Ports | 3 Ports |
| Onboard USB | 2 connectors for 4 additional external USB 2.0 ports |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |

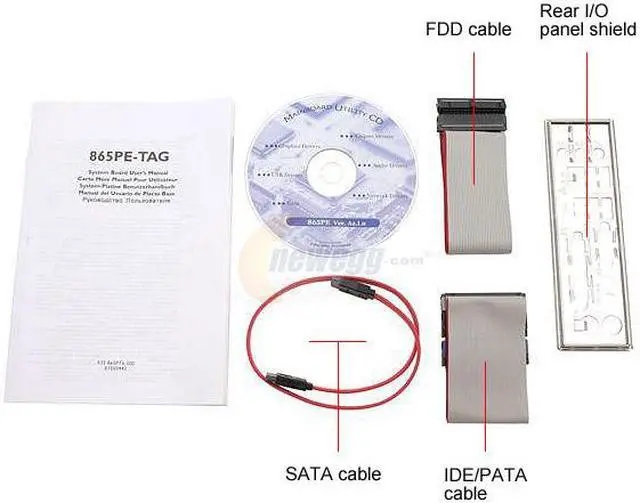

| Package Contents | 865PE-TAG User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable |
|---|
| First Listed on Newegg | March 17, 2005 |
|---|
