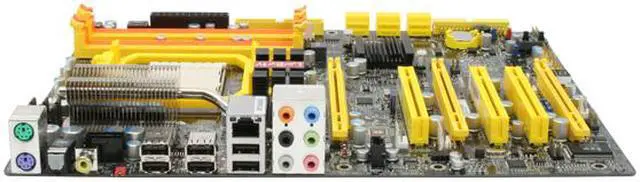

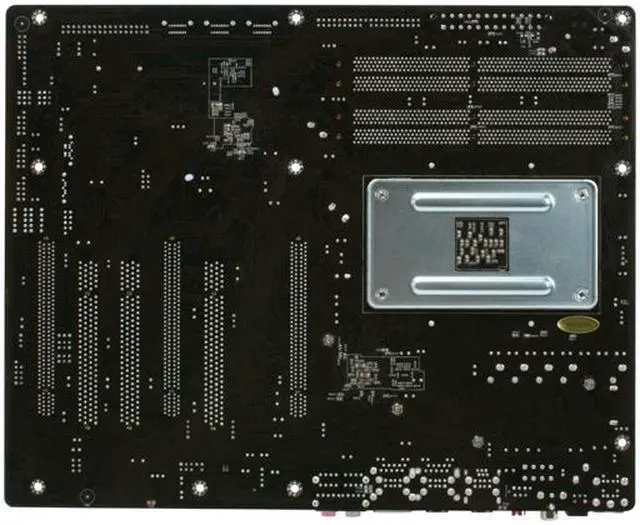

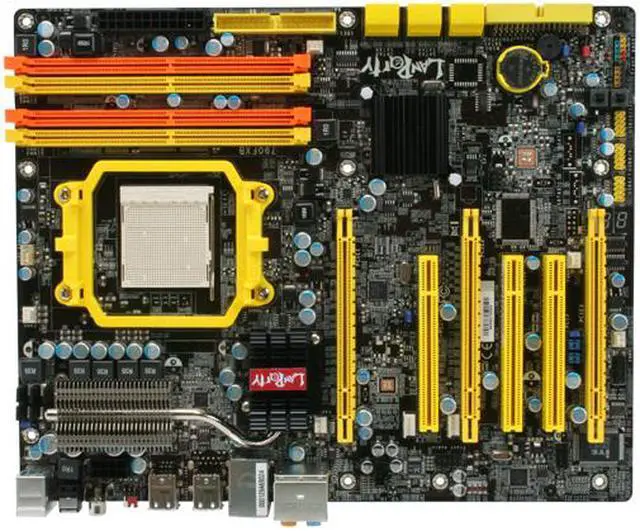

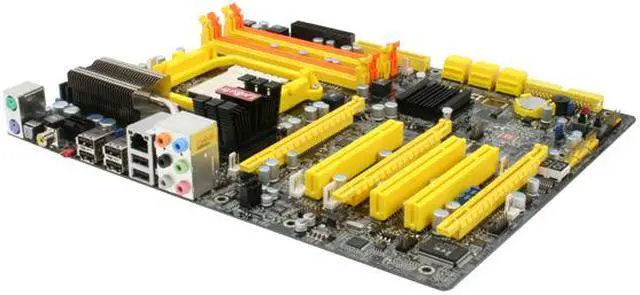

DFI LP DK 790FX-M2RS AM2+/AM2 AMD 790FX ATX AMD Motherboard
- AMD 790FX
- Phenom / Athlon 64 X2 / Athlon 64 FX / Athlon 64
- DDR2 800
Specs
Reviews (218)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the DFI LP DK 790FX-M2RS
| Brand | DFI |
|---|---|
| Model | LP DK 790FX-M2RS |
| CPU Socket Type | AM2+/AM2 |
|---|---|
| CPU Type | Phenom / Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| Chipset | AMD 790FX |
|---|---|
| South Bridge | AMD SB600 |
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 3 PCI Express 2.0 x16 slots - 2-way or 4-way CrossFire at x16/x16/NC bandwidth - 3-way CrossFire at x16/x16/x4 bandwidth - 2-way CrossFire + Physics at x16/x16 bandwidth |
|---|---|
| PCI Slots | 3 x PCI Slots |
| SATA RAID | 0/1/0+1 |
|---|
| Onboard Video Chipset | None |
|---|
| Audio Chipset | Realtek ALC885 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Marvell 88E8053 |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 6 x Audio Jacks / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |

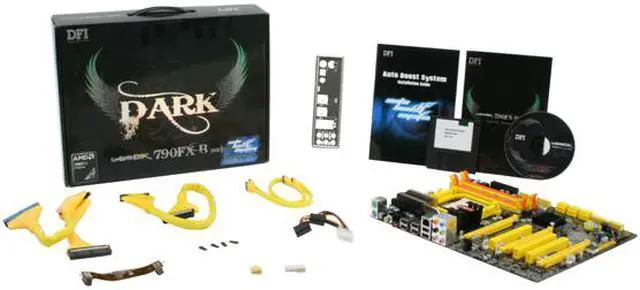

| Package Contents | LANPARTY DK 790FX-M2RS Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable Floppy Drive Diskette SLI Bridge |
|---|
| First Listed on Newegg | February 12, 2008 |
|---|
