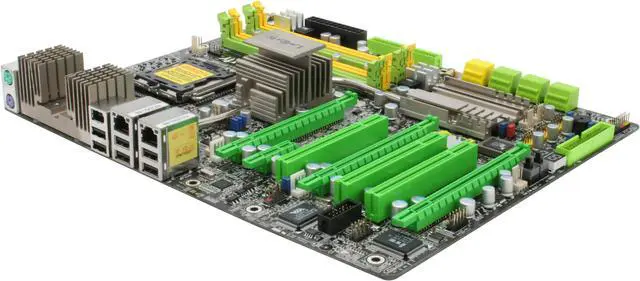

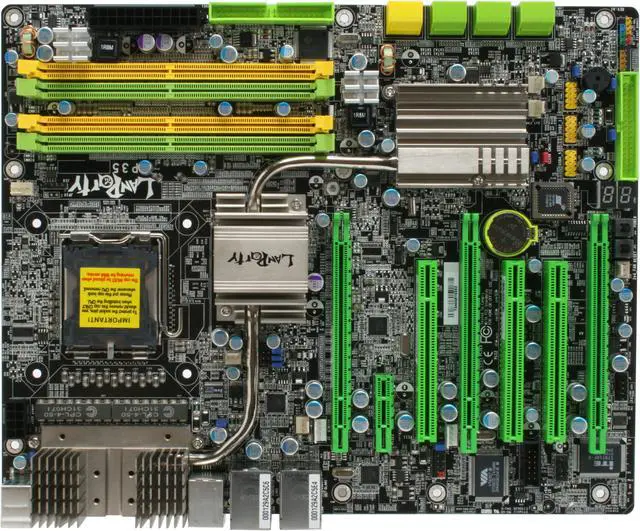

DFI LP UT P35 T2R LGA 775 Intel P35 ATX Intel Motherboard

(75) Write a Review
  • Intel P35
  • Quad-core / Core 2 Extreme / Core 2 Duo / Pentium D / Pentium 4
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (75)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the DFI LP UT P35 T2R

Model
Brand DFI
Model LP UT P35 T2R
Supported CPU
CPU Socket Type LGA 775
CPU Type Quad-core / Core 2 Extreme / Core 2 Duo / Pentium D / Pentium 4
FSB 1333/1066 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
Chipset Intel P35
South Bridge Intel ICH9R
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 3 PCI Express x16 slots (PCIE1 at x16, PCIE3 at x4 or x1 and PCIE4 at x1)
PCI Express x1 1 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/0+1/5 Matrix RAID
Onboard Audio
Audio Chipset Realtek ALC885
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8052
Second LAN Chipset Marvell 88E8053
Max LAN Speed 1Gbps
Rear Panel Ports

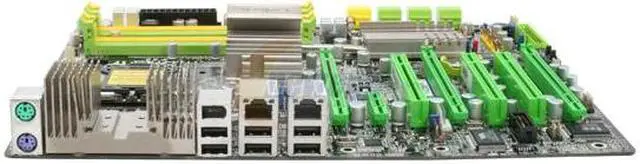

Back I/O Ports 2 x PS/2 / 6 x USB 2.0/1.1
PS/2 2
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging

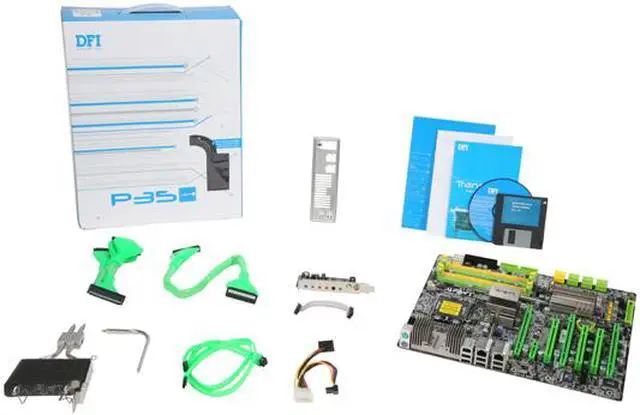

Package Contents LP UT P35 T2R
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
Floppy Drive Diskette
Audio Card & Cable

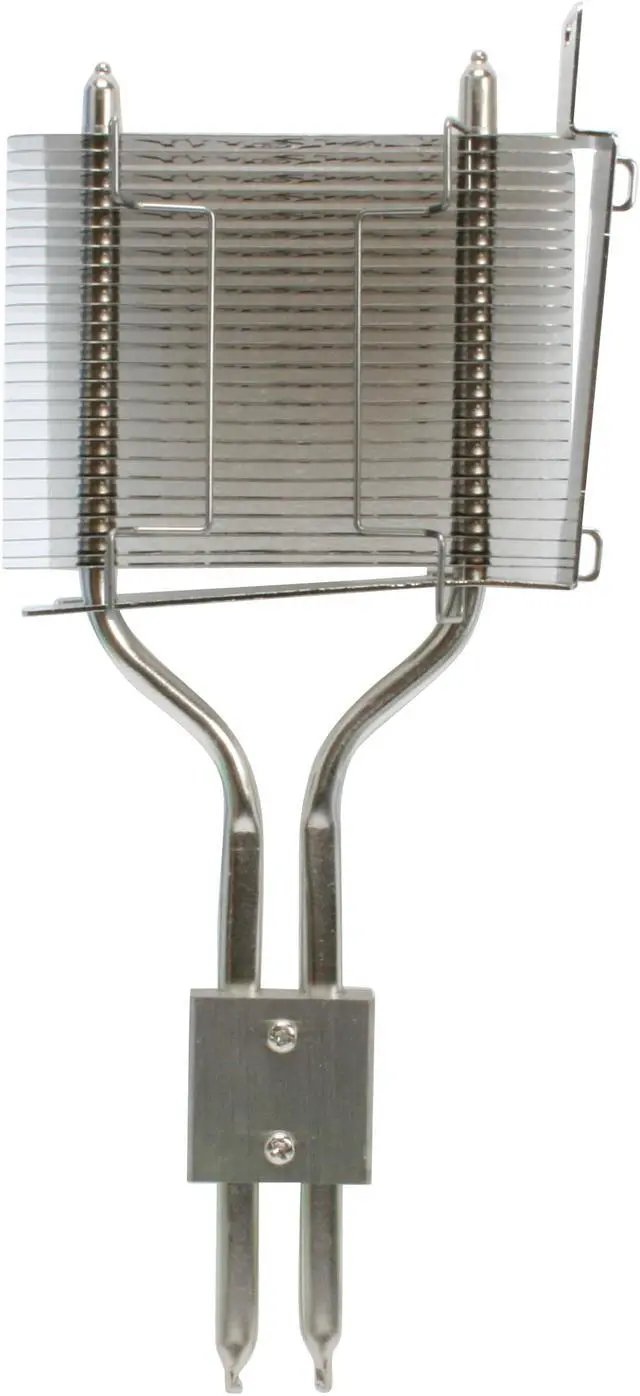

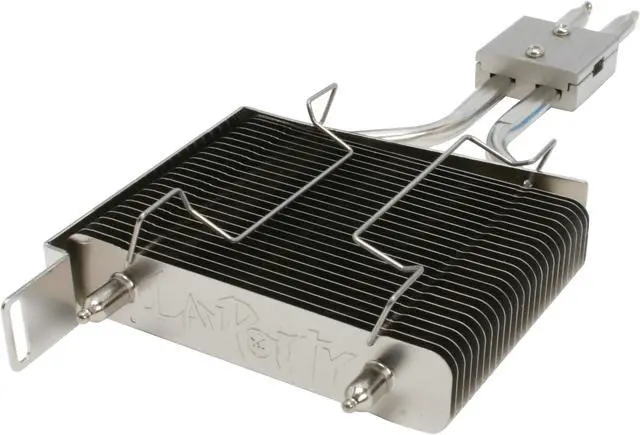

Chipset Cooler
Additional Information
Date First Available August 29, 2007
